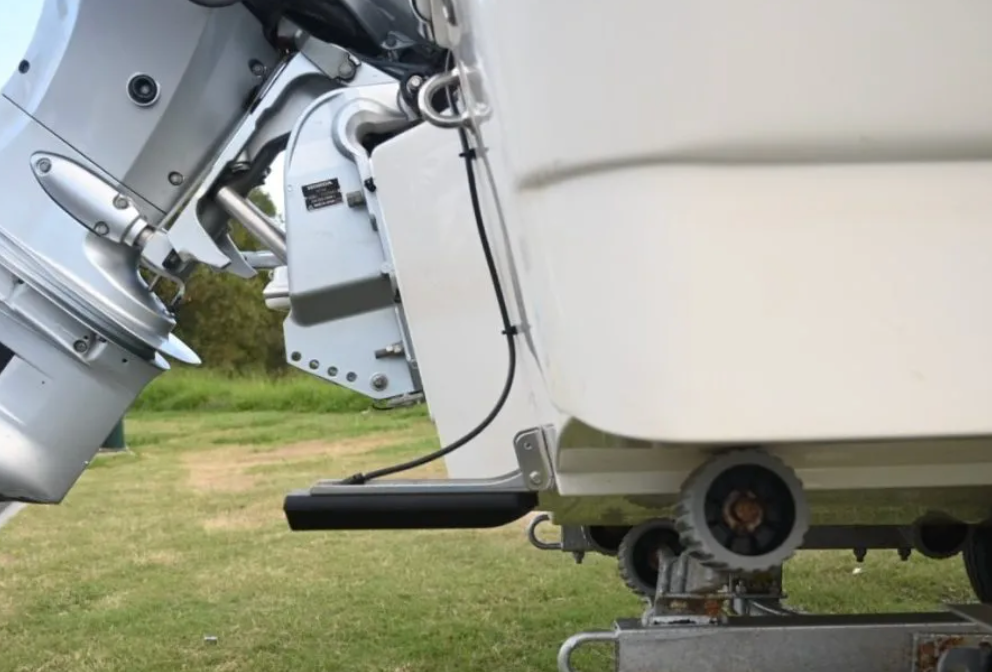

The new fish finder is unboxed, the display is mounted, and now you're staring at a transducer cable wondering where it goes. That's the moment most installations either go really right — or really wrong.
Transom-mount transducers are the most common setup on the water. They ship with virtually every consumer fish finder, they're easy to adjust, and they don't require drilling a hole through your hull. But "easy" doesn't mean "just jam it on the transom and go." A bad mount location will give you garbage readings at anything over 8 mph, and we've seen more than a few expensive sonar units blamed for performance problems that turned out to be pure mounting errors.
This guide walks through the full installation: location selection, bracket mounting, cable routing, connection, and water testing. Follow it and your transducer will be reading clean bottom at 30+ mph.
What You'll Need Before You Start
Gather these before touching anything on the boat:
- Transom-mount transducer (confirm it matches your unit — Garmin, Humminbird, Lowrance, and Airmar all use different connectors)
- Stainless steel screws — usually #10 x ¾" or #10 x 1"; included hardware is fine on fiberglass, but upgrade to 316 SS on aluminum
- Marine sealant: 3M 4200 (not standard silicone — it degrades with UV)
- Drill with ³⁄₃₂" and ½" bits
- Tape measure and pencil
- UV-resistant cable ties (not the $2 bag from the hardware store — those go brittle in one season)
- Grommet or cable gland for any bulkhead penetrations
- A bucket of water if you want to bench test before launching
One thing people skip: check your transducer cable length before routing. Most transom-mount cables run 20 feet. On a center console with a long gunwale run, you might need an extension. Find out before you're halfway through the install. Garmin and Lowrance both make brand-specific extension cables — we carry them, and yes, brand matters here. Browse transducer accessories at NVN Marine.
Finding the Right Location on the Transom
This is where most installations fail. The transducer face needs clean, undisturbed water contact. Turbulence on a boat transom is more complicated than it looks.
Stay clear of the outboard's shadow
The engine creates a cavitation zone — a curtain of air bubbles extending 6–12 inches to each side of the cavitation plate. Mount the transducer at least 12–15 inches from the outboard's centerline. On a single-engine port-helm boat, we almost always go starboard side: it clears the engine, it's out of foot traffic, and cable routing to a console tends to be cleaner.
Avoid strakes and any hull feature that creates airflow
Run a garden hose along the transom while the boat is on the trailer and watch where water flows cleanly. That's your zone. The ridges (strakes) running down many fiberglass hulls shed air at speed. A transducer sitting in that wake will lose bottom at 15 mph, every time.
Depth below the hull matters more than most people think
The transducer face needs to sit ½" to ¾" below the bottom of the hull — not flush, below. The hull creates a surface effect at planing speeds, and a flush-mounted transducer rides in that boundary layer. Measure it. Don't eyeball it.
Mounting the Bracket
Most transom-mount transducers come with an adjustable plastic bracket — the "Skimmer" style on Garmin and Lowrance units, a scupper-style on some Humminbird models. The bracket attaches to the transom; the transducer slides in and is held by a pivot pin that allows depth and angle adjustment.
Mark your holes
Hold the bracket in position — confirm both depth and lateral placement — and mark the screw holes with a pencil. Double-check that those locations avoid any internal structural ribs or wiring runs inside the transom.
Drill pilot holes
For #10 screws into fiberglass, a ³⁄₃₂" bit is right. Go slow. If you're drilling into cored fiberglass (balsa or foam between the skins), stop before breaking through the inner skin. Cored transom is less common on outboard boats, but it happens.
Seal every hole before setting screws
Apply 3M 4200 into each pilot hole and around the bracket footprint before seating the screws. Use 4200, not 5200 — 5200 is permanent and you'll destroy the bracket trying to remove it years later. 4200 seals well, stays flexible, and lets you take the bracket off with a plastic scraper when you want to upgrade. Fill the holes, seat the bracket, snug the screws. Don't overtighten — you're threading into fiberglass.
Let it cure at least a few hours. 4200 achieves working strength within 24 hours. Installing the afternoon before a trip is fine.
Running the Cable
The cable run is the part that looks easy and isn't. You've got 20 feet of cable going from the transom to the display — through the bilge, around corners, possibly through a bulkhead. Do it right and it'll still be clean in 10 years.
No kinks — zero
Transducer cables carry low-voltage analog signals. A kinked or sharply bent cable introduces electrical noise that shows up as interference — random screen lines, false signals, intermittent loss. Keep the minimum bend radius at 2 inches or larger. Route in sweeping curves.
Run it away from power cables
Keep the transducer cable at least 6 inches from any AC wiring, battery cables, or bilge pump leads. Bilge pump and livewell pump motors are particularly bad for transducer interference. If your bilge runs a bundle of DC wire down one side, run the transducer cable down the other side.
Use real pass-throughs
When the cable penetrates a bulkhead, use a marine-rated cable gland — Heyco or Blue Sea Systems make good ones for under $5. Seal around the gland with 4200 at any penetration that could see bilge water or spray.
Secure every 12–18 inches
UV-resistant zip ties or adhesive-backed cable clips. On aluminum boats, use stainless cable clamps at any point where the cable could contact an aluminum edge — raw cable against aluminum will cut through the jacket in a season of vibration.
Connecting to the Fish Finder
Transom-mount transducer connectors are brand-specific: Garmin uses a 12-pin connector, Humminbird uses a 9-pin, Lowrance uses their blue connector. If you're replacing an old transducer on an existing unit, this is straightforward — same connector, plug it in. If you're mixing brands, stop: you need an adapter cable or a compatible transducer.
Don't cut and splice transducer cables. Signal degrades, warranties void, and the splice will introduce exactly the kind of noise you spent all this time routing the cable away from.
Seat the connector fully and secure the locking collar. On Garmin units there's a positive click. On Lowrance the collar threads down. On Humminbird there's a locking tab. If the connector isn't fully seated, you'll get intermittent signal loss at speed — which you'll blame on the mount position when it's actually just a loose plug.
Water Testing and Fine-Tuning
Dock-side first. Power up the unit, pull up the sonar screen, and you should see bottom within a second or two. If you're in 6 feet of water, it should read 6-something feet. Reading 0 or garbage? The connector isn't fully seated — check it before anything else.
Set your depth offset
The transducer face sits below the waterline — typically 1–2 feet on a trailered outboard. Set this as your keel offset in the unit's setup menu so displayed depth reads from the surface (most anglers) or from the keel (some offshore navigators). The procedure varies by brand; it's in the setup or installation menu of any modern fish finder.
The real test is on plane
Find a clean area in 15–20 feet of water and push to 20 mph, then 25, then 30 while watching the sonar. You want maintained bottom lock throughout the speed range.
- Losing bottom between 15 and 20 mph: Aeration. Lower the transducer ¼" below the hull and re-test.
- Losing it above 25 mph on a V-hull: Check tilt angle. The bracket should hold the transducer parallel to the hull bottom. On hulls that run bow-up at speed, tilt the transducer face forward a few degrees to compensate.
The Garmin GT series adjusts ±10°. Do this in small increments and re-test after each change.
For reference on which transducer types give the best performance at speed, check our Marine Transducer Buyer's Guide — the CHIRP vs. traditional sonar section covers why frequency choice affects high-speed performance.
Comparison: Transom Mount vs. Other Options
| Factor | Transom Mount | Through-Hull | In-Hull (Shoot-Through) |
|---|---|---|---|
| Installation complexity | Low | High | Medium |
| High-speed performance | Good (if mounted correctly) | Best | Good (solid glass only) |
| Hull integrity risk | Minimal | Moderate | None |
| Adjustability | Yes — depth & angle | No | No |
| Best for | Most outboard boats | Offshore, cruisers | Runabouts, bass boats |
| Approx. install cost | $0 (DIY) | $200–$600+ (professional) | $0–$50 (DIY) |
See the full breakdown in our Through-Hull vs. Transom Mount Transducer guide.
Buying Guide: Choosing the Right Transom-Mount Transducer
Already have a transducer and just needed the install guide? Skip this. If you're shopping, here are the questions that matter:
Does it match your unit's connector?
Non-negotiable. A Humminbird transducer doesn't plug into a Garmin. Buy the transducer specified for your display, or verify adapter cable availability before ordering.
What frequencies do you need?
Standard 200/83 kHz covers most inland fishing to 200–400 feet. If you're running CHIRP (see our CHIRP Sonar Explained guide), you need a CHIRP-capable transducer. If you want live sonar — Garmin Livescope, Humminbird MEGA Live — those use proprietary transducers, not transom-mount compatible in the traditional sense.
What's your hull material?
Fiberglass, aluminum, and composite hulls all work fine with standard transom mounting. Wood transoms need extra sealing and may need backing plates behind the bracket.
Bottom Line
A correctly mounted transom transducer performs as well as an installation twice as expensive. The difference is all in the details: ½" below the hull, 12+ inches from the engine, no kinks in the cable run, sealed bracket holes, and a proper depth offset calibration. Get those right and you'll have clean bottom reading all the way to 30+ mph.
Frequently Asked Questions
What's the best location on the transom to mount a transducer?
The starboard side, at least 12–15 inches from the outboard's centerline, in an area of clean hull with no strakes or lifting stakes nearby. The face should sit ½" to ¾" below the hull bottom — not flush, below. On a single-engine port-helm boat, starboard mount keeps the transducer clear of engine turbulence and out of foot traffic around the motor.
What screws should I use to mount a transducer bracket on an aluminum boat?
Use 316 stainless steel machine screws with nylon lock nuts — not self-tapping screws into aluminum, and not 304 SS, which corrodes faster in salt water than most people expect. Apply Tef-Gel or Lanacote anti-seize compound to the threads to prevent galvanic corrosion between stainless and aluminum. Check and re-torque after the first season.
My transducer reads fine at idle but loses bottom at speed. What's wrong?
Aeration — almost always. The transducer is picking up air bubbles at speed. Most common causes: mounted in a strake turbulence zone, face mounted flush with or above the hull bottom (it should be ½" below), or too much forward tilt on the bracket. Start by lowering the transducer ¼" in the bracket and re-testing. If that doesn't solve it, check whether you're in a strake wash.
Can I extend a transducer cable that's too short?
Yes — with a brand-specific extension cable. Don't splice and rejoin the cable yourself; signal quality drops and the splice joint is a moisture intrusion point. Garmin, Lowrance, and Humminbird all make extension cables for their transducer series. Check our transducer accessories section for your brand.
Do I need to seal the bracket screw holes even if they're above the waterline?
Yes. Screw holes penetrate the fiberglass skin and potentially into a cored transom. Water intrusion into balsa or foam core causes delamination and long-term structural damage — we've seen transoms that need full replacement because someone skipped the sealant. Use 3M 4200, fill every hole before seating the bracket. Don't skip this on solid fiberglass either. Water follows screws.
Will a transom-mount transducer work for shoot-through in-hull mounting?
CHIRP and traditional 200/83 kHz transducers can shoot through solid (non-cored) fiberglass when mounted in a glycerin or mineral oil cup — with some depth performance loss, typically 10–15%. High-frequency transducers (Garmin Livescope, Humminbird MEGA Imaging) will not shoot through fiberglass effectively. For a full breakdown, see our Marine Transducer Buyer's Guide.
