You're anchored on a point you've fished for years. Birds are working 200 yards out. Baitfish are rippling the surface. Your sonar shows... a blob of fuzz sitting at 32 feet. You can't tell if that's a single big fish, a tight school of crappie, or just a thermocline playing tricks. You guess. You move. You find out later somebody loaded up on bass in the exact spot you just left.
If that sounds familiar, you were probably running traditional single-frequency sonar — or a CHIRP unit paired with the wrong transducer. Here's what changes when you get the frequency right.

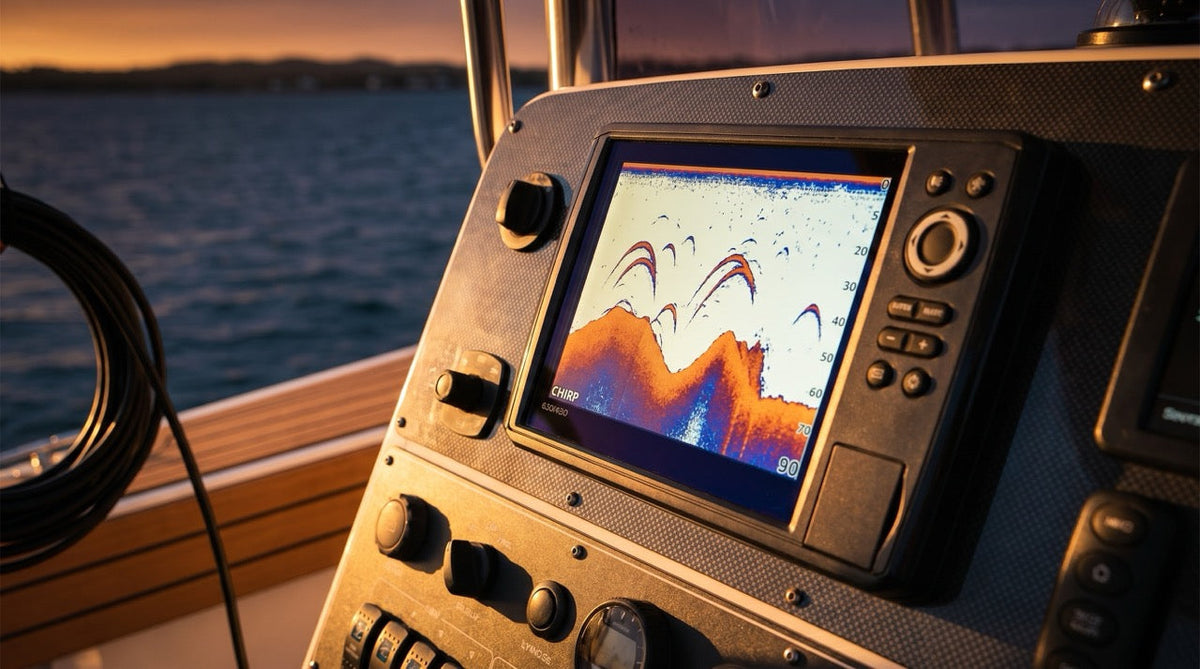

What CHIRP Sonar Actually Is
CHIRP stands for Compressed High-Intensity Radiated Pulse. The name matters because it describes the actual mechanic.
Traditional sonar sends one frequency — say, 200 kHz — as a short burst. It waits for the echo, interprets the return, and moves on. Every ping is identical. The problem is physics: a single-frequency ping has a fixed pulse length, which limits how well the receiver can separate two targets that are close together vertically. Two fish sitting eight inches apart look like one thick arch.
CHIRP sends a continuous sweep across a range of frequencies within a single pulse — for example, sweeping from 150 kHz up to 240 kHz. When the echoes return, the unit uses pulse compression math to reconstruct a much cleaner picture. You get more energy into the water per pulse, better signal-to-noise ratio, and dramatically sharper target separation. Those two fish eight inches apart? Now they're two distinct arches.
This isn't a marketing claim. It's a measurable improvement. Axial resolution — the ability to distinguish two targets stacked vertically — improves by roughly 10x with CHIRP compared to traditional single-frequency sonar.
The Frequency Story: What Low, Mid, and High CHIRP Do Differently
This is where most buying guides stop at generalities. "High frequency = more detail, low frequency = more depth." True but incomplete. Here's what actually happens in practice.
Low CHIRP (28–60 kHz)
Low-frequency CHIRP is designed for deep water. The longer wavelength penetrates thousands of feet — some Garmin and Lowrance transducers spec out to 2,000 feet in this range. The cone angle is wide (20–30 degrees at depth), which covers a lot of bottom area but at the cost of resolution.
If you're offshore fishing for bluefin or running a commercial operation in 400 feet of water, low CHIRP is your workhorse. For most freshwater and inshore applications, it's largely irrelevant.
Mid CHIRP (80–160 kHz)
This is the range most recreational anglers actually live in. It covers roughly 20 to 600 feet effectively, handles moving targets well, and the cone angle (12–20 degrees) strikes the right balance between coverage and detail. If someone says their fish finder has "CHIRP" without specifying frequency, they're almost certainly talking about mid CHIRP.
The Humminbird HELIX series, Garmin ECHOMAP UHD2 units, and the Lowrance HDS Live all run excellent mid CHIRP implementations. We'd estimate 80% of freshwater anglers and most inshore saltwater fishermen are best served here.
High CHIRP (150–240 kHz)
High CHIRP is where the detail gets almost unsettling. In water under 150 feet, you can separate individual fish in a school. You can see a bass sitting two feet off bottom on a ledge. You can watch your jig fall through a school of bream and see which fish follows it.
The tradeoff is range. High CHIRP maxes out around 200 feet before the signal degrades. It also struggles in heavy aeration. Speed matters here too — we've seen high CHIRP transducers produce poor returns at 30+ knots. At trolling speed, it's exceptional.
Dual-Frequency Operation
Most quality units — the HELIX 7 G4 and up, Garmin ECHOMAP UHD2, Lowrance HDS Live — can run two CHIRP frequencies simultaneously and display them side by side. Mid CHIRP on one side for depth and coverage, high CHIRP on the other for detail near structure. Once you fish with a split-screen CHIRP setup, running single-frequency feels like going back to a flip phone.
Products Worth Considering
Garmin Striker Vivid 7cv — ~$304
Entry-level CHIRP done right for the budget. The Striker Vivid runs a 77/200 kHz CHIRP and the included CV20-TM transducer is decent for depths under 300 feet. The 7-inch screen reads well in sunlight.
Honest take: the Striker Vivid is a great first fish finder, but it doesn't do split-screen CHIRP. No networking capability either — it won't talk to a chartplotter or trolling motor. For a single-species lake fisherman who's not obsessive about electronics, this is plenty.
Humminbird HELIX 7 CHIRP GPS G4 — ~$590
The G4 processor upgrade from the previous generation was meaningful — faster screen refresh, cleaner CHIRP returns in structure-heavy water. The dual-beam CHIRP (83/200 kHz) and 7-inch display make this a legitimately capable setup.
Two things to know: the included XNT 9 DI transducer is fine, but step up to the XM 9 20 IC transducer ($89 more) if you fish deeper than 200 feet regularly. The basemap is also mediocre — plan on a Navionics+ subscription for quality charts.
Garmin ECHOMAP UHD2 74cv — ~$699
This is the unit we recommend most often to anglers who want quality CHIRP plus usable charts without breaking $600. The UHD transducer outperforms the standard GT20 — we've done side-by-side comparisons at 100 feet and the difference in arch sharpness is clear. Built-in BlueChart g3 coastal charts are quality. Networks cleanly with Garmin autopilots and chartplotters via NMEA 2000.
The 7-inch display is bright at 1,000 nits, which matters on open water in afternoon sun. It runs CHIRP down, Ultra High-Definition scanning sonar, and side vu scanning all simultaneously.
Humminbird HELIX 9 CHIRP MEGA SI+ GPS G4N — ~$1,499
The jump from the HELIX 7 to the HELIX 9 MEGA SI+ is not just a bigger screen — it's a different sonar technology. MEGA Side Imaging+ runs at 1.2 MHz, which produces side imaging returns with resolution that makes standard side imaging look like a watercolor painting. Individual baitfish next to a brush pile. Cables and ropes on the bottom.
The 9-inch display gives you room to run MEGA Side Imaging+ left/right plus traditional CHIRP down all at once. This is the sweet spot in the Humminbird lineup before you're paying $1,400+ for the Solix series.
Shop the Humminbird HELIX 9 CHIRP MEGA SI+ GPS G4N at NVN Marine →
Lowrance HDS-9 Live — ~$999
When performance matters more than budget. The Lowrance HDS-9 Live with the Active Imaging 3-in-1 transducer gives you CHIRP down, CHIRP side scan, and StructureScan 3D simultaneously. The triple-shot sonar at this price point is remarkable.
Where this unit earns its money is in that 60–120-foot zone where you need to see fish position relative to structure quickly. One real downside: the touchscreen is not as responsive as Garmin's in cold or wet conditions. Use the physical buttons when the water's rough.
The Transducer Problem Nobody Mentions
Buy a $700 fish finder. Pair it with the wrong transducer. Get mediocre CHIRP. This happens constantly.
The transducer determines the actual frequency range your unit can sweep. A unit capable of 150–240 kHz high CHIRP is limited by a transducer that only covers 83/200 kHz. Most packaged bundles include a transducer that's adequate but not optimal.
For serious upgrades, look at Airmar transducers — Airmar makes the transducer elements inside most name-brand units, and buying direct gives you a wider frequency range and better build quality. For our full breakdown on transducer selection, see our Marine Transducer Buyer's Guide.
CHIRP Fish Finder Comparison
| Unit | CHIRP Type | Effective Depth | Display | Price | Best For |
|---|---|---|---|---|---|
| Garmin Striker Vivid 7cv | 77/200 kHz | 300 ft | 7" 800 nits | ~$304 | Entry freshwater |
| Humminbird HELIX 7 G4 | 83/200 kHz Dual-beam | 400 ft | 7" 800 nits | ~$590 | Freshwater / reservoir |
| Garmin ECHOMAP UHD2 74cv | UHD CHIRP + Side Vu | 500 ft | 7" 1,000 nits | ~$699 | All-around + charts |
| Humminbird HELIX 9 MEGA SI+ G4N | MEGA SI+ 1.2 MHz | 400 ft | 9" 800 nits | ~$1,499 | Tournament bass / walleye |
| Lowrance HDS-9 Live | CHIRP 3-in-1 Active Imaging | 600 ft | 9" 1,000 nits | ~$999 | Advanced multi-species |
Questions to Ask Before You Buy
How deep do you regularly fish? Under 100 feet, mid CHIRP handles everything. 200–500 feet, look for dual-frequency with low CHIRP capability. Beyond 500 feet offshore, you need a dedicated low CHIRP setup and the right transducer.
Freshwater or saltwater? Saltwater anglers doing inshore work at 10–60 feet will love high CHIRP detail. Offshore saltwater at depth shifts the priority to low and mid.
Do you need GPS and charts? Garmin Striker gives you GPS but limited mapping. ECHOMAP and Humminbird HELIX GPS series add full chart support. Worth the extra $100–150 if you run unfamiliar water.
Is this standalone or part of a network? If you're connecting to a trolling motor or chartplotter via NMEA 2000, your unit needs networking capability. See our Best Fish Finders of 2026 guide for full network compatibility notes.
What's your transducer budget? Budget $50–150 on top of the unit price for a quality transducer if you're not happy with the included option. It's not optional.
Bottom Line
CHIRP sonar is not marketing noise — the physics behind it produce genuinely better fish-finding performance than traditional single-frequency sonar, and the difference is most visible in two situations: heavy fish concentrations where you need to count arches, and structure fishing where you need to understand the bottom before you drop a lure.
For most freshwater anglers, the Humminbird HELIX 7 CHIRP GPS G4 (~$590) or Garmin ECHOMAP UHD2 74cv (~$699) cover everything they'll ever need. Step up to the HELIX 9 MEGA SI+ if side imaging matters to you. The Lowrance HDS-9 Live is for anglers who will actually use every feature.
Match the transducer to the water you fish. Understand the frequency ranges before you buy, not after.
Frequently Asked Questions
What does CHIRP stand for in fish finders?
CHIRP stands for Compressed High-Intensity Radiated Pulse. It refers to a sonar technology that sends a continuous sweep of multiple frequencies in each pulse, rather than a single-frequency burst. The result is better target separation, sharper on-screen images, and more accurate depth readings compared to traditional sonar.
What is the best CHIRP frequency for bass fishing?
Mid CHIRP (80–160 kHz) is the most practical for bass fishing in typical reservoir or lake depths of 10–80 feet. High CHIRP (150–240 kHz) delivers exceptional target separation at those depths and lets you distinguish individual fish near structure. Most dedicated bass anglers run dual-frequency setups — high CHIRP for detail when the fish are shallow or stacked, mid CHIRP when they push deeper.
Does CHIRP sonar work at high speed?
Traditional CHIRP (77–240 kHz ranges) works reasonably well at speeds up to 20–25 knots, though target definition decreases with speed and turbulence around the transducer. High CHIRP is most affected at speed. Low CHIRP (28–60 kHz) handles speed better due to its longer wavelength. For high-speed trolling, use a transducer with a fairing block and mount it per manufacturer specs.
Is CHIRP sonar worth the extra cost over traditional sonar?
Yes, with one caveat: if you're fishing very shallow water under 20 feet for panfish, traditional sonar still works fine. For anything else — multiple species, depths over 30 feet, structure fishing, heavy fish concentrations — CHIRP's target separation advantage is real and worth paying for. Entry-level CHIRP units start around $299, which is barely more than comparable traditional sonar from a few years ago.
Can I add CHIRP capability to my existing fish finder?
Not typically. CHIRP is a function of both the processing hardware in the unit and the transducer. Older units without CHIRP processing cannot be upgraded via software. However, if you own a newer unit that supports CHIRP but came with a non-CHIRP transducer, replacing the transducer is a cost-effective upgrade. Always verify transducer compatibility with your specific unit model before purchasing.
What is the difference between CHIRP and MEGA Imaging on Humminbird units?
Standard CHIRP on Humminbird (83/200 kHz dual-beam) uses traditional CHIRP pulse compression to produce down-view sonar. MEGA Imaging runs at a much higher frequency — 1.2 MHz for MEGA Side Imaging and MEGA Down Imaging — which produces dramatically sharper side and down images but is limited to shallower water (generally under 200 feet). They're complementary technologies: CHIRP gives you depth performance, MEGA gives you image clarity in shallower water.
