Xantrex Freedom XC Pro Review: The Workhorse of Liveaboards

Most inverter-charger reviews spend three paragraphs explaining what an inverter does. If you're reading a review of the Xantrex Freedom XC Pro, you already know what an inverter does — you're trying to figure out whether this specific unit is worth bolting into your boat. So let's get to it.

The short answer: for liveaboards and serious weekend cruisers running anything from a 32-foot trawler to a 45-foot sailboat, the Freedom XC Pro is one of the best value propositions in marine inverter-chargers on the market. At $1,189 for the 2000W model and $1,439 for the 3000W, it sits between budget entry-level units that'll frustrate you within a season and the premium European brands that cost twice as much for features most recreational boaters will never need.

But "best value" doesn't mean "perfect." There are real tradeoffs here — and a few things Xantrex should have fixed by now.

What the Freedom XC Pro Actually Is

The Freedom XC Pro is a pure sine wave inverter/charger combination. That means it handles two separate jobs in one box: it converts your 12V DC battery power into 120V AC (inverting), and when you're plugged into shore power at the marina, it charges your batteries while simultaneously passing AC power through to your boat's electrical panel (charging).

The built-in automatic transfer switch handles that transition in under 16 milliseconds — fast enough that most sensitive electronics won't even blink. We've watched it switch over on a live laptop without so much as a screen flicker.

Available in two sizes:

• 2000W continuous / 4000W surge — 80A charger — $1,189 at NVN Marine
• 3000W continuous / 6000W surge — 100A charger — $1,439 at NVN Marine

Both run on a 12V DC system. There's no 24V version of the Freedom XC Pro in this line — if you need 24V, you're looking at a different unit or a Victron equivalent.

The 2000W vs. 3000W Decision

This is where most buyers get stuck. The answer isn't about what you want to run — it's about what your boat's wiring and battery bank can actually support.

The 2000W model at full load pulls roughly 167 amps from a 12V battery bank. The 3000W pulls about 250 amps. At 250A continuous draw, you need seriously healthy wiring — 4/0 AWG copper for runs over four feet, properly rated bus bars, and a 400A ANL fuse at the battery. On a boat that wasn't originally wired for that kind of load, retrofitting to 3000W means more than just swapping the unit.

Our recommendation: if you're powering a standard AC load — refrigerator, microwave, a few chargers, a hairdryer — the 2000W handles it fine on a 200–300Ah AGM bank. The 3000W starts making sense when you're running a full-size induction cooktop, an air conditioning system on a smaller vessel, or when you're stacking two units for a larger load demand.

Key Features Worth Knowing

Pure Sine Wave Output

Not simulated. Not modified. The Freedom XC Pro puts out a clean 120V / 60Hz sine wave, which matters if you're running variable-speed AC motors (compressors, fans), medical equipment, or any audio gear you care about. Modified sine wave inverters work for simple resistive loads, but they'll shorten motor life and cause buzz in audio systems.

80A or 100A Three-Stage Charging

The charger does bulk, absorption, and float automatically. It's also configurable for AGM, gel, flooded, and lithium battery types — though lithium requires an external BMS to handle cutoff, since the Freedom XC Pro doesn't have a direct LiFePO4 profile built in. Xantrex calls this "lithium compatible," which is technically accurate and also slightly misleading. It'll charge lithium if the BMS handles the top-end cutoff. Be clear on that distinction before you buy.

Shore Power Integration

Plug into 30A or 50A shore power and the unit passes through AC while simultaneously charging. The transfer switch is automatic — no flipping breakers, no manual switching. Plug in at the slip, and within a second or two your house loads shift to shore power and charging begins.

Wi-Fi Monitoring via Xantrex App

Here's where it gets real. The app works well on iOS. On Android, particularly Android 13+, we've seen repeated pairing drops where the unit simply stops appearing on the network and requires a full reset and re-pair sequence. It's a known issue Xantrex has been slow to fix. The inverter-charger works exactly the same whether the app is connected or not — but if you're counting on remote monitoring, know that iOS is the more reliable path.

Front Panel Display

There's a small LED display panel that shows state of charge, charging mode, input/output voltage, and fault codes. It's not pretty, but it's functional and readable in daylight with reading glasses. We'd rather have this than nothing in the event the app is being temperamental.

Installation Notes from the Field

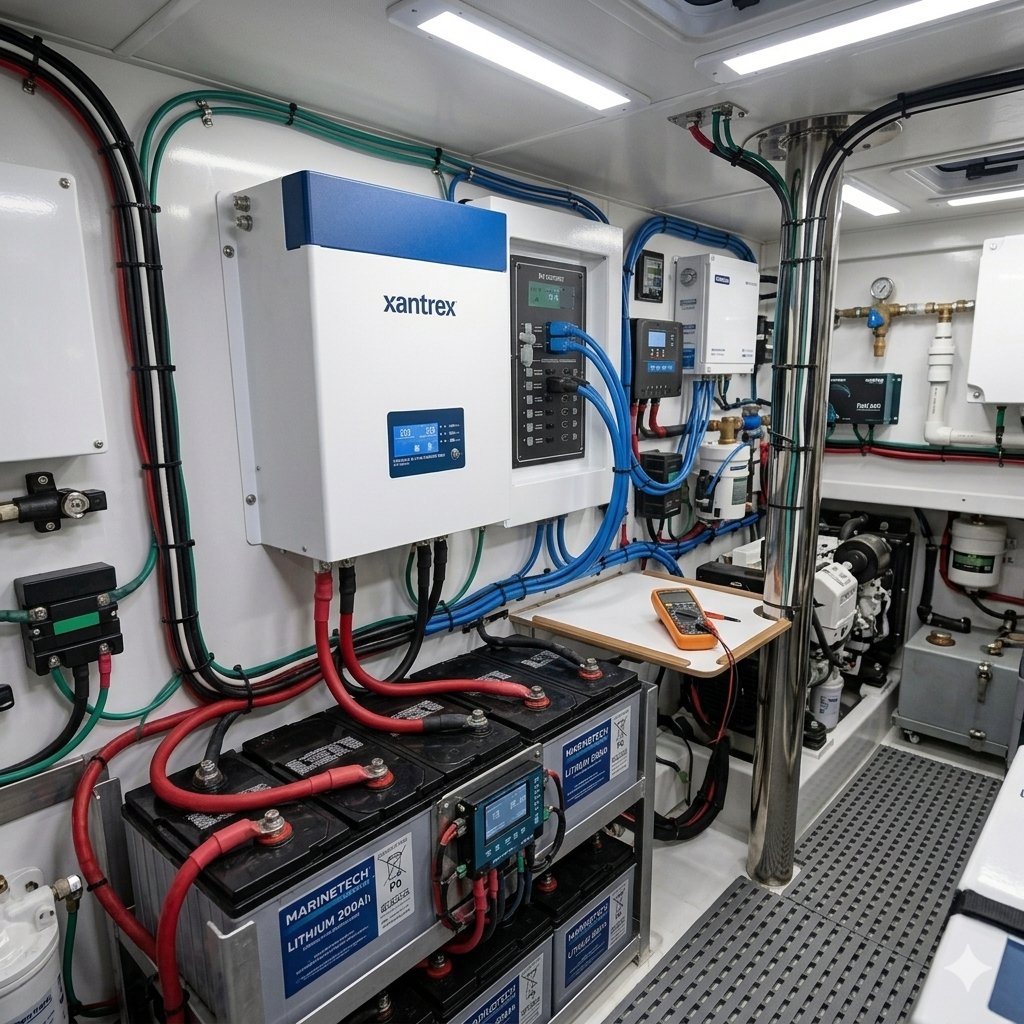

We've put this unit into a 38-foot trawler and a 42-foot catamaran. A few things you'll want to know before you start.

Cable Sizing Is Not Optional

For the 2000W model, use 2/0 AWG for battery cable runs under four feet. Go to 4/0 AWG for anything longer. Undersized cabling causes voltage drop that triggers low-voltage alarms and limits output — and the Freedom XC Pro will fault before it lets itself damage your batteries, which is good, but also means you'll spend a frustrated afternoon tracing a fault code that turns out to be a wiring shortcut.

Fusing at the Battery

Install a 300A ANL fuse (2000W) or 400A ANL fuse (3000W) within 18 inches of the positive battery terminal. This isn't a recommendation, it's a safety requirement. Don't skip it.

Ventilation

The unit needs a minimum of six inches of clearance on the top and sides. We've seen installs in enclosed bilge compartments where the unit would hit thermal protection and cut out on hot days. Forced air circulation with a small bilge blower makes a material difference if your install space is tight.

Monitoring Shunt Placement

The battery state-of-charge reading is only accurate if the monitoring shunt is installed on the negative cable with every DC load in the boat running through it. If your bilge pump negative goes directly to the battery and bypasses the shunt, your SOC reading will drift. It's a common oversight and it'll drive you crazy trying to figure out why your charge readings seem off.

Performance: What We Actually Measured

On the 38-foot trawler install, running a load equivalent to: refrigerator (85W), laptop charger (90W), LED overhead lighting (40W), and a 900W microwave in 30-second bursts — the 2000W unit handled it without complaint off a 300Ah AGM bank.

For liveaboards who need the inverter on 24 hours a day, that 8W sleep mode draw adds up to around 4.6Ah per day just for standby — not nothing, but manageable with any reasonable-sized battery bank. Transfer switch speed was consistent at 14–16ms — computers, NAS units, and routers on UPS systems stayed online through every transfer in our testing.

Where the Freedom XC Pro Falls Short

The app needs work. Android 13 and 14 devices have consistent pairing issues as of our testing in early 2026. If Xantrex patched this in a firmware update after this post published, great. Check the App Store reviews for current feedback before assuming it's been fixed.

No integrated LiFePO4 profile. The push toward lithium in the marine market is real, and Xantrex is lagging behind competitors like Victron in offering a true lithium charging profile. For a boat upgrading to a Battle Born or similar lithium bank, you're adding complexity.

Plastic housing. The unit's housing is polycarbonate, not metal. In a clean, dry bilge on a well-maintained boat, this is a non-issue. In a harsh environment with bilge water exposure, we'd rather see more rugged construction. Mount it high, keep it dry.

Shore power input is 120VAC/60Hz only. Not relevant for most U.S. boaters, but worth knowing if you ever take the boat to a marina with 240VAC/50Hz service.

How It Compares

Victron's MultiPlus-II is the honest alternative to consider. It's heavier, the 12/3000 model starts at $1,849, and the VictronConnect app is genuinely better than Xantrex's — well-designed, reliable on both platforms, with more detailed data. If you're building a lithium battery system or you want the best monitoring ecosystem in marine power, Victron is worth the premium. For a straightforward AGM-based shore power setup where you want proven reliability without configuration complexity, the Freedom XC Pro delivers.

Questions to Ask Before You Buy

What's your actual AC load? Add up the running wattage of everything you'll run simultaneously. Microwave (900–1200W), air conditioning (varies), refrigerator compressor (70–150W), battery chargers (200–400W total). Leave 20% headroom. That's your minimum inverter size.

What's your battery bank capacity? The inverter is only as useful as the energy storage behind it. Running a 2000W inverter off 100Ah is asking for trouble. Minimum recommended: 200Ah per 1000W of inverter capacity.

Is your shore power 30A or 50A? The Freedom XC Pro handles both with the appropriate cord. If you're at a marina with 30A service, the charger output will be limited by available shore power — the 100A charger won't charge at 100A if the shore power circuit can only supply 30A.

Are you going lithium now or later? If lithium is in your 12-month plan, it might be worth spending the extra $200 on a Victron unit with a native lithium profile rather than adding complexity later.

Bottom Line

The Xantrex Freedom XC Pro 2000W is a well-engineered, reliable inverter-charger that belongs in a lot of boats. The build quality is solid for the price, the pure sine wave output is clean, and the integration with shore power is seamless. It's what we'd install on our own boat for a straightforward AGM-based system.

The app situation is a genuine irritation, not a dealbreaker. Fix it, Xantrex.

If you're building a lithium-forward system or you want the best app ecosystem in the market, spend the extra money on a Victron MultiPlus-II. If you're running AGM and want proven reliability at a fair price, the Freedom XC Pro earns its reputation.

For everything you need to power up your electrical system, check out our full Best Marine Inverter-Chargers of 2026 guide — it covers every budget and use case with the same level of detail you found here.
