Lowrance B60-12, 12° Tilted Element™ Transducer

SKU: 32880 - UPC: 09780031578105 - MPN: B60-12-BL
$320.49 $390.00 ( / )

Available Stock : 2

600 W The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of...
Lowrance
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Lowrance B60-12, 12° Tilted Element™ Transducer Product Description

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles


B60 Tilted Element™ 12°

12° tilted version is designed for 8° - 15° deadrise angles

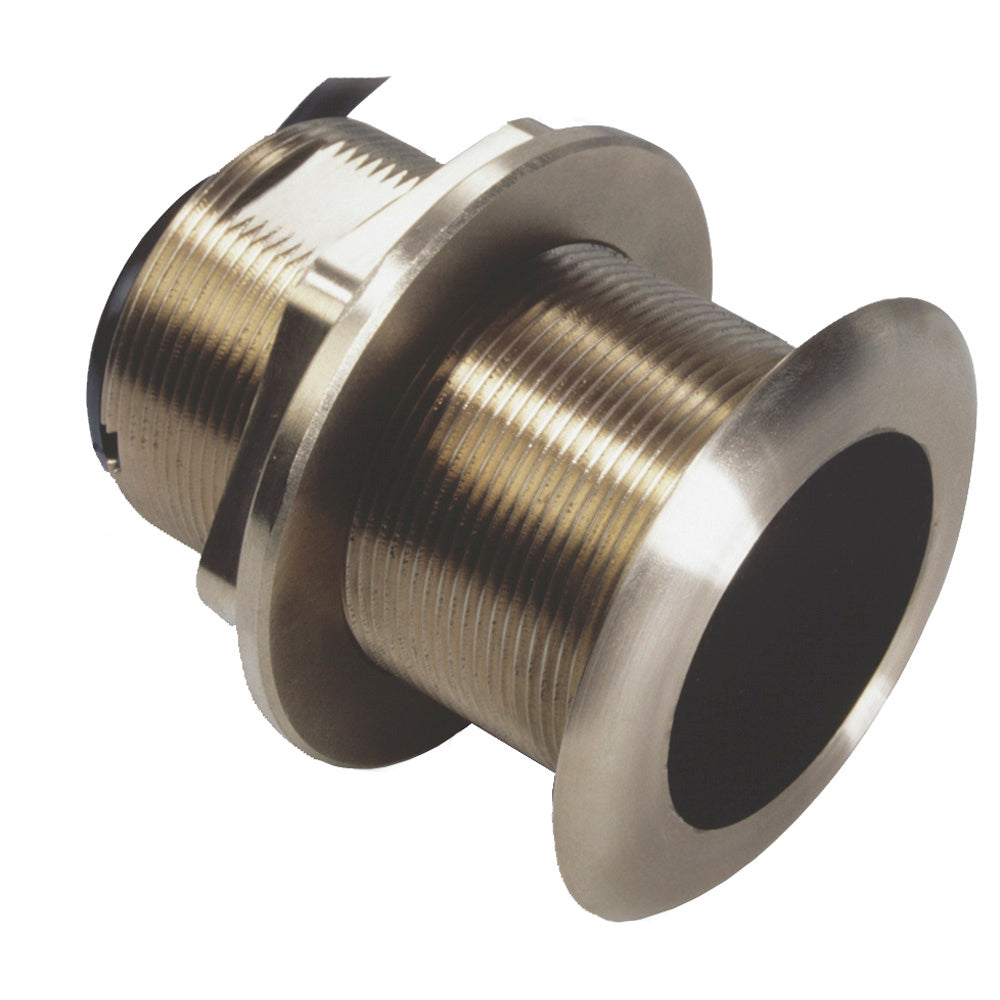

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze


Inside the housing, the ceramic element is tilted to provide built-in dead angle compensation. The resulting vertical beam provides an excellent echo, resulting in a more accurate depth...

Lowrance 12' Extension Cable
Lowrance 20' Transducer Extension Cable
Airmar 60WR-2 Transducer Hull Nut Wrench
Airmar 60WR-4 Transducer Housing Wrench
Airmar 60WR-1 Crows Foot Transducer Wrench
Airmar 60WR-3 Double Handle Transducer Wrench
Airmar Deadrise Angle Finder - Accuracy of ± 1/2°
Navico Adapter 7-Pin Blue Transducer to a 9-Pin Black Unit
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black


Frequently Asked Questions (FAQ) About Lowrance B60-12, 12° Tilted Element™ Transducer

Who is the Lowrance?
How to describe Lowrance B60-12, 12° Tilted Element™ Transducer?
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
How many pins exists in the connector of the product?
What's the Lowrance B60-12, 12° Tilted Element™ Transducer package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Lowrance B60-12, 12° Tilted Element™ Transducer?
This product can read the temprature?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the connector type of the product?
What is the length of cable (feet)?
What is the length of cable?
What is the display connector of the product?
What is the imagining type of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Lowrance B60-12, 12° Tilted Element™ Transducer?

Who is the Lowrance?

Lowrance Electronics, Inc., has been a world leader in the design, manufacture and marketing of high-quality sport fishing SONAR and Global Positioning System (GPS) mapping instruments for over 45 years. With nearly 45 years continuous manufacturing experience, Lowrance designs products that provide the ultimate in high-performance features at highly competitive prices. Lowrance products are used by both sport fisherman and recreational boaters.

How to describe Lowrance B60-12, 12° Tilted Element™ Transducer?

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles

What is the power rating of the product?

600 W

Which mix and match cable useful for this product?

5-Pin 600 Watt

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

50/200 kHz

How many pins exists in the connector of the product?

7

What's the Lowrance B60-12, 12° Tilted Element™ Transducer package dimensions and weight?

8 (w) X 4 (h) X 10 (l) inches and the weight is: 4.5 lb.

What is the sensor connector of the product?

MM

Speed feature included to the product?

No

How to mount or what is the mounting style of Lowrance B60-12, 12° Tilted Element™ Transducer?

Tilted Element Thru-Hull

This product can read the temprature?

Yes

Is this product single or dual frequency?

Conventional Dual Frequency

What is the tilt angle of the product?

12°

What is the connector type of the product?

Lowrance 7-Pin

What is the length of cable (feet)?

30'

What is the length of cable?

10 m (33')

What is the display connector of the product?

BL

What is the imagining type of the product?

Standard

What is the common use place of the product?

Leisure/Yachting, Fishing

What is the housing material of the product?

Bronze

Is this product supporting CHIRP and what's the type?

No

What is the max depth of the product?

Low frequency- 366 m (1200'), High frequency- 206 m (700')

What is the deadrise range of product?

8° to 15°

What is the hole size of the product?

60 mm (2-3/8")

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

68.5 mm (2.70")

What is the max deadrise of the product?

Up to 24°

What is the max deadrise angle of the product?

24°

What is the manufacturer notes about Lowrance B60-12, 12° Tilted Element™ Transducer?

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles


Save $69 when you buy the Lowrance B60-12, 12° Tilted Element™ Transducer for only $320 from NVN Marine! Same day shipping before 3pm.

Lowrance B60-12, 12° Tilted Element™ Transducer Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Lowrance

Weight:

4.85 lb

Temperature:

Yes

Speed Included:

No

Pins:

7

Mounting Style:

Thru-Hull

Imagining:

Standard

Chirp:

No

Cable Length (Feet):

30'

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF

Lowrance B60-12, 12° Tilted Element™ Transducer User Reviews

Lowrance B60-12, 12° Tilted Element™ Transducer Shipping & Return

Shipping Weight:

4.85 lb

Box Sizes:

4.00 (h) x 8.00 (w) x 10.00 (l)
