By the NVN Marine Expert Team — Our team has spent 10+ years on the water installing, testing, and troubleshooting marine electronics from the Gulf Coast to the Great Lakes. We’re authorized resellers for every brand we review, and we only recommend gear we’d trust on our own boats.
A customer called us last fall asking whether to upgrade from his Axiom Pro 12 to an Axiom 2 Pro. His first question was direct: “Is it actually worth the extra $400?” We told him the honest answer — it depends on how you use the boat.

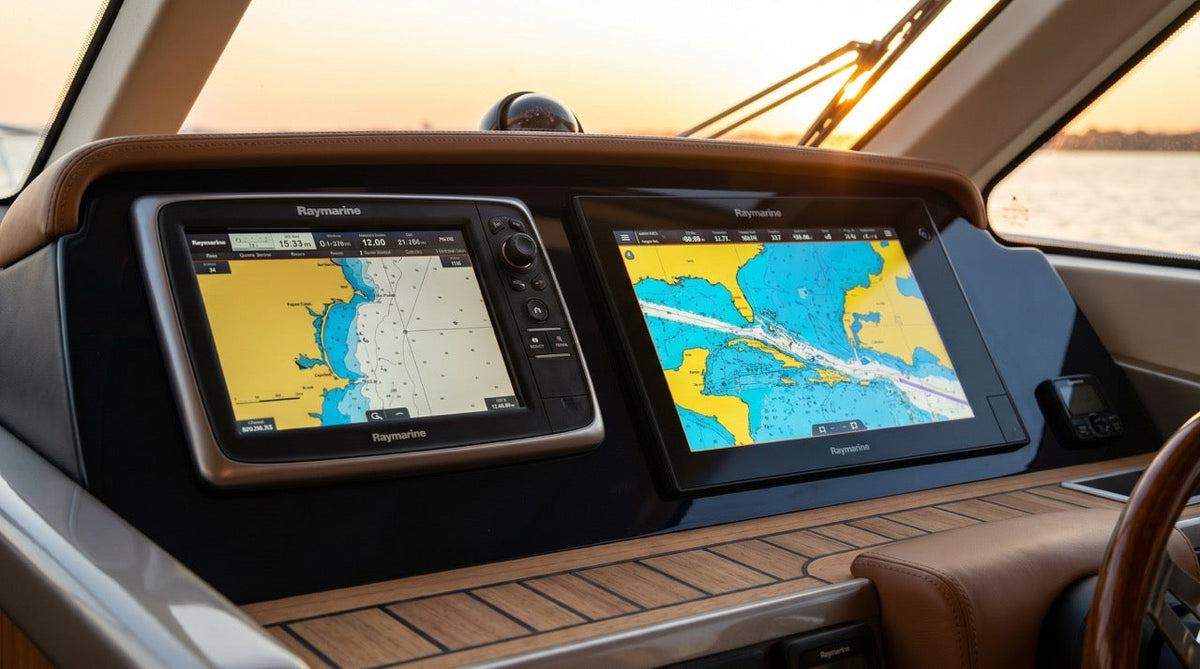

The Axiom Pro and Axiom 2 Pro look similar in photos, carry similar names, and both run LightHouse OS. But under the surface they’re different machines built for different expectations. This comparison breaks down every meaningful difference, including the ones Raymarine’s spec sheets don’t emphasize.
Quick Specs Comparison
| Feature | Axiom Pro | Axiom 2 Pro |
|---|---|---|
| Processor | Quad-core ARM | Octa-core ✓ |
| Display brightness | ~1,000 nits | ~1,400 nits ✓ |
| Optical bonding | No | Yes ✓ |
| Water resistance | IPX6 | IPX7 ✓ |
| Built-in Wi-Fi | No (dongle ~$60) | Yes ✓ |
| RealVision 3D sonar | Add-on only | Standard on all configs ✓ |
| Price (9”) | ~$1,719 | ~$3,024 |
| Price (12”) | ~$3,019 | ~$4,179 |
| Price (16”) | ~$4,069 | ~$6,379 |
Display Quality: The Biggest Real-World Difference
Both units look fine in a showroom. Under direct sunlight offshore, the gap is immediately obvious. The Axiom 2 Pro’s optically bonded IPS panel at ~1,400 nits versus the Axiom Pro’s ~1,000 nits — that 400-nit difference matters most when you’re running offshore in August with the sun overhead and glare bouncing off whitecaps. On the Axiom Pro, you’re squinting. On the Axiom 2 Pro, you’re reading AIS targets, depth contours, and waypoints without visual strain.
Optical bonding eliminates the air gap between the display glass and the LCD panel, reducing internal reflection dramatically. It also means the screen doesn’t fog in morning coastal humidity. We’ve had customers with original Axiom Pro units call about fogging inside the display — that’s physics, not a defect, and the Axiom 2 Pro largely eliminates it by removing the air gap.
Processing Speed: Where the Octa-Core Shows Up
The improvement shows up in three specific areas. Chart rendering: switching between LightHouse charts and Navionics, loading bathymetric overlays, or zooming between views is noticeably faster. The Axiom Pro has a 1–2 second lag on complex chart transitions. RealVision 3D sonar processing: the Axiom 2 Pro renders the 3D view smoothly at 8 knots; we’ve seen the Axiom Pro produce occasional dropped frames at speed. Networked helm: run radar overlay, sonar, AIS, and an active autopilot feed simultaneously into the Axiom Pro and it starts to feel busy. The Axiom 2 Pro handles that configuration without hesitation.
Sonar: What’s Included Changes the Math
The Axiom Pro ships with CHIRP DownVision as standard — RealVision 3D is only included on specific higher configurations. The Axiom 2 Pro includes RealVision 3D across every configuration in the lineup. For anyone hunting offshore ledges, fishing complex reef structure, or targeting suspended fish over irregular bottom, the 3D imaging is a legitimately different experience. One caveat: the transducer is what’s actually in the water and has more impact on sonar performance than the head unit. If budget forces a choice, spend on the transducer.
Water Resistance & Wi-Fi
IPX6 vs. IPX7: IPX6 protects against powerful water jets. IPX7 means survival at 1 meter submersion for 30 minutes. For center consoles running offshore in 6–8 foot seas with an exposed helm, the extra margin is meaningful. For inshore or protected waters, this distinction probably won’t matter.
Wi-Fi: The Axiom Pro needs an external dongle (~$60) to connect to the Raymarine app, pull chart updates, and enable wireless screen sharing. The dongle works reliably when it works — but it can fail, go missing, or conflict with other USB devices. The Axiom 2 Pro has Wi-Fi and Bluetooth integrated. No additional hardware. Convenient, not critical.
The Right Questions to Ask
How long will you own the boat?
Ten years: the Axiom 2 Pro’s display and processing headroom are worth the premium. Selling in two seasons: the Axiom Pro performs everything you need at lower cost.
Where do you run?
Inshore and coastal in moderate conditions: either unit works. Offshore 25+ miles in variable weather: benefit from the IPX7 rating, brighter display, and processing overhead of the Axiom 2 Pro.
Do you fish structure?
If RealVision 3D is appealing, the Axiom 2 Pro delivers it out of the box. On the Axiom Pro you’re paying extra for the same capability.
The Bottom Line
New build or full helm upgrade: buy the Axiom 2 Pro. The display improvement alone justifies the price over a decade of ownership. Add the included RealVision 3D sonar, IPX7 rating, and integrated Wi-Fi, and it’s not a close call. The Axiom 2 Pro 12” at $1,575 is the model we’d spec most often — the screen size hits the ideal balance of readability at distance and helm footprint.
Adding a second display to an existing Axiom Pro setup, or replacing a failed unit on a boat you’ll own another two seasons: the Axiom Pro is fine. It’s a capable, well-supported chartplotter with a stable firmware platform and good resale value.
