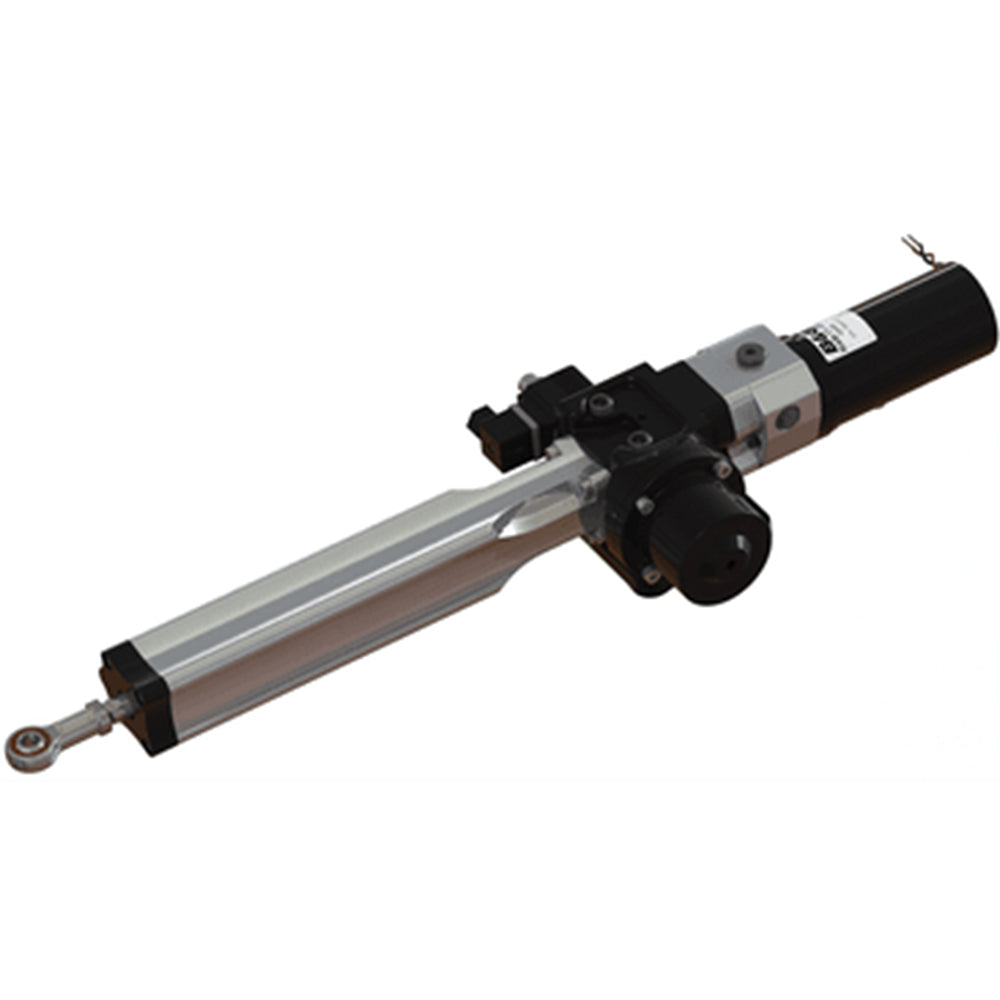

B&G Hydraulic Ram to 12V
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
B&G Hydraulic Ram to 12V Product Description
Discover the reliability of a fully integrated hydraulic ram drive designed specifically for smaller vessels seeking seamless autopilot performance. This compact 12V unit transforms manual steering setups into efficient, hands-free navigation, perfect for sailors who demand precision without the clutter of external components. Whether you're dodging waves on a coastal cruise or holding course during long passages, its powerful thrust ensures steady control even in demanding conditions.
Built for boats where every ounce of efficiency counts, this ram integrates a self-contained pump, motor, cylinder, clutch, and reservoir—no messy hoses or separate tanks to install. It engages effortlessly in Power Steer mode during manual steering issues, giving you backup confidence at sea. Ideal for vessels up to 19,000 lbs fully loaded, it handles the real-world weight of provisions, fuel, and water that often exceeds lightship specs.
Standout Performance and Build Quality
- Robust Thrust: Delivers up to 771 lbs of force intermittently, tackling rudder loads with ease for crisp response.
- Quick Action: Achieves hard-over rudder movement in just 12 seconds, keeping maneuvers agile.
- Extended Reach: 7.87-inch stroke and 6.89-inch tiller arm compatibility suit a wide range of tiller and wheel systems.
Compatible with B&G AC-12 and NAC-2 course computers, it slips into existing setups from other brands too, minimizing retrofit hassles. Its aluminum construction withstands harsh marine environments, backed by IP67 water resistance and compliance with marine EMC standards.
How This Hydraulic Ram Enhances Your Autopilot
In autopilot mode, the course computer activates the clutch solenoid and spins the bidirectional motor to extend or retract the ram smoothly. When disengaged, it follows your manual inputs freely, protecting the system from shocks like rudder hits or groundings via built-in relief valves. Low average draw—around 1.3A at cruising—means it sips power from your 12V bank, leaving more for lights, nav gear, and comforts.
Pro tip for sizing: Always factor in your boat's loaded displacement. A 20% bump from full tanks can push limits, so err toward overcapacity. This T0 ram shines on sailboats and powerboats with back-drivable steering, delivering up to 136 ft-lbs of rudder torque without drama.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12 VDC |
| Max Thrust | 771 lbs (350 kg) intermittent |
| Stroke | 7.87 in (200 mm) |
| Hard-Over Time | 12 seconds |
| Current Draw | 1.3A average cruising; 14A peak |
| Dimensions | 4 x 28.7 in (101 x 728 mm) |
| Weight | 17.6 lbs (8 kg) |
| Ingress Protection | IP67 |
| Max Boat Displacement | 19,000 lbs (9,000 kg) |
Use mineral-based hydraulic fluid like ISO VG10-40 for longevity. Red lead extends, black retracts—simple polarity swap for direction.
Longevity and Care Tips
Keep it thriving with periodic fluid checks and clutch inspections. Its sealed design cuts maintenance, but mounting securely on a flat surface ensures vibration-free operation. Pairs beautifully with B&G sailing instruments for wind-aware steering that anticipates gusts.
Frequently Asked Questions
What boats is this hydraulic ram suitable for?
It's optimized for vessels up to 19,000 lbs (9,000 kg) fully laden, ideal for mid-sized sailboats and powerboats with tiller or mechanical steering.
Does it work with non-B&G autopilots?
Yes, it's compatible with many existing ram, rotary, or drive units from other manufacturers, as well as B&G AC-12 and NAC-2 computers.
How does the clutch function in this unit?
The electromagnetic clutch disengages for free manual steering and engages via the course computer for autopilot control, with a low 12W coil draw.
What fluid should I use for maintenance?
Opt for ISO VG10 to VG40 hydraulic mineral fluids meeting ISO 6743-4 HV standards, such as compatible commercial options for smooth operation.
Is it safe in rough seas or impacts?
Internal relief valves protect against overloads from rudder strikes, grounding, or heavy weather, enhancing durability.
What's the power consumption like?
Efficient at 1.3A average during cruising (25% duty), peaking at 14A intermittently, making it battery-friendly for extended voyages.
Can it mount in any orientation?
Flexible mounting with specific wiring for extension/retraction; consult setup guides for optimal positioning.
Hydraulic Ram to 12V
High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure Fully Integrated (T0, T1 and T2 units) hydraulic system, no external hoses, reservoirs etc. Always remember to use the fully laden displacement of your boat when selecting a pilot. Typically a yacht fully provisioned with the water and fuel tanks full can be as much as 20% above the designed displacement. If your boat falls between two pilot types, choose the larger pilot type - an under rated pilot may not be able to perform adequately when you need it most. If in doubt, please check with an authorized B & G Dealer. If you are using a Ram, Rotary drive or existing drive unit from another manufacturer, these will, in most cases, be compatible with B & G units.
Features:
- Max Boat Size: 19,000 lbs (9000 kg)
- Stroke: 7.87 in (200 mm)
- Hard Over Time: 12 sec
- Tiller Arm: 6.89 in (175 mm)
- Thrust: 771.6 lbs (350 mm)
- Rudder Torque: 136.6 lbs (62 kg)
- Required Computer: AC12, NAC-2
- *Typical average cruising consumption
The hydraulic gate is up to 12V with high power and high-efficiency drive unit to obtain maximum power with minimum consumption. The Ram drive allows to use the Power Steer mode on the Pilot in the following situations
B&G Hydraulic Ram to 12V Related Products
B&G Hydraulic Ram T2 24V Drive UnitFrequently Asked Questions (FAQ) About B&G Hydraulic Ram to 12V
Who is the B&G?How to describe B&G Hydraulic Ram to 12V?
Who is the B&G?
How to describe B&G Hydraulic Ram to 12V?
- The hydraulic ram is a mechanical device that converts the linear motion of a fluid-filled cylinder to the rotary motion of a hydraulic motor.
- The hydraulic ram is used in some steering systems to provide power assistance in the event of manual steering failure.
- Hydraulic rams are also used in other applications where power assistance is needed, such as agricultural and construction equipment.
- Hydraulic Ram to 12V High power, efficient drive units for maximum power with minimum consumption.
- Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure
- Fully Integrated (T0, T1 and T2 units) hydraulic
Buy with the best price B&G Hydraulic Ram to 12V for only $1767 from NVN Marine! Same day free shipping before 3pm.
