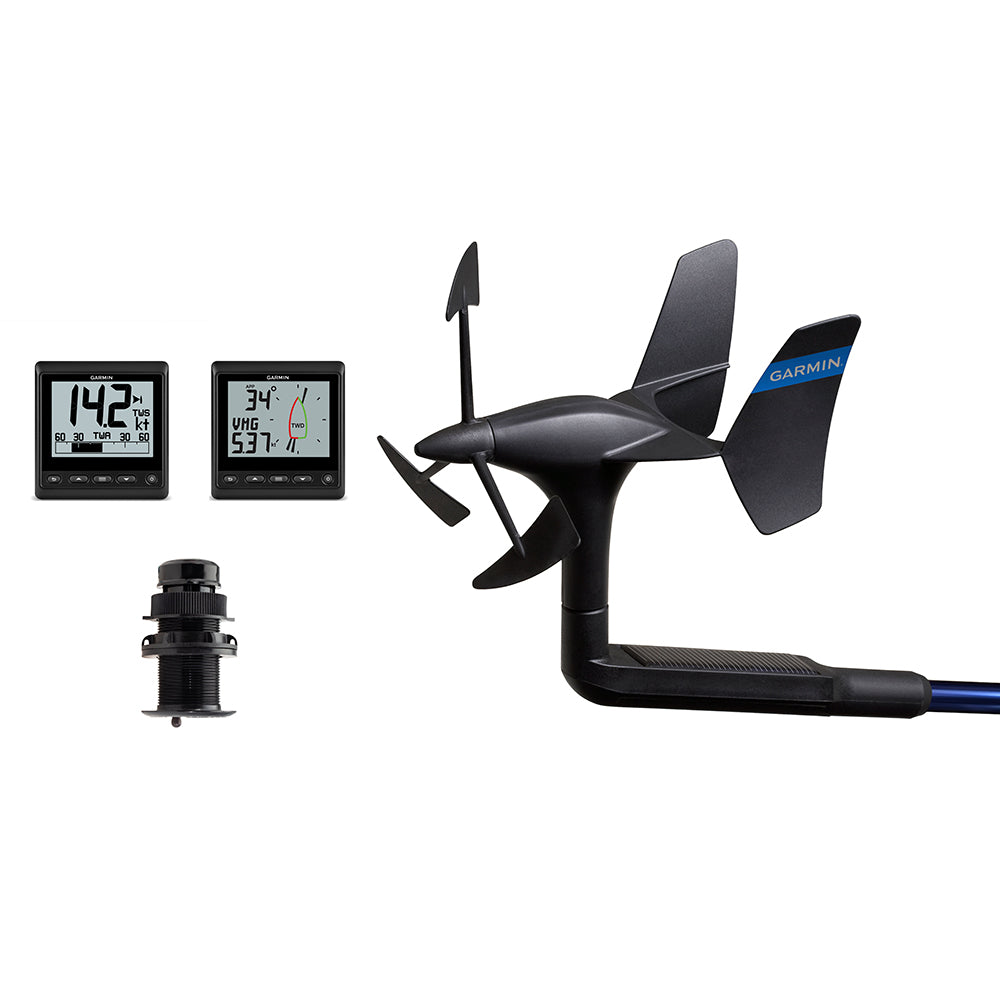

Garmin GNX Wireless Sail Pack 52

Imagine slicing through choppy waters with precise wind angles guiding your every tack, or confidently navigating shallow bays thanks to real-time depth readings. The GNX Wireless Sail Pack 52 delivers exactly that—reliable, wireless intelligence for serious sailors who demand accuracy without the wiring headaches. This curated bundle combines cutting-edge Garmin instruments and transducers to monitor wind, water depth, speed, temperature, and even boat attitude, empowering you to optimize performance whether racing offshore or cruising coastal waters.

Master the Winds with GNX Wind and gWind Wireless 2

At the heart of any sailor's setup is wind data, and the GNX Wind instrument rises to the challenge. Its crisp, high-contrast monochrome LCD glows with customizable backlight hues, perfect for dawn starts or midnight watches. Simultaneously view true and apparent wind, a digital wind rose, boat speed, and steering cues across two dedicated fields. Drawing just 350mW in daylight, it sips power like a well-trimmed genoa, ideal for battery-conscious vessels.

Paired with the gWind Wireless 2 transducer, wiring nightmares vanish. Mount it atop masts up to 50 feet high—no more snaking cables through tight conduits. Leveraging Nexus-inspired twin-fin design and a three-bladed prop, it captures stable angles and speeds even in puffs below 5 knots. ANT+ connectivity beams data straight to your GNX Wind or compatible chartplotters, while optional wrist-streaming to Garmin smartwatches keeps tacticians untethered.

GNX 20: Your All-in-One Water Intelligence Hub

Complementing wind insights, the GNX 20 instrument pulls from the NMEA 2000 backbone to showcase over 50 parameters. Black digits pop against white or vivid backgrounds, with anti-glare coating ensuring legibility under blazing sun or starry skies. Sailors appreciate the five profile modes—single, dual, triple functions, gauge, or graph—tailored for heel-adjusted speed logs or depth trends. Scale digits up to 36mm for at-a-glance reads from the helm, all at a miserly 25mA draw.

Airmar DST810: Precision Below the Hull Line

Diving deeper, the DST810 thru-hull transducer isn't just about basics. It fuses depth to 330 feet, paddlewheel speed at a responsive 5Hz, and water temp with innovative attitude sensing—tracking heel, trim, pitch, and roll for calibrated logs that account for your boat's lean. A 235kHz beam (10x44 degrees) slices through sediment for clean bottom tracks. Bluetooth pairing via the Cast app simplifies calibration at various speeds and angles, a game-changer for fine-tuning in varying conditions.

Plug-and-Play NMEA 2000 Simplicity

Setting up feels like rigging a spinnaker: intuitive and swift. Everything networks via NMEA 2000 with included drop cables, T-connectors, terminators, and power cable. No proprietary black boxes—just standardized backbone for expansion with autopilots, MFDs, or VHF. Wireless elements mean mast work is mount-and-go, slashing install time and preserving that fresh-varnished spar look.

Elevate Your Sailing Strategy

This pack shines for racers plotting polar diagrams, cruisers dodging reefs, or delivery skippers pushing limits. Low-power efficiency supports solar setups, while rugged builds withstand salt spray and slams. Customize displays to match your tactics—laylines from wind/speed fusion, or VMG graphs for upwind grinds. It's not gear; it's your competitive edge, distilling chaos into actionable intel.

Everything You Need for Immediate Deployment

• gWind Wireless 2 transducer with NiMH battery and mast bracket
• GNX Wind marine instrument
• GNX 20 marine instrument
• Airmar DST810 thru-hull smart transducer
• Two 2-meter NMEA 2000 drop cables
• NMEA 2000 power cable
• Five NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mounting hardware
• Comprehensive documentation

Frequently Asked Questions

What key components are in the GNX Wireless Sail Pack 52?

It bundles the GNX Wind and GNX 20 instruments, gWind Wireless 2 wind transducer, and Airmar DST810 smart thru-hull transducer, plus all NMEA 2000 essentials for a full sail monitoring system.

Does the gWind Wireless 2 require running cables up the mast?

No—it's fully wireless via ANT+ for masts up to 50 feet, transmitting accurate wind data without invasive wiring.

How does the DST810 transducer improve speed accuracy for sailing?

With built-in attitude sensing, it compensates for heel, trim, pitch, and roll, plus Bluetooth calibration for multiple angles and speeds, delivering heel-corrected logs.

What power efficiency do the GNX instruments offer?

GNX Wind uses 350mW daytime (no backlight) and 400mW nighttime; GNX 20 draws 25mA or 350-400mW similarly, suiting low-power sailboat systems.

Can I customize displays on the GNX Wind and GNX 20?

Yes—choose from multiple layouts like dual fields, wind roses, graphs, or gauges, showing wind, speed, depth, and 50+ NMEA parameters tailored to sail or power profiles.

Is installation straightforward for non-experts?

Absolutely—plug-and-play NMEA 2000 with pre-included cables and connectors; wireless transducers mount easily, minimizing tools and time.

What depth range does the DST810 handle?

Up to 330 feet with a precise 235kHz fan beam (10x44 degrees) for reliable bottom tracking in harbors or open water.

GNX Wireless Sail Pack 52

GNX Wind, GNX 20, gWind Wireless and DST810 transducers

The Information You Need to Make Confident Decisions

• Includes Garmin GNX Wind and GNX 20 marine instruments, gWind Wireless 2 transducer and Airmar DST810 thru-hull smart transducer
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wireless 2 transducer eliminates running wires through masts up to 50 feet
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through Airmar's Cast app
• Easy plug-and-play installation with NMEA 2000 network

With a GNX Wireless Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.

GNX Wind Instrument

GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.

gWind Wireless 2 Transducer

gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.

GNX 20 Marine Instrument

The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.

Airmar DST810 Thru-hull Smart Transducer

DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs which it provides to the NMEA 2000 network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through Airmar's Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

In The Box:

• gWind Wireless 2 transducer
• GNX Wind marine instrument
• GNX 20 marine instrument
• Airmar DST810 thru-hull smart transducer
• 2 NMEA 2000 drop cable (2 meters)
• NMEA 2000 power cable
• 5 NMEA 2000 T-connectors
• NMEA 2000 terminators
• NiMH battery
• Mast bracket
• Mounting hardware
• Documentation

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Garmin GNX™ Wireless Sail Pack 52 GNX™ Wind, GNX™ 20, gWind™ Wireless and DST810 transducers

Model: 010-01616-40

• Includes Garmin GNX™ Wind and GNX 20 marine instruments, gWind™ Wireless 2 transducer and Airmar DST810 thru-hull smart transducer
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wireless 2 transducer eliminates running wires through masts up to 50 feet
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data — plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app
• Easy plug-and-play installation with NMEA 2000® network

With a GNX Wireless Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water.

GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT® technology to stream wind data directly to your wrist.

gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.

The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.

DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000® network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

What's in the Box:

• gWind™ Wireless 2 transducer
• GNX™ Wind marine instrument
• GNX™ 20 marine instrument
• Airmar DST810 thru-hull smart transducer
• NMEA 2000 drop cable (2 meters) x 2
• NMEA 2000 power cable
• NMEA 2000 T-connectors x 5
• NMEA 2000 terminators
• NiMH battery
• Mast bracket
• Mounting hardware
• Documentation

SKU: NVN-86207
MPN: 010-01616-40
UPC: 753759261016
