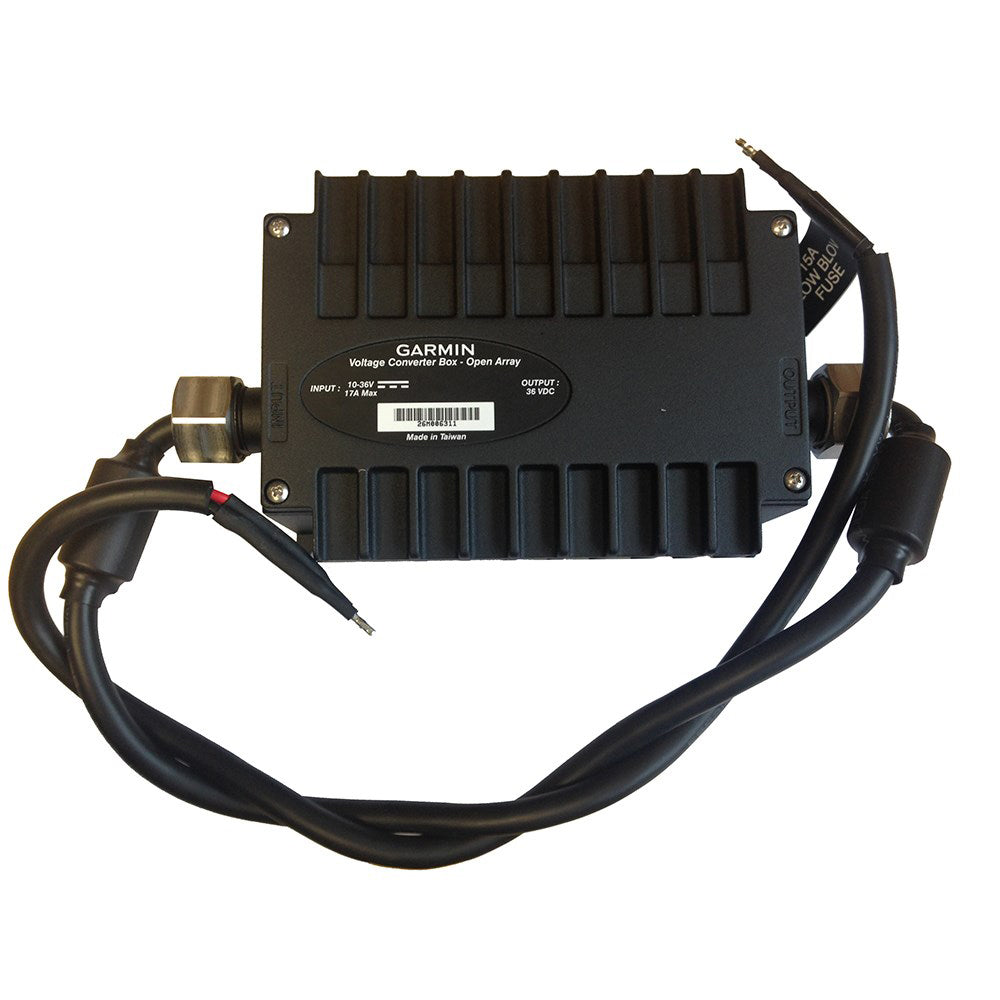

Garmin Voltage Converter Unit

Powering high-performance marine radars demands precision, and that's where the Garmin Voltage Converter Unit shines. Designed specifically as a module box for your GMR open array radars, it steps in to deliver stable, regulated voltage right where your boat's electrical system might falter—think fluctuating power from batteries or generators that could otherwise disrupt radar operation during critical moments on the water.

Unlock Reliable Radar Operation on Any Vessel

Marine environments are tough on electronics. Voltage spikes from engines starting, drops during heavy draws from other onboard gear, or inconsistencies in multi-battery setups can lead to erratic radar performance, intermittent signal loss, or even long-term damage to the array motor and transmitter. This converter acts as a buffer, transforming input voltage—typically from your 12V or 24V systems—into the clean, consistent supply your radar craves for smooth rotation, clear imaging, and dependable target detection.

Boat captains and fishing pros swear by it for setups on everything from center consoles to larger sportfishers. It ensures your radar spins quietly and scans flawlessly, whether you're dodging weather in open water or threading through crowded marinas at night.

Perfect Fit for Your GMR Radar Lineup

• Seamlessly integrates with GMR 404 for compact, high-definition scanning.
• Supports GMR 406, ideal for enhanced range in xHD mode.
• Optimizes GMR 604 performance with HD2 technology for sharper returns.
• Handles GMR 606 demands, delivering power for its powerful 6kW output without a hitch.

Unlike generic power supplies that risk incompatibility, this unit is engineered by Garmin engineers who know the exact tolerances of these open arrays inside out. No guesswork—just plug-and-play reliability.

What's Included for Hassle-Free Setup

• The rugged Voltage Converter module, built to withstand marine humidity and vibrations.
• Pre-attached 18-inch input cable for quick connection to your power bus or fuse panel.

Compact enough to tuck behind your helm console or in a dry locker, it keeps wiring clean and installations tidy.

Step-by-Step Installation Tips from the Field

Getting it online takes minutes if you prep right. Here's a pro-tested approach:

1. Power down your entire DC system and disconnect batteries for safety.
2. Route the 18-inch input cable from the converter to a dedicated circuit breaker (recommend 15A or per your radar manual).
3. Connect the input leads: red to positive, black to ground. Use marine-grade tinned wire if extending.
4. Link the converter's output harness directly to your radar's power input port—matches pin-for-pin.
5. Secure the module with zip ties or brackets away from heat sources.
6. Reconnect power, fire up the system, and verify smooth array rotation via your chartplotter.

Pro tip: Fuse it inline and add a ferrule crimps for bulletproof connections that laugh at saltwater corrosion.

Real-World Benefits Beyond Basic Power

Users report fewer service calls and longer radar lifespan. It mitigates issues like "no rotation" errors from brownouts, common on long offshore runs. Pair it with proper grounding and you'll maximize your investment in Garmin's pulse compression tech for clutter-free echoes even in rain or chop.

For troubleshooting: If the radar beeps oddly post-install, double-check polarity—reversals fry components fast. Voltage drops below 10V at idle? Upgrade your battery bank or add a dedicated alternator sense wire.
