Furuno NavPilot 300/PG Autopilot System w/PG700 Sensor

Furuno NavPilot 300/PG Autopilot System w/PG700 Sensor Product Description

NavPilot 300/PG Autopilot System with PG700 Sensor

NavPilot 300 is not your ordinary Autopilot - The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

The NavPilot 300/PG includes the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.

Gesture Control - just push, point and shoot!

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

Versatile Display Modes on a vivid 4.1" Color LCD Display

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

Features:

• 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added)
• Full control from NavNet TZtouch, TZtouch2 & the all-new GP1871F/GP1971F
• Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter
• Pigtail cable design for simplified installation
• NMEA2000 Certified System (includes output of Heartbeat PGN)
• Self-learning adaptive software
• Built-in simulator and slide show
• Bluetooth Gesture Controller (GC001) included as standard supply
• Targeted for center console outboards and drive-by-wire systems on small to mid-sized boats

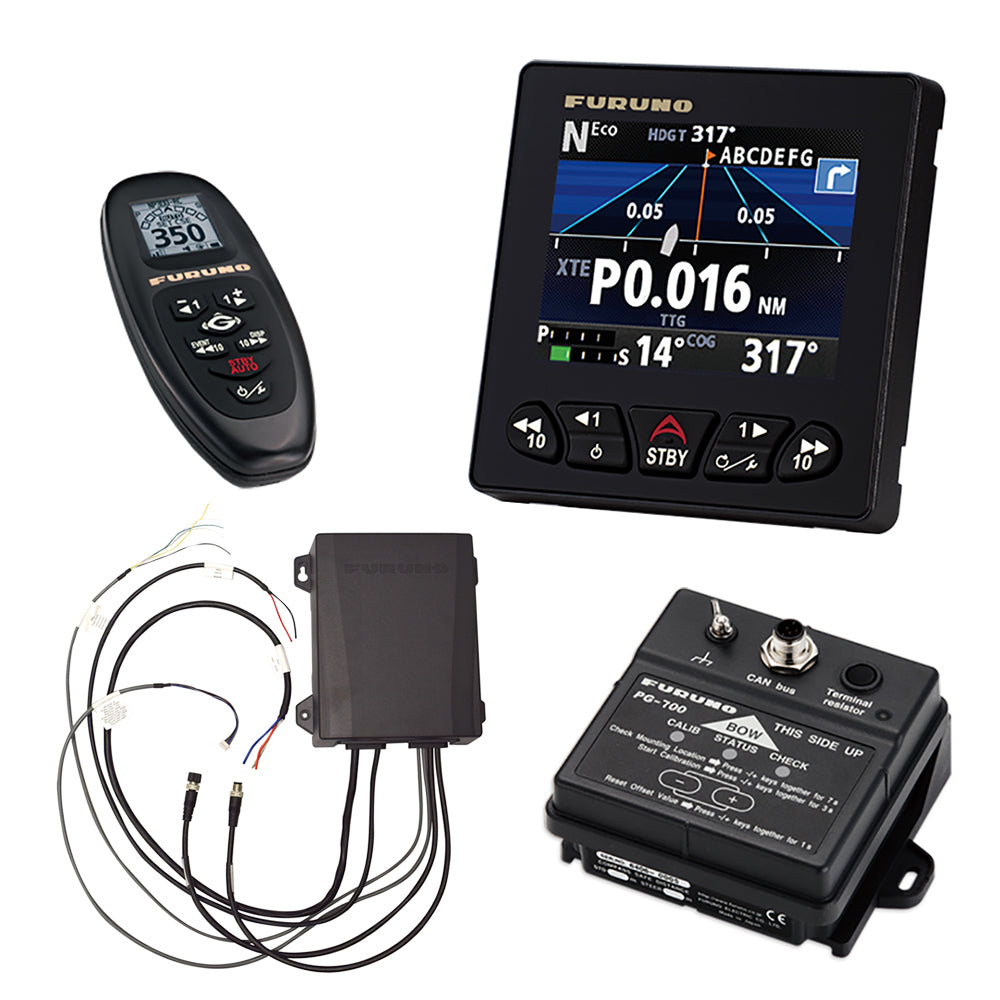

Comes with:

• FAP-3011- Control Unit
• GCV-001 - Gesture Controller
• FAP3012 - Processor Unit
• PG700 - Heading Sensor Unit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno Navpilot 300 Autopilot with PG700, requires Drive

Model: NAVPILOT 300/PG

• 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added)
• Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter
• Pigtail cable design for simplified installation
• NMEA2000 Certified System (includes output of Heartbeat PGN)
• Self-learning adaptive software
• Bluetooth Gesture Controller (GC001) included as standard supply

The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

What's in the Box:

• FAP3011 - Control Unit
• FAP3012 - Processor
• GC001 - Gesture Controller
• PG700

The coolest way to sail! Use NAVpilot 300? With the unique gesture controller, Fantum feedback steering and self-learning software, you will easily enjoy a brand new navigation level! SABIKI mode allows you to control the autopilot when moving backwards, so you can focus on fishing instead of steering. SABIKI mode is specially tailored for Sabiki fishing, boat jumping and sea fishing, and can move the heel slowly. SABIKI mode is only available on ships with outboard engines. After turning on the SABIKI mode, you only need to adjust the throttle to keep the direction unchanged. In order to maintain the same direction, it is not enough to simply reverse the engine and move it backward. The steering must be constantly adjusted to maintain direction. Compatible with EVC system NAVpilot series can be used with Volvo Penta IPS, Yamaha Helmet MasterTM, Yanmar 8LV engine system and Seastar Optimus360 joystick system. Volvo Penta IPS system (compatible with C, D or E Volvo Penta IPS drives) Yamaha Helm Master TM system Seastar Optimus360 joystick system Yanmar VC10 system (compatible with Yanmar 8VL and JC10) each time the ship goes on board, it learns and self-learns. When the adaptation software is sailing at sea, the software will understand the sea conditions and automatically calculate the best adjustments to achieve a smooth turn. FANTUM Feedback Furuno's "Fantum Feedback" NAVpilot software clears the way for simplified installation, while also providing enhanced steering control. With Fantum feedback, NAVpilot's outboard installation no longer requires the use of a physical servo feedback unit. Fantum Feedback is a menu selectable function available in the latest NAVpilot-300 and NAVpilot-700 series software. The software has been developed and extensively tested on various outboard ships with hydraulic steering and reversing pump control functions. Fantum Feedback uses a newly developed gain process to replace the traditional rudder angle control to achieve precise heading control from slow towing speed to high-speed cruise. Easy to install and system configuration based on intelligent network ・ NMEA2000 certified waterproof processing unit (IP55) and control unit (IP56) safety rudder and power-assisted safety rudder The safety rudder temporarily switches NAVpilot to manual operation within a specified time interval. POWER ASSIST reduces the complexity and cost of the steering system while improving fuel economy. POWER ASSIST is a unique steering gear activated auxiliary steering function, which can enhance and possibly replace many independent power steering systems driven by electricity, robbery and engines on many ships. POWER ASSIST reduces the complexity and cost of the steering system while improving economy. *Multiple display modes that require FPS8 power steering module NAVpilot-300 provides multiple display modes, with user-friendly menus and graphics (digital or analog), you can get all the necessary data you need. NAVpilot-300 also has a day/night graphic display function, which can provide perfect visibility at any time. Navigation mode NavNet TZtouch2 full control (V6.1 coming soon) NavNet TZtouch2 v6.1 or later software allows full control of NAVpilot-300. Users can not only change the mode or adjust the course, but also change the installation settings, function parameters and use the Fish Hunter mode. Using NavNet TZtouch 2 MDF (TZTL12F/15F and TZT2BB) as the main control unit, the user can fully control the autopilot. According to your preference, you can display NAVpilot-300 controls in two ways on NavNet TZtouch2 MFD. There can be a side data panel on the left side of the screen, which you can quickly slide in and out by swiping with your finger. This is ideal when you want to use full screen or bidirectional split screen for other functions. Another option is to display NAVpilot-300 controls in the "Instrument" window on a quarter of the screen. Both methods can easily and intuitively control the autopilot. NAVpilot control window (day mode) NAVpilot control window (night mode) specification control unit display 4.1 inch color LCD effective display area 85.2 (W) x 85.2 (H) mm pixel count QVGA (320 x 240) backlight 700 cd/m 2 processing Controller unit steering mode STBY, automatic, Dodge, NFU (non-follow-up), turning, advanced automatic*, navigation*, FishHunterTM*, alternative* requires external data sea condition adjustment automatic/manual sedation/medium/coarse alarm deviation alarm, monitoring Alarm interface port NMEA2000 x1, CAN bus x1 (DBW control) control signal x3, Bluetooth input 059392 / 904, 060160/416 / 928, 061184, 066240, 126208 / 464/720/992 / 996, 127237 / 250/258, 128259 , 129025/026/029/283/284/285/538, 130577/818/821/827/841 output 059392/904, 060928, 126208/464/720/993/996/998, 127237/245, 130816/821 / 822/823/827/841 Waterproof IP55 control unit IP56 gesture controller IP65/67 Other power supply 12-24 VDC 0.22 A Maximum control unit 15 VDC
