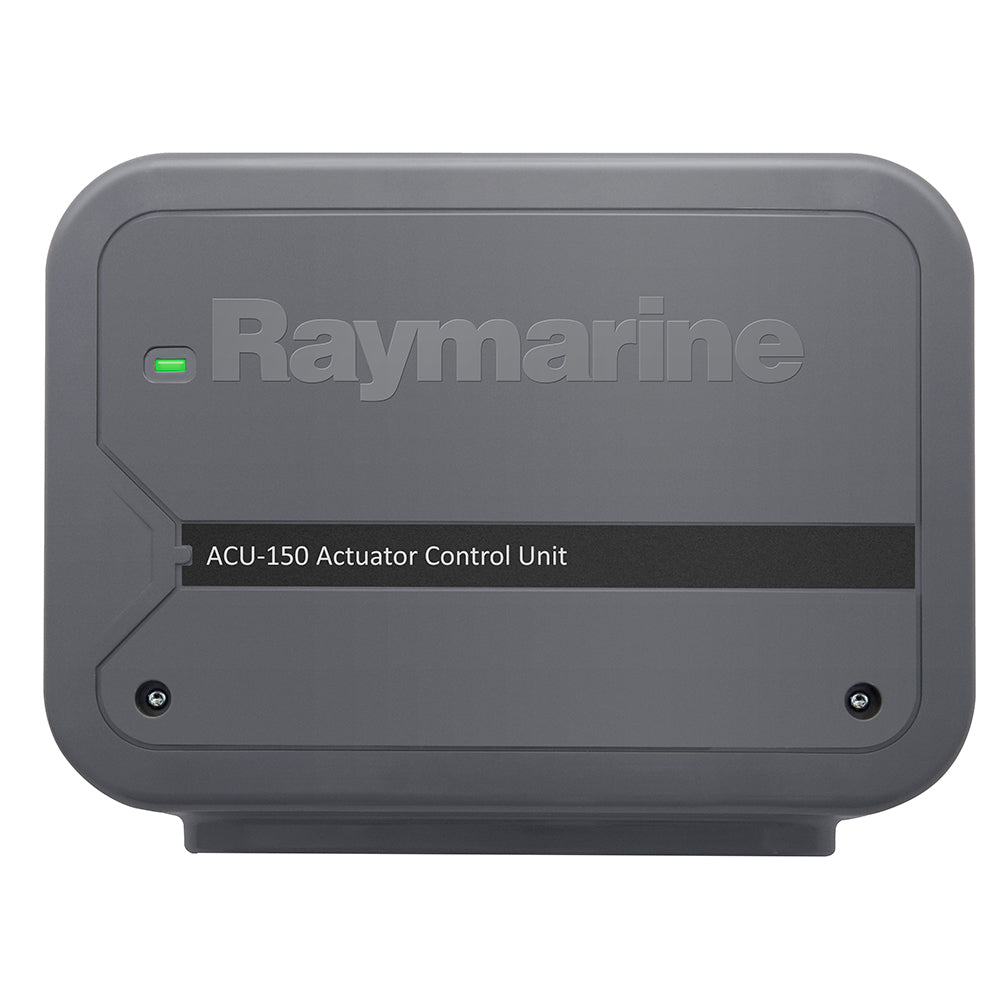

Raymarine ACU-150 Actuator Control Unit

Unlock Precise Steering Control with the Raymarine ACU-150

Imagine gliding across open waters with confidence, knowing your vessel's rudder responds instantly and accurately to every command. The Raymarine ACU-150 Actuator Control Unit serves as the powerhouse behind this seamless performance in the Evolution Autopilot lineup. Tailored for smaller boats relying on hydraulic steering, it delivers robust power and intelligent control to keep you on course, even in choppy conditions.

Boat owners upgrading their navigation systems often seek reliability without complexity. This unit stands out by interfacing effortlessly with your onboard electronics, ensuring smooth operation from dawn patrols to sunset cruises. Its design emphasizes durability against saltwater exposure, making it a staple for serious mariners who demand gear that lasts.

Core Features That Set It Apart

• Seamless Network Integration: Hooks up directly to the SeaTalkng backbone, allowing real-time data sharing with sensors, displays, and other peripherals for a unified boating experience.
• Hydraulic Drive Compatibility: Optimized to drive Type-1 hydraulic pumps, providing the muscle needed for responsive rudder movement on mid-sized vessels.
• Enhanced Feedback Options: Supports an optional rudder reference sensor, feeding precise position data back to the autopilot for pinpoint accuracy during long passages.
• Power Efficiency: Built for 12-volt DC setups common in recreational and fishing boats, it balances high performance with low energy draw to extend battery life on extended trips.

These elements combine to create an autopilot core that's not just functional but intuitive, reducing pilot fatigue and letting you focus on the horizon.

Why Boaters Choose This for Their Evolution Setup

In the world of marine autopilots, precision isn't optional—it's essential. The ACU-150 shines in systems paired with the EV-1 sensor core, leveraging advanced gyro-stabilized heading data for course holding that rivals human steering. Skip the hassle of traditional compass swings; this setup calibrates itself, adapting to your boat's unique handling characteristics.

For vessels up to around 40 feet with hydraulic rams, it handles the torque demands effortlessly, whether dodging waves or maintaining a steady tack. Anglers appreciate its stability during trolling, while cruisers value the integration with chartplotters for waypoint navigation. Real-world feedback from skippers highlights fewer adjustments needed in rough seas, translating to safer, more enjoyable outings.

Streamlined Installation and Setup Tips

Getting your ACU-150 online doesn't require a marine electrician. Mount it in a dry, accessible spot near the helm or engine bay, ensuring good ventilation. Connect the power leads securely to your 12V battery bank, and run SeaTalkng cables to link with the EV-1 core and control head. If adding a rudder reference, align it carefully with your steering gear for optimal feedback.

Pro tip: Test the full loop on calm water first—power cycle, engage autopilot in different modes, and verify rudder response. Common pitfalls like loose connections or polarity mix-ups are easy fixes with basic tools, keeping downtime minimal.

Long-Term Reliability and Care

Salt air and vibrations are autopilot enemies, but the ACU-150's rugged enclosure laughs them off. Routine checks include inspecting cable glands for corrosion, cleaning terminals, and monitoring for overheating during heavy use. Pair it with a quality hydraulic fluid in your drive unit to prevent leaks and maintain smooth action season after season.

Many owners report years of trouble-free service, crediting proactive maintenance. When troubleshooting, start with power supply—fluctuating voltage often mimics control issues.
