Raymarine EV-300 Power Solenoid Evolution Autopilot

Raymarine EV-300 Power Solenoid Evolution Autopilot Product Description

The EV-300 system is for use onboard vessels with solenoid-controlled electro-hydraulic steering systems. The included ACU300 actuator control unit interacts directly with the boat's steering gear solenoids, delivering accurate and reliable autopilot steering. The EV-300 Solenoid autopilot also works with Raymarine and 3rd party constant running hydraulic drive units. The EV-300 Solenoid autopilot system features our p70Rs color autopilot remote control with rotary controller, the EV-1 Sensor Core, the EV-300 Actuator Control Unit, and an Evolution autopilot cabling kit.

Raymarine T70160 Attributes

• Compatibility: Onboard Vessels With Solenoid-Controlled Electro-Hydraulic Steering System
• Dimension: 11.2 Inch Width X 8.3 Inch Height X 2.5 Inch Depth
• Voltage Rating: 12 Volt

Raymarine T70160 Features & Benefits

• Suitable For Vessels With Solenoid-Controlled Hydraulic Steering Systems
• Works With Constant-Running Hydraulic Drive Systems
• SeaTalk/NMEA2000 For Networking With Instruments And Chartplotters
• Requires No Complicated Setup Or Autopilot Calibration
• Intelligent 9-Axis Heading Sensor That Uses Aerospace Guidance Technology To Adapt And Evolve To Changing Sea Conditions And Vessel Dynamics
• Limited 2 Year Warranty

Raymarine T70160 Installation Instructions

• Evolution EV-1 and ACU Installation instructions 87180-6-EN.pdf

Raymarine T70160 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine T70160 Technical Bulletins

• Evolution EV-1 and ACU Installation instructions 87180-6-EN.pdf
• ACU 200 300 400 E70099 E70139 E70100 2D PDF.PDF

EV-300 Power Solenoid Evolution Autopilot

*Requires addition of a 12V or 24V Constant Running Variable Pump

Features:

• For vessels with solenoid controlled hydraulic steering
• Evolution Ai for superior performance
• No calibration required
• SeaTalk^ng Network Compatible
• ACU-300 auxiliary power to SeaTalk^ng network
• Includes p70Rs Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV-1 Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70Rs Autopilot Control Head

The p70R has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-300 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

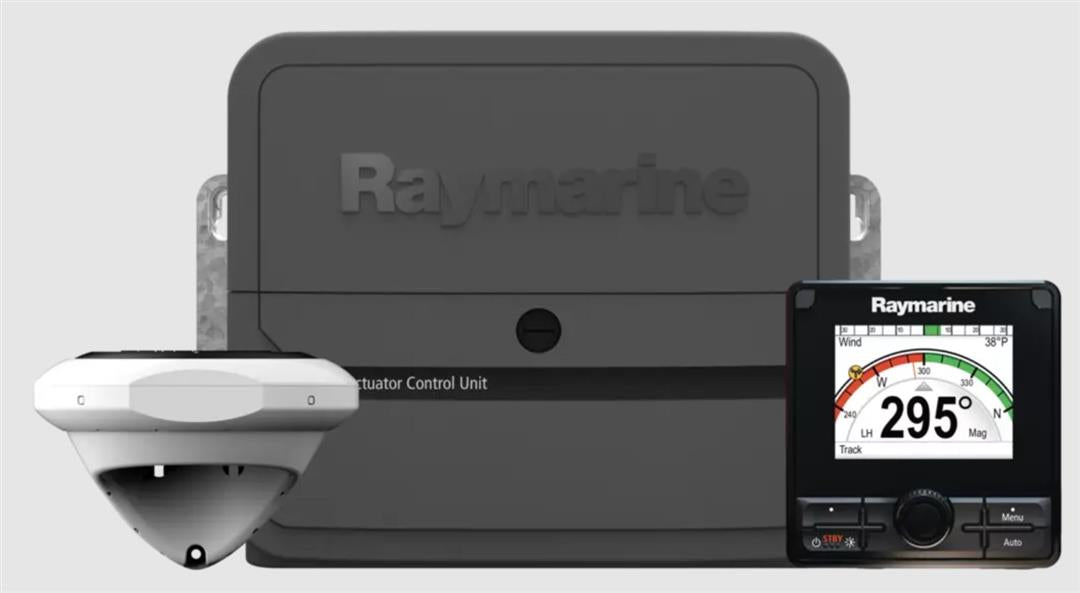

EV-300 p70Rs Solenoid Pack, w/ Drive, MFG# T70160, Evolution Autopilot system consisting of ACU300 processor, p70Rs control head, EV-1 sensor, and EV-1 cabling kit. Drive unit not included.

p70R is a button-operated controller and a rotary control dial, mainly designed for power boats. The LED backlight provides excellent visibility during the day or night and has ultra-low power consumption. P70R also supports group dimming together with i70 Instruments and e7 multifunction displays. Ev-1 is specially designed for Evolution mechanical and hydraulic autopilot systems. The Sea Talkng network makes a cable connection possible. The core of the EV sensor is a 9-axis sensor that can monitor the movement of the ship in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into an easy-to-install housing. Install the EV sensor core above or below the deck. The sturdy shell is completely sealed and meets Ipx6 and Ipx7 waterproof and immersion standards. The sturdy ACU (Actuator Control Unit) provides reliable driving power for autonomous driving and also powers the Sea Talkng bus.

Raymarine EV-300 Power Solenoid Evolution Autopilot Related Products

Raymarine SmartController
Raymarine S100 Wireless SeaTalk Autopilot Remote Control




Buy with the best price Raymarine EV-300 Power Solenoid Evolution Autopilot for only $3499 from NVN Marine! Same day free shipping before 3pm.
