VW Ser. 1000# 5/16 HT or 3B chain, 12V

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 2000443 - UPC: 9414761061391 - MPN: VW100012V105
It will be shipped by UPS Ground.
$1,062.99 $3,142.88 ( / )

We are sorry, this product sold out!

  • Vertical drum with lower deck motor
  • Maximum capacity
  • For 5/16" HT or 3B chain
  • Pull the rope at 59'/min
  • 1000 watt motor
Maxwell
Same Day

Shipping (3PM)

Free Returns

Within 30 days

VW Ser. 1000# 5/16 HT or 3B chain, 12V Product Description

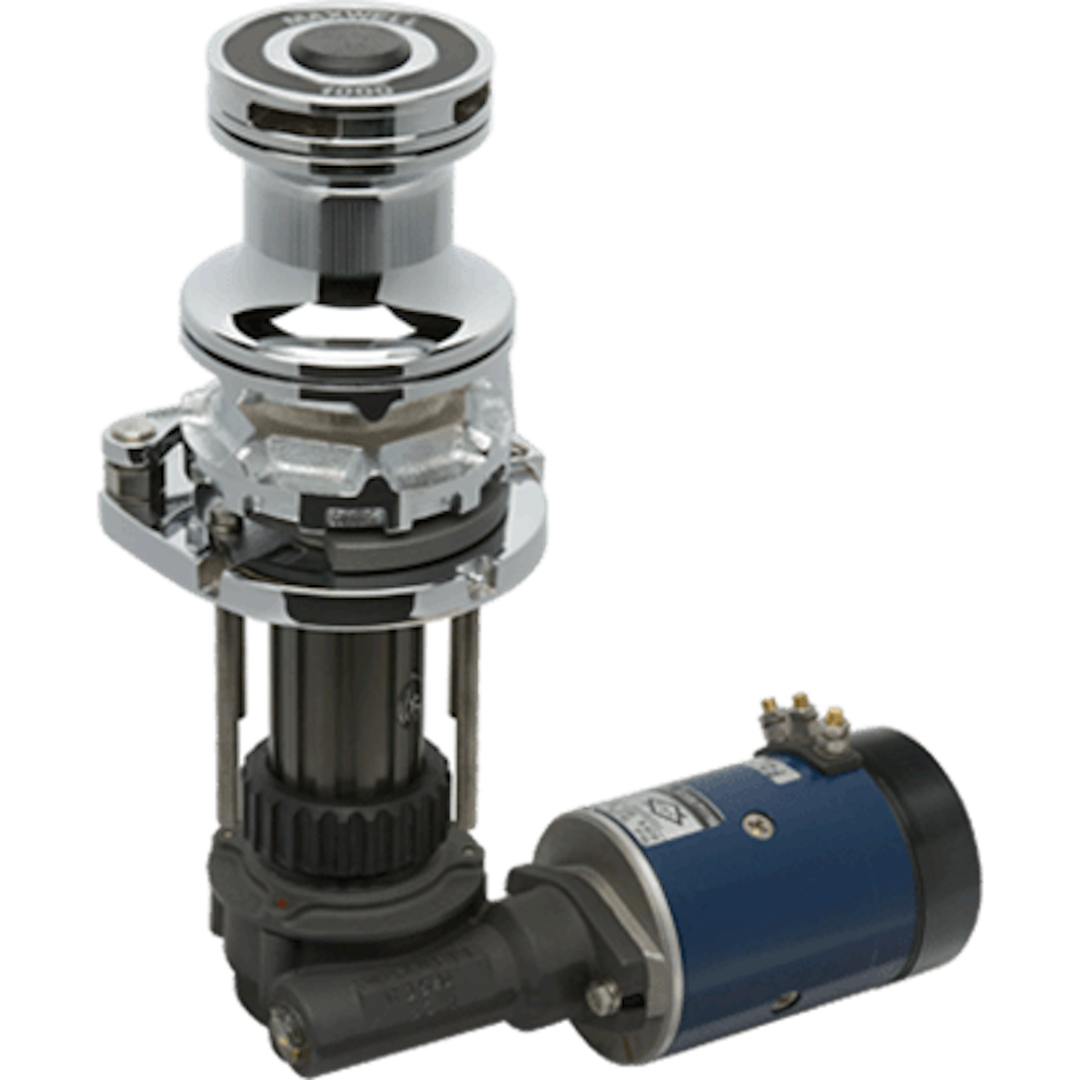

VW Vertical Windlass and CapstanVertical Windlass and Capstan with Below-Deck Motor The VW Series of anchor winches are designed for traditional rope and chain combination anchor rodes, where manual transfer of the rode from the rope warping drum to the chainwheel is required.

Maxwell 100012V105 Attributes

  • Mount Type: Vertical, below deck motor
  • Maximum Pull: 1000 Pound
  • Maximum Line Speed: 59'/min. (rope)
  • Size: Above Deck: 7.75''; Below Deck: 9.9''; Motor offset: 10.7''; Wt: 50 lbs.; Max deck thickness: 4''
  • Chain/ Rope Size: 5/16'' (HT or 3B chain)
  • Voltage Rating: 12 VDC
  • Motor Power: 1000 Watt

Maxwell 100012V105 Features & Benefits

  • Provides the versatility of operating two anchors from one winch
  • Functional rope hauling from any direction using independent MAX-grip snag-free warping drum with clutch disengagement of chainwheel for positive control of all ropes
  • Permits use of traditional shackle and thimble rope and chain connection; Heavy duty, dual direction motor, designed for marine winches, Easily disassembled for servicing
  • Allows alternative mounting horizontally on a fore and aft bulkhead inside chain locker for below deck installation
  • High-quality finish on above deck components Heavy chrome over marine-grade alloy bronze
  • Cone type brake/clutch mechanism permits manual free fall anchoring, Chainwheel locking pawl
  • Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe operator control
  • Simplified through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel bolts
  • Anodized aluminium gearbox and spacer on 500, 1000 and 1500 models Marine-grade alloy gearbox housing, finished with a two coat paint system on 2200 and 3500 models
  • Limited 3 Year Warranty

VW Series Windlass w/ capstan, MFG# VW100012V105, Vertical drum with below-deck motor, 1000 lb. max capacity, for 5/16" HT or 3B chain, pulls rope @ 59'/min, 12 VDC, 1000 Watt motor. Includes footswitch and emergency handle. For decks up to 4" thick.

VW vertical winch and winch, with under-deck motor VW series anchor winch is designed for traditional rope and chain combined anchor rods, traditional rope and chain combined anchor rods need to be manually transferred from the rope shaping drum To the sprocket. Features: Provides the versatility of operating two anchors from one winch. Use independent MAX-grip-no-swarping drums to pull functional ropes from any direction and separate sprockets to achieve active control of all ropes. Allows the use of traditional shackles and thimble rope and chain connection. It is allowed to be installed horizontally on the front and rear bulkheads inside the chain locker for installation below the deck. High-quality finishes for components above the deck. There is heavy chromium on marine grade alloy bronze. The conical brake/clutch mechanism allows manual free fall anchoring. Cone clutches are different from claw clutches in that they provide smooth and progressive engagement and ensure safe operator control. Sprocket locking pawl. The installation process is simplified through the modular design of the deck installation, and the gearbox is precisely aligned with the top-level project using marine-grade stainless steel bolts. 500, 1000 and 1500 models of anodized aluminum gearboxes and gaskets. The marine-grade alloy gearbox housing is coated with a two-layer coating system on both the 2200 and 3500 models. Heavy-duty two-way motor, designed for marine winches. Easy to disassemble and repair. Specifications: The installation type is vertical, 12 VDC lower than the input voltage of the deck motor, the power is 1000 watts, and the lifting capacity is 1000 pounds. Speed ​​rating 59'/min (rope) rope and chain size 5/16"" (HT or 3B chain) Other features include foot switch and emergency handle. Optional two-way kit, chain counter above deck size: 7.75""; below deck: 9.9""; motor offset: 10.7""; weight: 50 pounds.

Frequently Asked Questions (FAQ) About Maxwell VW Ser. 1000# 5/16 HT or 3B chain, 12V

Who is the Maxwell?
How to describe Maxwell VW Ser. 1000# 5/16 HT or 3B chain, 12V?
What is the size?
What is the mount type of the product?

Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell VW Ser. 1000# 5/16 HT or 3B chain, 12V?

VW vertical winch and winch, with under-deck motor VW series anchor winch is designed for traditional rope and chain combined anchor rods, traditional rope and chain combined anchor rods need to be manually transferred from the rope shaping drum To the sprocket. Features: Provides the versatility of operating two anchors from one winch. Use independent MAX-grip-no-swarping drums to pull functional ropes from any direction and separate sprockets to achieve active control of all ropes. Allows the use of traditional shackles and thimble rope and chain connection. It is allowed to be installed horizontally on the front and rear bulkheads inside the chain locker for installation below the deck. High-quality finishes for components above the deck. There is heavy chromium on marine grade alloy bronze. The conical brake/clutch mechanism allows manual free fall anchoring. Cone clutches are different from claw clutches in that they provide smooth and progressive engagement and ensure safe operator control. Sprocket locking pawl. The installation process is simplified through the modular design of the deck installation, and the gearbox is precisely aligned with the top-level project using marine-grade stainless steel bolts. 500, 1000 and 1500 models of anodized aluminum gearboxes and gaskets. The marine-grade alloy gearbox housing is coated with a two-layer coating system on both the 2200 and 3500 models. Heavy-duty two-way motor, designed for marine winches. Easy to disassemble and repair. Specifications: The installation type is vertical, 12 VDC lower than the input voltage of the deck motor, the power is 1000 watts, and the lifting capacity is 1000 pounds. Speed ​​rating 59'/min (rope) rope and chain size 5/16"" (HT or 3B chain) Other features include foot switch and emergency handle. Optional two-way kit, chain counter above deck size: 7.75""; below deck: 9.9""; motor offset: 10.7""; weight: 50 pounds.

What is the size?

Above Deck: 7.75''; Below Deck: 9.9''; Motor offset: 10.7''; Wt: 50 lbs.; Max deck thickness: 4''

What is the mount type of the product?

Vertical, below deck motor


Save $2079 when you buy the VW Ser. 1000# 5/16 HT or 3B chain, 12V for only $1062 from NVN Marine! Same day free shipping before 3pm.

VW Ser. 1000# 5/16 HT or 3B chain, 12V Technical Specifications

Type:

Anchoring & Docking | Windlasses

Vendor:

Maxwell

Weight:

52.0 lb

VW Ser. 1000# 5/16 HT or 3B chain, 12V User Reviews

VW Ser. 1000# 5/16 HT or 3B chain, 12V Shipping & Return

Shipping Weight:

52.0 lb

Box Sizes:

11.00 (h) x 17.00 (w) x 20.00 (l)

Cubic Feet:

3740.0

Returnable:

Yes

USPS First Class:

Yes
