Xdcr, CHIRP-LH Wide, Bronze Thru-Hull

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 2000077 - UPC: 00611679359544 - MPN: B275LHW
$1,869.99 $2,100.00 ( / )

Available Stock : 6

Furuno's X-Series of CHIRP sonar systems offer the latest in sonar technology and design. These units are perfect for commercial fishing, offshore, and recreational applications.
Furuno
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Xdcr, CHIRP-LH Wide, Bronze Thru-Hull Product Description

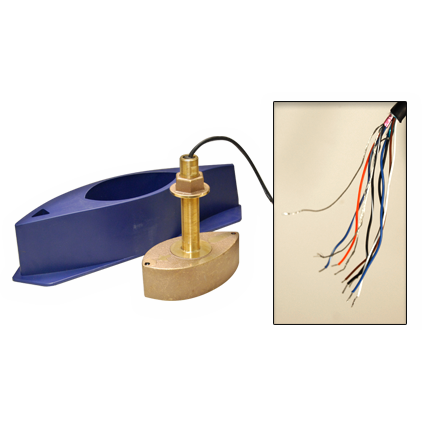

Furuno B275LHW CHIRP Bronze Thru-Hull Transducer - Professional Wide-Beam Marine Sonar System

Experience next-generation sonar performance with the Furuno B275LHW CHIRP Bronze Thru-Hull Transducer, featuring revolutionary wide-beam technology that delivers over six times the underwater coverage compared to standard high-frequency CHIRP transducers. This premium bronze transducer combines dual-frequency CHIRP capability with advanced wide-beam design, providing exceptional fish detection and bottom imaging for serious anglers and marine professionals.

Revolutionary Wide-Beam CHIRP Technology

  • Dual-Band CHIRP Frequencies: Low-band 42-65kHz and high-band 150-250kHz for comprehensive water column coverage
  • Wide-Beam Coverage: 25° constant beamwidth provides over 6x the coverage area of standard CHIRP transducers
  • True Broadband Performance: Continuous frequency sweeps deliver superior target separation and resolution
  • Bronze Marine Construction: Corrosion-resistant bronze housing with integrated fairing block
  • High-Power Capability: 1000-watt power handling for deep-water performance and superior penetration

Technical Specifications

Low Frequency Range: 42-65 kHz CHIRP
High Frequency Range: 150-250 kHz CHIRP
Beam Angle: 25° x 16° (Low) / 25° (High)
Power Rating: 1000 Watts
Maximum Depth: 3,000 feet (914 meters)
Installation Type: Thru-Hull Mount
Housing Material: Bronze with Fairing Block
Cable Length: 39.3 feet (12 meters)

Dual-Frequency CHIRP Performance

Low Frequency Band (42-65 kHz):

  • Deep Water Penetration: Excellent performance in depths up to 3,000 feet
  • Large Fish Detection: Superior target identification for big game species
  • Bottom Structure: Detailed bottom composition and structure analysis
  • Long-Range Detection: Extended range fish location capabilities

High Frequency Band (150-250 kHz):

  • High-Resolution Imaging: Precise target separation and detail
  • Baitfish Detection: Exceptional small fish and bait school identification
  • Wide Coverage: 25° constant beamwidth for extensive underwater scanning
  • Shallow Water Performance: Outstanding performance in nearshore environments

Wide-Beam Technology Advantages

  • 6x Coverage Area: Scans over six times the area of standard high-frequency transducers
  • Constant Beamwidth: Maintains 25° coverage across entire high-frequency range
  • Faster Fish Finding: Covers more water per pass for efficient fishing
  • Enhanced Target Tracking: Fish remain visible longer as boat moves through water
  • Structure Mapping: Superior underwater structure and bottom feature identification
  • Reduced Search Time: Locate fish and structures faster with expanded coverage

Premium Marine Construction

  • Bronze Housing: Superior corrosion resistance in saltwater environments
  • Integrated Fairing Block: Optimized water flow reduces turbulence and cavitation
  • Thru-Hull Design: Direct water contact for maximum signal transmission
  • Temperature Sensor: Integrated water temperature monitoring
  • Professional Installation: Designed for permanent vessel integration
  • Rugged Reliability: Built to withstand harsh marine conditions

System Compatibility

Compatible Furuno Units:

  • DFF1-UHD: Black box CHIRP sounder with ultra-high definition
  • FCV295: Standalone variable frequency fishfinder
  • FCV1150: Professional variable frequency fishfinder
  • TZtouch3 Series: When paired with compatible sounder modules

Connection Options:

  • Bare Wire Configuration: No connector (model B275LHW)
  • 12-Pin Version: Available as B275LHW-12P with Furuno connector
  • Professional Installation: Requires proper cable termination and connections

Installation Guidelines

  • Vessel Size: Recommended for boats 25 feet and larger
  • Hull Material: Suitable for fiberglass and wooden hulls
  • Location Selection: Install in area with clean water flow
  • Fairing Block Orientation: Proper alignment critical for performance
  • Through-Hull Fitting: Use appropriate marine-grade sealants and fittings
  • Cable Routing: Plan 39.3-foot cable run to electronics location
  • Professional Installation: Recommended for optimal performance and warranty

Marine Fishing Applications

  • Offshore Sport Fishing: Locate pelagic species and baitfish schools
  • Bottom Fishing: Identify structure and bottom-dwelling species
  • Commercial Fishing: Professional-grade fish detection and mapping
  • Tournament Fishing: Competitive advantage with superior coverage
  • Deep Sea Fishing: 3,000-foot depth capability for deep-water species
  • Shallow Water Fishing: Excellent baitfish detection in nearshore areas

Why Choose Furuno B275LHW?

  • Proven Technology: Furuno's 75+ years of marine electronics innovation
  • True Broadband Design: Continuous frequency coverage for superior performance
  • Wide-Beam Innovation: Patented technology for expanded underwater coverage
  • Professional Grade: Commercial-quality construction and performance standards
  • Versatile Compatibility: Works with multiple Furuno sounder systems
  • Long-Term Investment: Durable construction for years of reliable service

Frequently Asked Questions

What makes the B275LHW different from standard CHIRP transducers?

The B275LHW features wide-beam technology that provides over six times the underwater coverage of standard high-frequency CHIRP transducers, with a constant 25° beamwidth across the entire high-frequency range of 150-250kHz.

What is the maximum depth capability of this transducer?

The B275LHW can effectively operate at depths up to 3,000 feet (914 meters), making it suitable for deep-sea fishing and professional marine applications.

Does this transducer include a connector?

The standard B275LHW model comes with bare wire connections (no connector). A 12-pin connector version (B275LHW-12P) is also available for direct connection to compatible Furuno units.

What type of vessels is this transducer recommended for?

The B275LHW is recommended for boats 25 feet and larger with fiberglass or wooden hulls. The bronze construction and fairing block design make it ideal for larger recreational and commercial vessels.

Can this transducer be used with NavNet systems?

Yes, when paired with compatible sounder modules like the DFF1-UHD, the B275LHW can be integrated with NavNet TZtouch3 systems for comprehensive navigation and fish-finding capabilities.

Model Number: B275LHW

UPC: 00611679359544

Manufacturer: Furuno

Category: Marine Navigation & Instruments | Transducers

This series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, this provides a high frequency range of 150 to 250 Kilohertz and a constant 25 Degree beamwidth. The “W” stands for wide and that’s what the B275LH-W really delivers. Unlike traditional high frequency (200 Kilohertz) transducers that provide narrow performance, this unique, new wide beam or high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers. This is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25 Degree wide beamwidth provided at every frequency.

Furuno B275LHW Attributes

  • Mounting Location: Thru-Hull Mount
  • Number Of Pins: Bare Wire
  • Depth: 3000 Feet
  • Power Rating: 1000 Watt
  • Frequency Range: 42 To 65 kHz For Low CHIRP And 150 To 250 kHz For High CHIRP
  • Supported Angle: 25 X 16/ 25 Degree Beamwidth
  • Cable Length: 39.3 Feet

Furuno B275LHW Features & Benefits

  • Provides A High Frequency Range Of 150 To 250 Kilohertz And A Constant 25 Degree Beamwidth
  • Traditional High Frequency Transducers That Provide Narrow Performance
  • This Unique, New Wide Beam Or High Frequency Design Achieves Over Six Times The Coverage Under The Boat Compared To Standard High-Frequency CHIRP Transducers
  • Easy To Install
  • Limited 3 Year Warranty

Depth Transducer, MFG# B275LHW, Airmar B275 Bronze Thru-Hull w/ fairing block, CHIRP Low (42-65KHz) & Hi (150-250 KHz), 1,000 Watt, wide beam angle. Without connector.

The 275LH-W series sensor has truly realized broadband in its best condition. When used with Furuno's DFF1-UHD, B275LH-W can provide a high frequency range of 150-250Khz and a constant beam width of 25°. "W" stands for wide, which is what B275LH-W really provides. Unlike traditional high-frequency (200kHz) transducers that provide narrow performance, this unique new wide-beam/high-frequency design has more than six times the coverage of the ship’s bottom compared to standard CHIRP high-frequency transducers. B275LH-W is also compatible with FCV295 and FCV1150 variable frequency fish finder, providing the same frequency range, and each frequency provides a wide beam width of 25°.

Frequently Asked Questions (FAQ) About Furuno Xdcr, CHIRP-LH Wide, Bronze Thru-Hull

Who is the Furuno?
How to describe Furuno Xdcr, CHIRP-LH Wide, Bronze Thru-Hull?
What is the power rating of the product?
What is the length of cable?

Who is the Furuno?

Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.

How to describe Furuno Xdcr, CHIRP-LH Wide, Bronze Thru-Hull?

The 275LH-W series sensor has truly realized broadband in its best condition. When used with Furuno's DFF1-UHD, B275LH-W can provide a high frequency range of 150-250Khz and a constant beam width of 25°. "W" stands for wide, which is what B275LH-W really provides. Unlike traditional high-frequency (200kHz) transducers that provide narrow performance, this unique new wide-beam/high-frequency design has more than six times the coverage of the ship’s bottom compared to standard CHIRP high-frequency transducers. B275LH-W is also compatible with FCV295 and FCV1150 variable frequency fish finder, providing the same frequency range, and each frequency provides a wide beam width of 25°.
  • Depth Transducer
  • MFG B275LHW
  • Airmar B275 Bronze Thru-Hull w/ fairing block
  • CHIRP Low (42-65KHz) & Hi (150-250 KHz)
  • 1,000 Watt
  • A depth transducer is a device that measures the distance from the instrument to the seabed.
  • The MFG B275LHW is a bronze thru-hull with a fairing block that has a CHIRP low frequency (42-65KHz) and high frequency (150-250KHz).
  • This depth transducer has a wide beam angle of 1,000 Watts.

The Furuno Xdcr, CHIRP-LH is a high-performance, wide-beam CHIRP transducer that provides the best of both worlds. It has 123 kHz of total bandwidth from one transducer, with popular fishing frequencies of 50 and 200 kHz plus everything in between. The B275LHW is designed for use with the Furuno Xdcr CHIRP-LH transdu

What is the power rating of the product?

1000 Watt
  • Depth Transducer
  • MFG B275LHW
  • Airmar B275 Bronze Thru-Hull w/ fairing block
  • CHIRP Low (42-65KHz) & Hi (150-250 KHz)
  • 1,000 Watt
  • A depth transducer is a device that measures the distance from the instrument to the seabed.
  • The MFG B275LHW is a bronze thru-hull with a fairing block that has a CHIRP low frequency (42-65KHz) and high frequency (150-250KHz).
  • This depth transducer has a wide beam angle of 1,000 Watts.
  • The Airmar B275-LHW is a wide beam CHIRP transducer.
  • It has a depth and fast-response water-temperature sensor, which makes it ideal for fishing.
  • The 123 kHz of total bandwidth from one transducer covers popular fishing frequencies of 50 and 200 kHz.
  • The Airmar B275-LHW is a wide-beam, CHIRP transducer designed for use in shallow to medium depths.
  • It has a depth and fast-response water temperature sensor, 123 kHz of total bandwidth from one transducer, and covers popular fishing frequencies of 50 and 200 kHz plus everything in between.

What is the length of cable?

39.3 Feet


Save $230 when you buy the Xdcr, CHIRP-LH Wide, Bronze Thru-Hull for only $1869 from NVN Marine! Same day free shipping before 3pm.

Xdcr, CHIRP-LH Wide, Bronze Thru-Hull Technical Specifications
