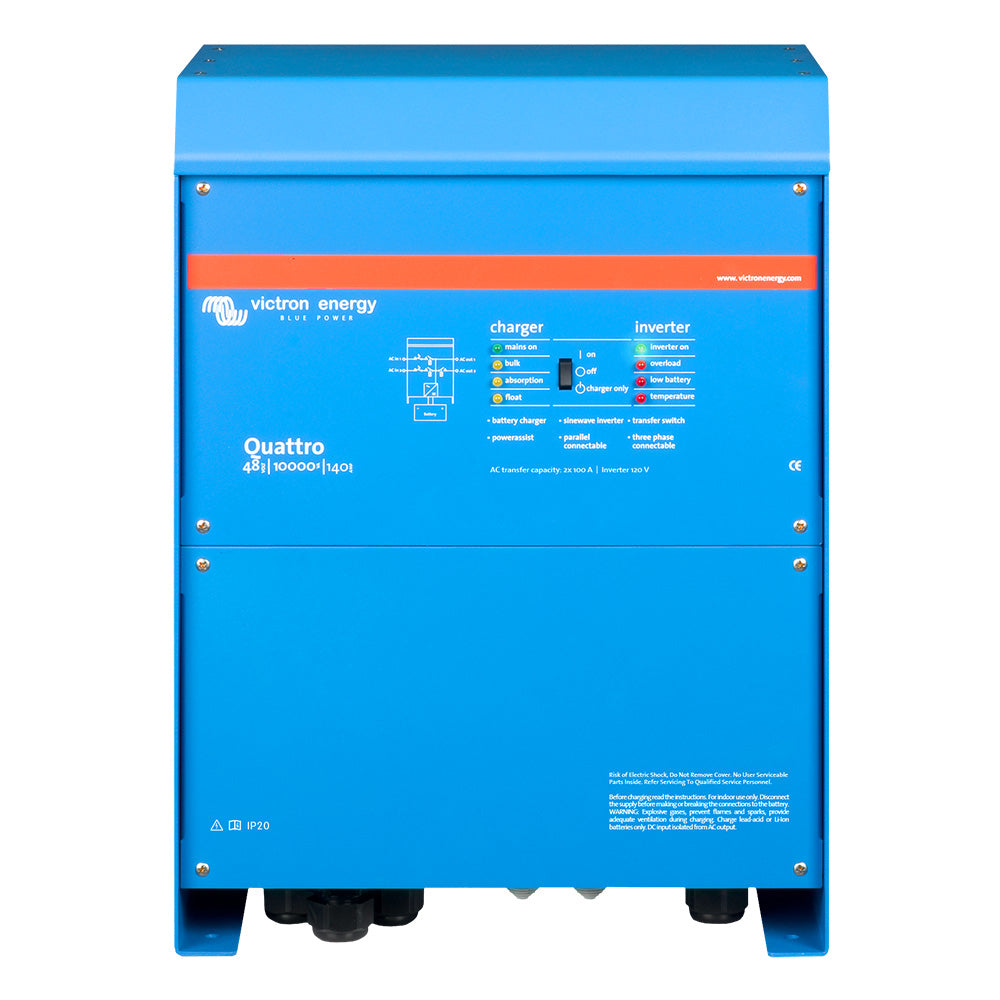

Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed

Truck Freight Shipment ($299)

SKU: 104746 - UPC: 8719076065678 - MPN: QUA483100102
$2,766.75 $3,255.00 ( / )

Available Stock : 4

Victron Quattro 48/10000/140-100/100 120V VE.Bus UL-Listed - Professional Dual-Input Inverter/Charger System Command ultimate power management with the Victron Quattro 48/10000/140-100/100 - the industry-leading 10kW dual-input inverter/charger system that delivers unparalleled versatility, reliability, and intelligent power management for demanding off-grid and backup power applications. This UL-listed powerhouse combines advanced inverter technology...
Victron Energy
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed Product Description

Victron Quattro 48/10000/140-100/100 120V VE.Bus UL-Listed - Professional Dual-Input Inverter/Charger System

Command ultimate power management with the Victron Quattro 48/10000/140-100/100 - the industry-leading 10kW dual-input inverter/charger system that delivers unparalleled versatility, reliability, and intelligent power management for demanding off-grid and backup power applications. This UL-listed powerhouse combines advanced inverter technology with dual AC inputs, PowerAssist functionality, and seamless system integration capabilities for professional energy independence.

Advanced Dual AC Input Technology

The Quattro's revolutionary dual AC input design automatically manages two independent AC sources - whether shore power and generator, two generators, or grid and backup power - providing unmatched flexibility and redundancy for critical power applications.

Dual Input Capabilities:

  • Input 1 (Priority): 140A maximum input current capability
  • Input 2 (Secondary): 100A maximum input current capability
  • Automatic Source Selection: Seamless switching between available AC sources
  • Priority Management: Intelligent source prioritization and load balancing
  • Configurable Settings: Customizable input parameters via VE.Configure

Dual AC Output Configuration

The intelligent dual output design provides both critical loads with uninterruptible backup power and non-critical loads that operate only when AC power is available, optimizing battery life and system efficiency.

Output Configuration:

  • Main Output: No-break functionality with <20ms transfer time
  • Auxiliary Output: Live only when AC input is available
  • Critical Load Protection: Computers and electronics continue operation
  • Non-Critical Load Management: Air conditioning, water heaters on auxiliary output
  • Load Prioritization: Intelligent power distribution

Pure Sine Wave Inverter Technology

The Quattro generates clean, stable pure sine wave power with 10kW continuous output capacity and surge handling capability for demanding electrical loads and sensitive electronics.

Inverter Specifications:

  • Continuous Power Output: 10,000W (10kW) at 25°C
  • Peak Power Capability: 20kW for 30 seconds
  • Output Voltage: 120VAC ±2% (UL-listed for North America)
  • Output Frequency: 60Hz ±0.1% crystal-controlled precision
  • Input Voltage: 48VDC nominal (38-66VDC operating range)
  • Waveform: Pure sine wave with <3% THD

Revolutionary PowerAssist Technology

Victron's exclusive PowerAssist technology prevents generator or shore power overload by intelligently managing power flow between AC input, battery bank, and connected loads.

PowerAssist Features:

  • Overload Prevention: Protects limited AC sources from overload conditions
  • Dynamic Battery Charging: Automatically reduces charging when loads increase
  • Power Boost Mode: Supplements generator output with battery power
  • Seamless Operation: Transparent load management without interruption
  • Generator Optimization: Maximizes smaller generator capability

Professional Battery Charging System

The integrated 140-amp adaptive battery charger features sophisticated charging algorithms optimized for various battery technologies and operating conditions.

Charging Capabilities:

  • Maximum Charge Current: 140A continuous charging capability
  • Adaptive Charging: Automatically adjusts to battery condition and type
  • Multi-Stage Charging: Bulk, absorption, float, and equalization stages
  • Battery Compatibility: Lead-acid, AGM, gel, and lithium battery support
  • Temperature Compensation: Optional battery temperature sensing
  • Programmable Parameters: Customizable charging profiles via VE.Configure

Parallel & Multi-Phase System Expansion

Scale your power system with advanced parallel operation capabilities supporting up to six Quattro units for massive power output and redundancy.

System Expansion Options:

  • Parallel Operation: Up to 6 units for 60kW total output
  • Three-Phase Configuration: Industrial and commercial applications
  • Split-Phase Operation: 240V residential applications
  • Master-Slave Control: Synchronized operation across multiple units
  • Load Sharing: Balanced power distribution across parallel units
  • System Redundancy: Continued operation if one unit fails

VE.Bus Communication & Integration

The advanced VE.Bus communication protocol enables comprehensive system monitoring, control, and integration with Victron's ecosystem of energy management products.

Communication Features:

  • VE.Bus Protocol: Digital communication with parallel units
  • System Monitoring: Real-time status and parameter monitoring
  • Remote Configuration: Parameter adjustment via VE.Configure software
  • Data Logging: Historical performance and fault data
  • System Integration: Compatible with VE.Bus BMS and other accessories

Advanced Remote Monitoring & Control

When coupled with Victron's GX devices (Cerbo GX, Venus GX), access comprehensive system monitoring and control from anywhere in the world.

Remote Access Features:

  • VRM Portal: Free web-based monitoring and control platform
  • VictronConnect App: Mobile device monitoring and configuration
  • Real-Time Data: Live system status, power flow, and battery data
  • Remote Configuration: Adjust settings from anywhere with internet access
  • Alarm Management: Email and SMS notifications for system events
  • Generator Control: Automatic generator start/stop functionality

Professional Installation & Applications

Engineered for demanding applications requiring ultimate power reliability and system flexibility:

Ideal Applications:

  • Off-Grid Homes: Complete residential power independence
  • Marine Installations: Large yachts and commercial vessels
  • RV & Mobile Applications: Luxury motorhomes and mobile offices
  • Backup Power Systems: Critical facility and telecommunications backup
  • Commercial Operations: Remote sites and industrial applications
  • Emergency Services: Disaster relief and emergency response systems

System Protection & Safety

Comprehensive protection circuits ensure safe operation and equipment longevity:

Protection Features:

  • Over/Under Voltage Protection: AC and DC voltage monitoring
  • Over-Temperature Protection: Thermal shutdown and fan control
  • Overload Protection: Automatic current limiting and shutdown
  • Short Circuit Protection: Immediate disconnection on fault conditions
  • Ground Fault Protection: Enhanced electrical safety
  • Anti-Islanding Protection: Grid-tie safety compliance

UL Listing & Regulatory Compliance

This model is UL-listed for North American installations and meets all relevant safety and electromagnetic compliance standards:

Certifications & Standards:

  • UL Listed: UL458 inverter safety standard compliance
  • FCC Part 15: Electromagnetic interference compliance
  • CSA Standards: Canadian electrical safety requirements
  • ABYC Standards: Marine electrical installation compliance
  • IEC Standards: International safety and performance standards

Technical Specifications

Physical Specifications:

  • Dimensions: 444 x 328 x 240 mm (17.5 x 12.9 x 9.4 inches)
  • Weight: 30 kg (66 lbs)
  • Operating Temperature: -40°C to +65°C (-40°F to +149°F)
  • Humidity: Max 95% non-condensing
  • Altitude: Up to 2000m above sea level
  • Protection Rating: IP21 (indoor installation)

Quality & Warranty

Backed by Victron Energy's commitment to quality and reliability with comprehensive warranty coverage and global technical support network.

Quality Assurance:

  • 5-Year Warranty: Comprehensive coverage for materials and workmanship
  • Global Support: Worldwide technical support and service network
  • Quality Manufacturing: European engineering and production standards
  • Field-Proven Reliability: Trusted by professionals worldwide

Frequently Asked Questions

What makes the Quattro different from the MultiPlus?

The Quattro features dual AC inputs (can connect to two independent AC sources) and dual AC outputs, while the MultiPlus has single AC input and output. This makes the Quattro ideal for applications requiring backup source redundancy.

How fast does the transfer switch operate?

The Quattro's main output features no-break functionality with transfer times less than 20 milliseconds, ensuring computers and sensitive electronics continue operating without disruption during power source transitions.

What is PowerAssist and how does it work?

PowerAssist prevents overload of limited AC sources like generators by first reducing battery charging, then boosting the AC source with battery power. This allows smaller generators to power larger loads and prevents circuit breaker trips.

Can multiple Quattro units be connected together?

Yes, up to 6 Quattro units can operate in parallel for higher power output (up to 60kW). They also support three-phase and split-phase configurations for various electrical system requirements.

What battery types are compatible with the Quattro?

The Quattro supports lead-acid (flooded, AGM, gel) and lithium batteries. It features adaptive charging algorithms and programmable parameters to optimize performance for different battery technologies through VE.Configure software.

Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs & Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.

Please contact your dealer for any returns, repairs or support issues related to this product.



Save $488 when you buy the Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed for only $2766 from NVN Marine! Same day free shipping before 3pm.

Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed Technical Specifications

Type:

Electrical | Charger/Inverter Combos

Vendor:

Victron Energy

Weight:

186.0 lb

Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed User Reviews

Victron Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed Shipping & Return

Shipping Weight:

186.0 lb

Box Sizes:

25.00 (h) x 25.00 (w) x 28.00 (l)

Cubic Feet:

17500.0

Truck Delivery:

Yes
