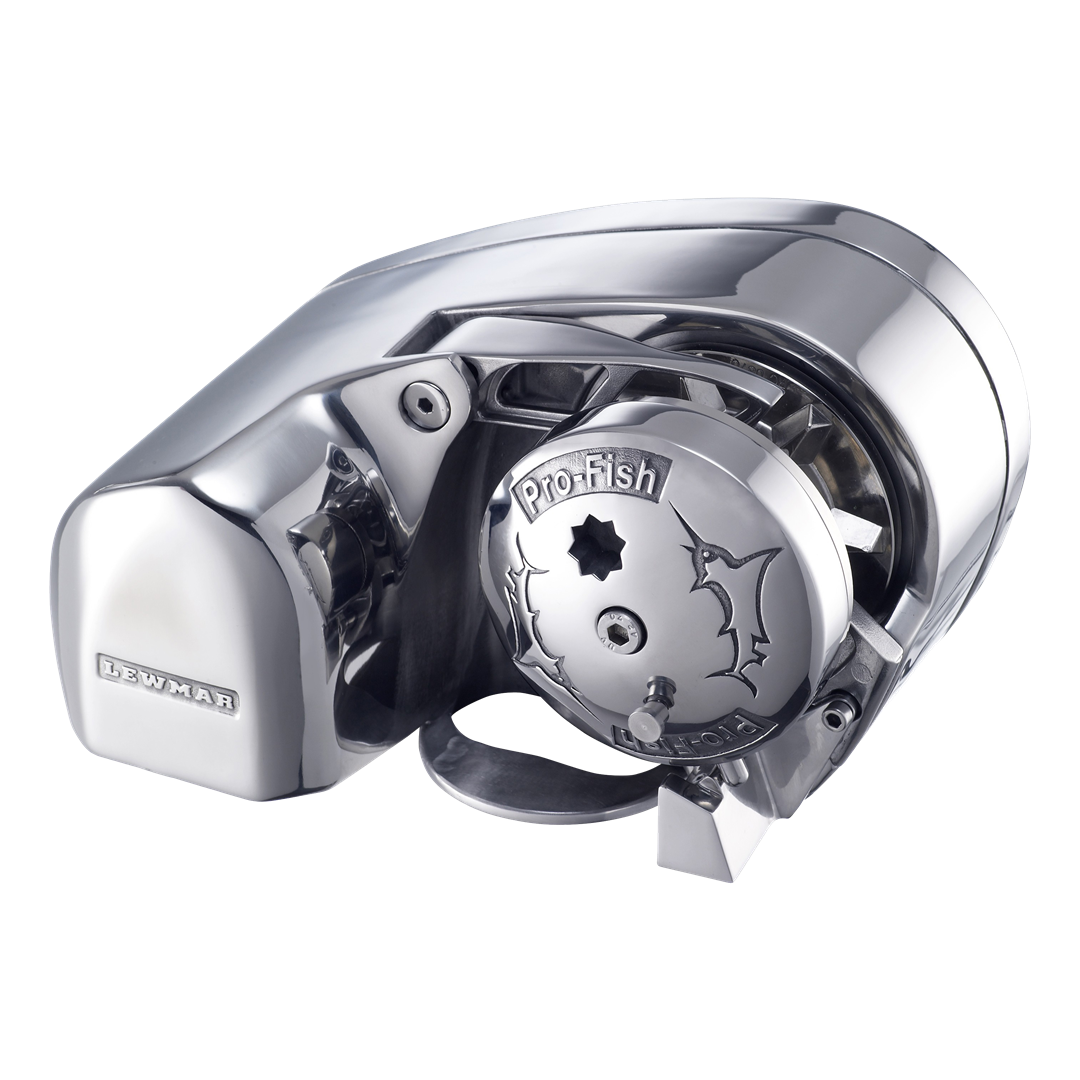

Lewmar Pro-Fish 700 Horizontal Windlass - 12V

Lewmar Pro-Fish 700 Horizontal Windlass - 12V Product Description

Pro-Fish edition, the automatic freefall mechanism means access to the windlass is not required to drop or retrieve anchor.

Lewmar 6211967310 Attributes

• Mount Type: Horizontal
• Maximum Pull: 700 Pound
• Working Load Limit: 175 Pound
• Maximum Line Speed: 105 Feet Per Minute
• Size: 9-5/8 Inch Width X 5-3/4 inch Height
• Chain/ Rope Size: 6 Millimeter DIN 766/ 7 Millimeter DIN 766/ 1/4 Inch ISO G4/ 1/4 Inch BBB Chain
• Material: Stainless Steel
• Ampere Rating: 35 Amp
• Voltage Rating: 12 Volt

Lewmar 6211967310 Features & Benefits

• Redesigned Control Arm Features Higher Spring Tension And Modified Profile To Improve Performance
• Closed Cell Neoprene Gasket Protects Internals
• Unique Pro-Guard Feature Prevents Rope Jump And Snags
• New Gypsy Designed Specifically For Up To 16mm Leaded Anchor Rodes
• Automatic Freefall Mechanism
• Limited 5 Year Warranty

Lewmar 6211967310 Installation Instructions

• 6656011967-310_INS.pdf

Lewmar 6211967310 Warranties

• Limited Warranty and Key Terms of supply by Lewmar INC.pdf

Lewmar 6211967310 Technical Bulletins

• 6656011967-310_BUL_1.pdf
• 6656011967-310_BUL.pdf

Pro-Fish 700 Windlass - 12V

The Lewmar Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button.  Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.

This windlass has been specially designed to suit leaded lines up to 7mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong  316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)

Technical Specifications:

• Chain Size - 1/4" G4 or BBB
• Rope Size - 1/2" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 500 Watt
• Maximum Pulling Power - 700lb (318kg)
• Maximum Working Load - 175lb  (79.38)
• For boats up to 32' (9.75M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Dual-direction solenoid
• Rocker switch
• Instruction manual

*Sold as an Individual

Lewmar ProFish 700

Model: 6656211967-310

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong 100% 316 stainless steel, including control arm and stripper
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)

Lewmar's Pro-Fish model is the ultimate windlass for fishermen. The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision. No more running your motor or wasting fuel while you hover fish. You can retrieve your anchor just as easily, with the push of a button. Plus, the Pro-Fish is DIY ready and made of durable 100% 316 stainless steel.

The gypsy has been specially designed to suit leaded lines up to 16mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Specifications

Voltage	12vDC
Motor Power	500 watt
Normal Current draw	35 Amps
Circuit breaker	50 Amps
Works With Chains	6mm DIN 766 / 7mm DIN 766 / 1/4" ISO G4 / 1/4" BBB
Works with Rope	12mm 1/2 " 3-strand and 8-plait
Maximum Pull	700lbs
Maximum Line Speed	105 Feet per minute
Working Load Limit	175lbs
Weight	19lbs

What's in the Box:

• Profish 700 Windlass
• 50A Circuit Breaker
• Rocker Switch
• Contactor
• Documentation

Our Pro-Fish model is the ultimate windlass for fishermen. Pro-Fish has an automatic free fall function that allows you to pull up a sunken ship or ledge and drop anchor in a fast and precise manner. When you wander on the fish, you no longer need to run a motor or waste fuel. You can easily retrieve the anchor point by pressing a button. In addition, Pro-Fish can be made DIY at any time and is made of 100% durable 316 stainless steel.





Save $1138 when you buy the Lewmar Pro-Fish 700 Horizontal Windlass - 12V for only $1045 from NVN Marine! Same day free shipping before 3pm.
