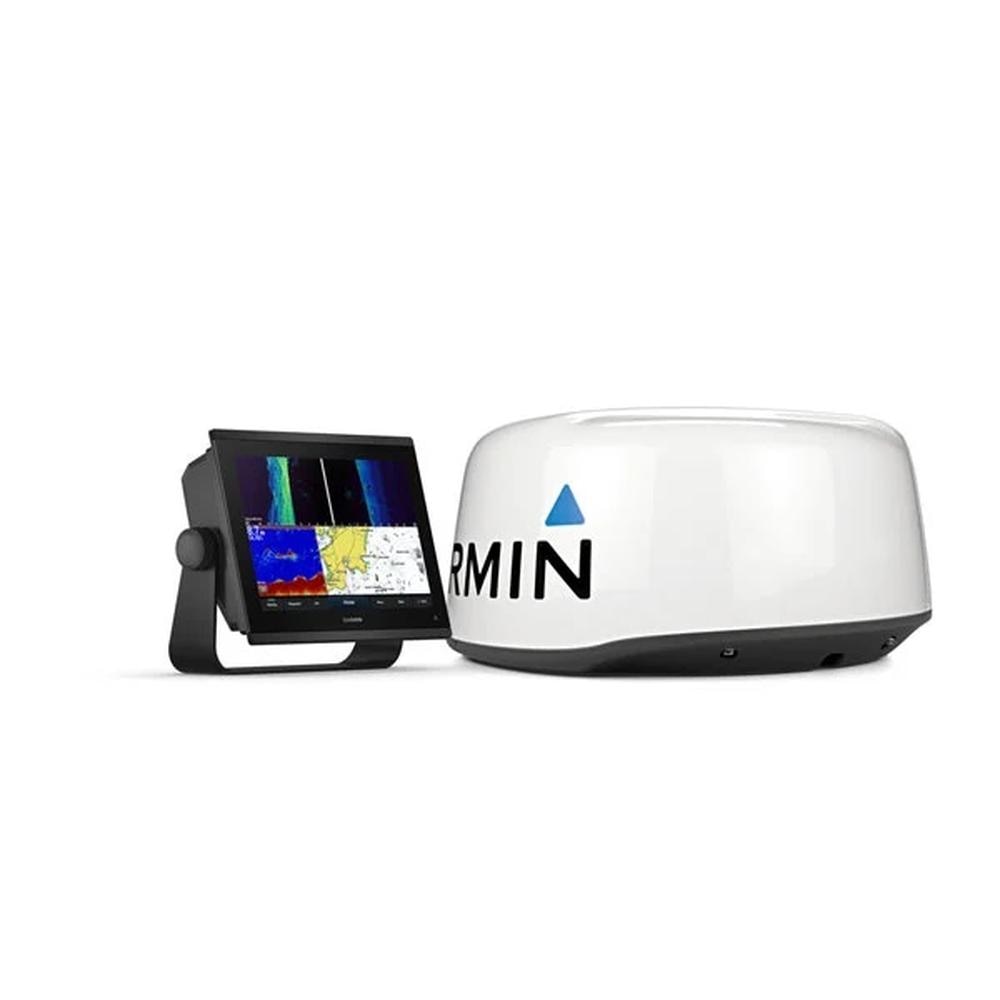

Garmin GPSMAP 1223xsv 12" Combo + GMR 18 HD+ Radar Pack

This bundle is what most mid-sized cruising and sport-fishing boats actually want when they upgrade the helm: the 12-inch GPSMAP 1223xsv chartplotter, the GMR 18 HD+ radar dome, and the US and Canada Navionics+ chart pack all in one box. Buying the three pieces separately means a stack of part numbers and the real risk of missing a network cable or a mounting bracket. The bundle ships everything pre-paired to work together out of the gate, with the same network connections and feature integration as if you'd specified each piece individually.

The 1223xsv is the 12-inch GPSMAP combo chartplotter with sonar built in. 12 inches of IPS panel at 1280 by 800 WXGA resolution, with the high-brightness backlight that holds up in direct sun and through polarized sunglasses. The processor is the upgraded GPSMAP core that handles overlay radar, multi-engine NMEA 2000 data, IP video feeds, and live sonar without the lag that older 12-inch combo units sometimes show when you stack too many features on the same screen. The xsv suffix means built-in Ultra High-Definition SideVu and ClearVu scanning sonars in addition to the 1 kW dual-channel CHIRP traditional sonar. The dedicated 2kW transducer port is also there for high-power 2D offshore work if you outgrow the included sonar capability.

The GMR 18 HD+ radar is the 18-inch HD+ platform Garmin dome included in the bundle. 36 nautical mile maximum range, high-definition target separation that cuts through rain clutter, MARPA target tracking up to 10 simultaneous targets with vector overlays, and Dual Range scanning that shows close-in and distant ranges simultaneously on the chartplotter. The HD+ platform is Garmin's modernized dome radar platform sitting above the older xHD2 domes in image quality and feature set. For mid-sized cruising boats running close-in coastal navigation plus offshore weather tracking, the GMR 18 HD+ is the right radar size: more capability than entry-level Garmin domes, more compact than the open-array xHD3 units. The dome connects to the chartplotter through the Garmin Marine Network with the included Ethernet cable.

Network connectivity is the second major reason captains pick this bundle. Dual Garmin Marine Network ports on the chartplotter let you network this unit to a second helm display, a Panoptix or LiveScope transducer for live sonar, an external sonar black box, or a second radar pedestal as the system grows. NMEA 2000 and NMEA 0183 cover the rest of the boat's data: autopilots, VHF radios, AIS receivers, Fusion audio, and digital switching panels. J1939 input speaks directly to heavy-diesel engine ECUs. Yamaha engine integration shows RPM, fuel burn, trim, and warnings directly on the chartplotter for owners running compatible Yamaha outboards. HDMI out feeds video to a second screen or a video distribution amp.

For chart and mapping, the bundle ships with the standard worldwide basemap pre-loaded covering coastal contours and major waterways globally. The basemap is enough for general navigation out of the box but not for fine-detail bathymetry on inland lakes or coastal reefs. Premium chart upgrades (Garmin Navionics+, Navionics Vision+, LakeVu g3 Ultra, BlueChart g3 Vision) are purchased separately based on the region you fish. Connectivity outside the boat runs through built-in Wi-Fi (ActiveCaptain app, software updates), Bluetooth (smart notifications), ANT+ (wireless sensors), and inReach pairing for satellite messaging from the chartplotter. The box includes the chartplotter, the GMR 18 HD+ radar dome, the Marine Network cable for radar-to-chartplotter connection, the power cable for the chartplotter, the NMEA 2000 drop cable, the microSD card, and both flush-mount and surface-mount hardware. Plan on a marine electronics installer for the radar mast install and the network wiring unless you have experience pulling cable through a boat.

One thing worth knowing about specifying a radar-plus-chartplotter bundle at this price point. The 1223xsv is the same chartplotter hardware as the standalone GPSMAP 1223xsv, but bundled at a price that effectively gets you the radar dome at a meaningful discount versus buying them separately. If you're already planning on adding radar within the first year of owning the chartplotter, the bundle is a no-brainer compared to phased purchasing. If you don't think you'll add radar for a few years, the standalone chartplotter saves you the radar cost up front. For most operators who fish or cruise offshore, the radar pays for itself the first night they leave the dock in fog or pull into an unfamiliar harbor at dusk, so the bundle is the right call more often than not.
