NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together. Understanding NMEA 2000 networks NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear. Build a proper backbone An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the...
As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade ® Products have earned a reputation for being the toughest...
The DST800 is a Smart Triducer Multisensor that offers depth, speed, and temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and...
The DST800 is a Smart Triducer Multisensor that offers depth, speed, and Temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and...
The OPTO-4 provides a safe and low cost way of connecting an NMEA 0183 system to a PC or any other device with a standard RS232 9-pin port....
The Actisense NGT-1 NMEA2000 to PC Interface provides an easy way to link a PC to an NMEA2000 network and precisely transfer messages to and from the NMEA2000...
The Actisense NGW-1 is an intelligent Gateway that converts NMEA 0183 data to NMEA 2000 (and vice versa), allowing you to share information between devices from the two...
Intelligent Type Approved NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined! The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity,...

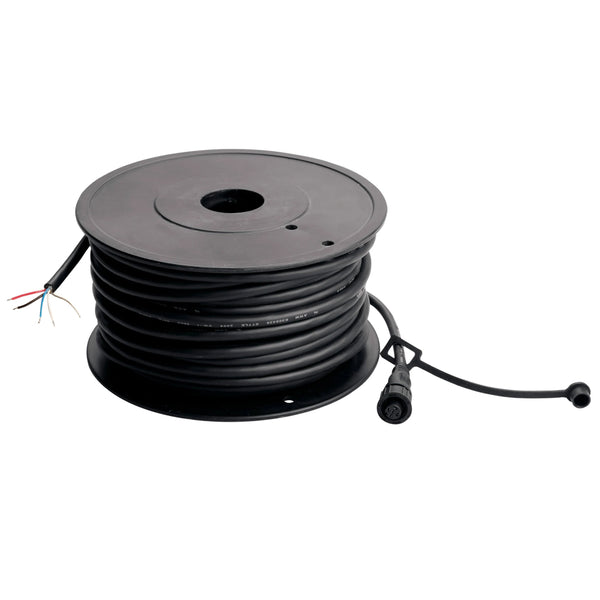

Extend Your Marine Network Seamlessly Building a robust NMEA 2000 network on your vessel starts with reliable cabling. This 98-foot (30-meter) backbone/drop cable provides the flexibility to connect...
Building a robust marine network starts with the right cabling infrastructure. The Garmin NMEA 2000 backbone/drop cable in this convenient case of eight delivers the reliability boaters and...
Building a reliable NMEA 2000 network on your vessel starts with quality cabling that handles the marine environment's demands. This Garmin backbone/drop cable, at 12 feet (4 meters),...

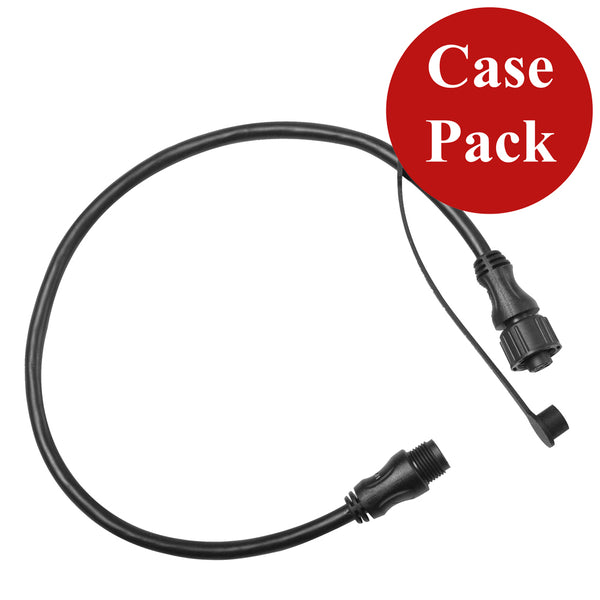

Building a reliable marine network starts with the right connections, and this Garmin NMEA 2000 backbone/drop cable delivers just that. At just 1 foot (0.3 meters) long, it's...
Enhance your marine navigation setup by seamlessly connecting your Garmin GPSMAP chartplotter to other devices using this versatile NMEA 0183 data cable. Designed for boaters who demand reliable...
Upgrade your marine navigation setup with a reliable connection that stands up to the rigors of the water. This 6-foot threaded NMEA 0183 cable with a right-angle connector...
Veh Power Cable, GPS45 Unlock Reliable Connectivity for Your Garmin GPS 17x Navigating open waters demands precision and dependability, and the right cabling makes all the difference. Designed...
Unlock Seamless Marine Connectivity with the Garmin Right-Angle NMEA 0183 Cable Navigating the open water demands reliable communication between your marine electronics. The Garmin right-angle NMEA 0183 cable...
Imagine navigating choppy waters with crystal-clear radar images that don't jitter or drift, giving you confidence whether you're dodging obstacles at dusk or tracking distant targets during a...
Unlock Precise Depth and Temperature Insights on the Water Imagine gliding across open waters with real-time data that keeps you one step ahead of changing conditions. The Garmin...
Upgrade your boat's aging analog gauges without a full overhaul. The Garmin GST 10 steps in as a smart bridge, transforming traditional water speed and temperature sensor signals...
GPS19x NMEA 2000 Unlock Precision Navigation on the Water Imagine gliding through choppy waters or navigating tight channels at dawn, where every meter counts. The Garmin GPS 19x...
Upgrade Your Boat's Sensing Capabilities with Precision Depth and Temperature Data Imagine navigating unfamiliar waters with confidence, knowing exactly how deep the water is beneath your hull and...
Seamless Connectivity for Your Garmin echoMAP CHIRP 5Xdv Unlock the full potential of your marine electronics setup with this specialized adapter cable. Designed specifically for the 5-inch echoMAP...
Powered Drop CableThree (3) feet in length.FUSION's Powered Drop Cable connects a MS-AV700 or MS-IP700 Stereo to a NMEA 2000 backbone via T-Connector. Will also connect a MS-AV700...
NMEA 2000 T-ConnectorT-Connector for NMEA 2000 NMEA 2000 T-connector NMEA 2000 T-connector-cis: FPW / KSwC2eg =- Warning: This product can expose you to chemicals known to cause cancer...
NMEA 2000 Male TerminatorThe CAB-000858 Male Terminator may be required when no in-line terminator is utilized when completing the NMEA 2000 network. FUSION NMEA 2000 Male Terminator NMEA...
NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together.
NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear.
An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the length limit and terminate both ends with a terminating resistor. A network missing a terminator or built as a chain is the most common reason data drops out, so follow the topology rules.
The backbone needs a single power connection from a switched 12 volt source through a power tee. Place the power tee near the middle of the backbone for balanced supply. Size the power tap for the number of devices, since too many loads on an underpowered network causes errors. One power point, correctly placed, keeps voltage even across the bus.
Use micro and mid cables in the right lengths, tees to branch off to each device, and the correct male and female terminators at the ends. Measure your runs and buy a little slack. Keep spare tees so adding a device later is a plug in, not a rewire. Quality cabling keeps the network solid in a wet, vibrating boat.
If you have legacy NMEA 0183 gear, a gateway or multiplexer translates between 0183 and NMEA 2000 so the old and new electronics share data. Engine gateways bring analog engine data onto the network. Wi Fi gateways push data to a tablet or phone. Pick the gateway for what you are connecting.
Once the backbone is in, you can add GPS, heading, wind, depth, tank, and engine sensors, plus displays that read it all. Plan for expansion by leaving spare tees, so the next sensor plugs in cleanly. Not sure how to build or expand your network. Tell our techs your electronics and what you want to connect, and we will match the backbone cables, tees, terminators, power tap, and gateways so everything talks reliably.
It is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone, branch to devices with tees, keep drops within the length limit, and terminate both ends with resistors. Missing a terminator is the top cause of dropouts.
The backbone needs one power connection from a switched 12 volt source through a power tee, placed near the middle of the backbone for balanced supply. Size the tap to the number of devices so voltage stays even across the bus.
Micro and mid backbone and drop cables in the right lengths, tees to branch to each device, and correct male and female terminators at the ends. Measure your runs, buy a little slack, and keep spare tees for future devices.
Yes, with a gateway or multiplexer that translates between NMEA 0183 and NMEA 2000 so old and new electronics share data. Engine and Wi Fi gateways bring analog engine data or phone connectivity onto the network.
Leave spare tees on the backbone so adding a sensor or display is a plug in rather than a rewire. As long as you stay within the backbone and drop length limits and keep it terminated, you can keep adding devices.
Backbone length and drop cable length have maximum limits based on cable type. Micro cable supports shorter runs than mid cable. Always check the specifications for your chosen cable size before installation.
