Garmin NMEA 0183 Threaded Cable Right Angle - 6'
Garmin NMEA 0183 Threaded Cable Right Angle - 6' — Product description
Upgrade your marine navigation setup with a reliable connection that stands up to the rigors of the water. This 6-foot threaded NMEA 0183 cable with a right-angle connector delivers seamless data sharing between your Garmin GPSMAP chartplotter and other onboard electronics. Whether you're integrating AIS receivers, radar systems, or depth sounders, this cable ensures accurate position, speed, and heading information flows without interruption.
Designed for real-world boating challenges, the right-angle plug slips effortlessly into confined mounting spaces behind your display, reducing cable clutter and preventing strain on connections during rough seas. No more wrestling with straight cables in tight consoles—installation becomes straightforward, letting you focus on what matters: safe, efficient voyages.
Why Boaters Rely on This Right-Angle NMEA Cable
- Space-Saving Design: The 90-degree connector hugs flush-mounted panels, ideal for modern helm stations where every inch counts.
- Robust Construction: Marine-grade materials resist corrosion, UV exposure, and vibration, maintaining signal integrity season after season.
- Plug-and-Play Simplicity: Threaded fittings provide a secure, waterproof seal—twist to lock and forget about loose wires.
- Versatile Data Bridge: Supports bidirectional communication for sharing waypoints, routes, and sensor data across your network.
- Future-Proof Flexibility: Compatible with legacy and newer NMEA 0183 protocols at baud rates up to 38,400, keeping your system current.
Easy Step-by-Step Installation Tips
- Prep Your Setup: Power down all devices and locate the NMEA ports on your GPSMAP unit—typically labeled "NMEA In/Out."
- Route the Cable: Feed the straight end through your console grommet, leaving slack for service access.
- Connect Securely: Align the right-angle plug with the device's port, thread on, and hand-tighten (avoid tools to prevent over-torquing).
- Test the Link: Power up and check for data handshakes in your chartplotter's diagnostics menu—look for incoming sentences like GGA or RMC.
- Secure and Seal: Use cable ties and marine sealant around entry points to block moisture.
Pro Tip: Label wires during install for quick troubleshooting. If signals drop, verify baud rate matches (default 4800) and check for pinched conductors.
Perfect Match for Your Garmin Ecosystem
This cable shines with GPSMAP series like the 7400/8400/8600 lines, but also pairs well with older 400/500/1000 models. It bridges to third-party gear such as Raymarine autopilots or Lowrance transducers, unifying your dash. Ensure your devices use standard 0183 wiring: white/orange for TX+, green for RX+, etc., to avoid polarity mix-ups.
Long-Term Care for Peak Performance
Inspect connections annually for corrosion—clean with electrical contact cleaner and dielectric grease. In saltwater environments, rinse with fresh water after outings. Store spares coiled loosely to prevent kinks, ensuring they're ready for upgrades or repairs.
Frequently Asked Questions
What does NMEA 0183 mean for marine electronics?
NMEA 0183 is a standard protocol for sharing data like GPS position, speed, and depth between marine devices. This cable enables that communication in a simple, serial format widely used on boats.
Why choose a right-angle connector over a straight one?
Right-angle plugs minimize protrusion from your display, fitting snugly in tight helm spaces and reducing snag risks from gear or crew movement.
How long is this Garmin cable?
It measures 6 feet (1.8 meters), striking a balance for most console-to-device runs without excess slack.
Is it waterproof for open-water use?
Yes, threaded connectors create an IPX7-equivalent seal when properly installed, protecting against splashes and submersion.
Can I daisy-chain multiple devices with this cable?
Absolutely—NMEA 0183 supports listener/talker networks. Connect up to three listeners per talker, watching total cable length under 50 feet.
What if my data isn't transmitting?
Common fixes: Match baud rates, swap TX/RX wires if reversed, or test with a multimeter for continuity. Garmin diagnostics help pinpoint issues.
Does it work with modern NMEA 2000 networks?
Directly, no—but pair it with a Garmin NMEA 0183-to-2000 gateway for hybrid setups, expanding compatibility.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101142505 Attributes
- Compatibility: NMEA 0183 Cable Threaded Right Angle
Garmin 101142505 Features & Benefits
- Connect Your GPSMAP® Device With This 6 Feet Threaded NMEA 0183 Cable For Data Communication
- Right-Angle Connector Helps With The Tight Fit Often Associated With Flush Mounting
- Garmin Offer Products With Essential Utility
- Awe-Inspiring Designs, Impeccable Quality, And Superior Reliability
- Limited 1 Year Warranty
Garmin 101142505 Warranties
NMEA 0183 Threaded Cable Right Angle - 6'

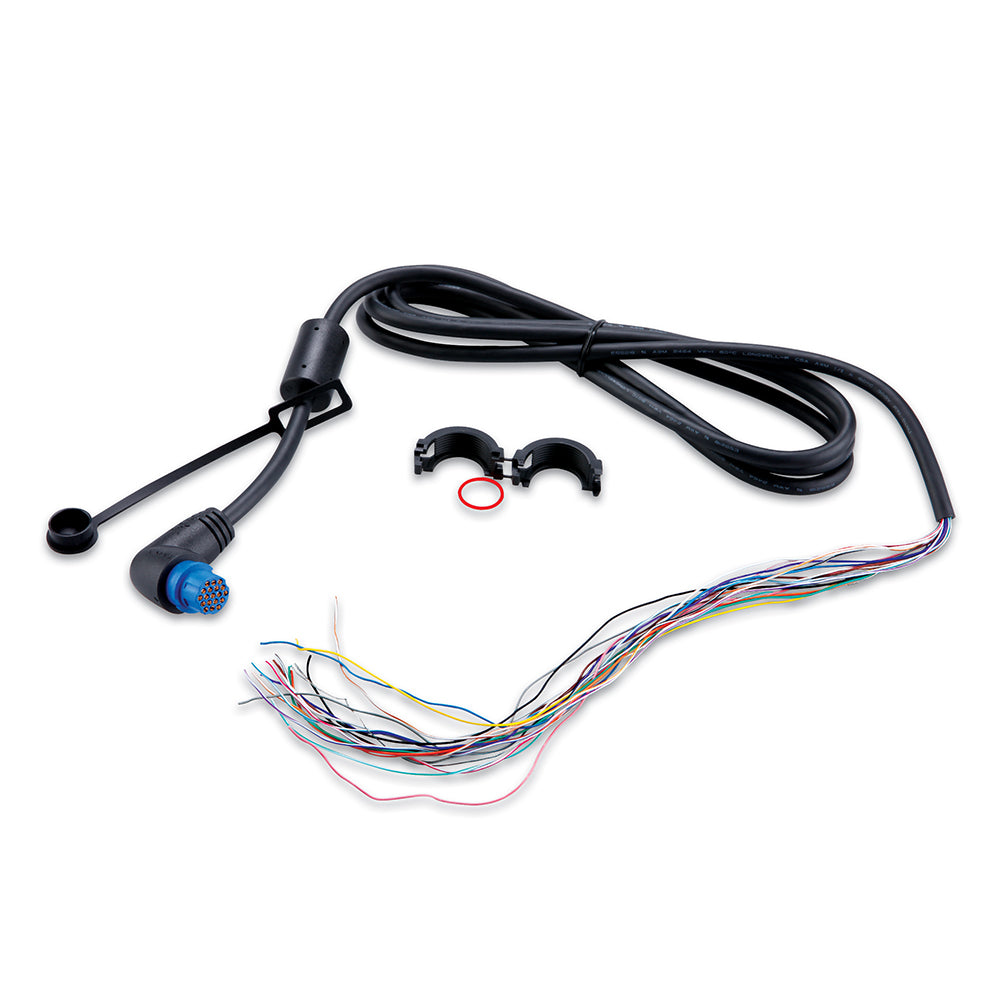

Connect your GPSMAP® device with this 6' (1.8M) threaded NMEA 0183 cable for data communication. The right-angle connector helps with the tight fit often associated with flush mounting.
"GarminUse our replacement threaded cable for NMEA data communication. The right angle connector helps with the tight fit often associated with flush mounting."
SKU: NVN-61949
MPN: 010-11425-05
UPC: 753759099466
