NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together. Understanding NMEA 2000 networks NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear. Build a proper backbone An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the...
As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade ® Products have earned a reputation for being the toughest...
The DT800 utilizes Airmar's proven Tilted Element and broadband technologies in this depth and temperature Smart Sensor. The DT800 is a low-profile, retractable, thru-hull sensor that accurately computes...
Furuno 7-Pin Connector, 15m/49' Enhance Your Marine Navigation Setup with Reliable Connectivity Whether you're out on the open water charting courses or monitoring weather patterns, seamless data flow...
Digital Yacht's new WLN10 Smart NMEA 0183 to Wi-Fi gateway takes iPad and tablet integration afloat even further with the ability to connect to existing on board GPS,...
OneFix Precision L1/L5 GNSS SystemFeatures: Transform any nav system with the ultimate and affordable positioning solution L1/L5 hi-precision GNSS receiver with QuadNav positioning GPS, Galileo, Beidou, and NavIC...
As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade ® Products have earned a reputation for being the toughest...
Ancor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded...
Ancor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded...
N2K Male/Male Gender Changer - 0.25MUse between two cable connectors of the same type and gender. Overcomes the problem of connecting two devices or cables which have the...
NMEA 2000, Power Isolator Setting up a reliable NMEA 2000 network on your vessel requires careful attention to power management. The Garmin NMEA 2000 Power Isolator steps in...
Enhance Your Marine Navigation with Precision Positioning Imagine gliding through foggy harbors or navigating tight channels at dawn without second-guessing your position. The Garmin GPS 24xd steps in...

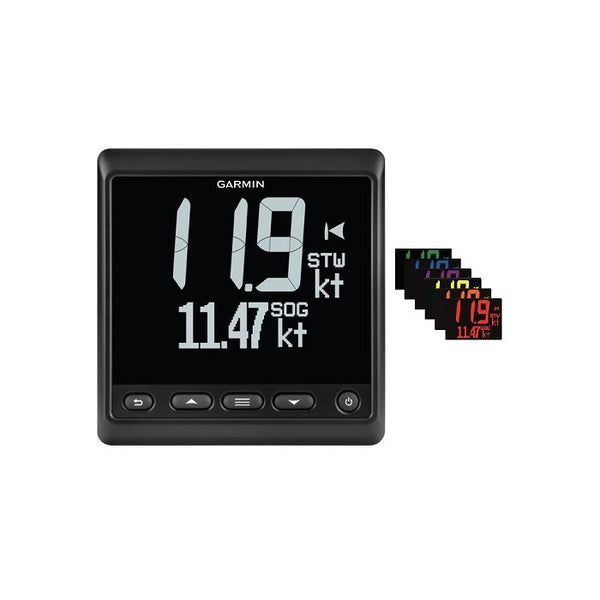

Upgrade your boat's helm with the Garmin GNX 21 remanufactured instrument display, a reliable NMEA 2000 powerhouse designed for clear, customizable data readout on the water. Whether you're...
Enhance your boating experience with precise underwater insights that keep you safe and informed on every voyage. This thru-hull transducer stands out by seamlessly delivering real-time depth and...
Discover Unmatched Precision on the Water with Quad-Antenna Technology Imagine navigating through choppy seas or tight marinas where traditional compasses falter due to magnetic interference or limited satellite...
Build a Reliable Marine Network Foundation Setting up a seamless connection between your boat's electronics starts with the right backbone. This Furuno NMEA2000 Starter Kit delivers everything needed...
GPS/WAAS Sensor - NMEA 2000/NMEA 0183 Upgrade your vessel's navigation with the Furuno GP330B, a compact powerhouse that delivers pinpoint accuracy even in demanding marine conditions. Mariners trust...
The SeaTalk interface, originally developed by Autohelm in the early 1990's, was included on pretty much all Autohelm and Raymarine (and some Raytheon) products up until about 2012....
Engine Link NMEA 2000 Engine MonitorENGINELink interface is an NMEA 2000 wireless device that allows mobile phones, iPads, and tablets to display engine data as well as provide...
As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade ® Products have earned a reputation for being the toughest...
As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade ® Products have earned a reputation for being the toughest...
Ancor's NMEA 2000 Approved Power Cable with Tee allows for power connection to an NMEA 2000 network quickly and easily. The tee is color coded red to make...
Ancor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded...
NMEA2000 to PC Serial ConnectionInterface your PC to the NMEA 2000 bus with a functional firewall gateway...NGT-1-ISO is a more specialist option - Opto-isolated input and ISO-Drive output...
The Actisense EMU-1 Engine Monitoring Unit is a specialized analog to NMEA2000 Gateway which converts data from analog engine senders into standard NMEA2000 PGNs, enabling NMEA2000 display devices...
NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together.
NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear.
An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the length limit and terminate both ends with a terminating resistor. A network missing a terminator or built as a chain is the most common reason data drops out, so follow the topology rules.
The backbone needs a single power connection from a switched 12 volt source through a power tee. Place the power tee near the middle of the backbone for balanced supply. Size the power tap for the number of devices, since too many loads on an underpowered network causes errors. One power point, correctly placed, keeps voltage even across the bus.
Use micro and mid cables in the right lengths, tees to branch off to each device, and the correct male and female terminators at the ends. Measure your runs and buy a little slack. Keep spare tees so adding a device later is a plug in, not a rewire. Quality cabling keeps the network solid in a wet, vibrating boat.
If you have legacy NMEA 0183 gear, a gateway or multiplexer translates between 0183 and NMEA 2000 so the old and new electronics share data. Engine gateways bring analog engine data onto the network. Wi Fi gateways push data to a tablet or phone. Pick the gateway for what you are connecting.
Once the backbone is in, you can add GPS, heading, wind, depth, tank, and engine sensors, plus displays that read it all. Plan for expansion by leaving spare tees, so the next sensor plugs in cleanly. Not sure how to build or expand your network. Tell our techs your electronics and what you want to connect, and we will match the backbone cables, tees, terminators, power tap, and gateways so everything talks reliably.
It is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone, branch to devices with tees, keep drops within the length limit, and terminate both ends with resistors. Missing a terminator is the top cause of dropouts.
The backbone needs one power connection from a switched 12 volt source through a power tee, placed near the middle of the backbone for balanced supply. Size the tap to the number of devices so voltage stays even across the bus.
Micro and mid backbone and drop cables in the right lengths, tees to branch to each device, and correct male and female terminators at the ends. Measure your runs, buy a little slack, and keep spare tees for future devices.
Yes, with a gateway or multiplexer that translates between NMEA 0183 and NMEA 2000 so old and new electronics share data. Engine and Wi Fi gateways bring analog engine data or phone connectivity onto the network.
Leave spare tees on the backbone so adding a sensor or display is a plug in rather than a rewire. As long as you stay within the backbone and drop length limits and keep it terminated, you can keep adding devices.
Backbone length and drop cable length have maximum limits based on cable type. Micro cable supports shorter runs than mid cable. Always check the specifications for your chosen cable size before installation.
