NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together. Understanding NMEA 2000 networks NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear. Build a proper backbone An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the...
Clipper NMEA 2000 Compliant Wind SystemThe Wind System consists of the version 2 mast head sensor and a small translator box, the box is fitted with a ‘micro-c’...
Ancor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded...
No more connecting multiple T-pieces together. The SBN-1 is the equivalent of eight T-Pieces in a single case providing significant time and space saving.Once the attached 3 meter...
Navigating tight spaces on your vessel just got easier with this precision-engineered Garmin backbone/drop cable for NMEA 2000 networks. At just 1 foot long with a sleek right-angle...
NMEA 2000, Power Cable Why Your NMEA 2000 Network Needs Reliable Power Out on the water, every connection counts. Whether you're navigating choppy seas or plotting your next...
Marine Instrument Updater Keep your Garmin marine electronics running at peak performance without the hassle of built-in card readers. The NMEA 2000 Network Updater bridges the gap for...
NMEA 2000, Backbone Cable, 10m Building a reliable marine electronics network starts with the right backbone. The Garmin NMEA 2000 Backbone Cable in 10-meter length gives you the...
NMEA2000 has now become the de-facto standard throughout the marine electronics industry for interconnection of devices. It uses a simple backbone (or sometimes called “trunkâ€) structure with requires...
Ancor's NMEA 2000 Power Isolator can be used for isolating power between 2 independent NMEA 2000 networks. Reduce battery current draw by powering one bus off while the...
Ancor's NMEA 2000 Approved 90 Degree elbow makes cable routing easier. The connector is installed between two cables to reduce stress on the cables and create a compact...
N2K Female/Female Gender Changer - 0.25MUse between two cable connectors of the same type and gender. Overcomes the problem of connecting two devices or cables which have the...
Enhance your marine electronics setup with the Garmin NMEA 2000 backbone/drop cable, a reliable 13-foot (4-meter) extension designed for seamless network expansion on the water. Boaters and marine...
NMEA 2000, Backbone/Drop Cable, 0.3m Enhance Your Marine Network Setup with Precision Building a reliable NMEA 2000 network on your boat requires the right components for seamless communication...
NMEA 0183 Cable, Replacement, GPSMAP4XXX/5XXX Navigating open waters demands reliable connections between your marine electronics, and that's where a solid NMEA 0183 cable shines. Designed specifically as a...
GRA10, Rudder Angle Adapter Imagine breathing new life into your boat's aging helm setup without ripping out every gauge or sensor. The Garmin GRA 10 Rudder Angle NMEA...
Kits features all components needed to create a single device NMEA 2000 network.Ancor 270201 Attributes Used To: Create A Single Device NMEA 2000 Network Includes: Tee Connector/ Male And Female...
Ancor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded...
Kits features all components needed to create a single device NMEA 2000 network.Ancor 270202 Attributes Used To: Create A Dual Device NMEA 2000 Network Includes: Tee Connector/ Male And Female...
Ancor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded...
600 W The P79S brings depth intelligence to your boat. Featuring Airmar's Smart Sensor technology, the P79S delivers processed depth data right to the onboard network for multiple...
No more connecting multiple T-pieces together. The SBN-1 is the equivalent of four T-Pieces in a single case providing significant time and space saving.Once the attached 3 meter...
NMEA 2000, Connector, Field-Installable, Male Customizing your marine network setup just got easier with this rugged male field-installable connector designed specifically for Garmin NMEA 2000 systems. Whether you're...

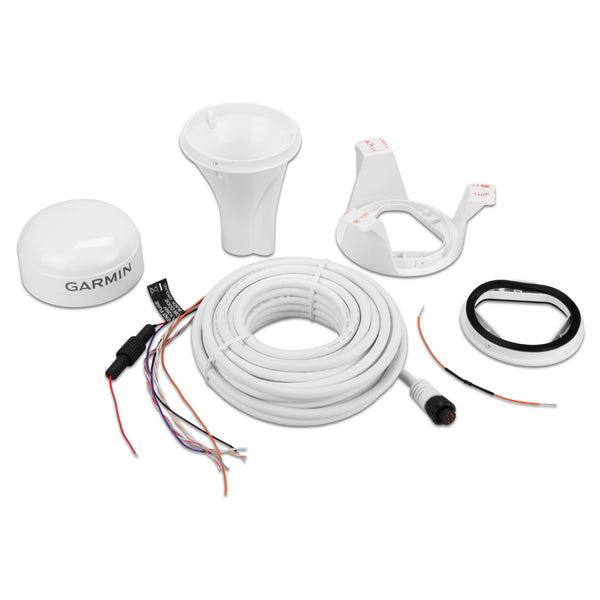

GPS19x HVS Unlock Superior Navigation Precision on the Water Equip your vessel with the Garmin GPS 19x HVS NMEA 0183 receiver, a powerhouse designed for marine enthusiasts who...
Interface Converter NMEA 2000-NMEA 0183 Bridge the gap between legacy and modern marine electronics effortlessly with a reliable interface designed for seamless data translation. This compact converter handles...
NMEA 2000 lets your marine electronics talk to each other. Build the network with a proper backbone, drops, terminators, and the gateways and sensors that tie it all together.
NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear.
An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the length limit and terminate both ends with a terminating resistor. A network missing a terminator or built as a chain is the most common reason data drops out, so follow the topology rules.
The backbone needs a single power connection from a switched 12 volt source through a power tee. Place the power tee near the middle of the backbone for balanced supply. Size the power tap for the number of devices, since too many loads on an underpowered network causes errors. One power point, correctly placed, keeps voltage even across the bus.
Use micro and mid cables in the right lengths, tees to branch off to each device, and the correct male and female terminators at the ends. Measure your runs and buy a little slack. Keep spare tees so adding a device later is a plug in, not a rewire. Quality cabling keeps the network solid in a wet, vibrating boat.
If you have legacy NMEA 0183 gear, a gateway or multiplexer translates between 0183 and NMEA 2000 so the old and new electronics share data. Engine gateways bring analog engine data onto the network. Wi Fi gateways push data to a tablet or phone. Pick the gateway for what you are connecting.
Once the backbone is in, you can add GPS, heading, wind, depth, tank, and engine sensors, plus displays that read it all. Plan for expansion by leaving spare tees, so the next sensor plugs in cleanly. Not sure how to build or expand your network. Tell our techs your electronics and what you want to connect, and we will match the backbone cables, tees, terminators, power tap, and gateways so everything talks reliably.
It is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone, branch to devices with tees, keep drops within the length limit, and terminate both ends with resistors. Missing a terminator is the top cause of dropouts.
The backbone needs one power connection from a switched 12 volt source through a power tee, placed near the middle of the backbone for balanced supply. Size the tap to the number of devices so voltage stays even across the bus.
Micro and mid backbone and drop cables in the right lengths, tees to branch to each device, and correct male and female terminators at the ends. Measure your runs, buy a little slack, and keep spare tees for future devices.
Yes, with a gateway or multiplexer that translates between NMEA 0183 and NMEA 2000 so old and new electronics share data. Engine and Wi Fi gateways bring analog engine data or phone connectivity onto the network.
Leave spare tees on the backbone so adding a sensor or display is a plug in rather than a rewire. As long as you stay within the backbone and drop length limits and keep it terminated, you can keep adding devices.
Backbone length and drop cable length have maximum limits based on cable type. Micro cable supports shorter runs than mid cable. Always check the specifications for your chosen cable size before installation.
