NMEA 2000 Networking

Understanding NMEA 2000 networks

NMEA 2000 is the standard that lets your chartplotter, engine, sensors, and autopilot share data on one network. This collection gathers the cables, tees, terminators, gateways, and sensors to build it right. A reliable network comes down to a properly built backbone, correct power and termination, and the gateways that bridge older gear.

Build a proper backbone

An NMEA 2000 network is a backbone with drop cables to each device, not a daisy chain. Run a continuous backbone with tees where devices connect. Keep drops within the length limit and terminate both ends with a terminating resistor. A network missing a terminator or built as a chain is the most common reason data drops out, so follow the topology rules.

Power the network correctly

The backbone needs a single power connection from a switched 12 volt source through a power tee. Place the power tee near the middle of the backbone for balanced supply. Size the power tap for the number of devices, since too many loads on an underpowered network causes errors. One power point, correctly placed, keeps voltage even across the bus.

Cables, tees, and terminators

Use micro and mid cables in the right lengths, tees to branch off to each device, and the correct male and female terminators at the ends. Measure your runs and buy a little slack. Keep spare tees so adding a device later is a plug in, not a rewire. Quality cabling keeps the network solid in a wet, vibrating boat.

Gateways bridge old and new

If you have legacy NMEA 0183 gear, a gateway or multiplexer translates between 0183 and NMEA 2000 so the old and new electronics share data. Engine gateways bring analog engine data onto the network. Wi Fi gateways push data to a tablet or phone. Pick the gateway for what you are connecting.

Add sensors and displays

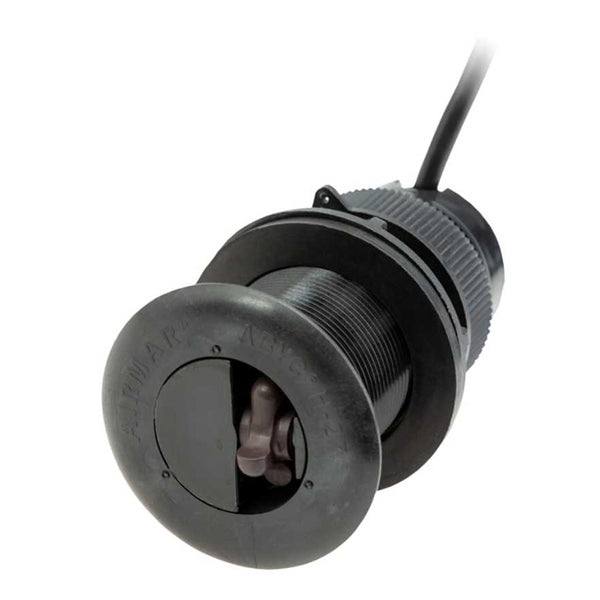

Once the backbone is in, you can add GPS, heading, wind, depth, tank, and engine sensors, plus displays that read it all. Plan for expansion by leaving spare tees, so the next sensor plugs in cleanly. Not sure how to build or expand your network. Tell our techs your electronics and what you want to connect, and we will match the backbone cables, tees, terminators, power tap, and gateways so everything talks reliably.
