Garmin Panoptix™ LiveScope Ice Fishing Bundle w/UHD 93sv

Garmin Panoptix™ LiveScope Ice Fishing Bundle w/UHD 93sv Product Description

Drill fewer holes and catch more fish with the Panoptix LiveScope ™ ice fishing bundle, which includes an ECHOMAP ™ UHD 93sv combo and Panoptix LiveScope sonar transducer. Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200 Feet in any direction. Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger and swivel pole mount. LiveScope Forward sonar shows up to 200 Feet all around you and below the ice, so you can locate schools of fish and know where to drill the next hole. LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig. The unit comes preloaded with LakeVü g3 maps with integrated Navionics (R) data, covering more than 18,000 lakes in the U.S. Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Garmin 100234215 Attributes

• Compatibility: LiveScope ™ System
• Includes: ECHOMAP ™ UHD 93sv Chart Plotter/ Panoptix LiveScope ™ System/ Panoptix Ice Fishing Mount

Garmin 100234215 Features & Benefits

• Revolutionary Real-Time Sonar Pairs With A Large ECHOMAP UHD 93sv Combo Touchscreen Display, Allowing You To See Up To 200 Feet In Any Direction
• Adapt Your Fishing Technique With A Panoptix LiveScope System, Which Offers 2 Scanning Sonar Modes
• LiveScope Forward Sonar Shows Up To 200 Feet All Around You And Below The Ice, So You Can Locate Schools Of Fish And Know Where To Drill The Next Hole
• Built-In Flasher Provides Accurate Jig And Fish Detection As They Swim Into The Sonar Beam
• Limited 1 Year Warranty

Garmin 100234215 Installation Instructions

• 2020_Ice_Fishing_Bundle_Instructions_EN-US.pdf

Garmin 100234215 Warranties

• garmin-marine-warranty-policy.pdf

Panoptix™ LiveScope Ice Fishing Bundle with UHD 93sv

A PREMIUM FISHING EXPERIENCE

Drill fewer holes and catch more fish with the Panoptix LiveScope™ ice fishing bundle, which includes an ECHOMAP™ UHD 93sv combo and Panoptix LiveScope sonar transducer.

Features:

• Hit your limit with the power of Panoptix Livescope, which offers two modes of sonar in one transducer.
• If it’s out there, you’ll know it — with real-time sonar that lets you see up to 200’ in any direction.
• Only drill where there’s fish when you use LiveScope™ Forward sonar.
• Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
• It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000 lakes.
• Everything goes where you go. All accessories fit in the rugged, portable carrying case.

ECHOMAP™ UHD

Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.

TWO MODES, ONE TRANSDUCER

Adapt your fishing technique with a Panoptix LiveScope system, which offers two scanning sonar modes. The bundle also includes a battery, charger and swivel pole mount.

LIVESCOPE FORWARD

LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LIVESCOPE DOWN

LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.

LAKEVÜ G3 MAPS

The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.

BUILT-IN FLASHER

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

CUSTOM COMBOS

You can create custom pages that combine Panoptix™ sonar, flasher and map on your display.

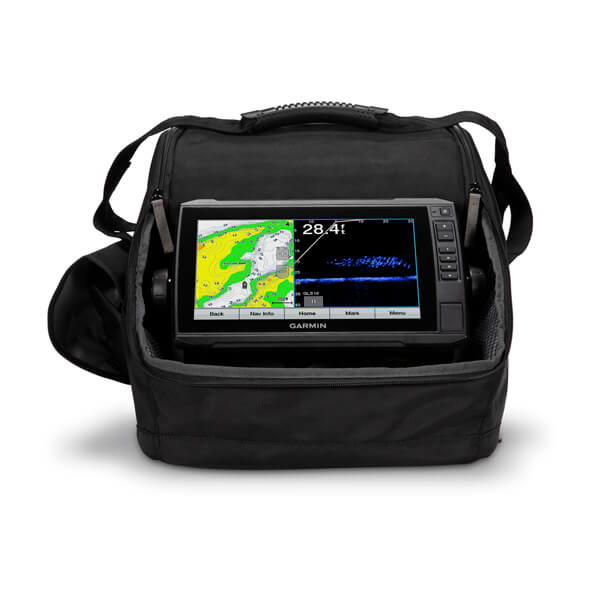

CARRYING CASE

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Package Includes:

• ECHOMAP™ UHD 93sv chartplotter
• Panoptix™ LiveScope System
• Panoptix ice fishing mount
• Tilt/swivel mount
• Power cable
• Documentation
• Portable fishing kit
  • Bag with handle
  • Rechargeable battery
  • Battery charger

Garmin Panoptix™ LiveScope Ice Fishing Bundle Includes ECHOMAP™ UHD 93sv

Model: 010-02342-15

• Drill fewer holes and catch more fish with the Panoptix LiveScope™ ice fishing bundle, which includes an ECHOMAP™ UHD 93sv combo and Panoptix LiveScope sonar transducer.
• Hit your limit with the power of Panoptix Livescope, which offers two modes of sonar in one transducer.
• If it’s out there, you’ll know it — with real-time sonar that lets you see up to 200’ in any direction.
• Only drill where there’s fish when you use LiveScope™ Forward sonar.
• Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
• It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000 lakes.
• Everything goes where you go. All accessories fit in the rugged, portable carrying case.

Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.

Adapt your fishing technique with a Panoptix LiveScope system, which offers two scanning sonar modes. The bundle also includes a battery, charger and swivel pole mount.

LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.

The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

You can create custom pages that combine Panoptix™ sonar, flasher and map on your display.

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications

General
PHYSICAL DIMENSIONS	13.8" 12.2" 13.0" (35 31 33 cm)
DISPLAY SIZE	7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA display
WEIGHT	25.1 lb (11.4 kg)
WATER RATING	IPX7
POWER CONSUMPTION	6.2 W
ANTENNA	Internal or external over NMEA 2000
RECEIVER	5 Hz
GARMIN MARINE NETWORK™ PORTS	1 Panoptix™ port
TRANSMIT POWER	500 W
Maps & Memory
PRELOADED MAPS	LakeVü g3 (inland maps)
ACCEPTS DATA CARDS	1 microSD™ card; 32 GB maximum card size
WAYPOINTS	5,000
TRACK LOG	50,000 points; 50 saved tracks
ROUTES	100
Outdoor Recreation
TIDE TABLES	Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE	Yes
Sonar Features & Specifications
FREQUENCIES SUPPORTED	530 - 1,100 kHz
CHIRP SONAR TECHNOLOGY	Yes (Built-in)
MAXIMUM DEPTH	Down and Forward: 200’ (61.0 m)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	Yes
WATER TEMPERATURE LOG AND GRAPH	Yes
SONAR RECORDING	Yes
SONAR HISTORY REWIND	Yes
Connections
NMEA 2000® COMPATIBLE	Yes
TRANSDUCER PIN NUMBERS	21-pin
NMEA 0183 INPUT PORTS	1
NMEA 0183 OUTPUT PORTS	1
WIRELESS CONNECTIVITY	Yes

What's in the Box:

• ECHOMAP™ UHD 93sv chartplotter
• Panoptix™ LiveScope System
• Panoptix ice fishing mount
• Tilt/swivel mount
• Power cable
• Documentation
• Bag with handle
• Rechargeable battery
• Battery charger

With the Panoptix LiveScope ice fishing set, you can drill fewer holes and catch more fish. The revolutionary Panoptix LiveScope sonar with LiveScope Forward and LiveScope Down modes is used in conjunction with the large ECHOMAP UHD 93sv combination touch screen display, allowing you to watch up to 200 inches of sound in any direction. The built-in flash allows you to watch jigs and fish jumping in the beam. Create custom pages that combine sonar, flasher, and maps. The pre-loaded LakeVug3 map and integrated Navionics data cover more than 18,000 lakes. The bundle includes the complete Panoptix LiveScope system with a rotatable electrode mount for the Panoptix LiveScope sensor, and a 12Ah battery with charger and power cord, all in a convenient, gloved portable bag.
