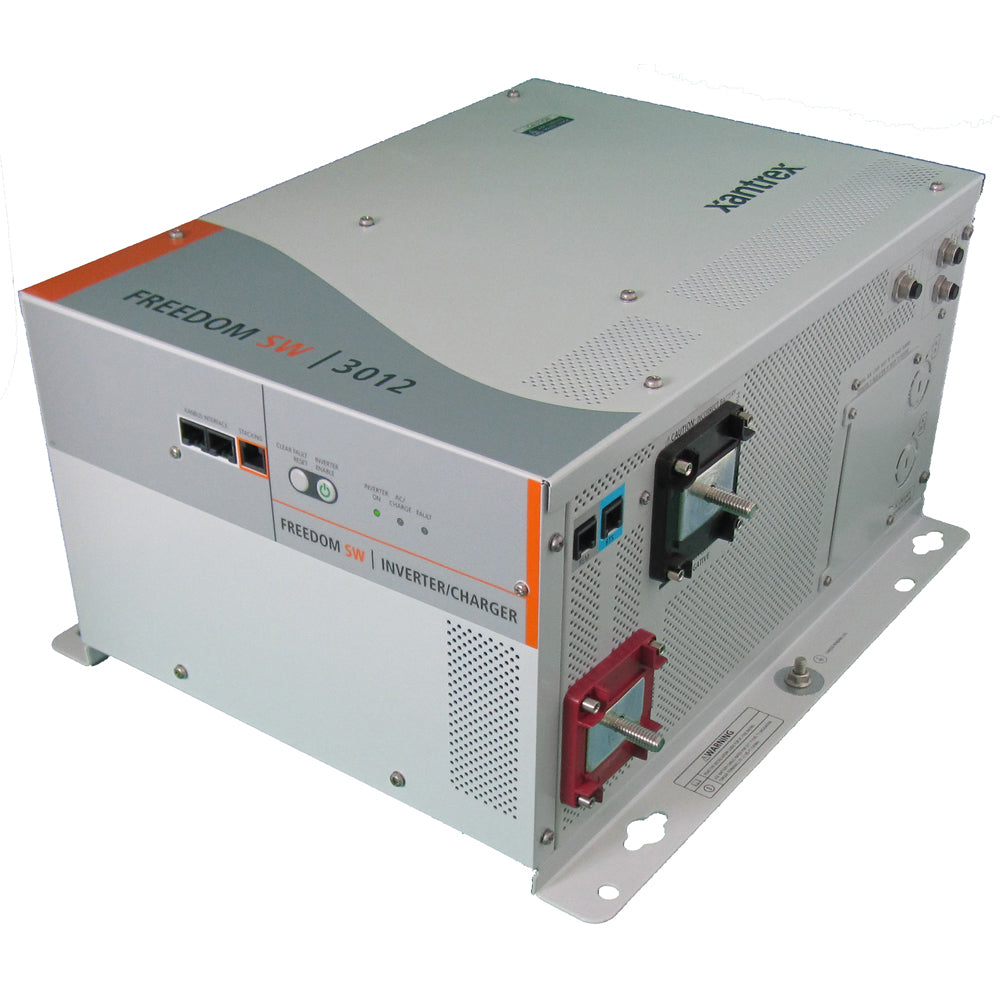

Xantrex Freedom SW3012 12V 3000W Inverter/Charger Product Description
Xantrex Freedom SW3012 12V 3000W Pure Sine Wave Inverter/Charger - Professional Marine Power System
Power your marine and RV electrical systems with confidence using the Xantrex Freedom SW3012 - the industry-leading 3000W pure sine wave inverter/charger that delivers unmatched versatility, reliability, and performance. This second-generation power management system combines advanced inverter technology with a powerful 150-amp battery charger, featuring Generator Support Mode and lightning-fast transfer switching for seamless power transitions.
Pure Sine Wave Power Technology
The Freedom SW3012 generates clean, stable pure sine wave power identical to utility grid power, ensuring safe operation of sensitive electronics, computers, medical devices, and modern appliances. With 3000W continuous output and 6000W surge capacity, this inverter handles demanding electrical loads while maintaining 90% efficiency for extended battery life.
Advanced Power Output Features:
-
Continuous Power Output: 3000W at 40°C ambient temperature
-
Surge Power Rating: 6000W for 5 seconds
-
Peak Output Current: 80 amperes AC
-
Output Frequency: 60Hz ±0.2Hz precision frequency control
-
Output Voltage: 120VAC ±2% regulation
-
Optimal Efficiency: 90% for maximum battery conservation
Professional 150-Amp Battery Charger
The integrated 150-amp multi-stage battery charger features power factor correction and temperature compensation for optimal charging performance across all battery types and climate conditions.
Advanced Charging Features:
-
Charging Output: 150 amperes continuous at 25°C
-
3-Stage Charging: Bulk, absorption, and float stages with manual equalize
-
Battery Compatibility: Flooded, gel, and AGM battery types
-
Temperature Compensation: Remote battery sensor included for optimal charging
-
Dead Battery Recovery: Charges batteries drained to 3VDC or higher
-
Power Factor Correction: 0.98 typical for efficient AC power utilization
Generator Support Mode Technology
The revolutionary Generator Support Mode automatically supplements generator power when AC loads exceed the generator's capacity. This intelligent feature allows you to run high-demand appliances using combined generator and battery power, maximizing your generator's effectiveness while extending its operational life.
Generator Integration Benefits:
-
Load Supplementation: Combines generator and battery power for high-demand loads
-
Generator Optimization: Reduces generator size requirements
-
Fuel Efficiency: Maximizes generator fuel economy
-
Automatic Operation: Seamless power blending without user intervention
-
AGS Compatible: Works with Xantrex Automatic Generator Start (809-0915)
Ultra-Fast Transfer Switching
The Freedom SW3012 features industry-leading transfer switching in less than 10 milliseconds when AC input power is lost or restored. This lightning-fast response ensures connected equipment experiences virtually no interruption during power transitions.
Transfer Switch Features:
-
Transfer Time: Less than 10ms AC-to-inverter and inverter-to-AC
-
Transfer Relay Rating: Dual 30-amp legs for split-phase operation
-
Automatic Operation: No manual intervention required
-
Seamless Switching: Virtually undetectable power transitions
-
Wide Input Range: 85-140VAC input acceptance
Parallel & Series Stacking Capability
Expand your power system with advanced stacking options that double your power output or create 120/240V split-phase systems for whole-house applications.
Stacking Options:
-
Parallel Stacking: Double AC output power in inverter mode
-
Series Stacking: Generate 120/240V split-phase output
-
System Expansion: Add units as power demands grow
-
Stacking Cable: Requires part #808-9005 (sold separately)
-
Configuration Flexibility: Customize for specific applications
Advanced Configuration & Control
The Freedom SW3012 offers extensive customization options for professional installations and specialized applications:
Configuration Features:
-
Advanced Settings: Customizable parameters for specific applications
-
Remote Control: Optional remote panel for convenient operation
-
Ignition Lockout: Prevents battery drain when alternator is inactive
-
LED Indicators: System status and fault indication
-
GFCI Option: Ground fault circuit interrupter protection available
Professional Marine & RV Applications
Engineered for demanding mobile applications including marine vessels, recreational vehicles, commercial equipment, and emergency power systems:
Application Versatility:
-
Marine Vessels: Sailboats, motor yachts, and commercial vessels
-
Recreational Vehicles: Class A, B, and C motorhomes and travel trailers
-
Commercial Applications: Work trucks, emergency vehicles, and mobile equipment
-
Backup Power: Emergency power systems and off-grid installations
-
Construction Equipment: Mobile job site power solutions
Comprehensive Protection Systems
Multiple protection circuits ensure safe operation and equipment longevity in all conditions:
Safety Protection Features:
-
Battery Protection: Over-voltage and under-voltage protection
-
Thermal Protection: Over-temperature shutdown and automatic restart
-
Overload Protection: Automatic current limiting and shutdown
-
Short-Circuit Protection: Immediate shutdown on short-circuit conditions
-
Reverse Battery Protection: Prevents damage from incorrect wiring
-
Integrated AC Breakers: Resettable circuit protection
Rugged Environmental Design
Built for harsh mobile and marine environments with premium construction and environmental protection:
Environmental Specifications:
-
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
-
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
-
Conformal Coating: Circuit boards protected for humid environments
-
Dual AC Interface: Split-phase input/dual output configuration
-
Hardwired Connections: Professional installation-grade terminals
Installation Specifications
Physical Dimensions:
-
Unit Dimensions: 15.25" L x 13.5" W x 7.75" H
-
Unit Weight: 73.7 pounds
-
Installation: Professional hardwired installation required
-
Mounting: Secure mounting in ventilated compartment
-
DC Input Range: 10-16VDC operating voltage
-
No-Load Draw: 3A DC in standby mode
Regulatory Compliance & Warranty
The Freedom SW3012 meets all major safety and electromagnetic compliance standards:
Certifications:
-
UL 458: With marine supplement for marine applications
-
CSA Certified: Canadian safety standards compliance
-
ABYC Standards: American Boat and Yacht Council compliance
-
FCC Class B: Electromagnetic interference compliance
-
2-Year Limited Warranty: Comprehensive coverage for materials and workmanship
Frequently Asked Questions
What is Generator Support Mode and how does it work?
Generator Support Mode automatically supplements generator power when AC loads exceed the generator's capacity. The Freedom SW3012 seamlessly combines generator and battery power to handle high-demand loads, allowing smaller generators to power larger electrical systems.
Can I connect multiple Freedom SW3012 units together?
Yes, the Freedom SW3012 supports both parallel and series stacking. Parallel stacking doubles the AC output power, while series stacking creates 120/240V split-phase output. A stacking cable (part #808-9005) is required for these configurations.
What battery types are compatible with the Freedom SW3012?
The Freedom SW3012 is compatible with flooded lead-acid, gel, and AGM battery types. The 3-stage charging algorithm with temperature compensation optimizes charging for each battery type, and the unit can recover batteries drained to as low as 3VDC.
How fast does the transfer switch operate?
The Freedom SW3012 features ultra-fast transfer switching in less than 10 milliseconds between AC input power and inverter power. This rapid switching ensures connected equipment experiences virtually no power interruption during transitions.
Is professional installation required?
Yes, professional installation by a qualified marine electrician or RV technician is strongly recommended. The unit requires proper DC and AC wiring, appropriate fusing/breakers, battery connections, and adherence to ABYC/NEC electrical codes for safe operation.
The second generation 2000 Watts model has been completely redesigned to include many of the same great features found in its high power counterpart. A key feature enhancement is ‘Generator Support Mode’ which enables the Freedom SW to supplement a generator¹ when AC loads exceed the generator’s capacity. The new generation models also feature improved AC transfer or AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 Milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.
Xantrex 8153012 Attributes
-
Output Voltage: 120 Volt AC
-
Input Voltage: 12 Volt DC
-
Continuous Output Power (W): 3000 Watt
-
Peak Output Power (W): 6000 Watt
-
Ampere Rating: 80 Amp
-
Efficiency: 90 Percent
-
Number Of AC Outlets: 2
-
Length (IN): 15-1/4 Inch
-
Width (IN): 13-1/2 Inch
-
Height (IN): 7-3/4 Inch
-
Remote On/Off Capable: Yes
-
With USB Port: No
-
With Volt/Watt Meter: No
-
With Short Circuit: Yes
-
With Reverse Battery Protection: Yes
-
With Thermal Protection: No
-
With Battery Cables: No
-
With Built-In Charger: Yes
-
With Fuse: No
Xantrex 8153012 Features & Benefits
- Battery Over-Voltage And Under-Voltage Protection
- Over-Temperature Shutdown
- Automatic Overload Protection
- Short-Circuit Protection
- Integrated, Resettable AC Breakers
- Pure Sine Wave Output To Operate Sensitive Electronics
- Parallel And Series Stacking Capability
- Built-In Transfer Switch Automatically Transfers Between Inverter Power And Incoming AC Power
- Temperature Compensated Charging For A Variety Of Climate Conditions
- Limited 2 Year Warranty
Xantrex Freedom SW3012 Inverter/Charger815-3012
12V, 3000W - 120 Vac / 60 Hz
Powerful. Configurable. Versatile...
The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.
Product DescriptionThe second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.
NEW - PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output
2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)
ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.
Product Features
- Pure sine wave output to operate sensitive electronics
- Advanced configuration options for customized applications
- Parallel and series stacking capability
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power factor corrected, multi-stage charger for fast, efficient charging
- Temperature compensated charging for a vareity of climate conditions
- Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3
- Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
- Conformal coated circuit boards for humid environments
- Dual input / Dual output AC interface for 3000 W model
- Ability to charge batteries drained to extremely low voltage
- Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915)
3When used with the remote panel
4Sold separately
Protection Features
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Integrated, resettable AC breakers
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
Xantrex Freedon SW3012 inverter/charger 815-301212v, 3000w-120 vac / 60 hzpowerful. Configurable. Versatile. The new generation of free sw series represents a highly complex and advanced inverter/charger, where the power of the 150W charger is 3000W, and the power of the 100A charger is 2000W. Product description The second-generation 3000 watt model has been completely redesigned and includes many of the same main functions in its high-power similar products. An important feature enhancement is the "generator support mode", when the AC load exceeds the rated power, it can freely provide supplements for the generator. The capacity of the generator. The new generation model also has an improved AC transmission/AC input detection time function. When the input power of the grid or generator is lost, the AC load can be transferred to the battery in less than 10 milliseconds. Due to the short transmission time, the connected load hardly feels power conversion. Both models have passed ul458 certification, and have Class B requirements for marine supplements, csa, abyc and fcc. The new function parallel and series stacking parallel stacking enables sw/f inverter/charger to double the AC output in inverter mode. Stacking in series allows free SW inverter/charger to produce 120/240 V split-phase output 2 2 AC power must be split-phase, which requires stacking cable part 808-9005 application design.
Xantrex 75' Network Cable f/SCP Remote Panel
Frequently Asked Questions (FAQ) About Xantrex Freedom SW3012 12V 3000W Inverter/Charger
Who is the Xantrex?
How to describe Xantrex Freedom SW3012 12V 3000W Inverter/Charger?
What is the working voltage of the product?
What is the weight of the product?
How many outlet exists on this product?
What is the watts of the product?
How many banks supporting for charge?
What is the input voltage?
What is the output voltage?
What is the output voltage?
What is the output voltage?
What is the input voltage?
What is the output voltage?
Who is the Xantrex?
Xantrex Technology Inc. is a world leader in advanced power electronics. Our enabling technology converts raw electrical power from any source -- central utility, backup power, distributed or renewable generation, -- into high-quality electricity required by todays electronic and electrical equipment. Xantrex Technologys knowledge and experience in advanced power electronics is helping to accelerate the commercialization of emerging power systems and solutions.
How to describe Xantrex Freedom SW3012 12V 3000W Inverter/Charger?
Xantrex Freedon SW3012 inverter/charger 815-301212v, 3000w-120 vac / 60 hzpowerful. Configurable. Versatile. The new generation of free sw series represents a highly complex and advanced inverter/charger, where the power of the 150W charger is 3000W, and the power of the 100A charger is 2000W. Product description The second-generation 3000 watt model has been completely redesigned and includes many of the same main functions in its high-power similar products. An important feature enhancement is the "generator support mode", when the AC load exceeds the rated power, it can freely provide supplements for the generator. The capacity of the generator. The new generation model also has an improved AC transmission/AC input detection time function. When the input power of the grid or generator is lost, the AC load can be transferred to the battery in less than 10 milliseconds. Due to the short transmission time, the connected load hardly feels power conversion. Both models have passed ul458 certification, and have Class B requirements for marine supplements, csa, abyc and fcc. The new function parallel and series stacking parallel stacking enables sw/f inverter/charger to double the AC output in inverter mode. Stacking in series allows free SW inverter/charger to produce 120/240 V split-phase output 2 2 AC power must be split-phase, which requires stacking cable part 808-9005 application design.
What is the working voltage of the product?
What is the weight of the product?
How many outlet exists on this product?
What is the watts of the product?
How many banks supporting for charge?
What is the output voltage?
What is the output voltage?
What is the output voltage?
What is the output voltage?
