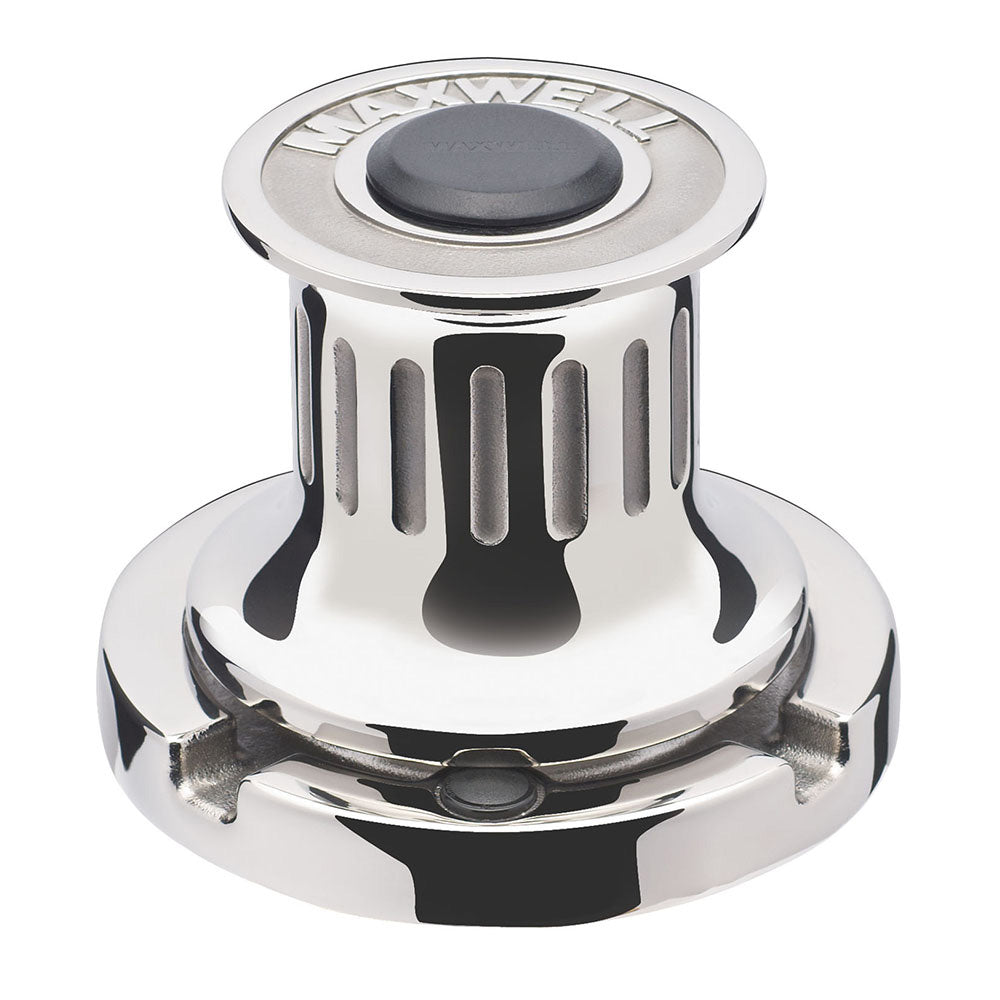

Maxwell VC 1000 12V Vertical Capstan Windlass

Maxwell VC 1000 12V Vertical Capstan Windlass Product Description

VC 1000 12V Vertical Capstan Windlass

The stainless steel (AISI 316) fluted capstan VC series is designed for simple, low-cost anchor recovery on smaller boats and rope hauling on larger vessels.

Features:

• The vertical design suits smaller powerboats or sailboats and can be utilized for anchor rodes, as a docking capstan on larger craft, or as auxiliary line hauling from any direction
• High-quality, hard-wearing stainless steel (AISI 316) above deck components
• Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes
• Simplified through deck installation by modular design and precise alignment of the gearbox to the top works
• Alternative gearbox/motor positions accommodate virtually all installation situations
• Anodized aluminum gearbox and spacer on VC 500 and VC 1000 models
• Heavy-duty, dual-direction motors, designed for marine operations
• Easily disassembled for servicing
• Can be mounted horizontally for use as a pot hauler or Davit winch

Specifications:

• Maximum Pull: 700 kg (1540 lbs)
• Static Hold: 1200 kg (2640 lbs)
• Line Speed (Normal Working): 20m/min (65ft/min)
• Power Supply (DC): 12V
• Motor (Watt): 1000 W
• Net Weight (DC): 18 kg (40 lbs)
• Hydraulic Pressure: 100 bar (1450 psi)
• Hydraulic Flow: 20 l/min (5.3 US gal/min)
• Net Weight (Hydraulic): 11 kg (24 lbs)
