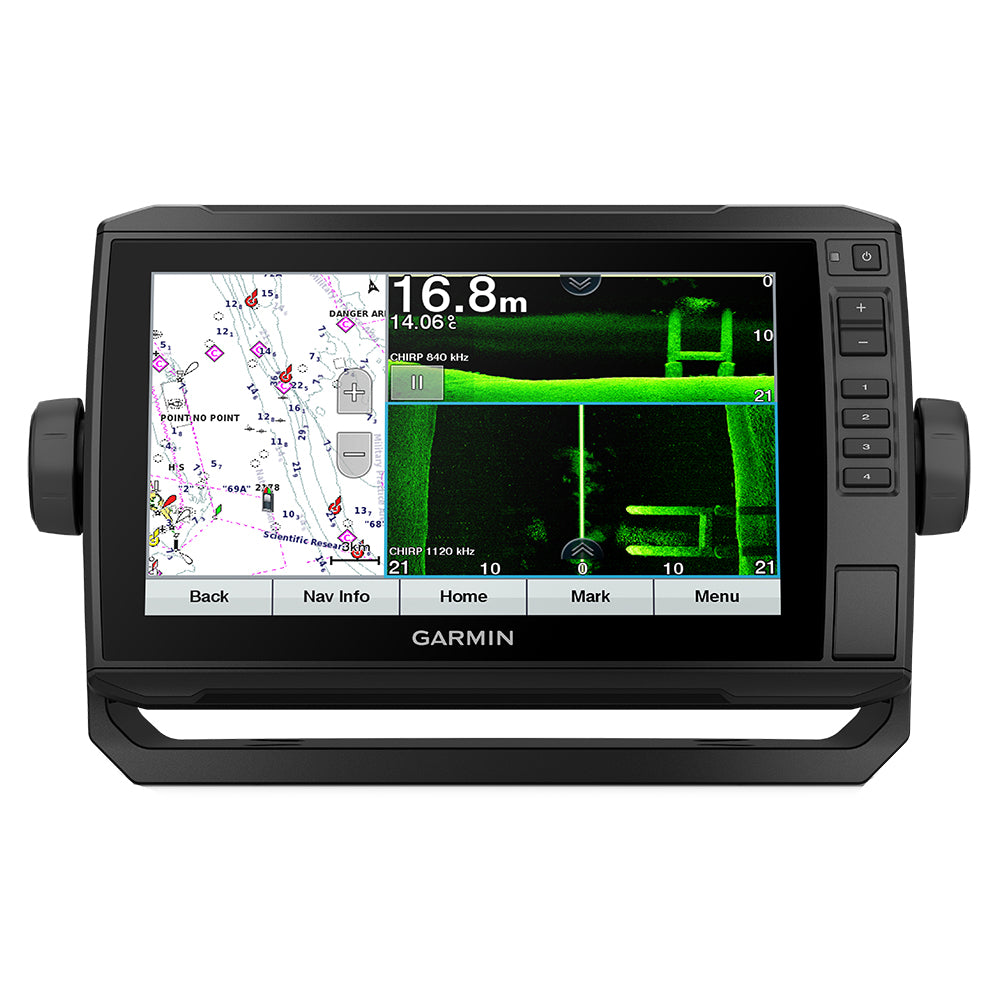

Garmin ECHOMAP UHD 92sv w/o Tranducer
Garmin ECHOMAP UHD 92sv w/o Tranducer — Product description
Unlock Crystal-Clear Waters with the Garmin ECHOMAP UHD 92sv
Imagine gliding across any body of water, pinpointing fish with razor-sharp detail and charting your course effortlessly on a vibrant 9-inch touchscreen. The Garmin ECHOMAP UHD 92sv without transducer delivers that edge for serious anglers and boaters who demand precision without the clutter. This powerhouse chartplotter skips the transducer so you can pair it with your preferred sonar setup, keeping things flexible for custom rigs on kayaks, bass boats, or offshore vessels.
What sets it apart? Ultra High-Definition scanning sonar compatibility reveals structure and baitfish schools like never before, while built-in networking lets you sync data across multiple units for tournament-level setups. Anglers rave about its sunlight-readable display that stays sharp even on the brightest days, turning challenging conditions into your advantage.
Superior Sonar Imaging for Deeper Insights
Ready to see what's lurking beneath? Hook up compatible Garmin transducers—like the game-changing Panoptix LiveScope for live-action views all around your boat—and dive into UHD ClearVü and SideVü scanning. These deliver 20% more SideVü range with three frequencies, painting fish-holding wrecks and drop-offs in stunning clarity. Traditional CHIRP sonar handles everything from shallow flats to deep blue water up to 2,300 feet.
Pro tip: Pair it with a GT56 transducer for peak performance. Features like sonar rewind let you replay history to analyze bottom composition on the fly, helping you adjust trolling patterns or jigging depths instantly. No more guesswork—just data-driven hauls.
Custom Mapping That Evolves with You
Why settle for static charts? Quickdraw Contours generates 1-foot contour maps in real-time as you explore. Dial in your hotspots, refine them for specific lures or seasons, and share with the Garmin Quickdraw Community via the ActiveCaptain app. The worldwide basemap gets you started anywhere, and optional BlueChart g3 Vision adds coastal detail with Garmin/Navionics fusion for hazards, marinas, and wrecks.
For offshore runs or inland lakes, store up to 5,000 waypoints, 100 routes, and 50,000 track points. Tide tables keep you synced with currents, ensuring you're fishing the right spot at peak times.
Seamless Networking and Boat Integration
Go beyond solo operation. The 9-inch model shares sonar, user data, and charts with other ECHOMAP UHD or Ultra units on your Garmin Marine Network. NMEA 2000 and 0183 connectivity ties in autopilots, VHF, AIS, engine data, and even FUSION-Link audio—command your vessel from one intuitive screen.
Control Force trolling motors directly: follow routes, hit waypoints, and anchor precisely. Built-in Wi-Fi links to ActiveCaptain for smart notifications, OneChart swaps, and effortless updates, keeping your system cutting-edge without docking.
Rugged Build for Real-World Adventures
Built tough with IPX7 water resistance, this 2.3-pound unit shrugs off splashes and spray. The quick-release bail mount swaps to flush for sleek installs, and the protective cover guards it between trips. Low 18W draw means longer sessions on battery power, perfect for remote launches.
Display specs shine: 9-inch diagonal (7.8" x 4.8" viewable), WVGA resolution (800 x 400 pixels) stays legible under glare. Internal GPS or external via NMEA 2000 ensures reliable positioning at 5 Hz update rates.
Everything You Need to Get Started
- ECHOMAP UHD 92sv unit with worldwide basemap
- 8-pin to 12-pin transducer adapter cable
- Power/data cable
- Tilt/swivel mount with quick-release cradle
- Flush mount kit
- Protective cover
- Mounting hardware
- User documentation
Detailed Technical Specifications
| Category | Details |
|---|---|
| General | Physical dimensions: 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm) |
| Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) | |
| Display resolution: 800 x 400 pixels (WVGA) | |
| Weight: 2.3 lbs (1.0 kg) | |
| Water rating: IPX7 | |
| Power consumption: 18W | |
| Mounting options: Bail or flush | |
| Receiver: 5 Hz | |
| Garmin Marine Network ports: 1 Panoptix port | |
| Antenna: Internal or external over NMEA 2000 | |
| Maps & Memory | Preloaded maps: Worldwide basemap |
| Waypoints: 5,000 | |
| Routes: 100 | |
| Track log: 50,000 points; 50 saved tracks | |
| Accepts data cards: 1 microSD card; 32 GB maximum | |
| Sonar Highlights | CHIRP built-in, UHD ClearVü/SideVü, Max depth 2,300 ft @ 77 kHz freshwater, 500W RMS |
| Connections | NMEA 2000/0183, Wireless Wi-Fi, 12-pin transducer |
Frequently Asked Questions
Does the Garmin ECHOMAP UHD 92sv come with a transducer?
No, this model ships without a transducer, giving you freedom to choose one that matches your boat and fishing style, like GT56 for UHD scanning or LiveScope for live views.
Can I use this chartplotter on both freshwater and saltwater?
Absolutely. The worldwide basemap and sonar capabilities handle lakes, rivers, bays, and open ocean with ease, supported by optional coastal charts.
How does Quickdraw Contours work?
It creates custom 1-foot contour maps as you motor along, letting you mark and share personal fishing spots via the ActiveCaptain app and community.
Is networking possible with other Garmin devices?
Yes, the 9-inch model shares sonar, charts, and data with compatible ECHOMAP UHD/Ultra units over the Garmin Marine Network.
What's the benefit of the ActiveCaptain app?
It connects via Wi-Fi for software updates, community maps, smart notifications, and OneChart to access premium charts without physical cards.
Can it control a trolling motor?
Yes, compatible with Force trolling motors—navigate routes, follow waypoints, and manage from the chartplotter screen.
How waterproof is the ECHOMAP UHD 92sv?
IPX7 rated, it withstands immersion in 1 meter of water for 30 minutes, ideal for rough seas or rain.
ECHOMAP UHD 92sv without Transducer
Join the Club. Find More Fish.
The sunlight-readable 9 touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
Features:
- See below and around your boat in incredible detail with optional transducer
- Navigate any waters with optional charts and maps
- Share data with other devices on your network ( and 9 models only)
- Manage your marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create your own maps on the fly and tailor them to fit your needs
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.
Optional Charts and Maps
Experience unparalleled coverage and detail with support for optional BlueChart g3 Vision coastal charts featuring integrated Garmin and Navionics content.
Quickdraw Contours
Create personalized fishing maps on-screen with 1' contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information such as sonar, user data and charts among them ( and 9 models only).
NMEA 2000 and NMEA 0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.
ActiveCaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin Quickdraw Community data and more.
Force Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
In The Box
- ECHOMAP UHD 92sv with worldwide basemap
- 8-pin transducer to 12-pin sounder adapter cable
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
1 When paired with a compatible smartphone
2 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin ECHOMAP 92sv UHD Combo Worldwide Basemap g3 without Transducer
Model: 010-02341-00- See below and around your boat in incredible detail with optional transducer
- Navigate any waters with optional charts and maps (sold separately).
- Share data and maps with select ECHOMAP devices on your network.
- Manage your marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create your own maps on the fly and tailor them to fit your needs
The sunlight-readable 9" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7" and 9" models can share information — such as sonar, user data and charts — with them.
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more1.
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Specifications| General | |
| Physical dimensions | 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm) |
| Display size | 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
| Display resolution | 400 x 800 pixels |
| Display type | WVGA display |
| Weight | 2.3 lbs (1.0 kg) |
| Water Rating | IPX7 |
| Power consumption | 18W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | 1 Panoptix™ port |
| Maps & Memory | |
| Preloaded maps | Worldwide basemap |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing Features | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | Yes with CHIRP (built-in) |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | 12 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- ECHOMAP UHD 92sv with worldwide basemap .
- 8-pin transducer to 12-pin sounder adapter cable
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
SKU: NVN-83372
MPN: 010-02341-00
UPC: 753759241612
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP UHD 92sv w/o Tranducer |
| SKU / MFR# | 83372 |
