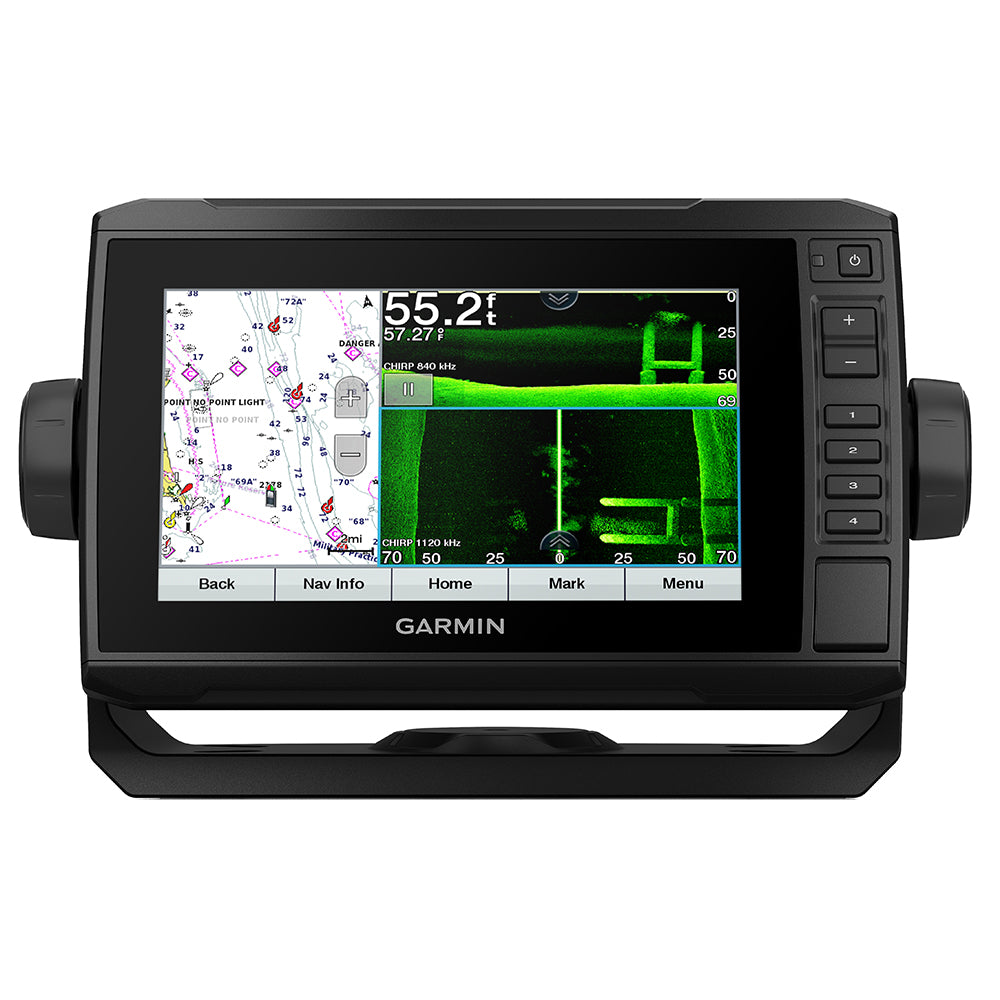

Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer Product Description
Discover Crystal-Clear Views Beneath and Around Your Boat
Picture this: you're out on the open water, chasing trophy fish in offshore waters, and your chartplotter reveals razor-sharp images of structure, baitfish, and monsters lurking below. The Garmin ECHOMAP UHD 74sv steps up as your ultimate fishing companion, blending a vibrant 7-inch sunlight-readable touchscreen with advanced sonar-ready capabilities. Without a transducer included, you have the freedom to pair it with your preferred setup, like the versatile GT54 for Ultra High-Definition ClearVü and SideVü scanning that paints pictures so detailed, you'll spot individual fish tails amid the wreckage.
Anglers rave about its quick-release bail mount—unhook it in seconds to secure inside your truck or cabin, protecting your investment from salty sprays and prying eyes. Preloaded with BlueChart g3 coastal charts fusing Garmin's precision with Navionics depth contours, it covers U.S. coastlines down to the finest details, helping you dodge shallows and zero in on prime fishing grounds.
Unlock Superior Sonar Performance
Ready for next-level fishfinding? This unit shines with compatibility for Garmin's high wide CHIRP traditional sonar, delivering exceptional target separation to distinguish between that keeper snapper and pesky bait. Add Panoptix LiveScope for real-time, all-around views that make jigging or trolling feel like cheating—see fish react to your lure instantly.
- Ultra High-Definition Scanning: ClearVü and SideVü show structure and fish in stunning clarity up to hundreds of feet away.
- CHIRP Sonar Excellence: High wide coverage spots schools faster, even in murky conditions.
- Panoptix Support: LiveScope and other all-seeing sonars turn your boat into a fish magnet.
- Sonar Sharing: Link multiple ECHOMAP UHD units to broadcast sonar data boat-wide (on 7" and 9" models).
Mapping Mastery for Offshore Adventures
Navigate confidently with BlueChart g3 charts that include integrated Navionics data for coastal hotspots. But don't stop there—Quickdraw Contours lets you map your own 1-foot detail contours on the fly, perfect for marking secret reefs or honey holes. Share via the Garmin Quickdraw Community or hoard your intel for that next tournament win.
Bonus: LakeVü g3 inland maps cover over 17,000 U.S. lakes if you venture freshwater, ensuring seamless transitions between pursuits.
Seamless Connectivity and Control
Stay wired into your boat's ecosystem with NMEA 2000 and 0183 support. Pull engine stats, control your autopilot, stream weather, or blast tunes through FUSION-Link—all from one intuitive screen. Pair with the ActiveCaptain app over built-in Wi-Fi for smart notifications, OneChart upgrades, and community-shared maps without ever docking.
Command your Force trolling motor directly: steer to waypoints, follow saved tracks, and finesse spot-on positioning for live-lining or drifting.
Built Tough for Real-World Fishing
At 1.7 lbs with IPX7 water resistance, this compact powerhouse (9.8" x 5.5" x 2.0") laughs off rough seas. The keyed-assist touchscreen stays responsive even with wet gloves, and flush or bail mounting options fit any console. Internal GPS antenna locks satellites fast, while external over NMEA 2000 adds flexibility.
Technical Specifications at a Glance
| Category | Details |
|---|---|
| Display | 7" diagonal WVGA (400 x 800 pixels), sunlight-readable touchscreen |
| Dimensions & Weight | 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm); 1.7 lbs (0.77 kg) |
| Power & Durability | 15W consumption; IPX7 waterproof |
| Sonar Capabilities | CHIRP built-in, ClearVü/SideVü UHD, 500W RMS (4kW peak), max depth 2,300 ft @ 77 kHz |
| Mapping & Memory | BlueChart g3 coastal; 5,000 waypoints, 100 routes, microSD up to 32GB |
| Connections | NMEA 2000/0183, 12-pin transducer, Wi-Fi, 1 Garmin Marine Network port |
What's Included for Quick Setup
- ECHOMAP UHD 74sv with BlueChart g3 U.S. charts
- Power/data cable
- Tilt/swivel mount with quick-release cradle
- Flush mount kit
- Protective cover
- Mounting hardware
- Documentation
Pro Tips from Seasoned Anglers
Maximize your setup by choosing a GT54 transducer for offshore wrecks—its wide SideVü sweeps reveal fish hugging structure from afar. Use sonar history rewind to replay marks and dial in lure depth. For multi-boat crews, network sharing keeps everyone on the same page during derbies. And with ActiveCaptain, crowdsource proven spots without spilling your own secrets.
Frequently Asked Questions
What kind of sonar does the Garmin ECHOMAP UHD 74sv support?
It supports Ultra High-Definition ClearVü and SideVü scanning sonars with compatible transducers like the GT54, plus Garmin high wide CHIRP traditional sonar for superior target separation. It also works with Panoptix LiveScope for real-time views.
Does this model come with preloaded maps?
Yes, it's preloaded with BlueChart g3 coastal charts for U.S. waters, featuring integrated Navionics data for detailed coastal navigation. LakeVü g3 inland maps are also included for over 17,000 lakes.
Can I share sonar data with other units?
Absolutely—on 7-inch and larger models, you can share sonar, user data, and charts across compatible ECHOMAP UHD or Ultra devices via the Garmin Marine Network.
Is it compatible with trolling motors?
Yes, it fully integrates with the Force trolling motor, allowing screen-based control, waypoint navigation, track following, and precise positioning.
What connectivity options are available?
Built-in Wi-Fi for ActiveCaptain app pairing, NMEA 2000 for engine/autopilot data, NMEA 0183 ports, and one Garmin Marine Network port for expanded networking.
How do I create custom maps?
Use Quickdraw Contours to generate 1-foot contour maps in real-time while fishing. Save them privately or share with the Quickdraw Community through Garmin Connect.
What's the display like for bright conditions?
The 7-inch WVGA touchscreen is sunlight-readable with keyed assist, ensuring clear visibility and easy operation even on the sunniest days at sea.
ECHOMAP UHD 74sv US Offshore g3 without Transducer
Find more fish using the ECHOMAP UHD 74sv combo with a bright, sunlight-readable touchscreen with keyed assist. The optional GT54 transducer provides Ultra High-Definition ClearV and SideV scanning sonars, so you get crystal-clear images of what is around and below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation. It comes preloaded with BlueChart g3 coastal charts with the best of Garmin and Navionics data. It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000 and NMEA 0183 network support provides you with engine data, sensor connection, autopilot integration and more. ECHOMAP UHD 74sv is even compatible with the Force trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more.
Features:
- Bright, sunlight-readable touchscreen with keyed assist
- Optional GT54 transducer for Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonars and Garmin high wide CHIRP traditional sonar
- Preloaded BlueChart g3 coastal charts with integrated Navionics data
- Supports Panoptix all-seeing sonar, including Panoptix LiveScope sonar
- Sonar sharing capabilities with other ECHOMAP Plus, ECHOMAP UHD and ECHOMAP Ultra units
- NMEA 2000 and NMEA 0183 network support for autopilot and engine data
- Quick-release bail mount for fast and easy mobility
- Compatible with Force trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more
Optional Transducer Bundle
Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearV and SideV scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded LakeV g3 inland maps featuring integrated Navionics data that covers more than 17,000 lakes with up to 1' contours.
Quickdraw Contours
Create personalized fishing maps on-screen with 1' contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
NMEA 2000 & NMEA0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.
ActiveCaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin Quickdraw Community data and more.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information such as sonar, user data and charts among them ( and 9 models only).
Force Trolling Motor Capability
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Connections
- Garmin Marine Network Ports: 1
- NMEA 2000 Compatible: Yes
- Transducer Pin Numbers: 12
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: None
- Video Output Ports: None
- Wireless Connectivity: Yes
In The Box
- ECHOMAP UHD 74sv with BlueChart g3 for U.S.
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
1 When paired with a compatible smartphone
2 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin ECHOMAP 74sv UHD Combo US Offshore g3 without Transducer
Model: 010-02339-00- See below and around your boat in incredible detail with optional transducer
- Navigate any waters with preloaded BlueChart® g3 coastal charts
- Share data with other devices on your network (7" and 9" models only)
- Manage your marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create your own maps on the fly and tailor them to fit your needs
The sunlight-readable 7" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 17,000 lakes with up to 1’ contours.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Specifications| General | |
| Physical dimensions | 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm) |
| Display size | 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| Display resolution | 400 x 800 pixels |
| Display type | WVGA display |
| Weight | 1.7 lbs.(0.77kg) |
| Water Rating | IPX7 |
| Power consumption | 15W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | None |
| Maps & Memory | |
| Preloaded maps | BlueChart® g3 (coastal maps) |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing Features | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | Yes with CHIRP (built-in) |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | 12 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- ECHOMAP UHD 74sv with BlueChart g3 for U.S.
- 8-pin transducer to 12-pin sounder adapter cable
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
SKU: NVN-80832
MPN: 010-02339-00
UPC: 753759241582
Frequently Asked Questions (FAQ) About Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer
Who is the Garmin?What is the weight of the product?
Who is the Garmin?
What is the weight of the product?
- The ECHOMAP™ UHD 74sv combo with a bright, sunlight-readable 7” touchscreen with keyed assist.
- The optional GT54 transducer provides Ultra HD resolution and high sensitivity for finding fish in deep water.
- The ECHOMAP™ UHD 74sv is a great option for those who want to find more fish.
- The 7” touchscreen is easily readable in sunlight, and the keyed assist makes it easy to use.
- The GT54 transducer provides Ultra HD imaging for maximum clarity and detail.
- The bright, sunlight-readable 7” touchscreen with keyed assist is easy to use and provides a clear view of the underwater world.
- With the optional GT54 transducer, you can find more fish in areas where traditional sonar doesn't reach.
- The ECHOMAP™ UHD 74sv combo is perfect for fishing enthusiasts who want to explore new areas and find more fish.
Save $143 when you buy the Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer for only $706 from NVN Marine! Same day free shipping before 3pm.
Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer Videos
Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Garmin |
| Weight: |
5.4 lb |
| Cartography Brand: |
Garmin |
| Touchscreen: |
Yes |
| Screen Size: |
7" |
| Transducer Included: |
No |
| Categories v2: |
Marine Navigation & Instruments | GPS - Fishfinder Combos |
| Category v1: |
GPS FISHFINDER COMBO |
| UPC: |
753759241582 |
| Product Manual: | |
| Product Installation: |
Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer User Reviews
Garmin ECHOMAP UHD 74sv US Offshore g3 w/o Transducer Shipping & Return
| Shipping Weight: |
5.4 lb |
|---|---|
| Box Sizes: |
8.00 (h) x 13.00 (w) x 10.00 (l) |
| Cubic Feet: |
1040.0 |
| Returnable: |
Yes |
| USPS First Class: |
Yes |
| Oversize Item: |
Yes |
For detailed shipping policy please check our Shipping Policy and you can find our Return and Refund Policy here.
