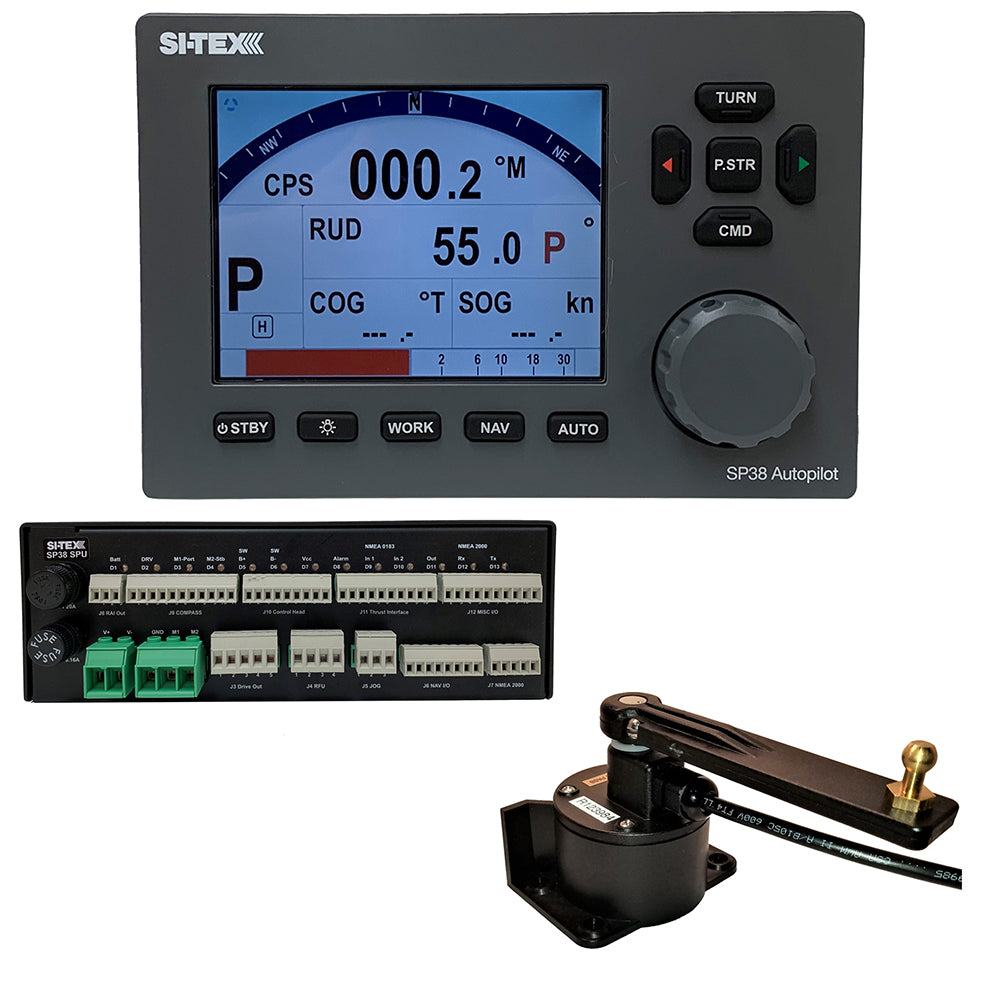

SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 78773 - UPC: SP38-4 - MPN: SP38-4
$3,469.99
$4,799.00
( / )
The SP38-4 is an autopilot core pack that includes a rotary feedback only, no servo.
Same Day
Shipping (3PM)
Free Returns
Within 30 days
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump Product Description
SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump
Features:
- IST – Intelligent Steering Technology provides superior vessel steering capability
- ADAPTIVE steering for sea conditions and varying vessel speeds
- AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
- NMEA 2000, ETHERNET, and NMEA 0183 interface
- Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
- WORK Mode suitable for Fishing Boats, Towboats and Workboats
- PRC- Proportional Rate Control feature provides gentle smooth steering response
- Multi-Station capability with security station lock
- SUNLIGHT viewable Color 5.7” LCD display
- NAV Mode provide adaptive precise track steering
- ALC – Automatic Leeway Compensation for Drift, Tide & Wind
- Fully compatible with onboard instruments and steering systems
- Optional Z-Drive interface allows 360 Azimuth drive interface
- Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
- Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
- Standard with Flush Mount kit, Optional Swivel mount bracket
- IP67 Waterproof – Control Head, TS4, NF4 and WS4
- RoHS & CE compliance for EMI and RFI immunity
Additional Features:
- 9 level backlit LCD display
- LCD Display switches to Red Night Palette to protect Operators night vision
- Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
- Multiple steering parameters for Fast cruise, Slow cruise and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA N2K instruments and most steering systems
Specifications:
- Operating Voltage: 10 to 30 VDC
- Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
- Network: NMEA 2000 & Ethernet
- Navigational Interface: NMEA 0183 input/Output
- NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
- Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
- Course Resolution: 1°
- Course Detection: 0.5°
The core components of SP38-4 autopilot, only include rotation feedback, no compass or pump function: IST-intelligent steering technology can provide excellent ship steering capabilities, adaptive steering automatic settings that adapt to sea conditions and changing ship speeds -...
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump Related Products
SI-TEX 18CI Pumpset 12VSI-TEX 30CI Pumpset 12VDC
Accu-Steer HRP05-12 Hydraulic Reversing Pump Unit - 12 VDC
Accu-Steer HRP05-24 Hydraulic Reversing Pump Unit - 24 VDC
Accu-Steer HRP11-12 Hydraulic Reversing Pump Unit - 12 VDC
Accu-Steer HRP11-24 Hydraulic Reversing Pump Unit - 24 VDC
Accu-Steer HRP17-12 Hydraulic Reversing Pump Unit - 12 VDC
Accu-Steer HRP17-24 Hydraulic Reversing Pump Unit - 24 VDC
SI-TEX Full Follow-Up Remote w/6M Cable
SI-TEX Non Follow-Up Remote w/6M Cable
Frequently Asked Questions (FAQ) About SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump
Who is the SI-TEX?How to describe SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump?
What is the type of the product?
Who is the SI-TEX?
There's an old saying, "If it ain't broke, don't fix it!" This sums up the SI-TEX philosophy perfectly. Thanks to strong products built in the SI-TEX tradition of simplicity, performance and reliability, friendly and responsive technical support, SI-TEX business has been steadily growing. SI-TEX is committed to developing new products based on the ways customers really use their boats, rather than just cramming in a bunch of costly bells and whistles for the sake of marketing buzz.
How to describe SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump?
The core components of SP38-4 autopilot, only include rotation feedback, no compass or pump function: IST-intelligent steering technology can provide excellent ship steering capabilities, adaptive steering automatic settings that adapt to sea conditions and changing ship speeds -...
- The SP38-4 Autopilot Core Pack is a complete autopilot system with the most advanced steering technology.
- Intelligent steering technology provides superior vessel control and stability in all sea conditions for vessels of varying speeds.
- The SP38-4 Autopilot Core Pack includes intelligent steering capability, as well as an integrated compass and pump.
- The SP38-4 Autopilot Core Pack is a complete autopilot system that includes an Intelligent Steering Technology.
- Adaptive steering for sea conditions and varying vessel speeds.
- The SP38-4 Autopilot Core Pack is a high-performance, affordable solution for all your autopilot needs.
- Intelligent steering technology provides superior vessel steering capability, and ADAPTIVE steering for sea conditions and varying vessel speeds.
- Includes the SP38-4 Autopilot Core Pack with rotary feedback only, no compass or pump
What is the type of the product?
Parts
- The SP38-4 Autopilot Core Pack is a complete autopilot system with the most advanced steering technology.
- Intelligent steering technology provides superior vessel control and stability in all sea conditions for vessels of varying speeds.
- The SP38-4 Autopilot Core Pack includes intelligent steering capability, as well as an integrated compass and pump.
- The SP38-4 Autopilot Core Pack is a complete autopilot system that includes an Intelligent Steering Technology.
- Adaptive steering for sea conditions and varying vessel speeds.
- The SP38-4 Autopilot Core Pack is a high-performance, affordable solution for all your autopilot needs.
- Intelligent steering technology provides superior vessel steering capability, and ADAPTIVE steering for sea conditions and varying vessel speeds.
- Includes the SP38-4 Autopilot Core Pack with rotary feedback only, no compass or pump
Save $1329 when you buy the SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump for only $3469 from NVN Marine! Same day free shipping before 3pm.
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump Videos
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump Technical Specifications
| Type: | |
|---|---|
| Vendor: |
SI-TEX |
| Weight: |
14.9 lb |
| Type: |
Parts |
| User Guide: | |
| Product Installation: |
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump User Reviews
SI-TEX SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump Shipping & Return
| Shipping Weight: |
14.9 lb |
|---|---|
| Box Sizes: |
7.00 (h) x 18.00 (w) x 18.00 (l) |
| Cubic Feet: |
2268.0 |
| Returnable: |
Yes |
