Garmin ECHOMAP Ultra 122sv w/o Transducer

Discover the Power of Precision Fishing with Advanced Chartplotter Technology

Picture this: you're out on the water at dawn, the mist rising off the lake, and your display reveals fish activity in stunning clarity before your eyes. The Garmin ECHOMAP Ultra 122sv without transducer elevates your angling game with its expansive 12-inch keyed-assist touchscreen, designed for quick, glove-friendly operation even in rough conditions. This combo unit blends fishfinding prowess with intuitive navigation, helping serious anglers and boaters alike maximize every outing without the clutter of extra hardware.

Superior Display for Real-World Visibility

Crafted for the harshest marine environments, the ultra-bright, sunlight-readable WXGA display measures 12.1 inches diagonally with a sharp 1280 x 800 resolution. Whether you're scanning deep waters or navigating tight coastal passages, polarized lens support cuts glare, ensuring you see critical details at a glance. Keyed controls complement touch inputs, making adjustments seamless during high-speed trolling or when hands are wet.

Why It Matters for Anglers

• Spot structure and baitfish schools instantly, reducing guesswork on prime fishing spots.
• IPX7 water rating withstands splashes and submersion, built to last through seasons of heavy use.
• Compact yet robust at 5.5 lbs, it fits most consoles without dominating space.

Unlock Premium Sonar Without the Black Box

Ready for elite sonar performance, this unit natively supports CHIRP traditional, ClearVü, and SideVü scanning sonars up to ultra-high definition. Pair it with Panoptix LiveScope or the LVS12 for forward-facing, real-time views that show fish reactions to your lure—transforming passive scanning into an interactive hunt. Transmit power hits 500W RMS (4,000W peak-to-peak), penetrating up to 2,300 feet in freshwater, with features like sonar rewind and bottom lock for dissecting tough readings.

Pro tip: Combine SideVü with your trolling motor for wide-area sweeps, revealing hidden wrecks or drop-offs that hold trophy fish.

Custom Mapping That Evolves with Your Trips

Built-in Quickdraw Contours generates 1-foot contour maps on the fly as you motor across unfamiliar waters. Own your data—refine private maps for your favorite honey holes or contribute anonymously to the community library. Upgrade to detailed coastal charts with Auto Guidance+ for smart route plotting around shallows and obstructions, saving hours on trip planning.

"I've mapped over 200 miles of private reservoirs—it's like having a personal hydrographic survey team on board." – Experienced bass tournament angler

Seamless Connectivity for a Smarter Boat

Stay linked with built-in Wi-Fi pairing to the ActiveCaptain app for community-sourced intel, software updates, and trip syncing from your phone. NMEA 2000 and dual Garmin Marine Network ports integrate effortlessly with autopilots, radars, engines, and FUSION audio. Share live sonar and waypoints across multiple Ultra or compatible ECHOMAP units, perfect for multi-boat tournaments or family outings.

• Smart notifications keep you connected without leaving the helm.
• Supports AIS, DSC VHF, and sailing features for all-around versatility.
• 10 Hz GPS receiver delivers pinpoint accuracy for marking that big one.

Effortless Installation and Portability

The quick-release bail mount lets cords stay plugged in, so you can pop the unit off for secure storage in seconds—no fumbling with wiring mid-season. Flush mounting options keep your setup sleek. With 5,000 waypoints, 100 routes, and 50,000-point track logs on dual microSD slots, your adventures are always archived and ready to revisit.

Key Specifications at a Glance

Category	Details
Display	12.1" diagonal WXGA, 1280x800, sunlight-readable
Physical	13.4" x 9.0" x 3.9", 5.5 lbs, IPX7
Sonar	CHIRP/ClearVü/SideVü, 500W RMS, max 2,300 ft freshwater
Memory	5,000 waypoints, 100 routes, worldwide basemap
Connections	2 Marine Network, NMEA 2000/0183, Wi-Fi, 12-pin transducer

What's Included for Quick Setup

• ECHOMAP Ultra 122sv with worldwide basemap
• Power/data cable
• Tilt mount with quick-release cradle
• Flush mount and hardware
• Protective cover
• 8-pin to 12-pin transducer adapter
• Documentation

Frequently Asked Questions

Does the ECHOMAP Ultra 122sv come with a transducer?

No, this model ships without a transducer, allowing you to select the perfect one for your boat and fishing style, such as GT56UHD-TM or Panoptix LiveScope.

Can I use this with other Garmin units on my boat?

Yes, share sonar, waypoints, and routes wirelessly with other ECHOMAP Ultra 10/12-inch models or ECHOMAP Plus 7/9-inch units via the Garmin Marine Network.

How does Quickdraw Contours work?

It automatically creates custom 1-foot contour maps in real-time as you navigate, stored on your unit or shareable via the ActiveCaptain community—no extra software needed.

Is the screen usable in direct sunlight?

Absolutely, the high-brightness WXGA display with polarized support ensures clear visibility even on the brightest days.

What apps does it connect to?

Built-in Wi-Fi pairs with the free ActiveCaptain app for maps, updates, notifications, and community access.

Can I mount it for easy removal?

Yes, the quick-disconnect bail mount allows secure storage off the boat without unplugging cables.

Does it support advanced sonars like LiveScope?

Yes, native support for Panoptix LiveScope and LVS12 provides real-time, all-seeing sonar without additional black boxes.

ECHOMAP Ultra 122sv without Transducer

Built-in Support for Our Premium Sonar Capabilities

• 12 keyed-assist touchscreen combo with all the built-in tools you need to find and catch fish
• Built-in support for our premium sonars, including the Panoptix LiveScope scanning sonar system and Panoptix LiveScope LVS12 sonar
• Share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus  and 9 units
• Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1' contours as you fish
• Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app
• NMEA 2000 connectivity and support for heading sensors, autopilots, digital switching, FUSION-Link audio system and more

The ECHOMAP Ultra 122sv combo, with its bright, sunlight-readable 12 keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes built-in support for our premium Garmin sonar and optional premium BlueChart g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics. All transducers are sold separately.

Our Premium Sonar Support

The ECHOMAP Ultra 122sv combo includes built-in support for optional traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.

Share Sonar, Waypoints and Routes

Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus  and 9 units.

Quickdraw Contours to Create Your Own Maps

Instantly create personalized fishing maps on-screen with 1' contours as you fish. Tailor them to fit your needs. These are your maps you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect, our online community.

Upgrade to the Best Maps on the Water

Upgrade the preloaded worldwide basemap to optional premium BlueChart g3 charts or BlueChart g3 Vision cartography with integrated data from Navionics, which add Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Take Your ECHOMAP Ultra with You

When you're off the water, it's easy to keep your ECHOMAP Ultra combo safe and secure. You don't have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.

In The Box

• ECHOMAP Ultra 122sv with worldwide basemap
• Power/data cable
• Tilt mount with quick release cradle
• 8-pin transducer to 12-pin sounder adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation

Connections

• Garmin Marine Network Ports: 2 (large connector)
• Transducer Ports: 1 (12 Pin)
• NMEA 2000 Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Wireless Connectivity: Yes

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations
²When paired with a compatible smartphone; see Garmin.com/ble

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

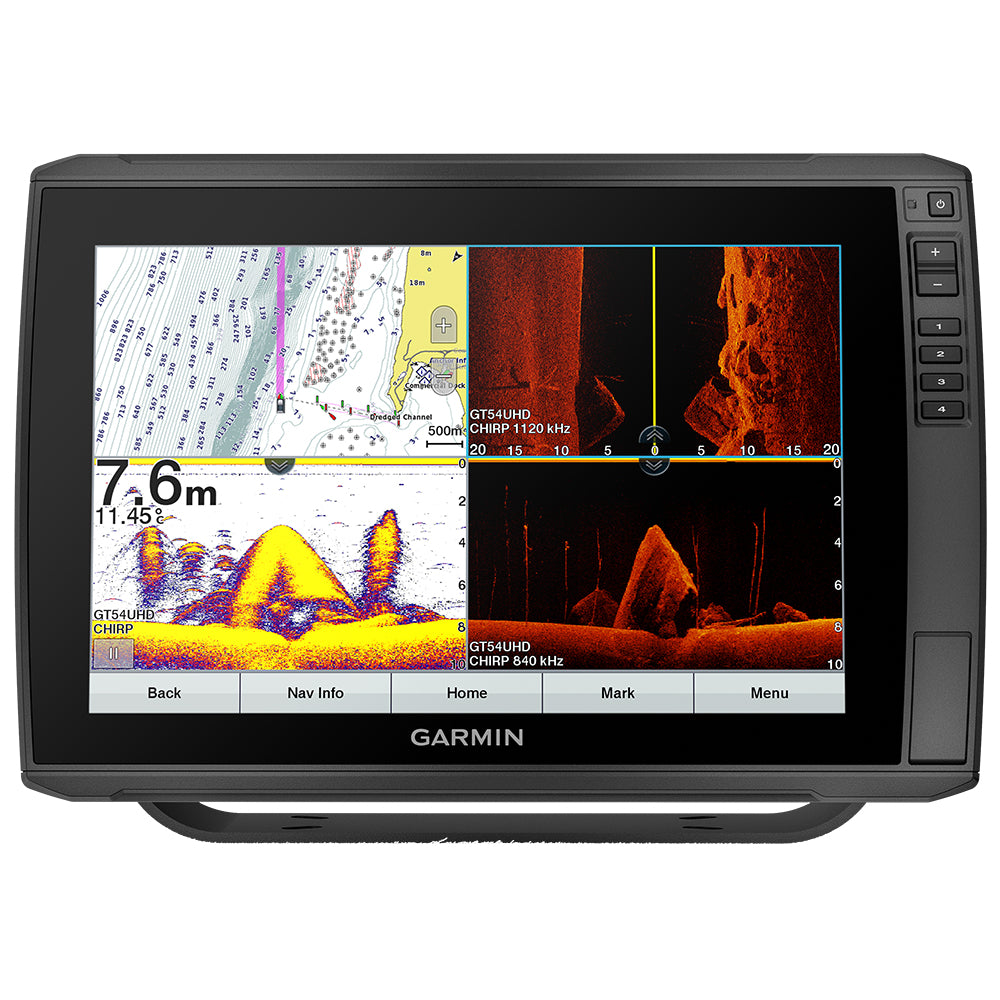

Garmin ECHOMAP™ Ultra 122sv Without Transducer

Model: 010-02113-00

• 12" keyed-assist touchscreen combo with all the built-in tools you need to find and catch fish
• Built-in support for our premium sonars, including the Panoptix LiveScope™ scanning sonar system and Panoptix LiveScope LVS12 sonar
• Share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units
• Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
• Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app
• NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more

The ECHOMAP Ultra 122sv combo, with its bright, sunlight-readable 12" keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes built-in support for our premium Garmin sonar and optional premium BlueChart® g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics®. All transducers are sold separately.

The ECHOMAP Ultra 122sv combo includes built-in support for optional traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.

Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units.

Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.

Upgrade the preloaded worldwide basemap to optional premium BlueChart g3 charts or BlueChart g3 Vision cartography with integrated data from Navionics, which add Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.

Specifications

General
Physical dimensions	13.4" x 9.0" x 3.9" (341 x 229 x 98 mm)
Display size	10.3" x 6.4"; 12.1" diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Display type	WXGA display
Weight	5.5 lbs (2.5 kg)
Water rating	IPX7
Polarized Support	Yes
Power consumption	26 W
Antenna	Internal only
Mounting options	Bail or flush
Receiver	10 Hz
Garmin Marine Network™ ports	2 (large connector)
Maps & Memory
Accepts data cards	2 microSD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps	Worlwide Basemap Only
Outdoor Recreation Features
Tide tables	Yes
Chartplotter Features
Supports AIS (tracks target ships position)	Yes
Supports DSC (displays position data from DSC-capable VHF radio)	Yes
Supports FUSION-Link™ compatible radios	Yes
GCV™ Black Box sonar support	Yes
ActiveCaptain compatible	Yes
Sailing Features	Yes
Garmin Sonar compatible	Yes
Sonar Features & Specifications
Sonar history rewind	Yes
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	Yes (Built-in)
ClearVü	Yes
SideVü	Yes
Maximum depth	2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)	Yes
Water temperature log and graph	Yes
Sonar recording	Yes
Dual-frequency (50/200 kHz) sonar capable	Yes
Dual-beam (77/200 kHz) sonar capable	Yes
Connections
Transducer pin numbers	12
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Wireless connectivity	Yes
NMEA 2000® compatible	Yes

What's in the Box:

• ECHOMAP Ultra 122sv with worldwide basemap
• Power/data cable
• Tilt mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
• 8-pin transducer to 12-pin sounder adapter cable

GarminGarminechoMAPUltra122sv product number 010-02113-00 (without sensor) TheGarminechoMAPUltra122svisa 12-inch keyboard auxiliary touch screen, with a global base map. This echo chart improves the fishing experience to a higher level. It is combined with Panoptix LiveScope LVS12 combination sonar choMAPultra122sv combination sonar, and other echoes MAPUltra10Inchand12Inchunits and asechochoMAPPlus7Inchand9Inchunits share sonar, waypoints and routes.


SKU: NVN-77771
MPN: 010-02113-00
UPC: 753759212919
