Garmin ECHOMAP Ultra 106sv w/o Transducer

Garmin ECHOMAP Ultra 106sv w/o Transducer Product Description

ECHOMAP Ultra 106sv without Transducer

Built-in Support for Our Premium Sonar Capabilities

• 10 keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope scanning sonar system
• Preloaded with Garmin exclusive BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance¹ technology
• Share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus  and 9 units
• Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1' contours as you fish
• Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app
• NMEA 2000 connectivity and support for heading sensors, autopilots, digital switching, FUSION-Link audio system and more

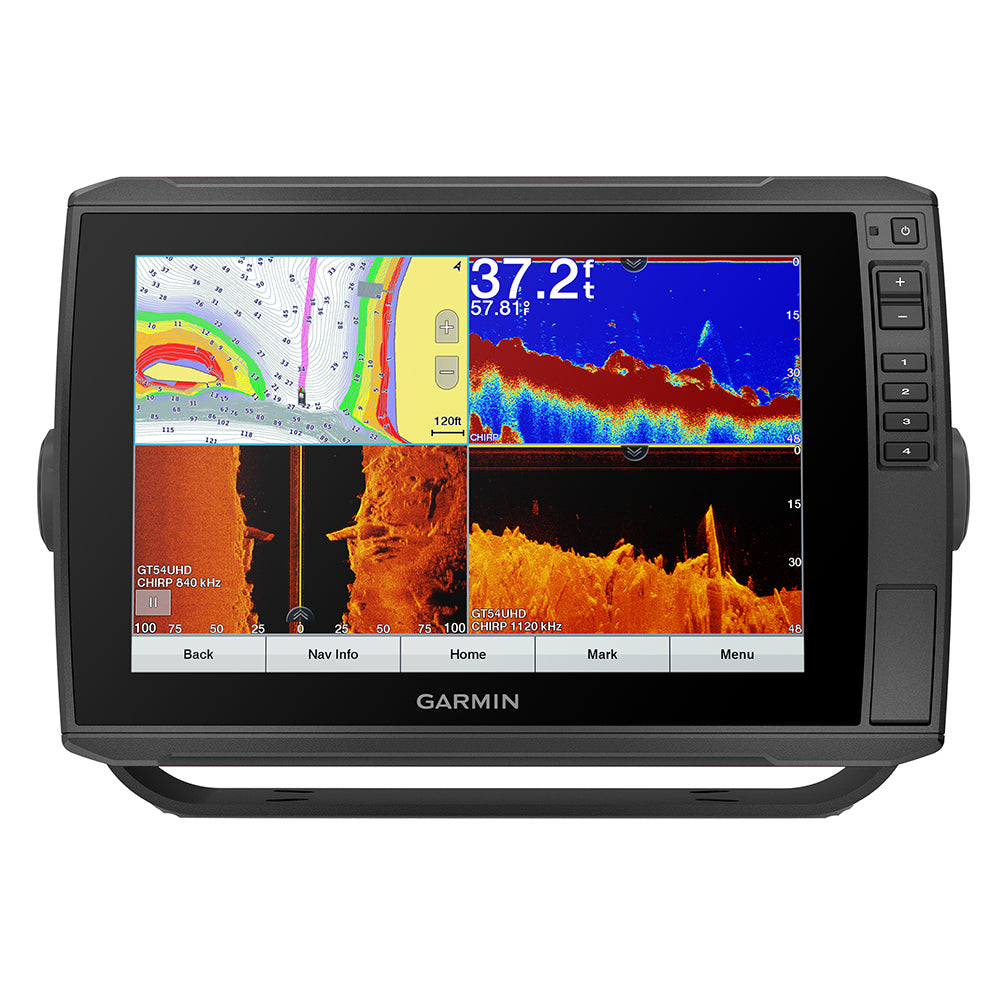

The ECHOMAP Ultra 106sv combo, with its bright, sunlight-readable 10 keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance technology. All transducers are sold separately.

Our Premium Sonar Support

The ECHOMAP Ultra 106sv combo includes built-in support for traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.

Best-in-market Preloaded Maps and Charts

It comes preloaded with BlueChart g3 coastal charts and LakeV g3 inland maps both with integrated Navionics data and Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

Quickdraw Contours to Create Your Own Maps

Instantly create personalized fishing maps on-screen with 1' contours as you fish. Tailor them to fit your needs. These are your maps you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect, our online community.

Upgrade to the Best Maps on the Water

Upgrade the preloaded BlueChart g3 charts and LakeV g3 maps to optional premium BlueChart g3 Vision charts and LakeV g3 Ultra maps. These add features such as elevation shading of bottom structure which provides more 3-D relief than contours alone satellite imagery and more.

Share Sonar, Waypoints and Routes

Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10 and 12 units as well as ECHOMAP Plus  and 9 units.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Take Your ECHOMAP Ultra with You

When you're off the water, it's easy to keep your ECHOMAP Ultra combo safe and secure. You don't have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.

In The Box

• ECHOMAP Ultra 106sv with BlueChart g3 and LakeV g3 for U.S.
• Power/data cable
• Tilt mount with quick release cradle
• 8-pin transducer to 12-pin sounder adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation

Connections

• Garmin Marine Network Ports: 2 (large connector)
• Transducer Ports: 1 (12 Pin)
• NMEA 2000 Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Wireless Connectivity: Yes

Auto Guidance is for planning purposes only and does not replace safe navigation operations
When paired with a compatible smartphone; see Garmin.com/ble

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Garmin ECHOMAP™ Ultra 106sv Without Transducer

Model: 010-02112-00

• 10" keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope™ scanning sonar system
• Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology
• Share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units
• Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
• Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app
• NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more

The ECHOMAP Ultra 106sv combo, with its bright, sunlight-readable 10" keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance technology. All transducers are sold separately.

The ECHOMAP Ultra 106sv combo includes built-in support for traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.

It comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.

Upgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.

Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units.

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.

Specifications

General
Physical dimensions	11.6" x 7.7" x 3.9" (295 x 195 x 98 mm)
Display size	8.5" x 5.4"; 10" diagonal (21.7 cm x 13.6 cm; 25.4 cm diagonal)
Display resolution	1280 x 800 pixels
Display type	WXGA display
Weight	4.0 lbs (1.8 kg)
Water rating	IPX7
Polarized Support	Yes
Power consumption	26 W
Antenna	Internal only
Mounting options	Bail or flush
Receiver	10 Hz
Garmin Marine Network™ ports	2 (large connector)
Maps & Memory
Accepts data cards	2 microSD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps	BlueChart® g3 (U.S. and Western Canada coastal maps) and LakeVü g3 (inland maps)
Outdoor Recreation Features
Tide tables	Yes
Chartplotter Features
Supports AIS (tracks target ships position)	Yes
Supports DSC (displays position data from DSC-capable VHF radio)	Yes
Supports FUSION-Link™ compatible radios	Yes
GCV™ Black Box sonar support	Yes
ActiveCaptain compatible	Yes
Sailing Features	Yes
Garmin Sonar compatible	Yes
Sonar Features & Specifications
Sonar history rewind	Yes
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	Yes (Built-in)
ClearVü	Yes
SideVü	Yes
Maximum depth	2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)	Yes
Water temperature log and graph	Yes
Sonar recording	Yes
Dual-frequency (50/200 kHz) sonar capable	Yes
Dual-beam (77/200 kHz) sonar capable	Yes
Connections
Transducer pin numbers	12
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Wireless connectivity	Yes
NMEA 2000® compatible	Yes

What's in the Box:

• ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S.
• Power/data cable
• Tilt mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
• 8-pin transducer to 12-pin sounder adapter cable

ECHOMAP Ultra 106sv 10-inch fish finder/chart plotter, with blue chart g3 and LakeVüg3 chart without transducer. The ECHOMAP Ultra 106sv combined display, with a bright, sunlight-readable 10-inch keyed touch screen, can provide all the fishing tools you need. It includes built-in support for our advanced Garmin sonar, pre-installed Blue Chart g3 coastal chart and LakeVüg3 inland chart, and integrates Navionics data and Auto Guidance1 technology.
