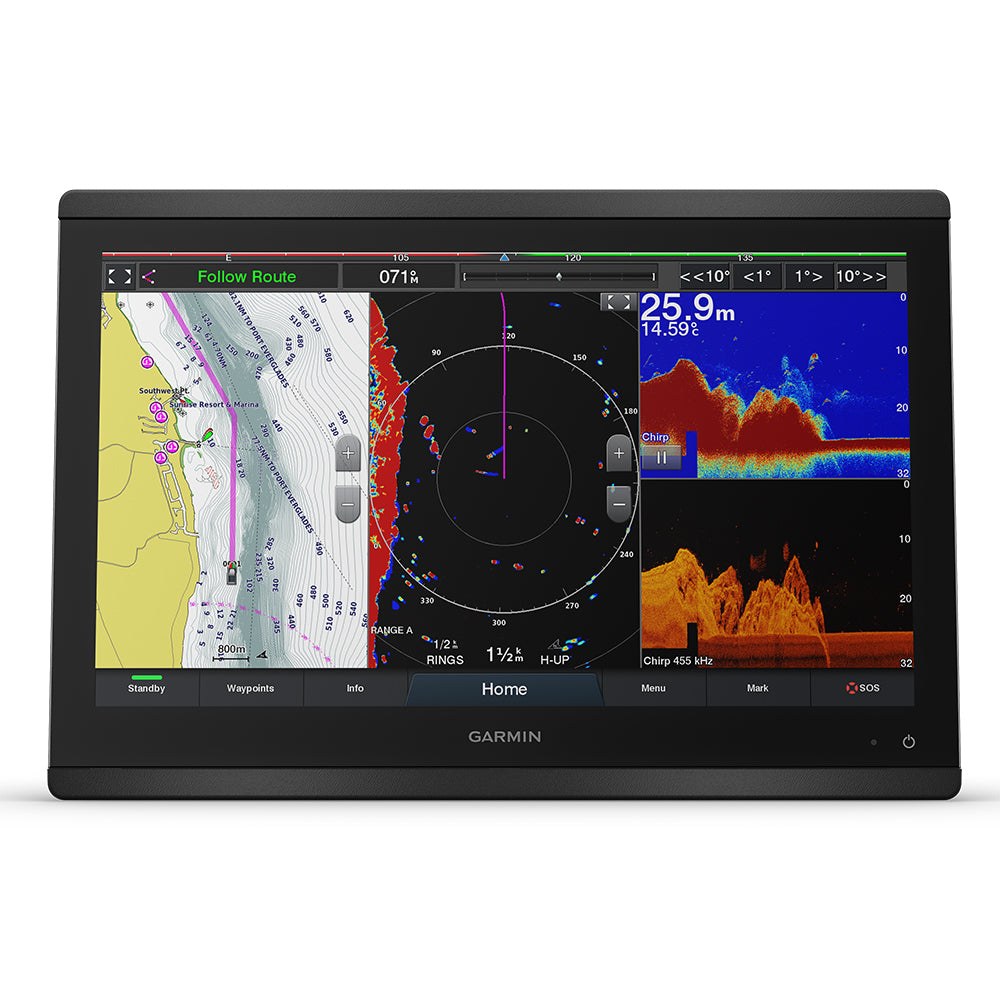

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 74747 - UPC: 753759213541 - MPN: 010-02093-02
$5,999.99 $5,999.99 ( / )

Available Stock : 3

The Garmin GPSMAP 8416xsv 16" chartplotter/sounder combo is a high-end, feature-rich marine navigation device. This chartplotter has a built-in sounder that offers the same functionality as an echo
Garmin
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar Product Description

GPSMAP 8416xsv 16" Chartplotter/Sounder Combo with Worldwide Basemap & Sonar

16 Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

  • Features a 16 full HD IPS touchscreen display
  • Built-in support for the full suite of Garmin sonar capabilities
  • Fully network capable with NMEA 2000 connectivity and the Garmin Marine Network
  • Includes Bluetooth connectivity, ANT technology and Wi-Fi networking
  • SmartMode station controls for quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8416xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 16 full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

Complete Sonar Support

The GPSMAP 8416xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix all-seeing sonar line (transducers sold separately).

Build Your Marine System

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite from radar and autopilots to cameras, instruments and forward-looking sonar controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm system coordinates many third-party manufactured onboard marine products to bring full control of systems such as digital switching, lighting, stabilization and more conveniently to your chartplotter screen.

Full Connectivity

The GPSMAP 8416xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain app for access to OneChart, smart notifications, Garmin Quickdraw community data and more. You can also control video streaming from our GC 100 wireless camera and VIRB action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix marine watch, gWind Wireless 2 transducer and wireless remote controls.

SmartMode Station Controls

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

Special Sailing Features

The Garmin SailAssist feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

The Ultimate Connected Boating App

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere from trip planning and prefishing to updating software and purchasing maps.

1When paired with a compatible smartphone

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

In The Box:

  • GPSMAP 8416xsv
  • Power cable
  • NMEA 2000 drop cable
  • NMEA 2000 T-connector
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • Documentation

Connections

  • Garmin Marine Network Ports: 2
  • Transducer Ports: 1 (LVS Sonar), 1 (8 Pin) and 1 (12 Pin)
  • NMEA 2000 Port: 1
  • NMEA 0183 Input Ports: 1 Differential
  • NMEA 0183 Output Ports: 1 Differential
  • Video Input Ports:  1 (BNC Composite) 1 (HDMI)
  • Video Output Ports: 1 HDMI
  • Wireless Connectivity: Yes





Garmin Replacement Antenna Pole Mount
Garmin NMEA 2000 Backbone/Drop Cable (1 Ft.)
Garmin NMEA 2000 Backbone Cable (2M)
Garmin NMEA 2000 Backbone Cable (6M)
Garmin NMEA 2000 Backbone Cable (10M)
Garmin NMEA 2000 T Connector
Garmin NMEA 2000 Terminator, Male
Garmin NMEA 2000 Terminator, Female
Garmin NMEA 2000 Field Installable Connector, Male
Garmin NMEA 2000 Field Installable Connector, Female


Frequently Asked Questions (FAQ) About Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar

Who is the Garmin?
How to describe Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar?

Who is the Garmin?

Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.

How to describe Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar?

"

Garmin GPSMAP8416xsv 16" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

Model: 010-02093-02
  • Features a 16" full HD IPS touchscreen display
  • Built-in support for the full suite of Garmin sonar capabilities
  • Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
  • Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking
  • SmartMode™ station controls enable quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8416xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 16" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

The GPSMAP 8416xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.

The GPSMAP 8416xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications , Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

The Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.

Specifications
General
Physical dimensions15.1"" x 10.3"" x 3"" (38.5 cm x 26.3 cm x 7.6 cm)
Weight9.6 lbs (4.4 kg)
Water ratingIPX6 and IPX7
Display typetouchscreen IPS display (anti-glare finish)
Display size13.6"" x 7.7"" (34.5 cm x 19.5 cm)
Display resolutionFHD; 1920 x 1080 pixels
Power consumption4.2 A
AntennaInternal or external over NMEA 2000
Mounting optionsFlat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Receiver10 Hz GPS/GLONASS/Galileo
Garmin Marine Network™ ports2
Maps & Memory
Accepts data cards2 microSD cards (on back)
Waypoints5,000
Routes100 (250 waypoints each)
Track log50,000 points; 50 saved tracks
pre-loaded mapsWorldwide Basemap
Outdoor Recreation Features
Tide tablesYes
Chartplotter Features
Garmin Radar compatibleYes
Garmin Sonar compatibleYes
Garmin SmartMode compatible (customizable monitor presets)Yes
Supports AIS (tracks target ships position)Yes
Supports DSC (displays position data from DSC-capable VHF radio)Yes
Supports FUSION-Link™ compatible radiosYes
GSD™ Black Box sonar supportYes
GCV™ Black Box sonar supportYes
ActiveCaptain compatibleYes
Garmin Helm compatibleYes
GRID™ (Garmin Remote Input Device) compatibleYes
Wireless remote compatibleYes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capableYes
Dual-beam (77/200 kHz) sonar capableYes
Frequencies supported RegularTraditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/ClearVü: CHIRP 260/455/800
(dependent on transducer)
Frequencies supported Ultra High DefinitionUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
(dependent on transducer)
Transmit power1 kW traditional; 1 kW CHIRP
CHIRP sonar technologyYes (Built-in)
ClearVüYes
SideVüYes
Maximum depth5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Connections
NMEA 2000® compatibleYes
Transducer pin numbers1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonar
NMEA 0183 input ports1 differential
NMEA 0183 output ports1 differential
Video input ports1 - BNC composite
1 - HDMI (HDCP compliant)
Video output ports1 HDMI
Wireless connectivityYes

What's in the Box:
  • GPSMAP 8416xsv
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Documentation
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • "
    • 16” full HD IPS touchscreen display
    • GPSMAP® 8416xsv features a worldwide basemap and sonar
    • Features a built-in 3D map of the world with shaded relief
    • Sonar unit is designed with a powerful 600W/1,200W peak to peak transmit power
    • Get the best of both worlds with a 16” chartplotter and sonar combo.
    • The touchscreen is large and full HD so you can see the mapping and sonar detail in all its glory.
    • With GPSMAP 8416xsv, you'll have access to detailed maps for the whole world.
    • A 16” full HD IPS touchscreen display that enables clear, crisp images in any type of light.
    • Built-in sonar and GPS map to give you a complete picture of what's under the water.
    • Includes a worldwide basemap with shaded relief for the most detailed depiction of the world's terrain.


Buy with the best price Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar for only $5999 from NVN Marine! Same day free shipping before 3pm.

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar Videos

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar Technical Specifications

Type:

Marine Navigation & Instruments | GPS - Fishfinder Combos

Vendor:

Garmin

Weight:

15.2 lb

Cartography Brand:

Garmin

Transducer Included:

No

Touchscreen:

Yes

Included Transducer:

Not Included

Screen Size:

16"

Categories v2:

Marine Navigation & Instruments | GPS - Fishfinder Combos

Category v1:

GPS FISHFINDER COMBO

UPC:

753759213541

Product Manual:

Download PDF

Product Installation:

Download PDF

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar User Reviews

Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar Shipping & Return

Shipping Weight:

15.2 lb

Box Sizes:

9.00 (h) x 20.00 (w) x 14.00 (l)

Cubic Feet:

2520.0

Returnable:

Yes

USPS First Class:

Yes

Oversize Item:

Yes
