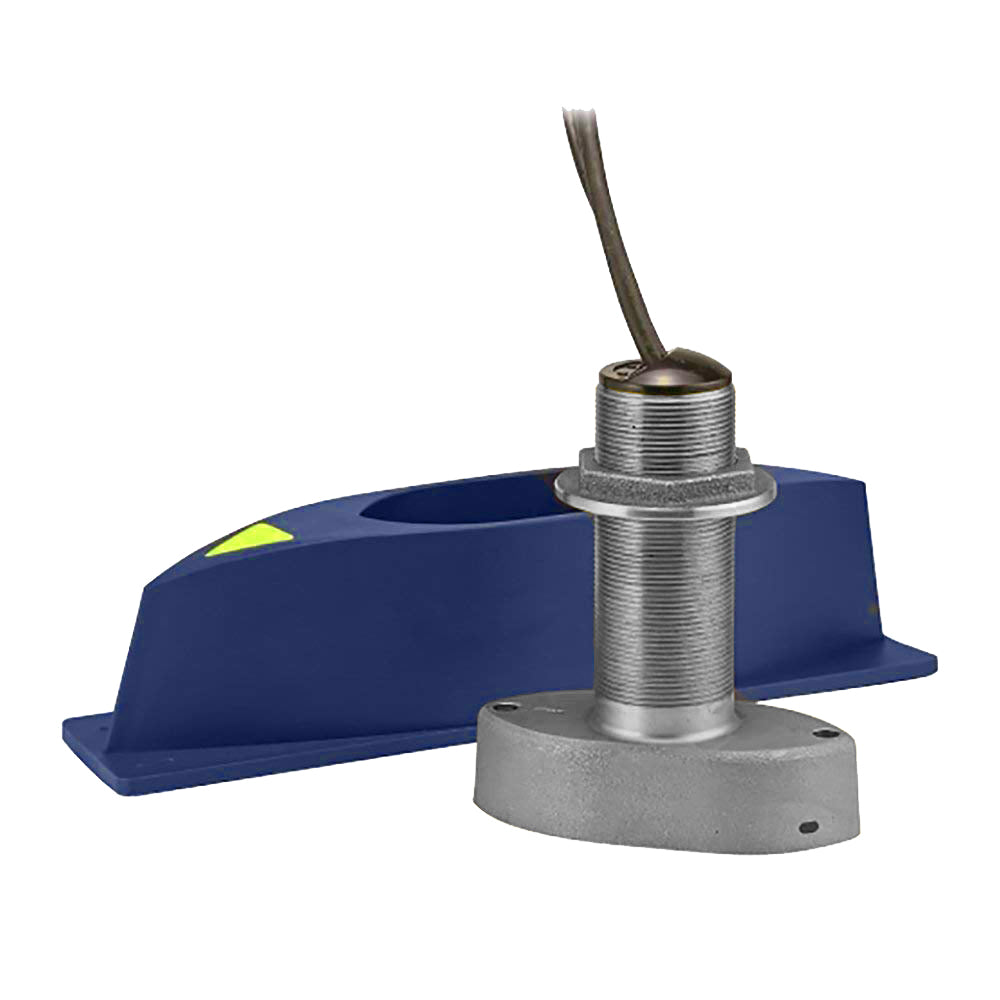

Furuno 165T-SS54 Stainless Steel Thru-Hull Transducer f/DFF3D Sounder

Furuno 165T-SS54 Stainless Steel Thru-Hull Transducer f/DFF3D Sounder Product Description

For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance and reliability.

Furuno 165TSS54 Attributes

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 7 Pin
• Depth: 985 Feet
• Power Rating: 1000 Watt
• Frequency Range: 165 kHz
• Supported Angle: 120 Degree Beamwidth
• Cable Length: 32.8 Feet

Furuno 165TSS54 Features & Benefits

• Stainless Steel Thru Hull With High Speed Fairing Block
• Can Be Flush Mounted In Keel Without Using Fairing Block
• DFF3D Operating Frequency: 165 Kilohertz
• Compact Design
• Built-In Motion And Temperature Sensor
• Limited 3 Year Warranty

Furuno 165TSS54 Technical Bulletins

• b54_dimensions_without_faring.pdf
• dff3d_transducer_guide.pdf
• b54_dimensions_with_faring.pdf

165T-SS54  Stainless Steel Thru-Hull Transducer for DFF3D Sounder

Stainless Thru-Hull Multi-Beam Transducer

The 165T-SS54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.

Features:

• Stainless Steel Thru Hull with high speed fairing block
• Can be flush mounted in keel without using fairing block
• DFF3D operating frequency:  165 kHz
•  2 x 10M Cables: Bare ended cable for DFF3D sonar and 7-pin connector for the motion sensor
• Compact design
• Built-in motion sensor
• Built-in temp sensor
