Furuno 165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer

Furuno 165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer Product Description

For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance and reliability.

Furuno T265LHPM48 Attributes

• Mounting Location: In-Hull Mount
• Number Of Pins: 7 Pin
• Power Rating: 1000 Watt
• Frequency Range: 165 kHz/ 42 To 65 kHz For Low CHIRP/ 130 To 210 kHz For High CHIRP
• Supported Angle: 120/ 25 X 16/ 10 X 6 Degree Beamwidth
• Cable Length: 39.3 Feet

Furuno T265LHPM48 Features & Benefits

• DFF3D Operating Frequency: 165 Kilohertz
• Built-In Motion And Temperature Sensor
• All Of These Elements Are Built Into An Airmar PM488 Housing
• Bottom Discrimination And Accu-Fish Compatible
• Recommended For A DFF1-UHD And DFF3D Installation
• Limited 3 Year Warranty

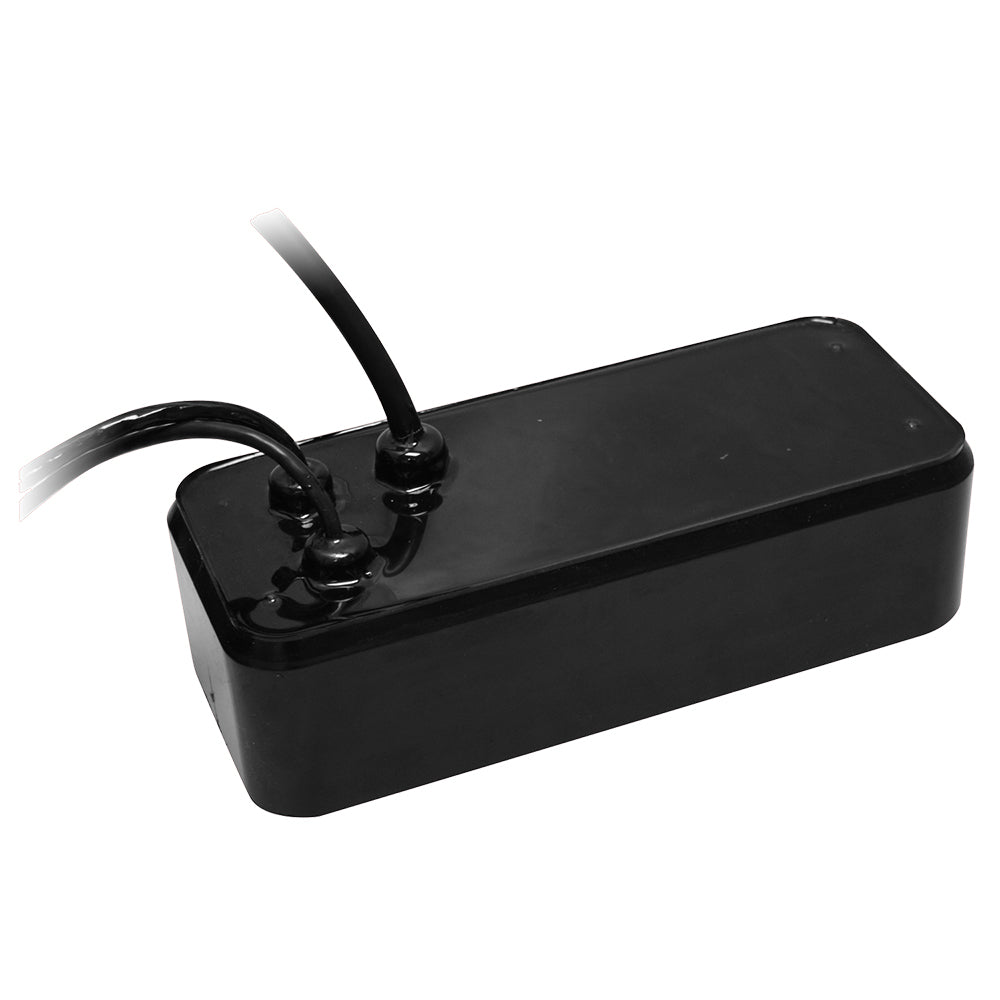

165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer

Pocket Mount Combination Transducer

This transducer has housing (12 LX 5 W X 3.5 H) that contains the DFF3D elements along with the same CHIRP elements contained in B265LH.

Features:

• DFF3D operating frequency 165 kHz
• Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
• High—CHIRPS from 130 kHz to 210 kHz, Beamwidth 10° to 6°
• Bottom discrimination and Accu-fish compatible (without TID)
• 12M Cables. Pigtail cable for DFF1-UHD, 7-pin connector and a pigtail cable for the DFF3D
• Recommended for a DFF1-UHD and DFF3D installation
• Built-in motion sensor
• Built in temp sensor
