Garmin GNX™ Wireless Sail Pack
Garmin GNX™ Wireless Sail Pack — Product description
Imagine slicing through choppy waters with precise wind readings at your fingertips, no tangled wires snaking up your mast. The Garmin GNX Wireless Sail Pack transforms how sailors like you monitor critical data, blending cutting-edge wireless tech with reliable transducers for unmatched accuracy on the water. Whether you're tweaking sails for peak performance in a regatta or plotting a leisurely coastal cruise, this pack delivers the insights you crave without the hassle of complex setups.
Effortless Wireless Wind Monitoring
At the heart of this sail pack is the gWind Wireless 2 transducer, a game-changer for boats with masts up to 50 feet. Forget drilling holes or routing cables—its ANT wireless connection beams true and apparent wind speed and angle straight to your instruments or chartplotter. Drawing from proven Nexus twin-fin design and a responsive 3-bladed propeller, it shines in light breezes where others falter, giving you stable data for fine-tuned sail trim. Sailors report fewer false readings during gusts, helping maintain boat speed and course with confidence.
Crystal-Clear Displays for Day or Night Sailing
The GNX Wind instrument pairs perfectly with the transducer, boasting a high-contrast monochrome LCD that's legible even in blinding sun or pitch-black nights. Customize backlight hues to match your cockpit vibe, and cycle through over 15 layouts showing wind roses, steering aids, boat speed, and nav data. Its sip-on-power profile— just 350mW daytime, 400mW at night—means it won't drain your batteries on long passages. Bonus: Pair it wirelessly via ANT to a compatible Garmin smartwatch for wind updates on your wrist, freeing you to helm without glancing away.
Complementing this is the GNX 20 marine instrument, your go-to for water intel. Black digits pop against white or color backgrounds, with anti-glare coating for sharp views in any light. Switch between single, dual, triple functions, gauges, or graphs tailored to sail or power profiles. Track depth, speed-over-water (temp-compensated for accuracy), temperature, and 50+ NMEA 2000 parameters. Scalable digits up to 36mm ensure quick reads from across the deck.
Smart Depth and Speed Sensing Below the Hull
The DST800 thru-hull transducer rounds out the pack, feeding depth up to 330 feet, precise water speed, and temperature into your NMEA 2000 network. Its 100W power punches through murky waters better than basic sensors, while smart calibration adjusts for hull fouling or currents. For racers, this means optimized start lines and tactical depth awareness; cruisers get peace of mind dodging shallows. All components plug-and-play via NMEA 2000, so expanding to full Garmin suites like GPSMAP plotters is seamless.
Built for the Brutal Marine Environment
Rugged IPX7 water resistance on displays shrugs off spray and submersion, while the transducer's IPX6 rating battles heavy seas. Operating from 5°F to 158°F, it's ready for tropical trades or polar blasts. Low power draw and solar-rechargeable battery on the gWind keep it humming seasons-long. Compass-safe distances prevent interference, and flush or flat mounting options fit any binnacle or bulkhead.
Simple Setup, Pro-Level Results
Integration is a breeze: Drop the NMEA 2000 backbone with included T-connectors, terminators, and cables, mount the transducers, and calibrate via your displays. No mast-climbing required for wind data. Sailors upgrading from wired systems rave about the time saved and cleaner cockpits. It's NMEA 2000 certified, playing nice with Raymarine, Simrad, and other networks too, future-proofing your boat.

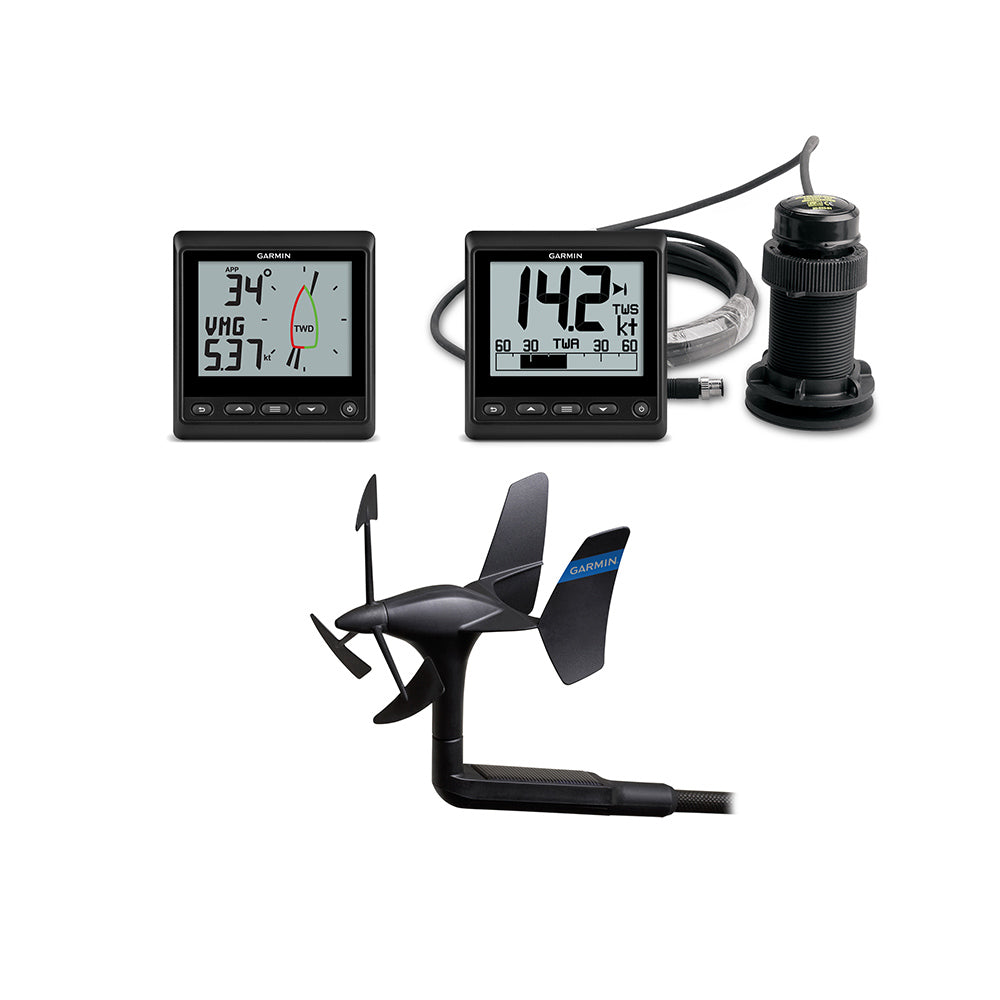

What's Included for Complete Coverage
- gWind Wireless 2 transducer with mast bracket
- GNX Wind instrument
- GNX 20 marine instrument
- DST800 thru-hull smart transducer
- NMEA 2000 power cable, terminators, drop cable (2m), and (3x) T-connectors
- Mounting hardware
- NiMH rechargeable battery for transducer
- Full documentation
Frequently Asked Questions
What key data does the Garmin GNX Wireless Sail Pack provide?
It delivers apparent and true wind speed/angle, water depth up to 330 feet, boat speed through water, water temperature, and over 50 NMEA 2000 parameters for comprehensive sailing insights.
How far can the wireless wind transducer reach?
The gWind Wireless 2 works reliably up to 50 feet along the mast, sending data via ANT without any wiring.
Is installation complicated for sailboats?
No, it's plug-and-play with NMEA 2000 components included. Mount the thru-hull, bracket the transducer, connect the network, and calibrate—often done in under an hour.
What makes the displays easy to read?
Glass-bonded LCDs with anti-glare, high-contrast digits (up to 36mm scalable), customizable backlights, and multiple layouts ensure visibility in all lighting.
How accurate is the wind data in light winds?
Nexus twin-fin tech and 3-bladed propeller deliver better than ±1.5° angle and ±3% speed accuracy, excelling where gusty or low winds challenge other sensors.
Does it integrate with other Garmin devices?
Yes, fully NMEA 2000 compatible and ANT-enabled for chartplotters like GPSMAP and smartwatches, expanding your marine network effortlessly.
What's the power source for the wireless transducer?
Rechargeable NiMH battery with solar panel for extended use, minimizing maintenance on long voyages.
Equip your vessel with the GNX Wireless Sail Pack and elevate every outing—from adrenaline-fueled races to sunset sails—armed with data that feels like an extra crew member.
The Information You Need to Make Confident Decisions
- Includes Garmin GNX Wind and GNX 20 marine instruments, gWind Wireless 2 transducer and DST800 thru-hull smart transducer
- GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
- gWind Wireless 2 transducer eliminates running wires through masts up to 50'
- DST800 transducer provides water depth, water speed and water temperature data
- Easy plug-and-play installation with NMEA 2000® network
With a GNX Wireless Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.
GNX Wind Instrument
GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000® network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT® technology to stream wind data directly to your wrist.
Specifications:
- Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30mm)
- Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60mm; 101.6mm diagonal)
- Weight: 8oz (230g)
- Water rating: IPX7
- NMEA 2000 certified: Yes
- Power consumption: 0.35W (day); 0.4W (night)
- Voltage range: 9-16V (from NMEA 2000)
- Mounting options: Flush or Flat
- Temperature range: From 5 to 158°F (from -15 to 70°C)
- Compass-safe distance: 8.25" (209mm)
Wind Wireless 2 Transducer
Wind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP® chartplotter. The transducer features renowned Nexus® twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions. Also available in a wide selection of Wind and Sail Packs (sold separately) that can be used as standalone wind systems or expanded to full network systems via NMEA 2000.
Specifications:
- Unit Dimension, WxH: 13.6" x 24" (345mm x 610mm)
- Weight: 350g
- Waterproof: Yes (IPX6*)
- Temp Range: From 5°F to 158°F (-15°C to 70°C)
- Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
- Power Usage: Battery (rechargeable though the solar panel)
- Accuracy Angle: Better than ±1.5°
- Speed: Better than ±3%
- Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
- Wireless Connectivity: Yes
*Protected against heavy seas
GNX 20 Marine Instrument
The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.
Specifications:
- Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30mm)
- Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60mm; 101.6mm diagonal)
- Weight: 8.0oz (230g)
- Water rating: IPX7
- NMEA 2000 certified: Yes
- Power consumption: 0.35W (day); 0.4W (night)
- Voltage range: 9-16 V (from NMEA 2000)
- Mounting options: Flush or Flat
- Temperature range: From 5 to 158°F (from -15 to 70°C)
- Compass-safe distance: 8.25" (209mm)
DST800 Thru-hull Smart Transducer
DST800 provides water depth, water speed and water temperature data to the NMEA 2000 network. This 100W transducer can read depths up to 330'.
Provide the necessary feng shui information to make a reliable decision. Finally, the sail kit from Garmin can be returned to the pipe network without having to connect the cable to the entire length of the mast. The GNX Wireless Sail Pack contains a GNX Wind, which is connected via NMEA2000 and displays real and apparent wind data, steering directions, ship speed, etc. Separate GNX 20 glass bonded marine instrument display, with monochrome LCD and customizable backlight color, gWind wireless 2 sensor used to simplify the installation of the mast can provide accurate wind speed and stable wind direction, and finally there is a DST800 through Hull smart sensors can provide water depth, water speed and water temperature through NMEA2000, thus completing the system. This package contains all the wiring used to create your own system, which can be added to any NMEA 2000 network. Both GNX Wind and GNX navigation instruments consist of highly visible monochrome screens, which can be read in one minute without learning. The DST800 Smart Tri-Ducer is directly connected to the GNX navigational instrument display, and the gWind Wireless sensor is installed on the top of the mast, and is automatically paired with GNX Wind Display when purchased together. At present, it is becoming easier for serious captains to install and monitor the four most important parameters. These four parameters are wind speed and direction, water depth, water temperature and speed.
SKU: NVN-62382
MPN: 010-01616-20
UPC: 753759157876
Technical specifications
| Brand | Garmin |
| Model | Garmin GNX™ Wireless Sail Pack |
| SKU / MFR# | 62382 |
