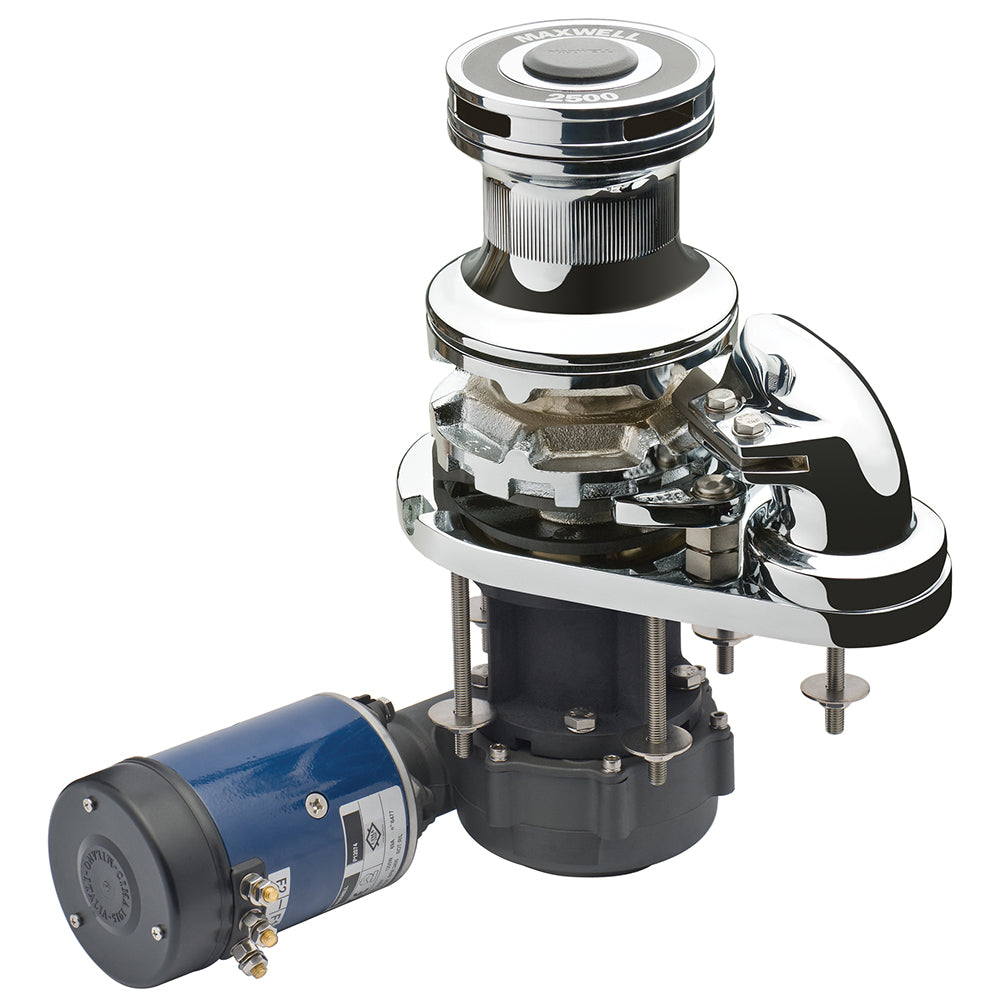

Maxwell VWC2500 12V Vertical Windlass + Capstan, 5/16" Chain

The VWC2500 is the chain-only sibling of Maxwell's rope/chain windlasses, built for the boats where the right anchoring answer is all-chain rode rather than a rope/chain splice. The VWC name calls it out: Vertical Windlass with Capstan. The chainwheel handles the 5/16" High-Test or BBB chain, and the independent MAX-grip warping drum sits above it for working a secondary rope rode, a dock line, or assisting with docking maneuvers. Chain-only windlasses are what serious offshore cruisers, commercial fishermen, and any boat carrying primary all-chain rode actually want, because the rope-to-chain splice transition that smaller rope/chain wheels handle is the part that wears, jams, and ultimately fails on long-term moorings.

The 2500 pound maximum pull and the 1200-watt 12V motor put the VWC2500 in the middle of Maxwell's vertical windlass lineup, sized appropriately for boats in the 30-to-45-foot range with anchors in the 45-to-65-pound class. 50 feet per minute line speed on chain alone is the right velocity for setting and weighing anchor under load: fast enough to pick up rapid scope when the wind shifts, but not so fast that the chain rumbles dangerously into the locker. Above-deck height is 9.6 inches, below-deck is 11.4 inches, the motor offsets 7.2 inches, and the whole assembly weighs 90 pounds. Max deck thickness is 4 inches through Maxwell's spacer-tube install system, which covers most modern cruising boats with cored or solid fiberglass foredeck construction.

The integral chainpipe and stripper are aligned at the factory for virtually jam-free chain feed into and out of the anchor locker, which is the part most aftermarket windlasses get wrong. A misaligned chainpipe means the chain piles up against the cover or wedges against the chainwheel pocket, both of which stop the windlass mid-retrieve and force you to manually clear the jam. Maxwell's factory alignment between the chainwheel pocket geometry and the chainpipe throat eliminates that failure mode for properly installed units. The chain stripper assists the chain off the wheel as it transitions into the pipe, which keeps the wheel free of jammed links during fast retrieves.

Free-fall anchoring is built around the cone-type brake and clutch. Cone clutches engage progressively rather than the on/off snap of a dog clutch, so the chain drops at a controllable rate when you release. You stop the fall with the chainwheel locking pawl or with a chain stopper rather than burning out the motor on a powered descent. Cone clutches also wear better than dog clutches over a season of regular cycling, which on a windlass that sees daily anchoring duty matters more than the marketing copy suggests. The independent MAX-grip capstan drum has a snag-free design that doesn't hang up on twisted three-strand and offers clutch disengagement of the chainwheel for positive control during rope handling. You can warp the boat on the capstan without the chainwheel turning, which is what you want when you're working dock lines or kedging.

Above-deck finish is heavy chrome over marine-grade bronze, which is the traditional Maxwell construction for cruising and commercial work. The polish holds up against UV and salt exposure better than the polished stainless finishes some competitors use, and the chromed-bronze base resists the dezincification corrosion that hits high-zinc-content alloys after years on salt water. The trade-off is weight: the all-bronze chassis is heavier than equivalent aluminum or stainless windlasses, which on a foredeck install is acceptable but worth knowing. For boats expected to carry the windlass for 20+ years on offshore moorings, the chromed-bronze build is the long-term answer.

One more consideration that comes up regularly on VWC2500 installs. The boat needs a properly sized chain stopper at the bow forward of the windlass to take the working anchor load when you're set. Maxwell is explicit about this in the install manual. The windlass is the chain-handling tool, not the load-bearing tool. Without a chain stopper, every surge in a chop puts shock load through the chainwheel and the gearbox, which is hard on the windlass over time and dangerous if a critical component fails under load. If your bow doesn't already have a chain stopper installed forward of the windlass position, plan on installing one as part of this upgrade. We can spec the right chain stopper for 5/16" HT or BBB chain to match the install.
