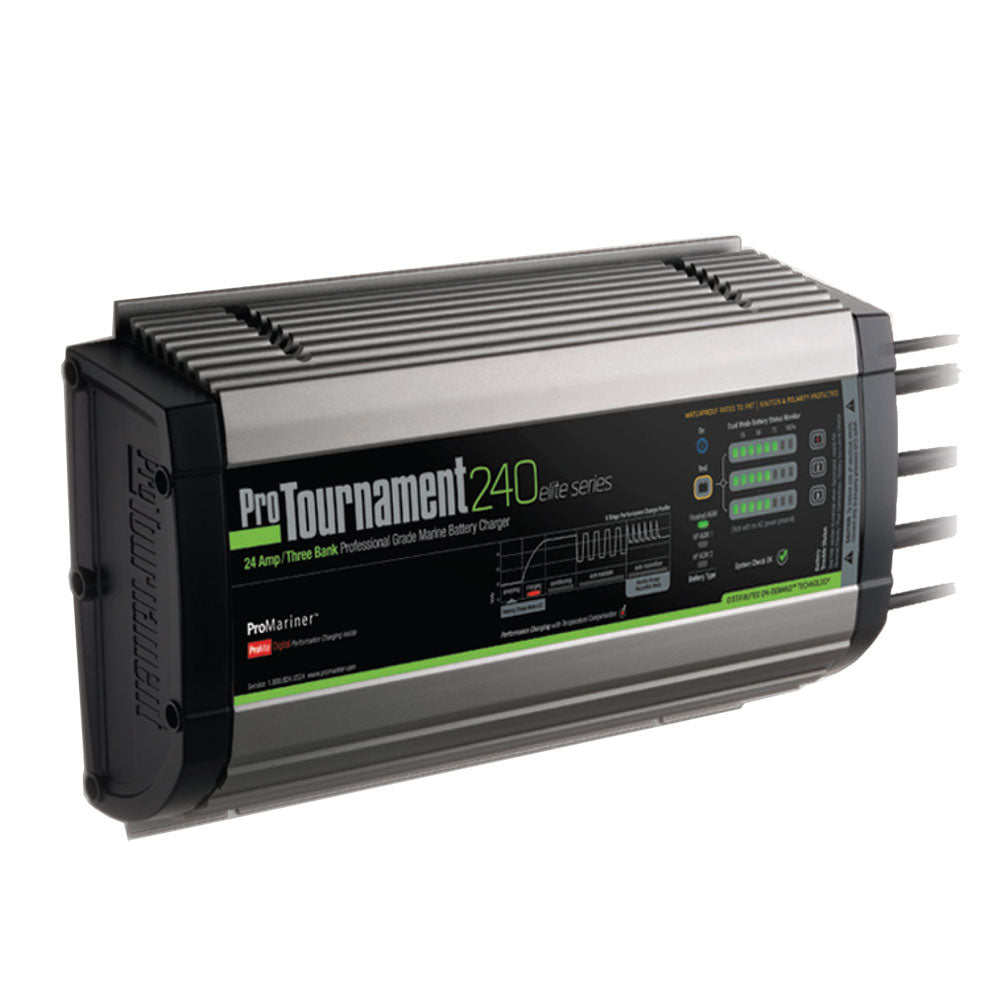

ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank

ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank Product Description

Tournament Winning Technology. The fastest battery charger with the most features in its class. Specifically designed to deliver maximum charging performance and extend battery life. Get on the water first and stay there longer with tournament winning technology providing: 100 percent charge upon completion of multi-stage charging process. 100 percent charging output with AC power as low as 90 VAC. 50 percent lighter and 2 to 3 times faster than traditional chargers. Give your batteries what they demand with ProTournament Elite's three (3) digitally selectable performance matched 5-stage charge profiles. Using 100 percent of the applicable charging amps, ProTournament Elite's Distributed-On-Demand Charging technology will always distribute its full charging output to the combination of batteries connected to it as required by the discharge state of each battery. 3 Selectable Performance Matched Charge Profiles: Profiles features: Standard Flooded and AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries. Built-in Safety and Pre-Wired for Easy Installation: Shock resistant, space saving extruded aluminum design, dual in-line DC safety fuses for trolling motor and house batteries, over-voltage, overload, over-temperature, reverse polarity and ignition protection.

Pro Mariner 52026 Attributes

• Number Of Banks: 3
• Application: 12 Volt AGM/ Flooded Lead-Acid Batteries
• Output Voltage: 12 Volt
• Input Voltage: 120 Volt
• Ampere Rating: 24 Amp Charging
• Number Of Stages: 5 Stage
• Universality: Fully Universal
• Length (IN): 13 Inch
• Width (IN): 7-1/8 Inch
• Height (IN): 2-3/4 Inch

Pro Mariner 52026 Features & Benefits

• Professional Performance For Fastest Charge Times: Designed To Deliver Maximum Charging Performance And Extend Battery Life
• Tournament Winning Technology: 100 Percent Charge Upon Completion Of Multi-Stage Charging Process
• Forced Induction Cooling: Concealed Waterproof Fan Provides Forced Air Cooling For Cooler Operation And Fastest Charge Times
• Intuitive LED Display With Charge Mode Indicators And Real Time Charge Level Status With An On-The-Water Push-To-Test Feature For Percent Of Battery Power Remaining
• 3 Selectable Performance Matched Charge Profiles
• Waterproof Connector Port For Optional Status Remote: Optional Tri-Color LED Charge Mode Status Remote Can Be Placed Up To 12 Feet Away From The Charger
• Digital 5-Stage Charging With Temperature Compensation
• Advanced Technology Eliminates Time Consuming Trouble Shooting By Clearly Indicating System And Battery Connections Are OK Or If A Fault Is Present On A Specific Battery Bank
• Easy Installation
• Limited 3 Year Warranty

Pro Mariner 52026 Installation Instructions

• 52024_USE.pdf

ProTournament 240elite Triple Charger - 24 Amp, 3 Bank

Tournament Winning Technology

The fastest battery charger with the most features in its class. Specifically designed to deliver maximum charging performance and extend battery life. Get on the water first and stay there longer with tournament winning technology providing: 100% charge upon completion of multi-stage charging process. 100% charging output with AC power as low as 90 VAC. 50% lighter and 2 to 3 times faster than traditional chargers. Give your batteries what they demand with ProTournamentelite's three (3) digitally selectable "performance matched" 5-stage charge profiles. Using 100% of the available charging amps, ProTournamentelite's Distributed-On-Demand™ Charging technology will always distribute its full charging output to the combination of batteries connected to it as required by the discharge state of each battery.

Features:

Professional Performance for Fastest Charge Times
Designed to deliver maximum charging performance and extend battery life

Tournament Winning Technology
100% charge upon completion of multi-stage charging process. 100% charging output with AC power as low as 90 VAC. 50% lighter and 2 to 3 times faster than traditional chargers.

Digital LED Display with Dual Mode Battery Status Monitor
Intuitive LED display with charge mode indicators and real time charge level status with an on-the-water push-to-test feature for percent of battery power remaining.

3 Selectable Performance Matched Charge Profiles
Profiles include: Standard Flooded/AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries.

Waterproof Connector Port for Optional Status Remote
Optional tri-color LED charge mode status remote can be placed up to 12' away from the charger.

Digital 5-Stage Charging with Temperature Compensation
Analyzes connections and the ability for a battery to accept a charge, advance high fill rate charging, conditioning, auto maintain (energy saving mode) and automatic once a month storage recondition mode automatically monitors ambient temperatures and adjusts its charging output.

System OK & Individual Battery Trouble Status Indicators
Advanced technology eliminates time consuming trouble shooting by clearly indicating system and battery connections are OK or if a fault is present on a specific battery bank.

Built-in Safety & Pre-Wired for Easy Installation
Shock resistant, space saving extruded aluminum design, dual in-line DC safety fuses for trolling motor and house batteries, over-voltage, overload, over-temperature, reverse polarity and ignition protection.

Distributed-On-Demand™ Technology

Digital LED Display with Dual Mode Battery Status Monitor

• Charge level indicator with on-the-water push-to-test button

• System Check OK and battery trouble status indicators

• 3 Selectable Performance matched charge profiles

3 Selectable Performance Matched Charge Profiles

• Standard Flooded/AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries

Waterproof Connector Port for Optional Charge Status Remote

• Tri-color LEDs indicates charge mode status

• Remote not included

Digital 5-Stage Charging

• Analyzing, advance high fill rate charging, conditioning and auto maintain (energy saving mode)

• Automatic once a month storage recondition mode

How Distributed-On-Demand™ Charging Technology Works

• ProTournamentelites Distributed-On-Demand™ Charging Technology ensures 100% of the available charging amps are fully utilized to meet the demand of each battery on-board. For example, if your engine start battery only needs 2 amps from your ProTournamentelite, the unused 6 amps will automatically be Distributed-On-Demand™ to your house or trolling motor batteries, providing 11 amps to each of your deep cycle batteries for faster charging.

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

  Professional Mariner was established 35 years ago with the premise: to make boating more enjoyable! We have created a powerful product line of fully automatic marine marine batteries...



  ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank Related Products

  ProMariner ProTournament Remote




  Frequently Asked Questions (FAQ) About ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank

  Who is the ProMariner?
  How to describe ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank?
  What is the working voltage of the product?
  Is this product portable?
  What is the weight of the product?
  What is the size?
  What is the output voltage?
  What is the output voltage?
  What is the input voltage?
  How many banks supporting for charge?


  Who is the ProMariner?

  Professional Mariner was founded over 40 years ago with one premise; to make boating more enjoyable! We pioneered a robust line of fully automatic, on-board marine battery chargers that provided the marine industry with a mainstream method of charging batteries in a short time without the need for storing or carrying portable battery chargers on-board. We haven?t looked back since.

  Today, ProMariner is the industry leader in marine and mobile battery charging. We have a complete line of waterproof and dry-mount chargers for all battery chemistries, as well as technically advanced power conversion modules. All of our products are designed to prolong the life of your batteries, and keep you on the water longer!

  How to describe ProMariner ProTournament 240elite Triple Charger - 24 Amp, 3 Bank?

  Professional Mariner was established 35 years ago with the premise: to make boating more enjoyable! We have created a powerful product line of fully automatic marine marine batteries...

  What is the working voltage of the product?

  12/24/36

  Is this product portable?

  No

  What is the weight of the product?

  7.1

  What is the size?

  13" x 7-1/8" x 2-3/4"

  What is the output voltage?

  12/24/36v

  What is the output voltage?

  24a

  What is the input voltage?

  120v

  How many banks supporting for charge?

  3
