What types of boats is the Lowrance Outboard Pilot Hydraulic Pack designed for?

It's optimized for single-outboard hydraulic steering systems on boats 30 feet or shorter, making it perfect for fishing skiffs, center consoles, and bay boats.

Which Lowrance displays work with this autopilot pack?

Compatible with HDS Gen2 keypad units running software version 3.5 or later. Gen2 Touch and HDS Gen3 support added shortly after initial release.

What is Virtual Rudder Feedback (VRF) and why does it matter?

VRF uses GPS and heading data to simulate rudder position, skipping the need for a physical sensor. This cuts installation time and complexity while maintaining precise control.

How easy is the installation process?

Very straightforward—plug-and-play NMEA 2000 connections, included cables, and guided setup mean most users complete it without professional help.

Can it control a trolling motor too?

Yes, SmartSteer lets you toggle between the outboard autopilot and compatible electric-steer trolling motors like MotorGuide Xi5 from the same HDS display.

What's the warranty coverage?

Backed by a 2-year limited warranty, plus support through the Lowrance Advantage Service program for peace of mind.

Does it work with Mercury Verado outboards?

Yes, but requires the separate Verado Fitting Kit for proper hydraulic connection.

Home
Marine Navigation & Instruments
Autopilots
Lowrance Outboard Pilot Hydraulic Pack

OUT OF STOCK

Lowrance Outboard Pilot Hydraulic Pack

Fast & Free Shipping (1-3 Days Delivery Time)

SKU: 53457 - UPC: 9420024134313 - MPN: 000-11748-001

$1,159.99

We are sorry, this product sold out!

The Lowrance HDS-10 is a powerful chartplotter with a 10" display that offers a wide range of capabilities to help you explore the water. The HDS-10 includes GPS, sonar, and an array of navigation tools to

Same Day

Shipping (3PM)

Free Returns

Within 30 days

Lowrance Outboard Pilot Hydraulic Pack Product Description

Unlock Hands-Free Boating with Seamless Autopilot Control

Imagine cruising to your favorite fishing spot, eyes locked on the water, rods ready, without constantly adjusting the helm. The Lowrance Outboard Pilot Hydraulic Pack transforms your boating experience by automating steering for single-outboard setups on vessels up to 30 feet. Paired with your Lowrance HDS Gen2 or Gen2 Touch display, it handles headings, waypoints, routes, and even custom turn patterns, letting you focus on what matters most—landing that next big catch.

This all-in-one kit integrates effortlessly into hydraulic steering systems, using advanced Virtual Rudder Feedback (VRF) technology. No need for extra sensors; it leverages precise GPS data for responsive, accurate control. Whether you're trolling lures in figure-eights or retracing a proven trail back to the dock, the intuitive SmartSteer interface puts full command at your fingertips right from the HDS screen.

Standout Features for Serious Anglers and Boaters

Precision Steering Modes: Navigate to a cursor position, follow routes, maintain steady headings, or execute pre-set trolling patterns like spirals and zigzags for optimal bait presentation.
SmartSteer Integration: Seamlessly switch between outboard hydraulic steering, electric-steer trolling motors like MotorGuide Xi5 Pinpoint, and manual control—all from one display.
Trail-to-Route Magic: Convert saved tracks into navigable routes with a single touch, perfect for repeating successful fishing runs or safely returning from deep water.
Compact and Efficient: High-efficiency 0.8L hydraulic pump works quietly with SeaStar helm pumps up to 14ci, ideal for smaller boats without overwhelming power draw.
Multi-Station Ready: Add a second helm using HDS Power Steer commands—no extra hydraulics or wheels required.
Dash-Mount Simplicity: One-press Auto/Standby button keeps operations straightforward and safe.

Built tough for marine environments with an IPx5 water rating, this system thrives in spray and splashes, ensuring reliability when conditions turn choppy.

Effortless Setup for Quick Time on the Water

DIY-friendly design means no electrician needed. Plug-and-socket NMEA 2000 connections eliminate messy wiring, while step-by-step guides walk you through integration with your existing hydraulic setup. The NAC-1 computer acts as the intelligent core, processing inputs from the Point-1AP GPS compass for rock-solid heading data at any speed. Backbone extenders and terminators in the kit make network expansion a breeze, getting you piloting autonomously in hours, not days.

Complete Kit—Everything for a Plug-and-Play Autopilot

This hydraulic pack delivers a turnkey solution tailored for outboard enthusiasts:

NAC-1 Autopilot Computer: The smart hub managing all steering logic and drive signals.
PUMP-1 Reversible Hydraulic Pump: Compact 0.8L unit for smooth, bidirectional power.
Point-1AP Heading and GPS Sensor: Delivers pinpoint position and orientation updates.
NMEA 2000 Essentials: 4-way joiner, multiple-length backbone/drop cables (2ft, 6ft, 15ft), terminators, and power cable for robust networking.
Auto/Standby Dash Button: Instant mode switching for effortless operation.

Pro tip: For Mercury Verado outboards, pair with the dedicated fitting kit to ensure flawless hydraulic linkage.

Technical Specs at a Glance

Specification	Details
Water Rating	IPx5
NMEA Input	Micro-C
Drive Power	NAC-1: 12V, Max 16 Amps (instantaneous)
Input Voltage	12V DC

Frequently Asked Questions

Lowrance Outboard Pilot Hydraulic Pack

Everything you need in one box to fit an autopilot to your outboard motor, the Outboard Pilot lets you focus on fishing activity while keeping the boat on course.
When connected to a Lowrance HDS Gen2 or Gen2 Touch, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading.
The Lowrance SmartSteer™ user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes - so you can retrace a previous track and get your boat back to the dock from your fishing area.

HDS Units require 3.5 Software
Steer your outboard motor to a heading, waypoint, route or cursor, with control from your HDS Gen2 or Gen2 Touch display
Lowrance SmartSteer™ interface provides control of your hydraulic outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor
"One-touch" route creation from trails
Pre-set turn patterns for more effective fishing/trolling presentations
Recommended for single-outboard setups, on boats that are 30 feet and less, in length
VRF (Virtual Rudder Feedback).simplifies pilot installation eliminating the need for a rudder position sensor
Easy setup.straightforward guide steps you through first-time install
Easy-to-install, plug-and-socket connection with no complex terminal wiring
Supported by Lowrance Advantage Service program
Dash-mount button for one-touch Auto/Standby activation
Steer to Heading, Course or Route
High efficiency, super-quiet 0.8L hydraulic gear pump
Add a second Helm station to a boat using the HDS Power steer commands - no need for additional hydraulics + steering wheel.
2 Year Limited Warranty

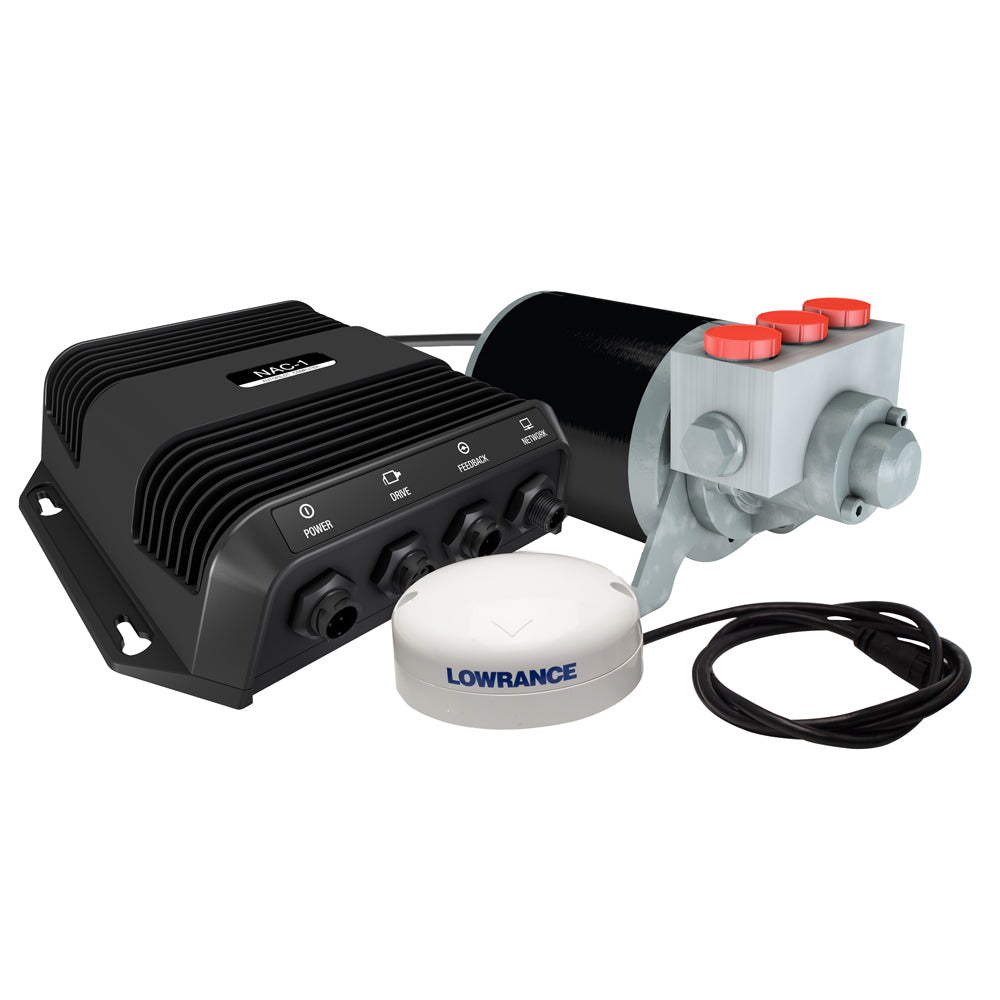

Package Includes:

NAC-1 Autopilot Computer - 000-11769-001 - The brains behind the Lowrance Outboard Pilot system. It contains the steering computer and electronics for the drive unit motor and clutch.

PUMP-1 Hydraulic Pump - 000-11770-001 - 0.8L reversible hydraulic pump, compatible with SeaStar manual helm pumps up to 14ci

Point-1AP Heading and GPS Sensor - Provides extremely accurate and rapid boat position update, along with heading for accurate boat direction at any speed

N2K 4 Way - 000-10996-001 - NMEA2000 4-way joiner. Connect four NMEA2000 Micro-C devices to the NMEA2000 Network.

N2KEXT-2RD - 000-0119-88- .6M (2') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

N2KEXT-6RD - 000-0127-53 - 1.82M (6') NMEA 2000® cable for backbone extension or drop cable to connect an additional network device

N2KEXT-15RD - 000-0119-86 - 4.55M (15') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

TR-120-KIT - 000-0127-52 - Set of 1 male and 1 female NMEA 2000® terminators

MICRO-C POWER CABLE ONLY - NO T CONN - 000-12202-001

The autopilot kit for Lowrance High Definition System (HDS) displays can provide automatic steering for hydraulic steering outboards. Can I continue to use the outboard motor equipped with Lawrence SmartSteer when I need it? Controlling via HDS Gen2 or HDS Gen2 Touch will guide you to a heading, waypoint or route. Everything you need to install the outboard autopilot to the hydraulic steering outboard is in one box, and the outboard motor allows you to concentrate on fishing activities while keeping the boat sailing. When connected to HDS Gen2 or Gen2 Touch, the outboard navigator can turn to waypoints or follow a route, select the steering method or just maintain a constant heading. Lowrance SmartSteer? The user interface allows you to easily switch between electric steering, traction motor control, and outboard motor control directly from the HDS display. And, with the help of the HDS display, you can easily convert the route to a route so that you can track the previous route and return the boat from the fishing area to the dock. For ships less than 30 feet in length, it is recommended to use Lowrance outboard pilots for a single outboard setup.

Navico WR10 Wireless Pilot Controller- Bluetooth

Frequently Asked Questions (FAQ) About Lowrance Outboard Pilot Hydraulic Pack

Who is the Lowrance?
How to describe Lowrance Outboard Pilot Hydraulic Pack?
What is the steering type of the product?

Who is the Lowrance?

Lowrance Electronics, Inc., has been a world leader in the design, manufacture and marketing of high-quality sport fishing SONAR and Global Positioning System (GPS) mapping instruments for over 45 years. With nearly 45 years continuous manufacturing experience, Lowrance designs products that provide the ultimate in high-performance features at highly competitive prices. Lowrance products are used by both sport fisherman and recreational boaters.

How to describe Lowrance Outboard Pilot Hydraulic Pack?

The autopilot kit for Lowrance High Definition System (HDS) displays can provide automatic steering for hydraulic steering outboards. Can I continue to use the outboard motor equipped with Lawrence SmartSteer when I need it? Controlling via HDS Gen2 or HDS Gen2 Touch will guide you to a heading, waypoint or route. Everything you need to install the outboard autopilot to the hydraulic steering outboard is in one box, and the outboard motor allows you to concentrate on fishing activities while keeping the boat sailing. When connected to HDS Gen2 or Gen2 Touch, the outboard navigator can turn to waypoints or follow a route, select the steering method or just maintain a constant heading. Lowrance SmartSteer? The user interface allows you to easily switch between electric steering, traction motor control, and outboard motor control directly from the HDS display. And, with the help of the HDS display, you can easily convert the route to a route so that you can track the previous route and return the boat from the fishing area to the dock. For ships less than 30 feet in length, it is recommended to use Lowrance outboard pilots for a single outboard setup.

Includes everything you need to install an autopilot on your outboard motor.
Compatible with Lowrance HDS Gen2 or Gen2 systems.
This package includes the Outboard Pilot, a wire harness for HDS Gen2, and a wire harness for HDS Gen2.

The Outboard Pilot is the only autopilot that fits an outboard motor.
The Outboard Pilot can be mounted to any outboard motor with a universal mounting bracket.
The Outboard Pilot has a built-in GPS antenna for quick and easy installation.

The Lowrance Outboard Pilot Hydraulic Pack is an all-in-one solution for controlling your outboard motor. The pack includes a Lowrance HDS Gen2 Keypad unit, Lowrance HDS Gen2 Touch, or Lowrance HDS Gen3. The pack is available Q2 for the HDS Gen2 Touch and HDS Gen3.

What is the steering type of the product?

Hydraulic

Includes everything you need to install an autopilot on your outboard motor.
Compatible with Lowrance HDS Gen2 or Gen2 systems.
This package includes the Outboard Pilot, a wire harness for HDS Gen2, and a wire harness for HDS Gen2.
The Outboard Pilot is the only autopilot that fits an outboard motor.
The Outboard Pilot can be mounted to any outboard motor with a universal mounting bracket.
The Outboard Pilot has a built-in GPS antenna for quick and easy installation.
Steer your outboard motor to a heading, waypoint, route or cursor with control.
Navigate with precision and ease using the Lowrance HDS Gen2 Keypad.
Stay on course with the Lowrance HDS Gen2 Touch and HDS Gen3.
The Lowrance Outboard Pilot Hydraulic Pack is designed for HDS Gen2 Keypad units only and is compatible with HDS Gen2 Touch and HDS Gen3.
The package includes a steering module, a hydraulic pump, and an electronic control unit for steering your outboard motor.
The Lowrance Outboard Pilot Hydraulic Pack offers more control than traditional tiller steering systems.
