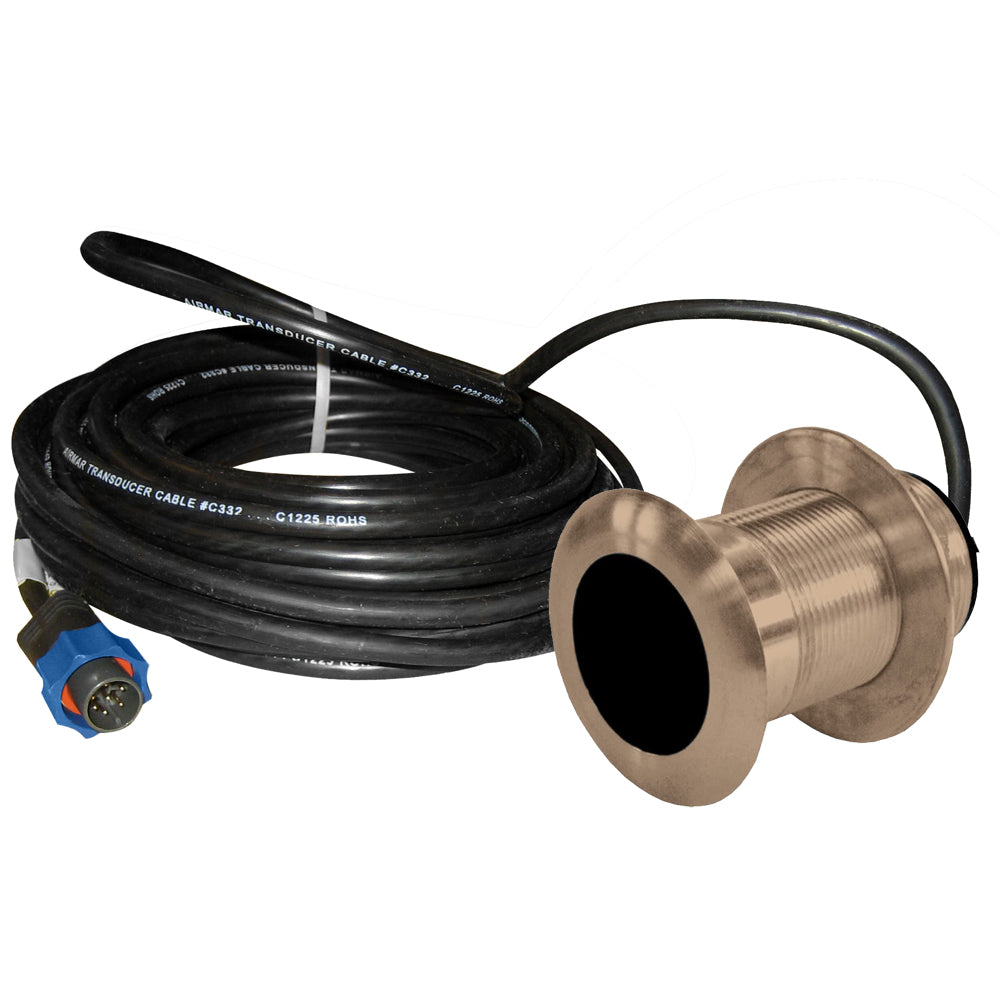

Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W

SKU: 49727 - UPC: 801769000498 - MPN: B117-DT-BL
$240.19 $289.00 ( / )

We are sorry, this product sold out!

600 W Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.B117 Bronze Thru-Hull Low-Profile 600 W Blue ConnectorApplications Planing hull powerboats Sailboats Features Industry standard for low-profile transducers...
Lowrance
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W Product Description

600 W

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.



B117 Bronze Thru-Hull Low-Profile 600 W Blue Connector

Applications
  • Planing hull powerboats
  • Sailboats


Features
  • Industry standard for low-profile transducers
  • Depth and temperature
  • Good target detail in shallow-water at 200kHz and good deep-water bottom tracking at 50kHz
  • Right angle cable exit offers low headroom and protection when transducer is stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Housings are ABYC H-27 compliant
  • Optional temperature sensor
  • Bronze housing
  • Boat Size: 8M (25') and up


Connect our bronze through-hull mounted sensors to compatible equipment to receive depth and temperature data. The operating frequency of this sensor is 200 and 50 k Hz a...

Airmar 117WR-2 Transducer Hull Nut Wrench
Airmar 117WR-4 Transducer Housing Wrench
Airmar 117WR-1 Crows Foot Transducer Wrench
Airmar 117WR-3 Double Handle Transducer Wrench
Navico Adapter 7-Pin Blue Transducer to a 9-Pin Black Unit
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Clear
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - White
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - Clear


Frequently Asked Questions (FAQ) About Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W

Who is the Lowrance?
How to describe Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
How many pins exists in the connector of the product?
What's the Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?
This product can read the temprature?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the connector type of the product?
What is the length of cable?
What is the display connector of the product?
What is the imagining type of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
Which hull material is proper for this product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?

Who is the Lowrance?

Lowrance Electronics, Inc., has been a world leader in the design, manufacture and marketing of high-quality sport fishing SONAR and Global Positioning System (GPS) mapping instruments for over 45 years. With nearly 45 years continuous manufacturing experience, Lowrance designs products that provide the ultimate in high-performance features at highly competitive prices. Lowrance products are used by both sport fisherman and recreational boaters.

How to describe Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?

600 W

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

What is the power rating of the product?

600 W

Which mix and match cable useful for this product?

5-Pin 600 Watt

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

50/200 kHz

How many pins exists in the connector of the product?

7

What's the Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W package dimensions and weight?

8 (w) X 4 (h) X 10 (l) inches and the weight is: 4.03 lb.

What is the sensor connector of the product?

MM

Speed feature included to the product?

No

How to mount or what is the mounting style of Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?

Low Profile Thru-Hull

This product can read the temprature?

Yes

Is this product single or dual frequency?

Conventional Dual Frequency

What is the tilt angle of the product?

What is the connector type of the product?

Lowrance 7-Pin

What is the length of cable?

10 m (33')

What is the display connector of the product?

BL

What is the imagining type of the product?

Standard

What is the common use place of the product?

Leisure/Yachting, Fishing

What is the housing material of the product?

Bronze

Is this product supporting CHIRP and what's the type?

No

What is the max depth of the product?

Low frequency- 366 m (1200'), High frequency- 206 m (700')

What is the deadrise range of product?

Best performance through 7°. Can accommodate up to 12°.

What is the hole size of the product?

51 mm (2")

Which hull material is proper for this product?

Fiberglass or wood

What is the max deadrise of the product?

Best performance through 7°. Accommodates up to 12°

What is the max deadrise angle of the product?

12°

What is the manufacturer notes about Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W?

600 W

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.



Save $48 when you buy the Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W for only $240 from NVN Marine! Same day shipping before 3pm.

Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Lowrance

Weight:

3.9 lb

Speed Included:

No

Pins:

7

Mounting Style:

Thru-Hull

Imagining:

Standard

Temperature:

Yes

Chirp:

No

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF

Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W User Reviews

Lowrance B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W Shipping & Return

Shipping Weight:

3.9 lb

Box Sizes:

4.00 (h) x 8.00 (w) x 10.00 (l)

Cubic Feet:

320.0

Returnable:

Yes
