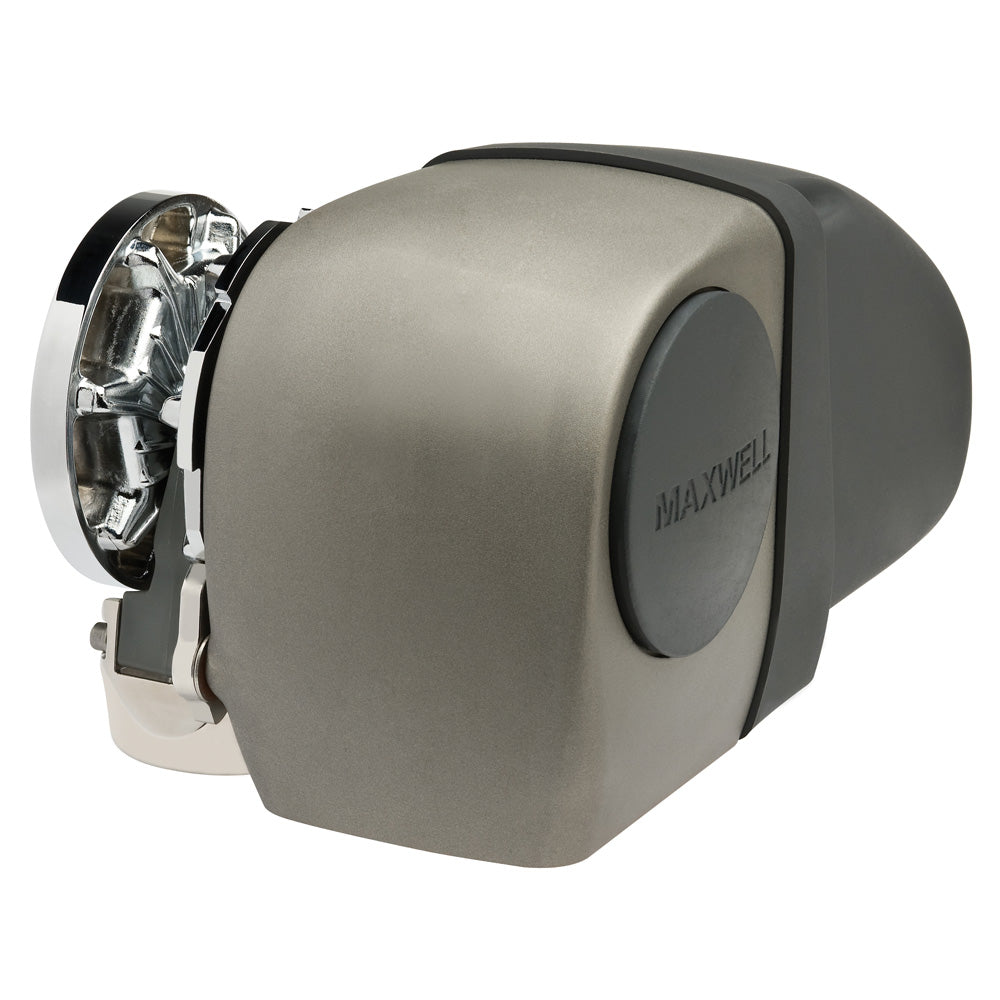

Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope

Fast & Free Shipping (1-3 Days Delivery Time)

SKU: 41656 - UPC: 9414761104074 - MPN: HRC101012VLP
$3,167.20 $3,959.00 ( / )

We are sorry, this product sold out!

The Maxwell HRC10 Horizontal Rope Chain Windlass is a 12 volt, no capstan 3/8″ horizontal rope chain windlass. It features an aluminum housing with steel hardware, and has a capacity of 10,000 pounds.
Maxwell
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope Product Description

HRC 10 Rope/Chain SeriesHorizontal Above-Deck Rope/Chain WindlassMaxwell's all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 16 metres (52 feet), which require a completely above deck installation system. The HRC10 flawlessly handles rope up to 16mm (5/8") and chain up to 10mm (3/8") in size, including the thick rope to chain splice. The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.All HRC Series Windlasses Are Fitted With Maxwell's Unique Wave Design Chainwheel.This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval. As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Maxwell C101012VLP Attributes

  • Mount Type: Horizontal, above deck, without capstan
  • Maximum Pull: 1870 Pound
  • Maximum Line Speed: Not given
  • Size: 14.6"L x 8.9"W x 7.9"H; Wt: 25 lbs
  • Chain/ Rope Size: 5/16"; 9/16"-5/8"
  • Voltage Rating: 12 VDC
  • Motor Power: 1200 Watt

Maxwell C101012VLP Features & Benefits

  • The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
  • The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section
  • This two piece watertight case allows for quick and easy, on-deck, routine maintenance; Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
  • The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain)
  • The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters
  • The unique Maxwell "wrap around" horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs
  • The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required
  • The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel
  • Limited 3 Year Warranty

HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope

Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to meet the demands for use on larger vessels up to 16 meters (52'), which require a completely above deck installation system.

The HRC10 handles 5/8" rope and 3/8" chain, including the thick rope to chain splice. The modern appearance of the HRC10 retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

The HRC10 windlass is fitted with Maxwell's unique Wave Design™ chainwheel. The rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Features:
  • Aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
  • 2-part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section
  • 2-piece watertight case allows for quick and easy, on-deck, routine maintenance
  • Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
  • Stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain)
  • Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters
  • Unique Maxwell "wrap around"™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs
  • The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system
  • The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
  • Cone type clutch/brake mechanism permits manual, "free fall"™ anchoring and emergency crank recovery of the rode and anchor if required
    =
  • The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel


Maxwell HRC10 horizontal rope chain winch-12V no winch 3/8 "chain 5/8" rope HRC101012VLP. The design of the horizontal automatic rope/chain windlass can meet...

Maxwell P19007 Covered Footswitch (White)
Maxwell P19001 Footswitch (Chrome Bezel)
Maxwell P19006 Covered Footswitch (Black)
Maxwell Remote Up/ Down Control
Maxwell AA560 Rope Chain or All Chain Counter Control - Black
Maxwell AA150 Chain & Rope Counter
Maxwell Anchor Swivel Shackle SS - 10-12mm - 1500kg
Maxwell Wireless Remote Handheld w/Rode Counter
Maxwell 8" Emergency Crank Handle f/RC & Freedom Series Windlasses
Maxwell Up/Down Footswitch - Compact, White


Frequently Asked Questions (FAQ) About Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope

Who is the Maxwell?
How to describe Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope?
What is the rope diameter of the product?
What is the size?
What is the mount type of the product?
Has a freefall feature?
What is chain diameter of this product?
Is this product vertical or horizontal?

Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope?

Maxwell HRC10 horizontal rope chain winch-12V no winch 3/8 "chain 5/8" rope HRC101012VLP. The design of the horizontal automatic rope/chain windlass can meet...
  • HRC10 Horizontal Rope Chain Windlass
  • 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to take the hard work out of anchoring.
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to be the ultimate in simplicity for the most demanding of conditions.
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to be the ultimate in simplicity and reliability. The HRC10 is the perfect choice for anyone who needs a reliable, easy to use rope/chain windlass.
  • The HRC10 features a simple design that is easy to install and operate. It eliminates the need for an

What is the rope diameter of the product?

5/8"
  • HRC10 Horizontal Rope Chain Windlass
  • 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to take the hard work out of anchoring.
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to be the ultimate in simplicity for the most demanding of conditions.
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope
  • Maxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlass has been designed to be the ultimate in simplicity and reliability. The HRC10 is the perfect choice for anyone who needs a reliable, easy to use rope/chain windlass.
  • The HRC10 features a simple design that is easy to install and operate. It eliminates the need for an

What is the size?

14.6"L x 8.9"W x 7.9"H; Wt: 25 lbs

What is the mount type of the product?

Horizontal, above deck, without capstan

Has a freefall feature?

Yes

What is chain diameter of this product?

3/8"

Is this product vertical or horizontal?

Horizontal


Save $791 when you buy the Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope for only $3167 from NVN Marine! Same day fast and free shipping before 3pm.

Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope Technical Specifications

Type:

Anchoring & Docking | Windlasses

Vendor:

Maxwell

Weight:

48.2 lb

Chain - Diameter (Inches):

3/8"

Freefall:

Yes

Rope Diameter (Inches):

5/8"

Vertical/Horizontal:

Horizontal

Product Brochure:

Download PDF

Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope User Reviews

Maxwell HRC10 Horizontal Rope Chain Windlass - 12V No Capstan 3/8" Chain, 5/8" Rope Shipping & Return

Shipping Weight:

48.2 lb

Box Sizes:

12.00 (h) x 17.00 (w) x 20.00 (l)

Cubic Feet:

4080.0

Returnable:

Yes
