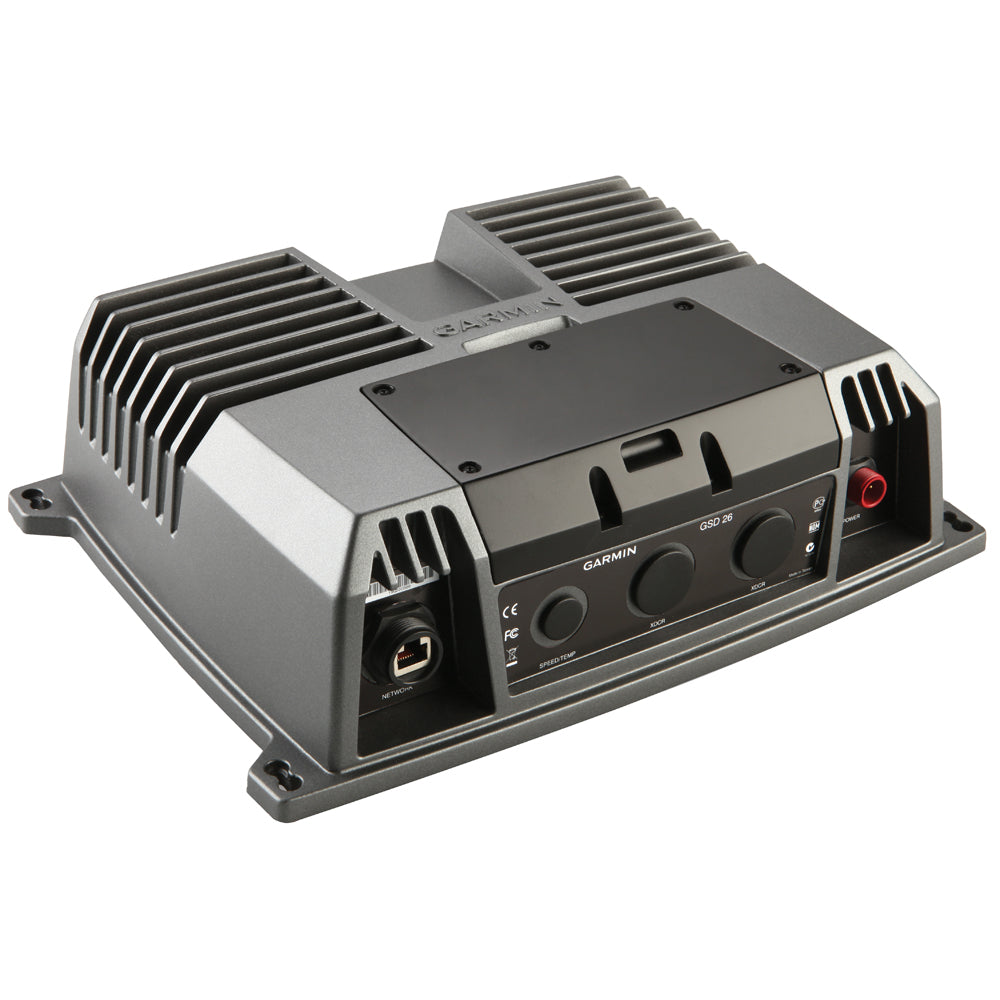

Garmin GSD™ 26 Digital Black Box Network Sounder w/Spread Spectrum Sonar Technology

Garmin GSD™ 26 Digital Black Box Network Sounder w/Spread Spectrum Sonar Technology Product Description

The GSD 26 digital sonar ushers in the next evolution of sport fishing technology, providing unrivaled target separation at far greater depths than traditional sonar. For serious deep-sea sport fishing, the GSD 26 takes high-definition targeting to a whole new level. With a compatible transducer, the GSD 26’s Spread Spectrum technology scans on multiple frequencies at one time, returning vast amounts of data to the receiver. As a result, you can expect precise, shallow-water-like target separation at much greater depths – up to 10,000 Feet. A traditional fixed frequency mode allows you to manually adjust frequencies from 25 Kilo Hertz to 250 Kilo Hertz for enhanced targeting of specific fish species. You can also adjust transmit power from 300 Watt to 3 kilo Watt for even more control over your sonar returns.

Garmin 100095800 Attributes

• Size: 10.8 Inch Length X 14.7 Inch Width X 3.9 Inch Depth
• Frequency: 25 To 250 kHz
• Input Voltage: 10 To 35 Volt
• Temperature Range: 5 Degree Fahrenheit To 158 Degree Fahrenheit
• Material: Aluminum And Steel Housing With Plastic Panel
• Waterproof: IPX7 Rating Waterproof
• Includes: With Power Cable/ Marine Network Cable/ Software Update SD Card

Garmin 100095800 Features & Benefits

• 26 Digital Sonar Ushers In The Next Evolution Of Sport Fishing Technology, Providing Unrivaled Target Separation At Far Greater Depths Than Traditional Sonar
• For Serious Deep-Sea Sport Fishing, The GSD 26 Takes High-Definition Targeting To A Whole New Level
• Traditional Fixed Frequency Mode Allows You To Manually Adjust Frequencies From 25 Kilo Hertz To 250 Kilo Hertz For Enhanced Targeting Of Specific Fish Species
• Dual-Transceiver Design Allows For Simultaneous And Independent Transducer Operation
• Water Rating: IPX7
• Limited 2 Year Warranty

Garmin 100095800 Installation Instructions

• GSD_26_Install_EN.pdf
• ISPI_Marine_All_FCC_ML.pdf

Garmin 100095800 Warranties

• ISPI_Marine_All_FCC_ML.pdf
• garmin-marine-warranty-policy.pdf

Garmin 100095800 Technical Bulletins

• ISPI_Marine_All_FCC_ML.pdf
• GSD_26_Template.pdf

GSD™ 26
Digital Black Box Network Sounder with Spread Spectrum Sonar Technology

Garmin International is pleased to announce the GSD 26 digital remote network sounder. For serious deep-water sport fishermen, this no excuses remote marine sonar takes high-definition game fish targeting to a whole new level. Designed for the most demanding sport fishing applications, the GSD 26 uses the latest in digital Spread Spectrum technologies to offer significantly better target definition, bottom contours and signal noise suppression at greater depths than traditional sonar. Instead of using a single frequency like traditional sonar, spread spectrum sweeps each pulse through a range of frequencies to deliver much more detail with unprecedented resolution and target separation in shallow and deep water. Fishermen can manually adjust frequencies on the GSD 26 - from a very low 25 kHz to a high of 210 kHz - making it easy to fine-tune the targeting of those trophy-size game fish. In addition, the GSD 26's dual-transceivers allow for simultaneous and independent transducer operation, which allows complete customization for the serious sport fisherman. Compatible with Airmar's newest line of broadband transducers, the GSD 26 offers selectable transmit power from 300 to 3,000 watts. It can scan as deep as 3,000 meters (nearly 10,000 feet). And it's designed to interface with the Garmin Marine Network. for viewing on the latest GPSMAPR 4000/5000 and 6000/7000 series chartplotter/MFDs. The Garmin spread-spectrum GSD 26 - For anglers who demand the very best.

Product Features and Specifications

• Digital spread-spectrum sonar technology - allowing for more energy on targets resulting in even deeper performance and superior target separation

• Manually adjustable frequencies from a very low 25kHz, to a high of 210kHz

• Selectable transmit power from 300W to 3kW

• Two sonar units in one - Dual-transceivers allow for simultaneous and independent transducer operation

• Offers traditional sonar mode using discreet frequencies and Spread Spectrum mode

• Compatible with Airmar's new line of broadband transducers (please note: limited compatibility with fixed frequency transducers)

• Dimensions: 14.28" L x 10.79" W x 3.97" H (36.26 x 27.40 x 10.08 cm)

• Weight: 11.25 lbs (5.1 kg)

• Waterproof IPX 6 standards

The GSD 26 digital sonar leads the new development of sports fishing technology. Compared with traditional sonar, it provides unparalleled separation of targets at a greater depth. Discovering a clear spectrum For serious deep-sea fishing, GSD 26 takes the high-definition target to a whole new level. Use a compatible sensor, GSD 26? The spread spectrum technology of s can scan multiple frequencies at a time, thereby returning a large amount of data to the receiver. Therefore, you can expect accurate shallow-water target separation at depths greater than 10,000 feet (3,000 m). The traditional fixed frequency mode allows you to manually adjust the frequency from 25 kHz to 210 kHz to enhance the pertinence of specific fish. You can also adjust the transmit power from 300 W to 3 kW (depending on the transducer) to further control the sonar return. The dual transceiver design of the 2-in-1 Sonar GSD 26 allows the sensors to operate independently at the same time. You have full control over the data you see on a compatible Garmin chartplotter, and you can easily connect it to GSD 26 via the Garmin Marine Network.
