Garmin Class B Drive Unit Linear Sailboats to 79,000lbs

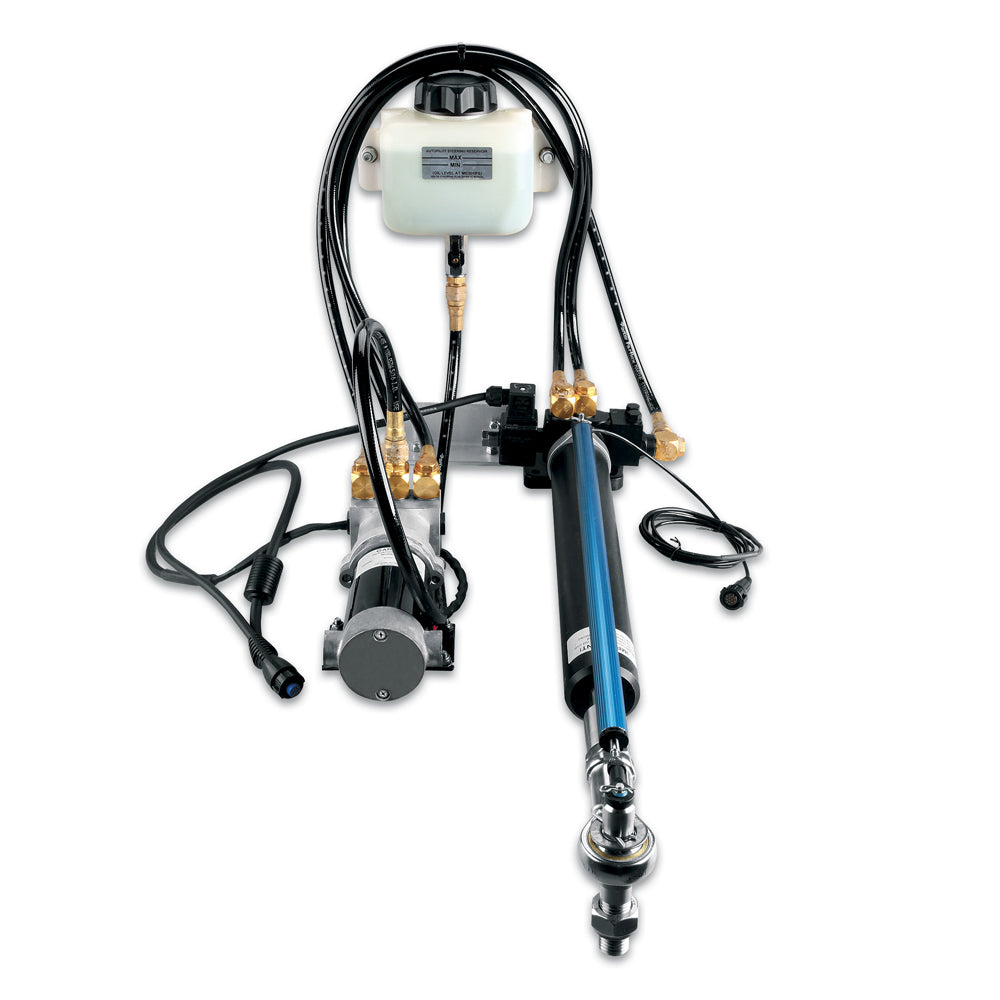

Upgrade your sailboat's steering with the robust Garmin Class B Drive Unit, engineered for vessels displacing up to 79,000 pounds. This hydraulic linear actuator pairs seamlessly with GHP-12 corepacks and Reactor 40 mechanical/retrofit/solenoid systems, delivering precise autopilot control even in demanding offshore conditions. Sailors trust its powerful 2380-pound thrust to handle heavy loads, maintaining course effortlessly during long passages or when trimming sails under load.

Key Specifications for Reliable Performance

Built to withstand the rigors of marine environments, this drive unit combines durability with efficiency. Here's a breakdown of its core specs:

• Drive Type: Hydraulic linear – ideal for smooth, responsive steering on larger hulls
• Stroke Length: 12 inches for ample rudder travel
• Maximum Thrust: 2380 pounds to tackle significant displacement
• Operating Temperature Range: 5°F to 140°F, from chilly dawn starts to tropical heat
• Input Voltage: Flexible 10-30V DC compatibility with most boat systems
• Clutch Current (at 12V): 1 amp for efficient engagement
• Motor Current (at 12V): 2 amps average, peaking efficiently under load

Compact dimensions ensure straightforward integration: motor measures about 8.8 x 3 x 3.5 inches, cylinder around 32.7 x 4.1 x 6.3 inches (centered), and reservoir 7.9 x 6.1 x 3.3 inches. These sizes fit most sailboat installations without major modifications.

Why This Drive Unit Excels for Large Sailboats

Unlike generic actuators that falter on big boats, the Garmin Class B shines in real-world scenarios. Its hydraulic design minimizes backlash for tighter tracking, crucial when navigating tight channels or holding a course in choppy seas. Pair it with a Reactor 40 for smart Attitude Control™ that adapts to your boat's heel and trim, reducing wear on your steering gear.

Owners of bluewater cruisers report fewer manual corrections, freeing the crew for sail handling or watchstanding. The unit's sealed components resist corrosion from saltwater spray, and its efficient power draw won't strain batteries during extended voyages. Whether retrofitting an older GHP-12 setup or building a new autopilot, this drive unit delivers the muscle needed for confident cruising.

Installation Insights and Best Practices

Mounting a hydraulic linear drive like this requires attention to alignment and fluid levels for optimal longevity. Position the cylinder parallel to the rudder post, ensuring the 12-inch stroke covers full deflection without binding. Use marine-grade hydraulic fluid to prevent foaming, and bleed the system thoroughly post-install to eliminate air pockets that could cause erratic steering.

Integrate with NMEA 2000 networks for seamless data sharing with chartplotters and instruments. Regular checks on ram seals and motor brushes keep it humming season after season, often outlasting the warranty period with proper care.

Real Sailor Benefits Beyond the Specs

Picture this: crossing an ocean with autopilot holding steady through 25-knot winds, no constant helm tweaks needed. That's the peace of mind this unit provides. It reduces fatigue on solo sailors or small crews, enhances safety by maintaining vigilance on traffic, and preserves your boat's steering linkages from overload. For performance-oriented sailors, its precision supports fine-tuned sail trim without compromising speed.
