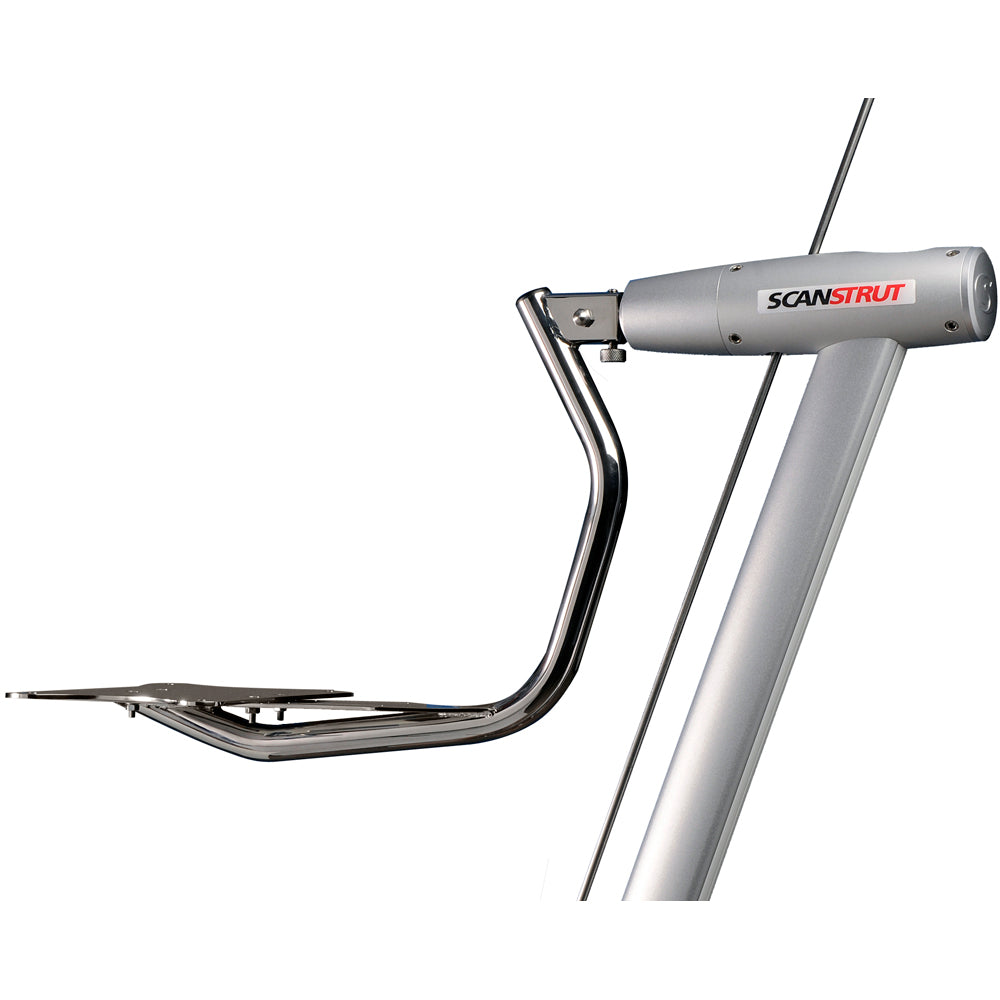

Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes

Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes Product Description

Aft of backstay

Self Levelling Radar Mount - Backstay - Aft (A) Made specifically for Raymarine/Garmin Domes

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance free

• Passive system - no power required

• Lightweight head unit - reduced weight aloft

• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht

• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted


Dimensions:

• 2.6m pole - supplied in lengths of 1.3m

• Additional 0.6m and 1.3m lengths available


Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht

• Marine grade 316 stainless steel cradle and base plate


Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)

• 2 x 1.3m lengths of mounting pole

• 1 x Joiner piece for mounting pole

• 1 x Universal base for mounting pole

• 1 x Complete fastening pack


  Self-leveling radar bracket-rear support-tail (A) is specially made for Raymarine / Garmin Domes. Our self-leveling rear bracket ensures that your radar is always level and level to achieve the best antenna performance. When the ship rolls backwards or rolls, the radar stays level to prevent target loss and provide the best radar image. Using our own fine-tuning hydraulic damping system, the radar mount can be adjusted to the main



  Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes Related Products

  Scanstrut LMB-EXTSHORT 25.5" Extension Kit f/LMB Mounting Pole




  Frequently Asked Questions (FAQ) About Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes

  Who is the Scanstrut?
  How to describe Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes?
  What is the exterior color of product?
  What is the type of the product?
  In which country this product made in?
  What is the constuction of product?
  What is the mounting direction of the product?
  What is the housing material of the product?
  What is the base dimensions of the product?
  What is the installed height of the product?
  What is the manufacturer notes about Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes?


  Who is the Scanstrut?

  Scanstrut is a comprehensive range of off-the-shelf installation solutions for every type of marine electronics. From mounting a radar on your yacht to a satcom antenna on your powerboat, Scanstrut has a choice of solutions that ensure a quick, easy and great looking installation. Scanstrut products are fully endorsed and recommended by all leading marine electronics manufacturers.

  How to describe Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes?

  Aft of backstay

  What is the exterior color of product?

  White

  What is the type of the product?

  Self Leveling

  In which country this product made in?

  United Kingdom

  What is the constuction of product?

  Anodized Aluminum

  What is the mounting direction of the product?

  Aft Leaning

  What is the housing material of the product?

  Aluminum

  What is the base dimensions of the product?

  55mm x 43.5mm (2.2" x 1.5")

  What is the installed height of the product?

  2.6m (8.5')

  What is the manufacturer notes about Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes?

  Aft of backstay


  Save $979 when you buy the Scanstrut LMB-A1 Self Leveling Radar Mount - Backstay (A) - f/ Raymarine/Garmin Domes for only $1319 from NVN Marine! Same day free shipping before 3pm.
