Norcold 1210IM 12 cu ft 4-Door Refrigerator/Freezer with Ice Maker

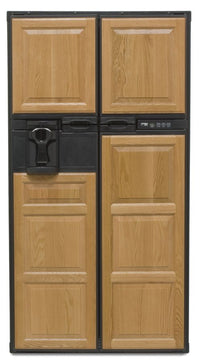

The 1210IM is Norcold's 12-cubic-foot refrigerator/freezer at the top of the company's RV and marine cooler lineup, configured with a four-door three-compartment layout and a built-in ice maker (the IM in the model name). For trawlers, large motor yachts, and Class A RVs that need real galley refrigeration capacity, this is the size Norcold builds for that market. The four-door design separates the freezer compartment from the main refrigerator section and gives you a top-mount door for the freezer plus three independently opened refrigerator doors, which means cold loss is minimized when you grab a single item rather than swinging open one giant door.

The dual AC and LP gas operation is what most owners pick Norcold over residential refrigerators for. On shore power or generator power the unit runs on 120V AC at 3.6 amps, which puts it well within most inverter and shore-power supply capacities. Anchored out or off-grid, the same unit runs on LP gas through the absorption cycle, which is what lets cruisers keep the boat cold for days at a time without running the generator. The transition between AC and gas operation happens automatically based on which power source is available, with most modern installations set up to prefer AC when shore power is connected and fall back to LP gas when it isn't. The total power consumption on AC is modest enough that the refrigerator doesn't dominate the inverter load on a typical liveaboard cruise.

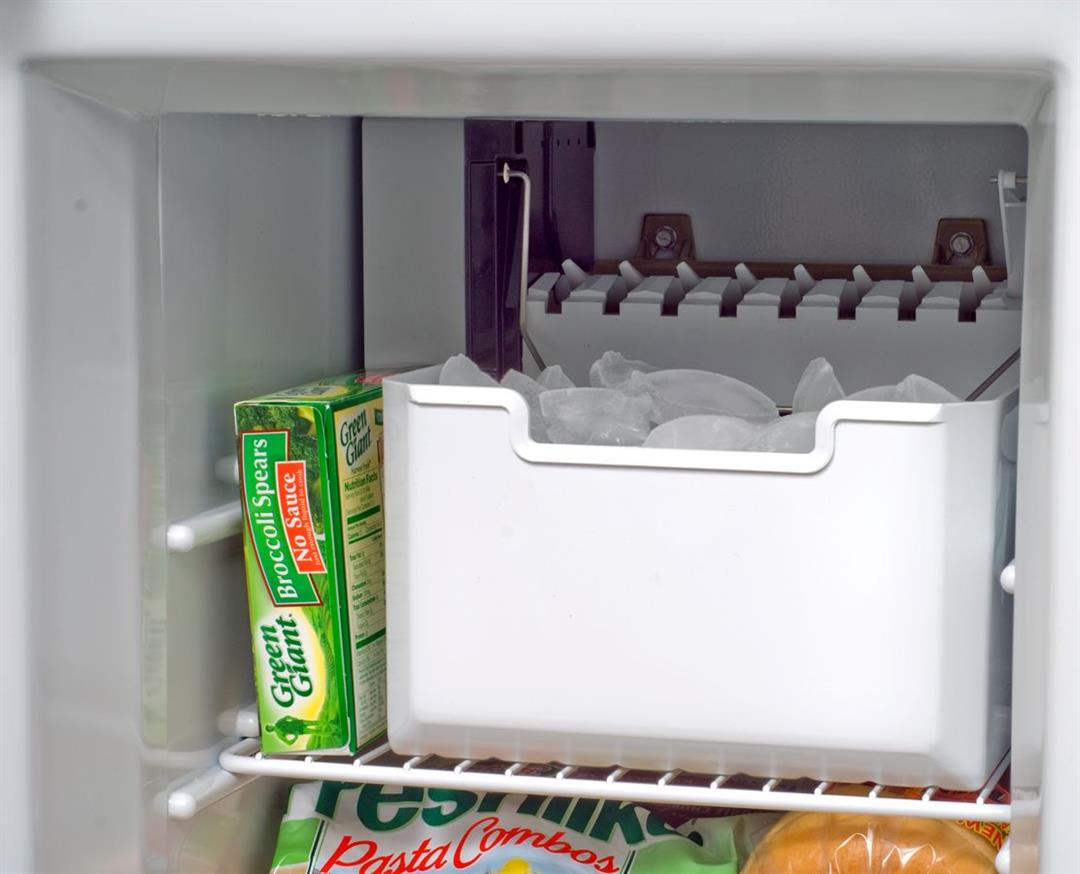

The built-in ice maker is the convenience feature that makes the IM variant worth the upcharge over the non-IM 1210. The ice maker plumbs to the boat's fresh-water system through a standard 1/4-inch supply line and dispenses cubed ice into a bin in the freezer compartment. For boats that entertain or carry guests, the ice maker eliminates the constant trips to a marina ice shop or the need to carry block ice in the freezer. The interior is laid out with adjustable shelves, door bins, crisper drawers, and the dedicated freezer compartment, which is more efficient than a single-cavity refrigerator at the same total capacity because each compartment can be opened independently.

The exterior dimensions are 63-1/4 inches high by 32-11/16 inches wide by 24 inches deep, which is the standard built-in cavity Norcold has used for years on this size class. If you're replacing an older Norcold 1200-series unit, the new 1210IM drops into the same cabinet opening with minimal cabinetry rework. For new installs, the 32-11/16 inch width determines the cabinet bay you'll need to build, and the 24-inch depth fits standard galley cabinet depths on most cruising and trawler designs. The LED temperature control panel on the door front is the modern replacement for the older mechanical thermostats, with separate temperature setpoints for the freezer and refrigerator sections.

One install consideration worth flagging. Norcold absorption refrigerators need adequate venting on the back side of the unit to dissipate the heat the cooling cycle generates. The factory install manual specifies vent dimensions and clearances that need to be followed for the unit to maintain temperature reliably, especially in warm engine-room or aft-cabin environments. Skipping the vent requirements is the most common cause of premature failure on absorption refrigerators, with owners often blaming the unit when the install is actually the problem. A marine electronics or RV specialist installer is the right person for the job if you're not familiar with absorption refrigerator install requirements. The unit ships with the standard Norcold warranty for residential and recreational use, with marine-specific warranty consideration available through Norcold's customer service.

One thing worth knowing about the absorption refrigerator design versus a residential compressor refrigerator. Absorption refrigerators have no moving parts in the cooling cycle, which means they run silently and last for many years without compressor wear. The trade-off is that they cool more slowly than a residential compressor unit, especially when first loaded with warm food, and they're sensitive to being out of level (the cooling fluid relies on gravity to circulate, so a boat parked at a strong angle can stop the cooling cycle entirely). For boats and RVs that sit relatively level at anchor or in a slip, this isn't an issue. For boats that careen on the bottom at low tide or sit at significant angles at the dock, plan accordingly.
