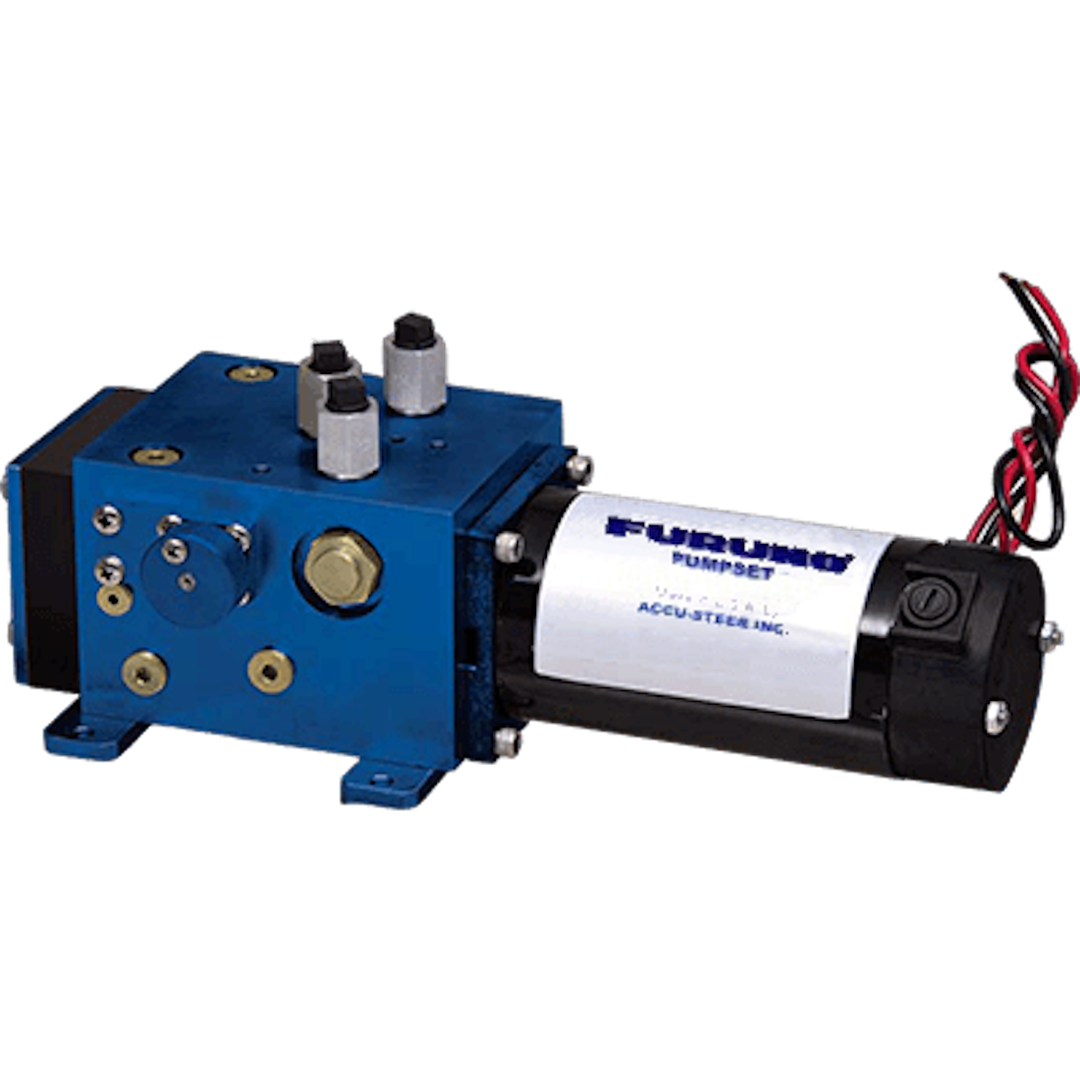

Hydraulic Pump, 24V, Adj to 3.5ci/sec

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 2000080 - UPC: 611679368140 - MPN: PUMPHRP35-24
$974.99 $1,600.00 ( / )

We are sorry, this product sold out!

  • MFG#PUMPHRP35-24
  • Adjustable output 0-3.5 cubic inches/sec
  • Suitable for hydraulic plungers up to 50 cu
Furuno
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Hydraulic Pump, 24V, Adj to 3.5ci/sec Product Description

For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance, and reliability.

Furuno UMPHRP3524 Attributes

  • Compatibility: Hydraulically Steered Boats And Applications
  • Maximum Pressure: 1000 PSI
  • Cylinder Capacity: 35 Cubic Inch To 60 Cubic Inch Capacity
  • Voltage Rating: 24 Volt
  • Ampere Rating: 6 To 20 Amp
  • Mounting Type: Floor Mount

Furuno UMPHRP3524 Features & Benefits

  • Use For Most Hydraulically Steered Boats And Applications
  • Furuno Products Are Provides Performance And Reliability
  • High-Performance Products Proven In The Harshest Of Environments
  • Offering Quality Design
  • Limited 2 Year Warranty

Hydraulic Reversing Pump Set (Medium-Duty), MFG# PUMPHRP35-24, 24 VDC, adjustable output 0-3.5 cubic inches per sec. For hydraulic rams up to 50 cu. in.

The Furuno 24V hydraulic pump set is designed to connect the hydraulic steering system to the autopilot or electric steering control system. The output flow of the pump set determines the speed of the rudder. The output flow of the hydraulic pump is adjustable between 0-3.5 cubic inches per second. The pump has a built-in pressure relief valve, which is set to 500 psi at the factory. This pump is recommended for medium-sized applications in hydraulic steering systems with a volume of 50 cubic inches or less. The compact and sturdy structure is easy to install and has a long service life. The pump model will be connected to most ship autopilot systems. Key features Adjustable flow control, pressure relief, high temperature winding, flame-proof, can be used with most autopilots, ideal for new and refurbished applications

Frequently Asked Questions (FAQ) About Furuno Hydraulic Pump, 24V, Adj to 3.5ci/sec

Who is the Furuno?
How to describe Furuno Hydraulic Pump, 24V, Adj to 3.5ci/sec?
What is the mounting type of the product?
What is the compatibility of this product?

Who is the Furuno?

Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.

How to describe Furuno Hydraulic Pump, 24V, Adj to 3.5ci/sec?

The Furuno 24V hydraulic pump set is designed to connect the hydraulic steering system to the autopilot or electric steering control system. The output flow of the pump set determines the speed of the rudder. The output flow of the hydraulic pump is adjustable between 0-3.5 cubic inches per second. The pump has a built-in pressure relief valve, which is set to 500 psi at the factory. This pump is recommended for medium-sized applications in hydraulic steering systems with a volume of 50 cubic inches or less. The compact and sturdy structure is easy to install and has a long service life. The pump model will be connected to most ship autopilot systems. Key features Adjustable flow control, pressure relief, high temperature winding, flame-proof, can be used with most autopilots, ideal for new and refurbished applications
  • Hydraulic pump set for medium-duty applications.
  • Outputs up to 3.5 cubic inches per second.
  • Can be used with hydraulic rams up to 50 cubic inches.
  • Hydraulic Reversing Pump Set (Medium-Duty)
  • MFG PUMPHRP35-24, 24 VDC, adjustable output 0-3.5 cubic inches per sec.
  • For hydraulic rams up to 50 cu
  • Hydraulic pump set with a reversing function.
  • Suitable for hydraulic rams up to 50 cu in.
  • 24 VDC, adjustable output 0-3.5 cu in per sec.

What is the mounting type of the product?

Floor Mount
  • Hydraulic pump set for medium-duty applications.
  • Outputs up to 3.5 cubic inches per second.
  • Can be used with hydraulic rams up to 50 cubic inches.
  • Hydraulic Reversing Pump Set (Medium-Duty)
  • MFG PUMPHRP35-24, 24 VDC, adjustable output 0-3.5 cubic inches per sec.
  • For hydraulic rams up to 50 cu
  • Hydraulic pump set with a reversing function.
  • Suitable for hydraulic rams up to 50 cu in.
  • 24 VDC, adjustable output 0-3.5 cu in per sec.

What is the compatibility of this product?

Hydraulically Steered Boats And Applications


Save $625 when you buy the Hydraulic Pump, 24V, Adj to 3.5ci/sec for only $974 from NVN Marine! Same day free shipping before 3pm.

Hydraulic Pump, 24V, Adj to 3.5ci/sec Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Furuno

Weight:

18.0 lb

Hydraulic Pump, 24V, Adj to 3.5ci/sec User Reviews

Hydraulic Pump, 24V, Adj to 3.5ci/sec Shipping & Return

Shipping Weight:

18.0 lb

Box Sizes:

10.00 (h) x 10.00 (w) x 18.00 (l)

Cubic Feet:

1800.0
