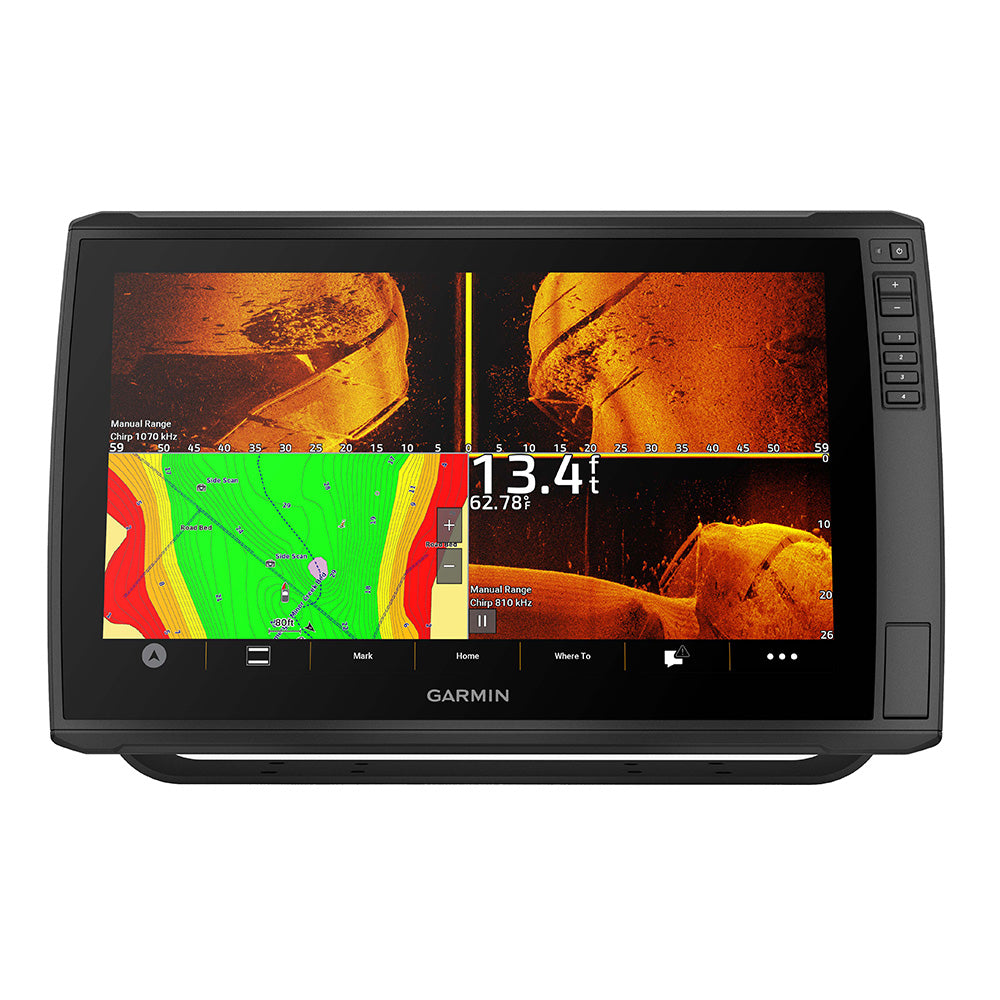

Garmin ECHOMAP™ Ultra 2 16" Chartplotter 166sv w/GN+ Mapping w/o Transducer

Experience Unmatched Clarity on the Water with the Garmin ECHOMAP Ultra 2 16" Chartplotter

Picture this: you're out on the water at dawn, chasing trophy fish in challenging conditions. The last thing you need is a cluttered screen or fuzzy sonar reads that leave you guessing. The Garmin ECHOMAP Ultra 2 16" chartplotter changes the game with its massive full HD display, delivering razor-sharp details for charts, sonar, and navigation. Tailored for dedicated anglers who demand precision, this powerhouse unit elevates your fishing strategy without a transducer included, giving you flexibility to pair it with your preferred setup.

Stunning Display for Big-Picture Fishing Insights

The 16-inch IPS touchscreen boasts 1920 x 1080 resolution, ensuring every fish arch, structure, and contour stands out vividly, even under direct sunlight. High-contrast color palettes make separating baitfish from predators effortless, while keyed assist alongside touch controls keeps operations smooth with gloves on or in rough seas. Anglers love how this expansive view lets you monitor multiple sonar sources and charts simultaneously, spotting patterns others miss.

Advanced Sonar Capabilities to Reveal Hidden Fish

Built-in support for the entire LiveScope lineup brings real-time sonar imagery to life, showing fish reactions as they happen—perfect for live bait presentations or trolling. Ultra High-Definition ClearVü and SideVü scanning sonars paint photo-like images of the bottom and surroundings, complemented by CHIRP traditional sonar across multiple frequencies. Whether jigging deep structure or scanning shallows, these tools help you pinpoint prime spots with confidence.

Premium Mapping That Keeps You Ahead

Preloaded with Garmin Navionics+ inland and coastal charts, you'll get daily updates for up-to-date bathymetry, depth shading, and points of interest. Upgrade paths to Vision+ add satellite overlays and more for coastal adventures. Multi-band GPS delivers pinpoint accuracy, even in tricky coverage areas, while Quickdraw Contours lets you create personalized maps on the fly.

Seamless Connectivity for a Fully Integrated Boat

Wireless networking shares user data between compatible units, NMEA 2000 compatibility links to engines, autopilots, and audio, and Bluetooth voice control frees your hands for rod work. Pair with the ActiveCaptain app for screen recordings to analyze hot bites later, community-shared data, and effortless updates. HDMI output mirrors your display on a secondary screen for crew briefings or helm stations.

Rugged Build and Versatile Mounting

Rated IPX7 waterproof, this 9.5 lb unit withstands splashes and spray. Bail mount with adjustable knobs or flush options fit any console, tilting for the perfect angle. Power it reliably from 9-18 Vdc sources, drawing efficiently for long days out.

Key Specifications at a Glance

Feature	Details
Display Size/Diagonal	13.6" x 7.7" / 15.6" diagonal
Resolution	1920 x 1080 pixels (FHD IPS)
Dimensions	16.9" x 10.5" x 3.14"
Sonar Support	CHIRP traditional, UHD ClearVü/SideVü, LiveScope compatible
Waypoints/Tracks	5,000 waypoints, 50,000 track points
Power Draw (12Vdc)	Typical: 3.9A, Max: 6.6A

What's Included for Easy Setup

• ECHOMAP Ultra 2 166sv unit with Garmin Navionics+ mapping
• Power cable for straightforward wiring
• Bail mount with knobs for secure, adjustable installation
• Protective sun cover to shield from harsh rays
• Trim caps, hardware, and documentation

California Proposition 65 Warning: This product can expose you to chemicals including NICKEL (METALLIC), known to the State of California to cause cancer. For more details, visit relevant state resources.

Frequently Asked Questions About the Garmin ECHOMAP Ultra 2 16" Chartplotter

Does the ECHOMAP Ultra 2 16" support LiveScope sonar systems?

Yes, it fully supports the entire LiveScope lineup for real-time live-scanning sonar, revealing fish movements instantly (transducer sold separately).

What mapping is preloaded on this model?

It comes preloaded with Garmin Navionics+ mapping, including a subscription for daily updates, depth shading, and detailed charts.

Is the display sunlight readable?

Absolutely, the full HD IPS panel with high brightness and anti-glare properties ensures clear visibility in bright sunlight.

Can I connect this chartplotter to other devices?

Yes, via NMEA 2000 for sensors and autopilots, Bluetooth for voice control, wireless networking for data sharing, and HDMI for external displays.

What mounting options are available?

It includes a bail mount with knobs for tilting adjustments and supports flush mounting for a clean console look.

Does it work with Garmin trolling motors?

Yes, wirelessly connect to Force trolling motors for waypoint navigation, route following, and hands-free operation.

Is the unit waterproof?

Rated IPX7, it withstands immersion in 1 meter of water for 30 minutes, ideal for marine environments.

Equip your vessel with this chartplotter to transform how you find and catch fish. Its blend of cutting-edge tech and angler-focused design makes every outing more productive.

ECHOMAP™ Ultra 2 16" Chartplotter 166sv with GN+ Mapping without Transducer

SEE BIGGER CATCHES ON A BIGGER SCREEN

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness, and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT

The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR

Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

PRELOADED CHARTS

Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).

HDMI OUTPUT

Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES

Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys, and sonar inputs.

VIVID COLOR PALETTES

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

WIRELESS NETWORKING

Share sonar3, waypoints, and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.

MULTI-BAND GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® NETWORK COMPATIBILITY

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ACTIVECAPTAIN® APP

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more4.

FORCE TROLLING MOTOR

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

SCREEN RECORDING

Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.

BAIL MOUNT WITH KNOBS

Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.

Specifications:

• Dimensions: 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
• Weight: 9.5 lbs (4.31 kg)
• Water rating: IPX7
• Touchscreen: Yes
• Display Type: FHD, IPS
• Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
• Display resolution: 1920 x 1080 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist
• Accepts Data Cards: 2 microSD™ cards
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100
• Power Input: 9 to 18 Vdc
• Typical current draw at 12 Vdc: 3.9 A
• Maximum current draw at 12 Vdc: 6.6 A
• Maximum power usage at 10 Vdc: 48 W
• Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz

What's In The Box?

• ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
• Power cable
• Bail mount with knobs
• Protective sun cover
• Trim caps
• Hardware
• Documentation

1LiveScope™ System sonar transducer sold separately2Via one-to-one unit wireless connection only3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Garmin is under license.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

SKU: NVN-109354
MPN: 10
UPC: 0
