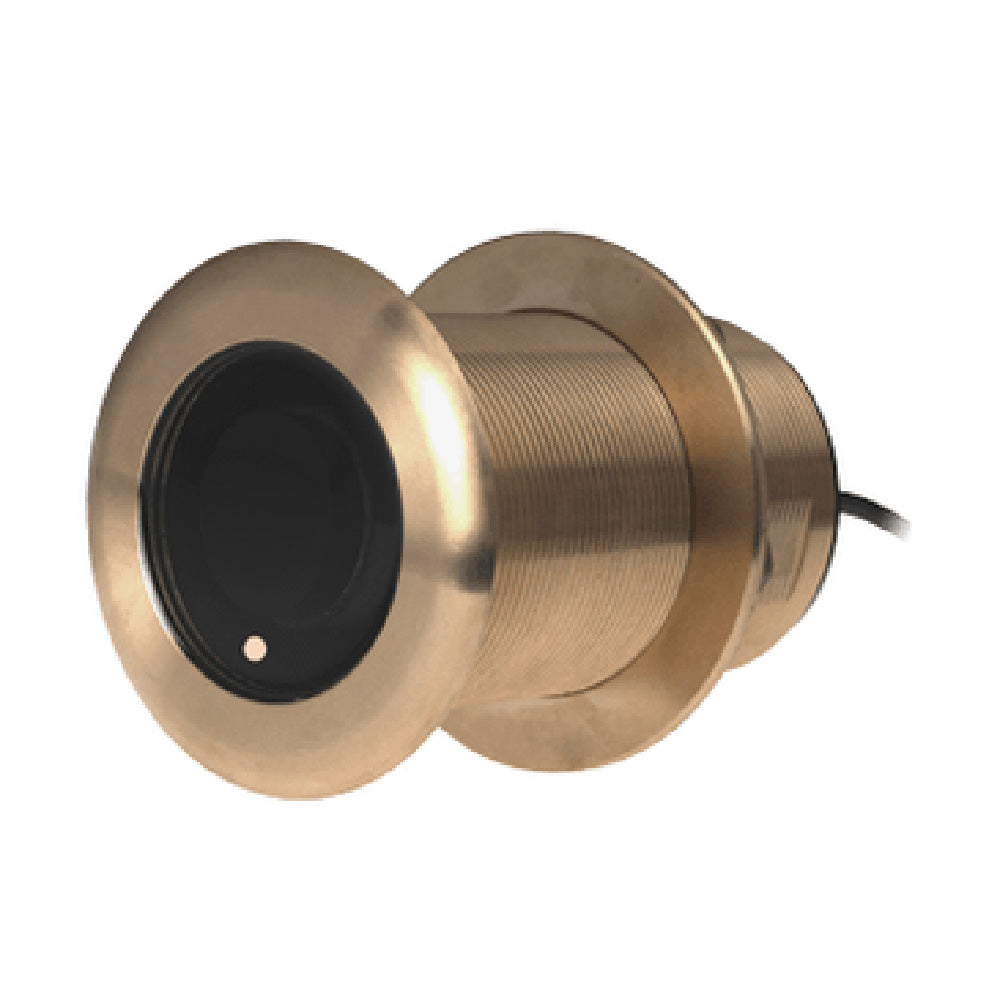

Navico B75H 20° Bronze Thru-Hull CHIRP XSONIC 9-Pin

Unlock Crystal-Clear Underwater Insights with Advanced CHIRP Technology

Imagine gliding through coastal waters or chasing trophy fish in deeper offshore zones, all while your sonar paints a razor-sharp picture of what's below. The B75H 20° Bronze Thru-Hull transducer delivers exactly that, blending high-frequency CHIRP sonar with a rugged bronze housing built for saltwater punishment. Unlike traditional fixed-frequency sensors that blur the details, this unit sweeps from 130kHz to 210kHz, revealing bait schools from game fish, pinpointing structure like wrecks and reefs, and tracking bottom contours with surgical precision—even in rough conditions.

Designed for boats with hull deadrises between 16° and 24°, its tilted ceramic element automatically compensates for your vessel's angle, ensuring dead-on depth readings without guesswork. Whether you're a weekend angler dodging shallows or a charter captain navigating tricky inlets, this thru-hull mount cuts through the noise for data you can trust.

Key Performance Advantages for Serious Boaters

• Superior Target Separation: CHIRP's variable frequency range lets you distinguish tiny baitfish from larger predators, giving you the edge in competitive fishing scenarios.
• Shallow-Water Specialist: Excels in bays, estuaries, and nearshore areas where high frequencies shine, maintaining lock on the bottom down to impressive depths.
• Integrated Temp Sensing: Real-time water temperature data helps you locate thermoclines where fish congregate, enhancing your overall fishing strategy.
• Streamlined Design: Only 5mm protrudes beyond the hull, reducing drag and fuel burn while blending seamlessly with your boat's lines.
• Bronze Durability: Corrosion-resistant alloy thrives in marine environments, standing up to constant exposure without losing performance.

Effortless Setup for Real-World Results

Installing a thru-hull transducer might sound intimidating, but this model's plug-and-play 9-pin XSONIC connector simplifies everything. Start by selecting a spot forward of the prop and away from strakes for clean water flow—typically 1/3 of the hull length from the bow. Drill a precise hole matching the 50mm diameter, bed it in marine sealant, and secure with the included nut. Pair it with compatible multifunction displays from brands like Simrad or Lowrance for instant high-def sonar overlays on charts.

Pro tip: Fair the housing with epoxy filler post-install to match your deadrise perfectly, minimizing turbulence and maximizing echo returns. Once mounted, calibrate via your display's wizard to fine-tune gain and range for your local waters.

Why High-Frequency CHIRP Outperforms the Rest

In the world of marine electronics, high-frequency transducers like this one prioritize detail over raw depth penetration. Perfect for inshore and mid-range offshore use, it resolves echoes five to ten times finer than conventional sonar. Anglers report spotting individual hooks in lures or schools holding tight to structure—details that can turn a slow day into a limit haul. For navigators, it's invaluable for contour mapping in unfamiliar anchorages, helping avoid hidden rocks or ledges.

Compared to low-frequency options, this setup trades some max depth for unmatched clarity in the 0-500 foot sweet spot, making it a staple for bass boats, center consoles, and sportfishers alike.

Long-Term Reliability and Care Essentials

Bronze construction means it's ready for years of abuse, but regular winterization prevents biofouling and ice damage. Flush with freshwater after saltwater trips, inspect the face for pitting annually, and store in a dry rack. Users rave about its consistent performance season after season, often outlasting plastic competitors in harsh conditions.
