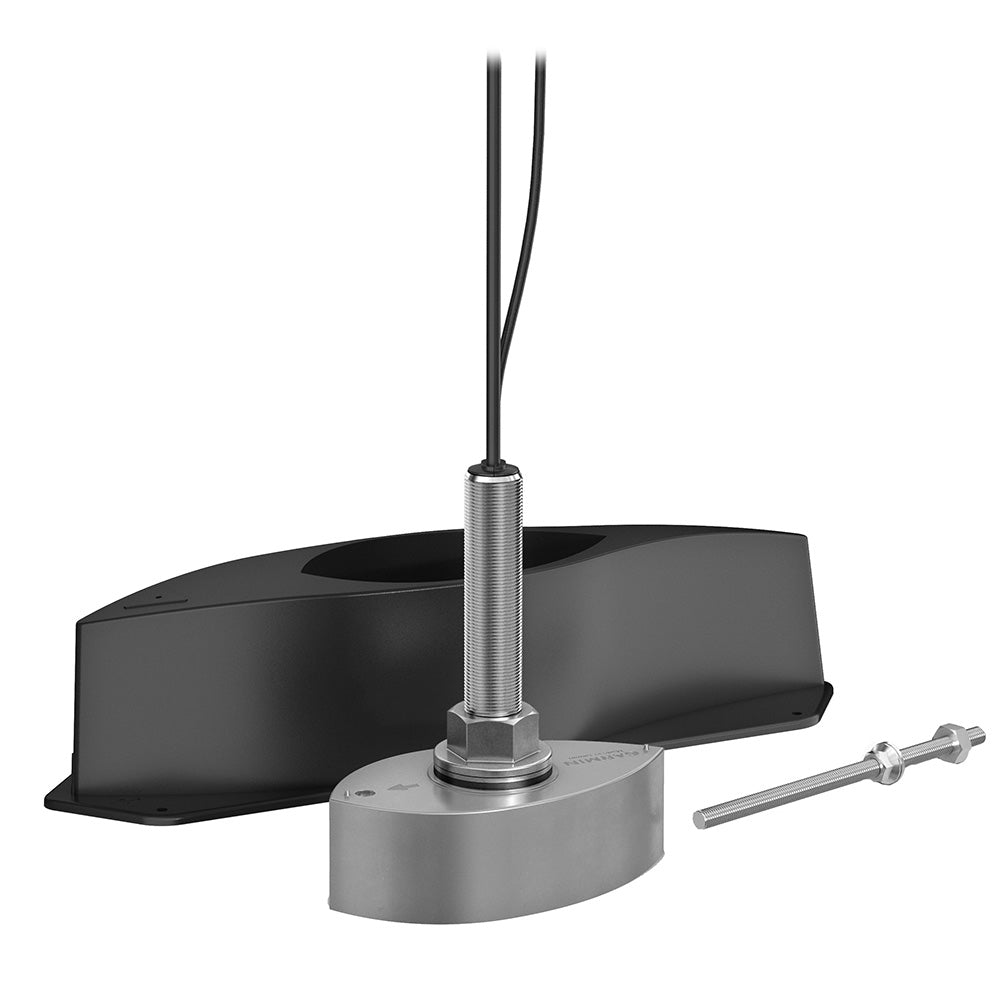

Garmin Panoptix™ PS70 Thru-Hull Transducer w/Fairing Block
Garmin Panoptix™ PS70 Thru-Hull Transducer w/Fairing Block — Product description
Imagine peering 1,000 feet beneath your boat in real time, spotting bait schools swirling around massive game fish lurking in the depths. The Garmin Panoptix PS70 thru-hull transducer turns this vision into reality for serious offshore anglers. Mounted through your hull with its included fairing block, this powerhouse delivers crystal-clear live sonar imagery that keeps you ahead of the fish, no matter how rough the seas get. It's not just about seeing fish—it's about understanding their movements to land more trophies.
Master the Depths with Cutting-Edge Live Sonar Technology
At the heart of the PS70 lies Garmin's innovative RapidReturn sonar, firing off rapid pings that refresh your display up to 10 times per second. This means smoother, more responsive views than many competitors, letting you track fast-moving targets like kingfish or tuna schools without lag.
LiveVu Down: Your Window to the Abyss
Capture every jiggle and dart of fish in a sweeping 120-degree beam that blankets vast underwater expanses. Whether you're drifting over structure or trolling at speed, this mode reveals the full picture below, helping you drop baits precisely where they count.
Versatile Viewing Options Tailored to Your Hunt
- Traditional Sonar: Classic fish arches with superior target separation for pinpoint accuracy under the boat.
- Triple-Beam Sonar: Split-screen coverage from port, starboard, and straight down—customize angles to dial in your perfect setup.
- RealVu 3D Historical: Build dynamic 3D maps of the seafloor and water column as you cruise, tracking fish history with true motion that matches your boat's path.
- Quickdraw Contours: Map uncharted bottoms in stunning detail, even at extreme depths, creating your private fishing charts on the fly.
Engineered for Real-World Fishing Demands
The PS70 shines where others falter. Its 800-watt output punches through thermoclines and murky water, while built-in stabilization counters boat roll and waves for rock-steady images. That wide beam scans more territory faster, saving time on structure hunts and increasing hookups.
For deep-drop enthusiasts targeting swordfish or wrecks, the 1,000-foot range combined with high refresh rates means you see bottom contact and bites instantly—critical when seconds matter.
Durable Thru-Hull Build That Handles the Abuse
Crafted from rugged stainless steel, the PS70 installs flush or pocket-mounted thru-hull, with a fairing block handling deadrise angles up to 20 degrees. It's speed-rated for offshore runs and IPX7 waterproof, shrugging off salt spray and impacts. Pair it with your Garmin network for effortless data sharing across multiple screens.
Technical Specifications at a Glance
| Category | Details |
|---|---|
| Dimensions | 8.50" x 4.49" x 9.61" |
| Weight | 10.12 lbs |
| Beam Width | 120° x 8° |
| Power Output | 800 watts |
| Max Depth (Saltwater) | 1,000 feet |
| Frequency | 190-210 kHz |
| Power Input | 10-35V, 35W usage, 7.5A fuse |
| Cable Length | 8 ft + 40 ft extension |
| Operating Temperature | 0°C to 40°C |
| Connections | 1 Garmin Marine Network port |
Frequently Asked Questions
What makes the Garmin Panoptix PS70 ideal for deep-sea fishing?
Its RapidReturn sonar provides live views up to 1,000 feet, with high refresh rates and stabilization for tracking fish in real time, even in rough conditions.
How does the wide beam angle benefit anglers?
The 120-degree by 8-degree beam covers expansive areas quickly, helping locate baitfish and structure faster than narrower beams.
Can the PS70 handle high boat speeds?
Yes, the included fairing block supports deadrise angles up to 20 degrees and is designed for offshore speeds and durability.
What sonar modes are available on the PS70?
LiveVu Down, Traditional Sonar, Triple-Beam, RealVu 3D Historical, and Quickdraw Contours for versatile fishing scenarios.
Is image stabilization effective in choppy water?
Absolutely—the internal sensor compensates for boat motion, delivering clear, steady sonar images regardless of sea conditions.
How does Quickdraw Contours work with the PS70?
It maps wide swaths of the seafloor up to 1,000 feet, creating detailed custom contours for future trips.
What's included for installation?
The transducer, fairing block, thru-hull hardware, power cable, 40-foot network cable with adapter, and documentation.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Panoptix™ PS70 Thru-Hull Transducer with Fairing Block
SEE FISH LIVE. CATCH FISH DEEP.
The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface.
- Live sonar up to 1,000'
- Multiple sonar modes
- Wide sonar beam
- Image stabilization
- Thru-hull mounting
- 800-watt power output
Garmin RapidReturn Sonar
This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 1,000’, giving deep-sea anglers a real-time view of what’s below the surface.
LiveVü™ Down Sonar
See real-time live sonar images up to 1,000’. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real-time. The wide 120-degree beam angle covers huge areas of water.
Traditional Sonar
View crisp, clear fish arches with excellent separation of targets under the boat.
Triple-Beam Sonar
Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions and targets directly under the boat in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.
RealVü™ 3D Sonar
Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface, and all fish in between. The True Motion 3D sonar returns feature now follows the vessel’s course over the ground.
Quickdraw Contours Feature
Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 1,000’.
Live Sonar Display Rate
Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.
Wide Sonar Beam
Locate bait and fish quickly with a wide 120-degree by 8-degree sonar beam, which covers more water columns at once.
Image Stabilization
An internal sensor will stabilize sonar returns, giving you a clear view even in rough waters.
Thru-Hull Installation
The stainless steel thru-hull transducer can be flush-mounted or pocket-mounted. A fairing block allows for deadrise angles of 0 to 20 degrees. The optional fairing block can survive high operating speeds and withstand the rough conditions found offshore.
High-Power Sonar
800-watt power output gives you stronger sonar penetration through the water.
In the Box:
- PS70 down-looking thru-hull down transducer
- Fairing block
- Stainless steel thru-hull mounting hardware
- Power cable
- Network cable 40 ft (12 meters) with network adapter
- Documentation
General
- Dimension: 8.50" x 4.49" x 9.61"
- Weight: 10.12 lbs
- Waterproof: IPX7
- Transducer Beamwidth: 120° x 8°
- Transducer Cable Length: 8 ft + 40 ft Extension
- Temperature Range: 0°C to 40°C
Electrical Features:
- Power Input; 10-35v
- Power Usage: 35w
- Fuse: 7.5a
Sonar Features
- Frequency: 190-210 kHz
- Transmit Power: 800w
- Maximum Depth: Saltwater 1000'
- Sonar Type: Multi-beam phased array
Connections
- Garmin Marine Network ports: 1 (small connector)
Sonar Modes
- RealVü 3D Historic: Yes
- 3-Beam Traditional: Yes
- Traditional Sonar Source: Yes
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
SKU: NVN-101078
MPN: 010-02768-00
UPC: 753759320690
