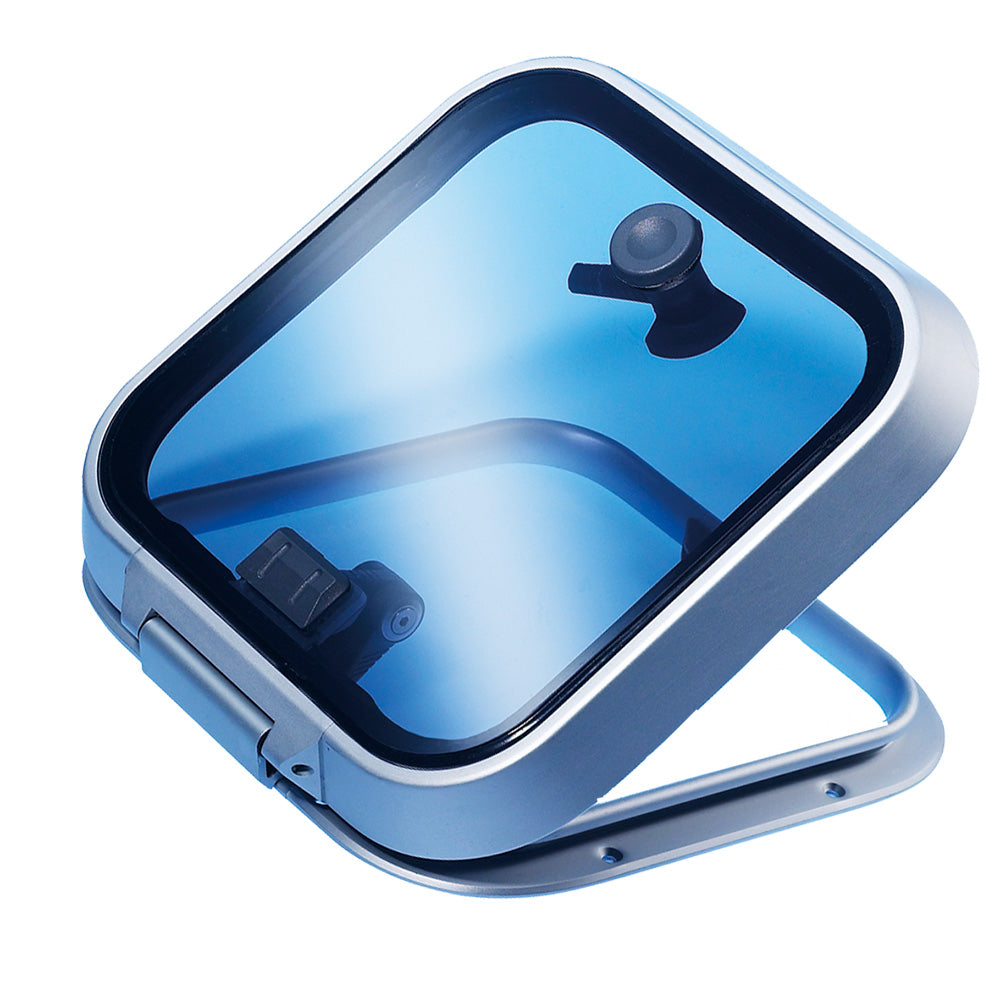

Lewmar Size 60 Ocean Hatch - Flange Base
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 94266 - UPC: 743683113062
$807.99
$1,469.95
( / )
Size 60 Ocean Hatch - Flange BaseWith its classic style, the Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.Features: Friction levers hold the lid open in any position up to 95° Anodized...
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Lewmar Size 60 Ocean Hatch - Flange Base Product Description
Size 60 Ocean Hatch - Flange Base
With its classic style, the Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.
Features:
- Friction levers hold the lid open in any position up to 95°
- Anodized aluminum frame for corrosion resistance
- All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit, and Transom)
Technical Specifications:
- Support System - Friction Lever
- Color - Smoke Grey
- Window Thickness - .5"
- Weight - 17.6lbs
- Dimensions (L x W x H) - 22-5/8" x 22-5/8" x 1-11/16"
- Cut-Out Dimensions (L x W) - 19-15/16" x 19-15/16"
*Sold as an Individual
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4").
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| 1" Flange | Smoke Grey | 17.6 | 1/2 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) |
| 22 5/8 | 22 5/8 | 1 11/16 | 3 | 3/16 | 14 7/16 | 19 15/16 | 19 15/16 | 1 11/16 |
Save $661 when you buy the Lewmar Size 60 Ocean Hatch - Flange Base for only $807 from NVN Marine! Same day shipping before 3pm.
