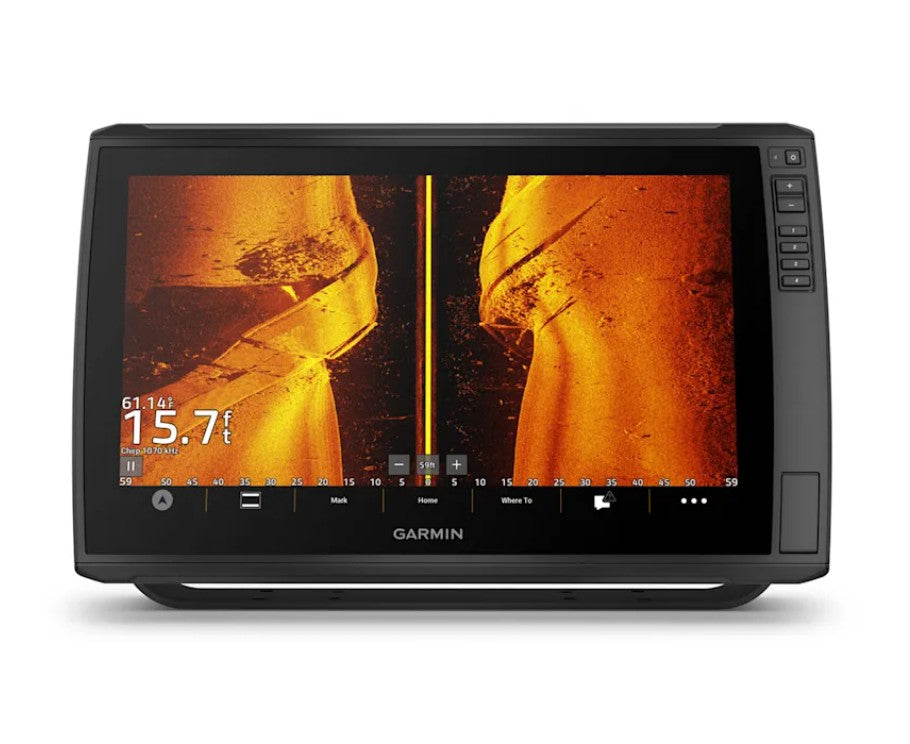

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer Product Description
Imagine pinpointing your next big catch with crystal-clear images beneath your boat, all while navigating coastal waters with unmatched precision. The Garmin ECHOMAP Ultra 2 166sv, paired with the GT56UHD-TM transducer, transforms your fishing boat into a high-tech command center. Serious anglers swear by its massive 16-inch full HD touchscreen that delivers stunning clarity even under direct sunlight, making every sonar return and map detail pop. Whether you're chasing trophy bass in inland lakes or stalking stripers along the coast, this chartplotter's blend of advanced sonar, preloaded charts, and seamless connectivity keeps you ahead of the fish.
Unrivaled Display and Usability
The heart of this unit is its expansive 15.6-inch diagonal IPS display with 1920 x 1080 resolution, offering vivid colors and wide viewing angles perfect for crowded boats. Touchscreen controls are intuitive, backed by physical keys for glove-friendly operation during rough seas. Its IPX7 water rating shrugs off splashes and submersion, ensuring reliability on any adventure.
Ultra High-Definition Sonar That Reveals Everything
Thanks to the included GT56UHD-TM transducer, you'll get photo-like Ultra High-Definition ClearVü and SideVü scanning sonar at frequencies up to 1200 kHz. Combine that with CHIRP traditional sonar (covering low, medium, and high ranges), and separating fish from structure becomes effortless. High-contrast color palettes make targets stand out, while support for the entire LiveScope lineup lets you watch fish react in real-time—ideal for jigging or live-lining.
Superior Mapping and Navigation
Preloaded with Garmin Navionics+ charts for U.S. inland and coastal Canada, you'll have access to depth shading, daily updates via a one-year subscription, and detailed contours. Multi-band GPS (including Galileo, BeiDou, GLONASS) with 10 Hz refresh delivers pinpoint accuracy, even in canyons or under heavy tree cover. Garmin Quickdraw Contours lets you create personalized maps on the fly, and optional upgrades like Navionics Vision+ add satellite overlays and dynamic tides.
Smart Connectivity for the Modern Angler
Wireless networking shares user data like waypoints, routes, and sonar across multiple units—no cables needed. HDMI output mirrors your screen on a larger TV for crew viewing. Bluetooth enables hands-free voice commands for trolling motor adjustments or sonar scrolling. NMEA 2000/0183 compatibility integrates with engines, radars, and autopilots, while ActiveCaptain app support keeps software current and connects to a community of anglers.
Robust Build and Performance Specs
| Category | Details |
|---|---|
| Dimensions | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
| Weight | 9.5 lbs (4.31 kg) |
| Display | 15.6" diagonal FHD IPS, 1920 x 1080 |
| Sonar Power | 600W (CHIRP traditional, UHD scanning) |
| GPS | Multi-band, 10 Hz |
| Power Draw | 3.9A typical at 12V |
| Connections | NMEA 2000, HDMI, 2 Marine Network ports, Bluetooth |
Everything You Need to Get Started
- ECHOMAP Ultra 166sv with preloaded Garmin Navionics+ charts
- GT56UHD-TM transducer for immediate UHD sonar
- Power/data cable
- Bail mounting kit with knobs
- Sun cover for protection
- Flush mount trim caps and hardware
- Full documentation
Pro Angler Tips for Maximum Performance
Mount it flush for a sleek console look or use the bail for quick removal. Pair with a Garmin Force trolling motor for voice-activated spot-lock. Network multiple units to create a sonar blanket across your spread-out crew. Regularly update via ActiveCaptain to unlock new features like enhanced fishing calendars tailored to your region.
Frequently Asked Questions
Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer
Model: 010-03386-01- 16-INCH TOUCHSCREEN WITH KEYED ASSIST
- HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
- BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
- SUPPORTS LIVESCOPE SONAR AND MORE
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
- MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
PRELOADED CHARTS: Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).
HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Specifications| General | |
| Dimension | 16.9"" x 10.5"" x 3.14"" (43.0 x 26.6 x 8.0 cm) |
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6"" x 7.7""; 15.6"" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Optional Map Support | |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| ActiveCaptain® compatible | Yes |
| Supports voice commands | Yes |
| Sailing Features | Yes |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| Panoptix™ sonar | Yes |
| Connections | |
| NMEA 2000® ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| BLUETOOTH® pairing | Yes |
What's in the Box:
- ECHOMAP Ultra 166sv with Garmin Navionics+
- GT56UHD-TM transducer
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- Hardware
- Documentation
SKU: NVN-1004358
MPN: 010-03386-01
UPC: 753759353360
