Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM Transducer
Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM Transducer — Product description
Experience Unmatched Clarity on the Water with Advanced Display Technology
Imagine navigating vast waters or hunting trophy fish with a crystal-clear view that cuts through fog, glare, and low light. The massive 16-inch full HD touchscreen delivers razor-sharp 1920 x 1080 resolution, powered by IPS technology for wide viewing angles. Whether you're flushing mounting it on your console or using the bail mount for flexibility, keyed assist ensures reliable operation even with wet hands or gloves—perfect for those rough days out.
Brightness and readability shine in all conditions, turning complex sonar returns and detailed charts into actionable insights. Anglers rave about how this big-screen setup transforms boat decks into command centers, making split-second decisions easier during competitive tournaments.
Revolutionary UHD Sonar Imaging Paired with GT56UHD-TM Transducer
Dive deeper into what's below with built-in Ultra High-Definition ClearVü and SideVü scanning sonar at frequencies up to 1200 kHz. The included GT56UHD-TM transducer doesn't just detect fish—it paints photo-like images of structure, bait schools, and wrecks. Combine this with CHIRP traditional sonar (70/83/200 kHz) for versatile coverage from shallow flats to deep offshore drops.
- LiveScope Ready: Seamlessly integrate live-scanning sonar systems for real-time views of fish behavior around your lure.
- Panoptix Support: Forward-facing and live sonar options expand your hunting grounds without guesswork.
- Vivid Color Palettes: Custom high-contrast colors separate fish from cover effortlessly, even in cluttered bottoms.
For serious offshore anglers, this setup reveals bottom details that traditional sonars miss, helping you pinpoint sweet spots faster and boat more fish consistently.
Seamless Integration and Hands-Free Control
Bluetooth voice commands put control at your fingertips—or rather, your voice—for adjusting trolling motor modes, sonar settings, or quick-access favorites without leaving the rod. HDMI output mirrors your screen on a larger TV for crew briefings or tournament live-streaming setups.
Network up to eight units via Garmin Marine Network ports, plus NMEA 2000/0183 compatibility for engines, autopilots, and Fusion-Link audio. ActiveCaptain app connectivity brings software updates, community insights, and cloud storage right to your helm.
Rugged Design Built for Real-World Demands
IPX7 water-rated and weighing in at a sturdy 9.5 lbs, this unit laughs off splashes, rain, and spray. Power it from 9-18 Vdc sources with efficient 3.9A typical draw, ensuring all-day reliability on battery or generator setups. Dimensions fit most consoles: 16.9" x 10.5" x 3.14".
What's included gets you fishing fast: the unit, GT56UHD-TM transducer, power cable, bail mount, sun cover, trim caps, hardware, and docs—no skimping here.
Pro Angler Tips for Maximizing Your Setup
Pair it with LiveScope for jigging walleye in current or spotting stripers crashing bait balls. Use SideVü to map wing walls before tournaments, saving hours of blind searching. For bass boats, flush mount it low for a sleek profile that doesn't snag lines. Regularly tweak color palettes based on water clarity—murky days love high-contrast greens and yellows.
This isn't just gear; it's a game-changer for tournament pros and weekend warriors chasing personal bests.
Frequently Asked Questions
What makes the UHD sonar on this chartplotter stand out?
The GT56UHD-TM transducer delivers photo-like ClearVü and SideVü images at ultra-high frequencies up to 1200 kHz, revealing fine details like individual fish and precise structure that standard sonars blur.
Does it support real-time live sonar systems?
Yes, it's fully compatible with LiveScope and Panoptix sonars, providing live-action views of fish movement around your boat or lures.
How accurate is the GPS tracking?
Multi-band GPS with GLONASS, Galileo, and BeiDou offers superior precision, even in GPS-challenged environments like urban marinas or dense foliage.
Can I mirror the screen to a larger display?
Absolutely, the HDMI output lets you share sonar and charts on a TV or secondary monitor for better crew visibility.
Is voice control useful for anglers?
Bluetooth voice commands handle hands-free adjustments to sonar, trolling motors, or waypoints—ideal when fighting a fish or in rough water.
What mapping options are available?
Worldwide basemap preloaded, plus support for Navionics+, LakeVü, BlueChart, topo maps, and custom Quickdraw Contours.
How many units can network together?
Wireless networking shares data across compatible Garmin units, with two large Marine Network ports for robust multi-screen setups.
Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM Transducer

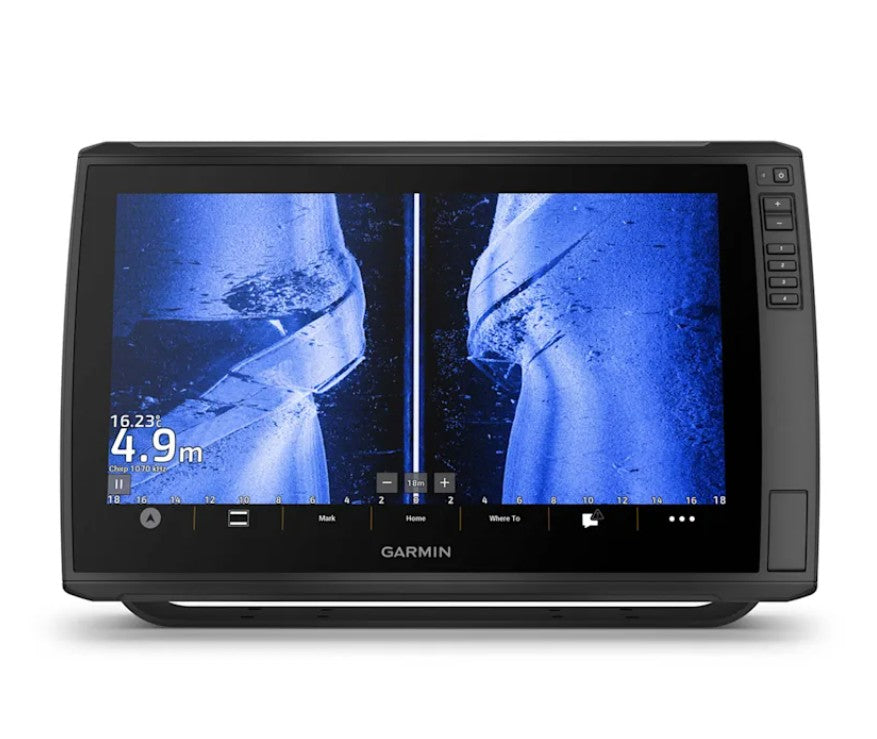

Model: 010-03385-01- 16-INCH TOUCHSCREEN WITH KEYED ASSIST
- HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
- BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
- SUPPORTS LIVESCOPE SONAR AND MORE
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
- MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Specifications| General | |
| Dimension | 16.9"" x 10.5"" x 3.14"" (43.0 x 26.6 x 8.0 cm) |
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6"" x 7.7""; 15.6"" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Optional Map Support | |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| ActiveCaptain® compatible | Yes |
| Supports voice commands | Yes |
| Sailing Features | Yes |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
| NMEA 2000® ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
What's in the Box:
- ECHOMAP Ultra 162sv
- GT56UHD-TM transducer
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- Hardware
- Documentation
SKU: NVN-1004355
MPN: 010-03385-01
UPC: 753759353339
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM Transducer |
| SKU / MFR# | 1004355 |
Set product metafields under specs.* to populate this table.
