Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap

Truck Freight Shipment ($299)

SKU: 1004337 - UPC: 753759345730 - MPN: 010-03855-00
$4,499.99 $4,499.99 ( / )

Available Stock : 5

Garmin GPSMAP 1523XSV 15" Ultrawide Chartplotter - Professional Marine Navigation Excellence Revolutionary Ultrawide Display Technology for Enhanced Helm Visibility Experience the future of marine navigation with the GPSMAP 1523XSV, featuring a stunning 15-inch ultrawide display that's 74% wider than standard 9-inch chartplotters. This advanced navigation system combines cutting-edge IPS display...
Garmin
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap Product Description

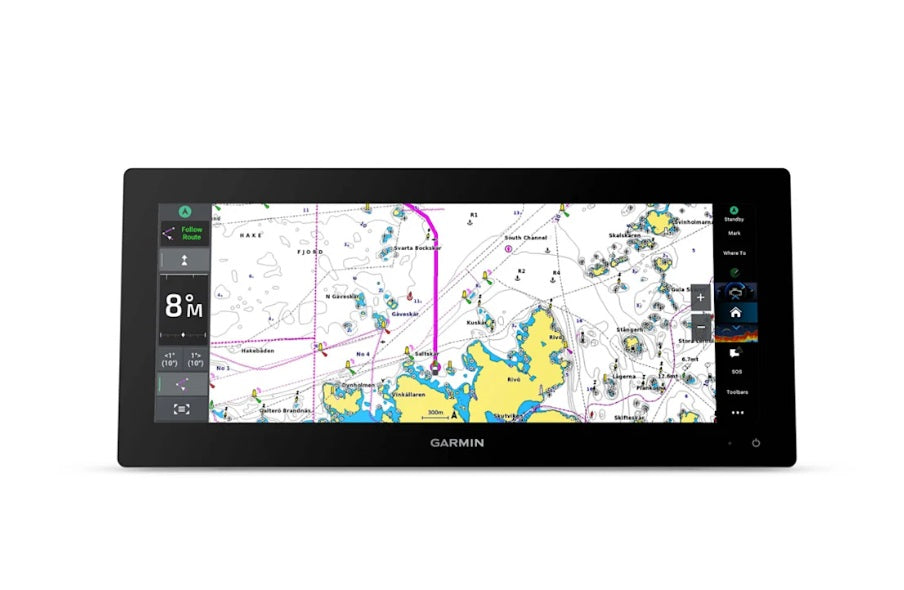

Garmin GPSMAP 1523XSV 15" Ultrawide Chartplotter - Professional Marine Navigation Excellence

Revolutionary Ultrawide Display Technology for Enhanced Helm Visibility

Experience the future of marine navigation with the GPSMAP 1523XSV, featuring a stunning 15-inch ultrawide display that's 74% wider than standard 9-inch chartplotters. This advanced navigation system combines cutting-edge IPS display technology, powerful built-in sonar capabilities, and comprehensive connectivity to deliver professional-grade performance for serious boaters and commercial operators.

Key Features & Benefits

  • Ultrawide IPS Display - 15-inch edge-to-edge glass with superior viewing angles and polarized lens compatibility
  • Enhanced Resolution - 1920 x 720 pixel display delivers exceptional clarity and detail
  • Built-in Sonar Suite - 1kW sonar including ClearVü, SideVü, Panoptix, and LiveScope compatibility
  • Preloaded Charts - Garmin Navionics+ worldwide basemap charts included
  • Advanced Networking - Comprehensive connectivity including NMEA 2000, Wi-Fi, and Bluetooth
  • Versatile Mounting - Bail, flush, or flat mount options for any helm configuration

Display Technology Excellence

Feature Specification
Display Type Ultrawide IPS (In-Plane Switching)
Screen Size 13.6" x 5.1" (14.5" diagonal)
Resolution 1920 x 720 pixels
Water Rating IPX7
Touchscreen Yes, with physical keypad
Polarized Viewability Yes

Advanced Sonar Capabilities

  • 1 kW Power Output - Exceptional depth penetration and target separation
  • Traditional Dual Frequency - Standard 2D sonar with dual beam capability
  • ClearVü Technology - Photo-like images below your boat
  • SideVü Scanning - Wide coverage scanning sonar for structure identification
  • Panoptix Support - Real-time 3D sonar when paired with compatible transducers
  • LiveScope Compatible - Industry-leading real-time sonar technology

Professional Connectivity

Connection Type Quantity
NMEA 2000 Ports 1
NMEA 0183 Input/Output 1 each
Garmin Marine Network 2 ports
12-pin Transducer Ports 1
Video Input (BNC) 1
USB Ports Yes
J1939 Ports 1

Navigation & Memory Specifications

  • Waypoints: 5,000 capacity
  • Track Points: 50,000 capacity
  • Saved Tracks: 50 tracks
  • Navigation Routes: 100 routes
  • Data Cards: 2 microSD card slots
  • GPS: Multi-constellation (GPS, GLONASS, Galileo)
  • Update Rate: 10 Hz positioning

Power & Physical Specifications

Power Input: 10-32 VDC
Typical Current Draw: 2.44A at 12VDC
Maximum Power Usage: 56.93W at 10VDC
Dimensions: 15.3" × 7.02" × 3.3"
Weight: 7.2 lbs (3.26 kg)

Complete Package Contents

  • GPSMAP 1523XSV Chartplotter - Main unit with preinstalled microSD
  • Power Cable - Marine-grade 12V power connection
  • Flush Mount Kit - Thin profile mounting with gasket
  • Protective Cover - Weather protection when not in use
  • Transducer Adapter - 8-pin to 12-pin compatibility cable
  • NMEA 2000 Starter Kit - 2m backbone cable and T-connector
  • Documentation - Installation and operation manuals

Advanced Integration Features

The GPSMAP 1523XSV excels in system integration:

  • OneHelm Integration - Connect to compatible third-party helm systems
  • Digital Switching - Control onboard systems directly from the chartplotter
  • Garmin Marine Network - Share data with other compatible Garmin devices
  • Wi-Fi Connectivity - Software updates and data sharing
  • Bluetooth Capability - Wireless device connectivity

Professional Installation Considerations

This chartplotter supports multiple mounting configurations including bail mount for portable use, flush mount for integrated appearance, or flat mount installations (requires professional tools and expertise). The ultrawide format is ideal for "floating display" configurations that maximize visibility while minimizing dashboard space.

Frequently Asked Questions

Does this unit come with a transducer?

No, this is the "No Transducer" model. You'll need to purchase a compatible Garmin transducer separately based on your sonar requirements.

What charts are included with this chartplotter?

The unit includes preloaded Garmin Navionics+ worldwide basemap charts. Additional detailed charts can be purchased separately.

Can I use my existing Garmin transducer?

The unit includes an 8-pin to 12-pin adapter cable for compatibility with many existing Garmin transducers. Verify compatibility before installation.

Is professional installation required?

While not required for basic installations, professional installation is recommended for flush or flat mounting and complex system integration.

Can I connect this to my existing NMEA network?

Yes, the unit includes NMEA 2000 and 0183 connectivity and comes with starter cables for network integration.

Professional Marine Navigation Excellence

The GPSMAP 1523XSV represents Garmin's commitment to advancing marine navigation technology. With its revolutionary ultrawide display, comprehensive sonar suite, and advanced connectivity, this chartplotter delivers the performance and reliability that professional mariners and serious recreational boaters demand for safe, efficient navigation in any conditions.

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap

Model: 010-03855-00
  • ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS
  • CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS
  • EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY
  • NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+™ CHARTS ON SELECT MODELS
  • SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES
  • MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

Specifications
General
Weight 7.2 lbs (3.26kg)
Water rating IPX7
Touchscreen Yes
Display Type Ultrawide display, IPS
Display Size 13.6"" x 5.1""; 14.5"" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)
Display resolution 1920 x 720 pixels
Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Polarized lens viewability Yes
Maps & Memory
Accepts Data Cards 2 microSD cards (back of device)
Compatible with Garmin SD card reader Yes (USB card reader)
Waypoints 5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
GPS Yes
GLONASS Yes
Galileo Yes
Has built-in receiver Yes
Receiver 10 Hz
NMEA 2000 Compatible Yes
NMEA 0183 Compatible Yes
Supports WAAS Yes
Supports multi-band, multi-constellation GPS Yes (with external GPS antenna)
Electrical Features
Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 2.44 A
Maximum current draw at 12 Vdc 4.21 A
Maximum power usage at 10 Vdc 56.93 W
Sonar Features
Displays sonar Yes
Power output 1 kW
Traditional sonar (dual frequency/beam) Yes
ClearVü Yes
SideVü Yes
Panoptix sonar Yes
LiveScope Yes
Connections
NMEA 2000 ports 1
NMEA 0183 Input (Rx) Ports 1
NMEA 0183 output (Tx) ports 1
Video input ports 1 (BNC composite)
J1939 ports 1
Garmin Marine Network Ports 2
12-pin transducer ports 1
USB ports Yes
BLUETOOTH pairing Yes (BLE)
Garmin Wi-Fi network (local connection) Yes
Input Voltage 10 to 32 Vdc
Dimensions 15.3"" x 7.02"" x 3.3"" (388.9 x 178.5 x 82.9 mm)

What's in the Box:
  • GPSMAP 1523xsv ultrawide chartplotter
  • microSD card preinstalled
  • Power cable
  • Thin flush mount kit with gasket
  • Protective cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • 2 m backbone/drop cable and T-connector for NMEA 2000 Network
  • Documentation
